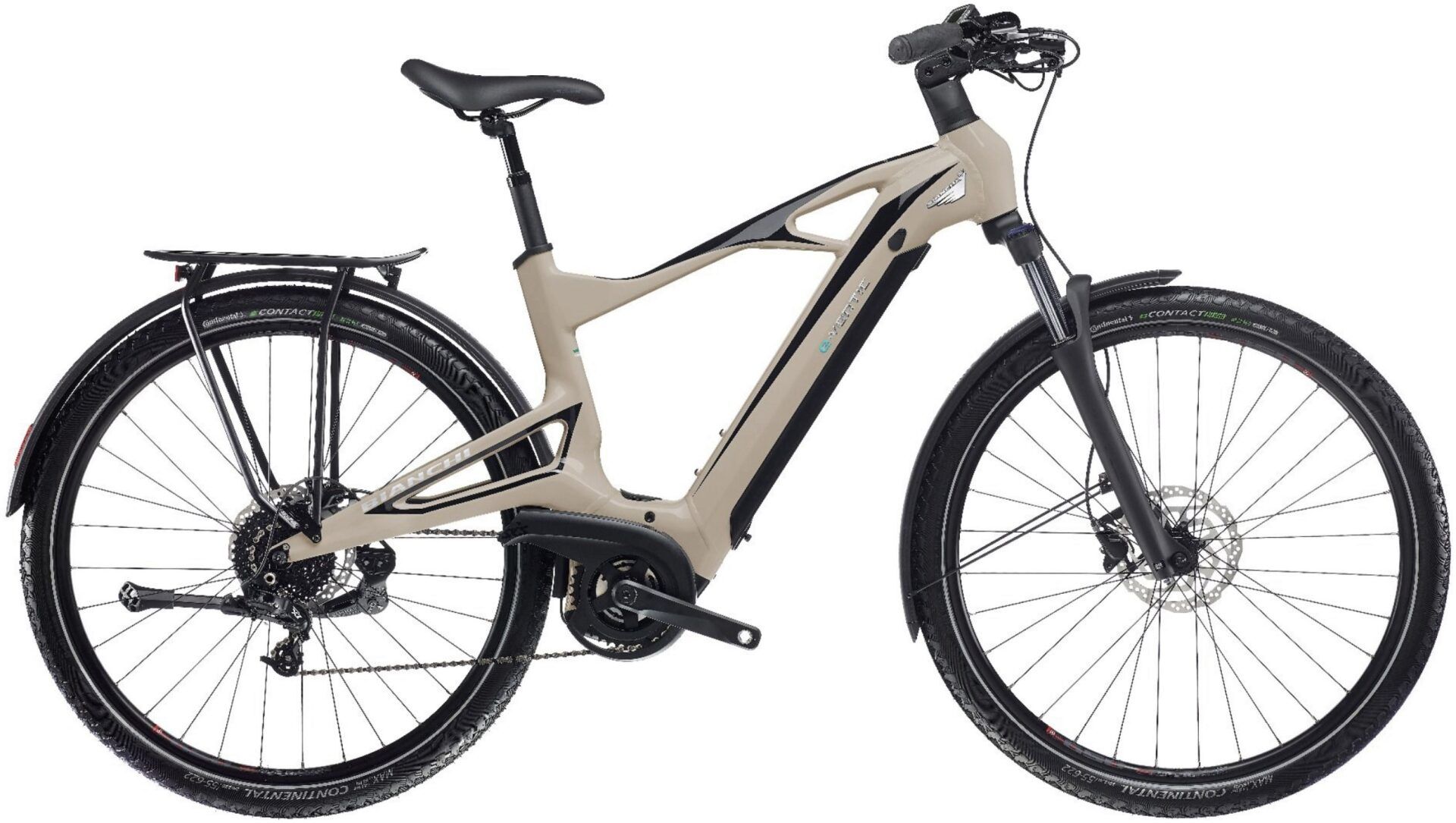

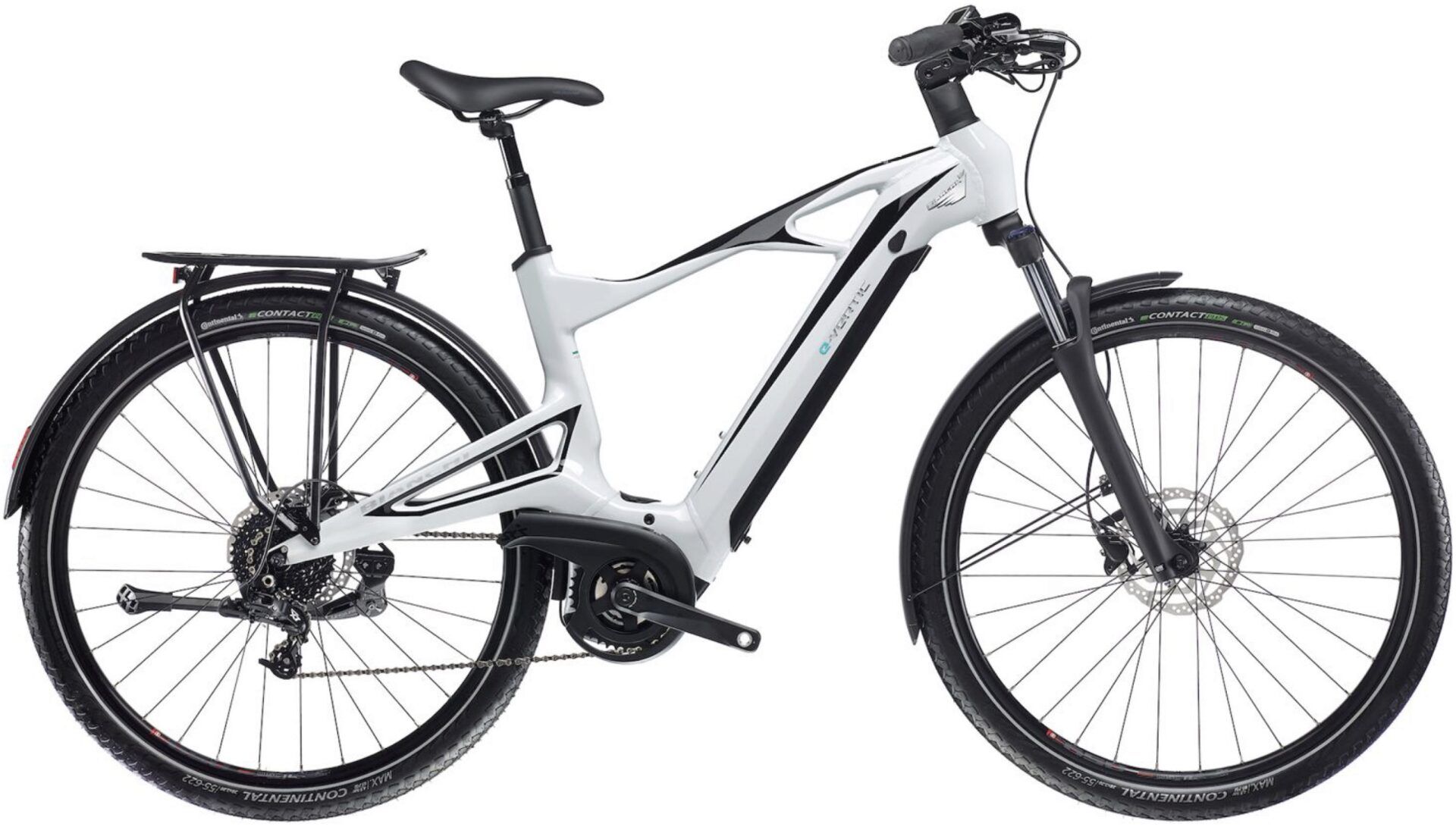

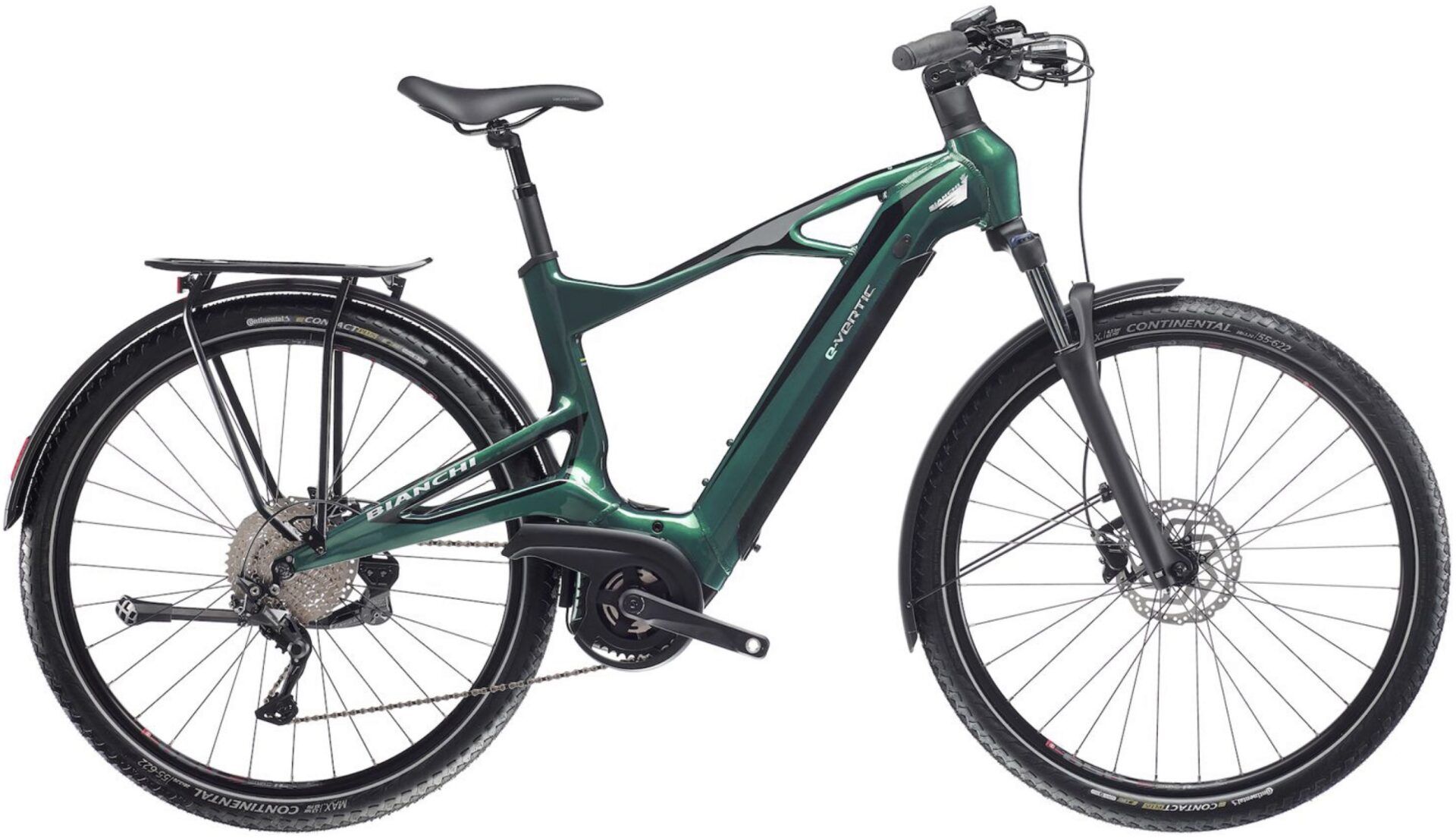

Bianchi E-Vertic T Type Deore Electric Bike
| Brand | Bianchi |
|---|---|
| Suitable for | Everyone |
| Wheel Size | 700c |
Please Note: The image shown is indicative only, components and graphic designs may differ from the actual model.
Engineered for all journeys, from the city to the countryside, enjoy the ride with the e-Vertic T-Type touring bike.
Specifications
Frame and Forks
- Frame: e-VERTIC T-Type ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type - Internal cable routing in steerer - 625Wh compatible
- Fork: Suntour NVX30 NLO DS 29", 100mm travel, 1.1/8" straight headtube, without 9x100 quick release, minimum 160mm rotor, maximum 180mm rotor, 30mm stanchions
Drivetrain
- Shifters: Shimano, SL-M4100-R, DEORE, 10-speed
- Rear Derailleur: Shimano, RD-M4120, DEORE, SGS 10/11-speed
- Crankset: FSA CK-220, Alloy, 170mm FSA Steel Chainring 38Tooth
- Bottom Bracket: Included in the motor
- Chain: KMC e10S NPBK
Braking/Shifting
- Brakes: Promax, DSK-925
- Rotor: Promax DSK-925, 180mm, center lock
Wheels
- Front Hub: Shimano, HB-TX505, 32hole OLD:100mm AXLE:108mm, QR:133mm
- Rear Hub: Shimano, FH-TX505-8, 32hole 8/9/10/11-speed, OLD:135mm, AXLE:146mm, QR:170mm
- Rims: EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm
- Tyres: Continental 55-622 eContact Plus
Finishing Kit
- Headset: Acros Headset 1.5" top / 1.5" - integrated cable routing
- Handlebar: Velomann 31.8/680mm, rise 20mm, sweep 15°
- Stem: Velomann aluminium adjustable, integrated cable routing, Barbore 31.8 mm, Extension 90 mm
- Grips: Herrmans GRIPset Oxy
- Saddle: Velomann, size 270x162mm, 385gr.
- Seat Post: Velomann travel 50mm, suspension seatpost
- Pedals: VP, axle 7mm boron steel, EPB system, size 112x83.3mm, reflector included
- Weight: Not listed
Extras
- Mudguards: Racktime Alumee 62mm, 28"
- Kickstand: Bianchi Custom
- Rear Carrier: Racktime, 28", Max load 25Kg
Electric Power
- Motor: Bosch Performance Line, 250W, 65Nm, Purion display
- Battery: Bosch Powertube 500Wh integrated battery
- Front Light: Lezyne, 65 lux
- Rear Light: Trelock RearLight MudGuard Ebike6-12V
