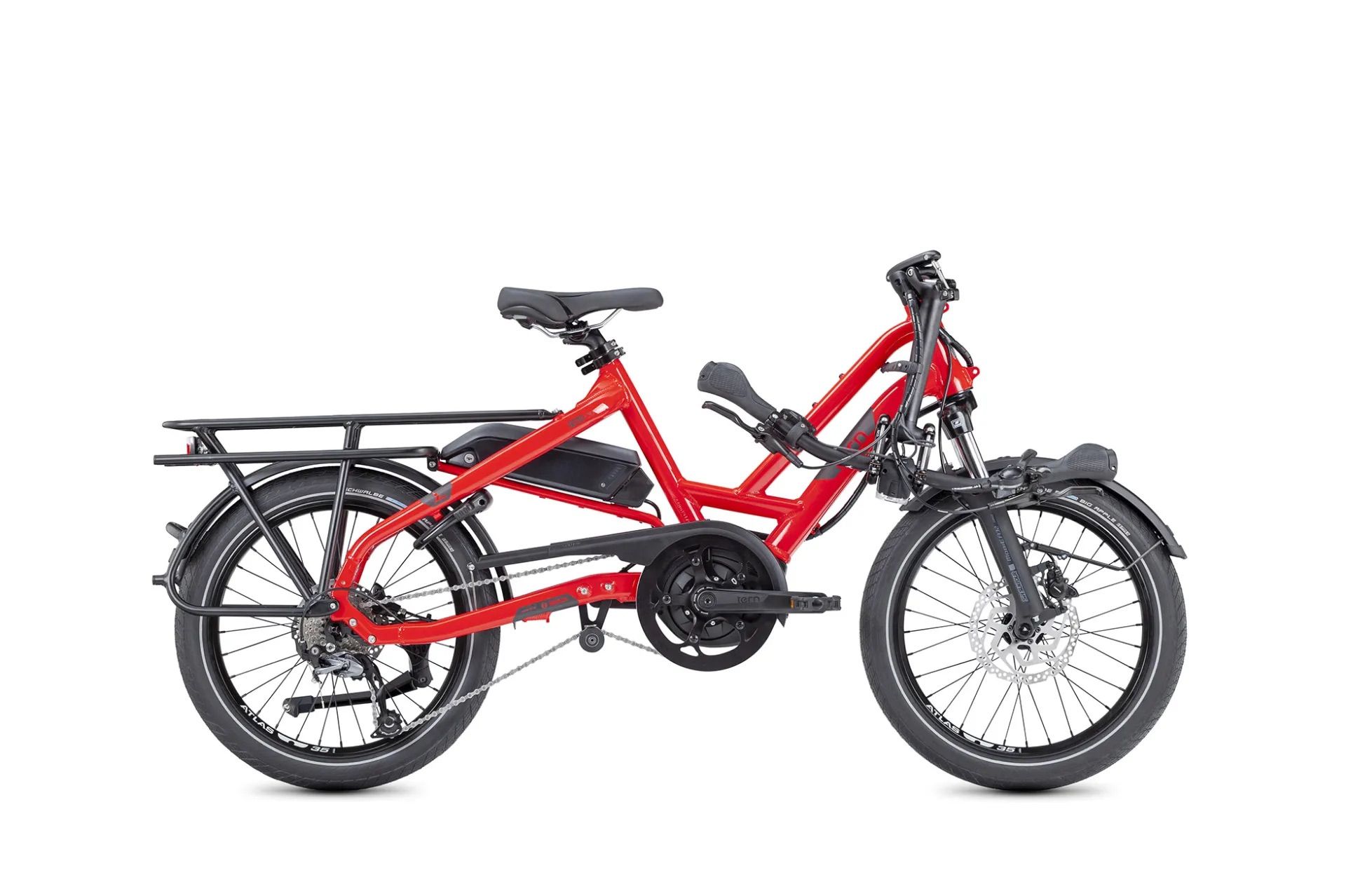

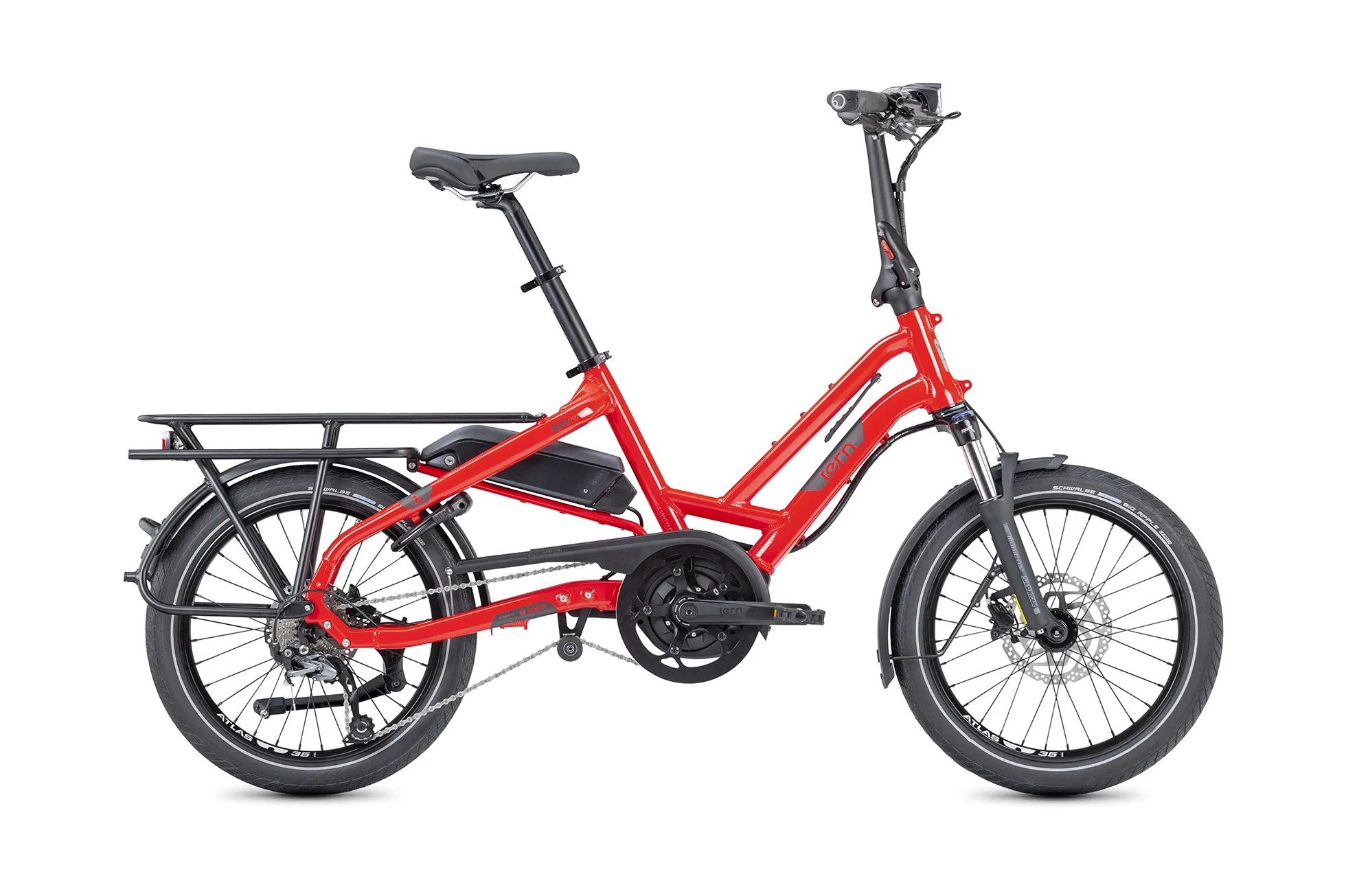

Tern HSD P9 Performance 2023 Electric Cargo Bike
£3,700.00
Currently out of stock - no estimated delivery date
PRODUCT CODE: VEL4349
| Brand | Tern |
|---|---|
| Colour | Red |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
- New colors and updated styling
- Upgraded to the Bosch Performance electric drivetrain for 300% more assistance and 65 Nm of torque
- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik

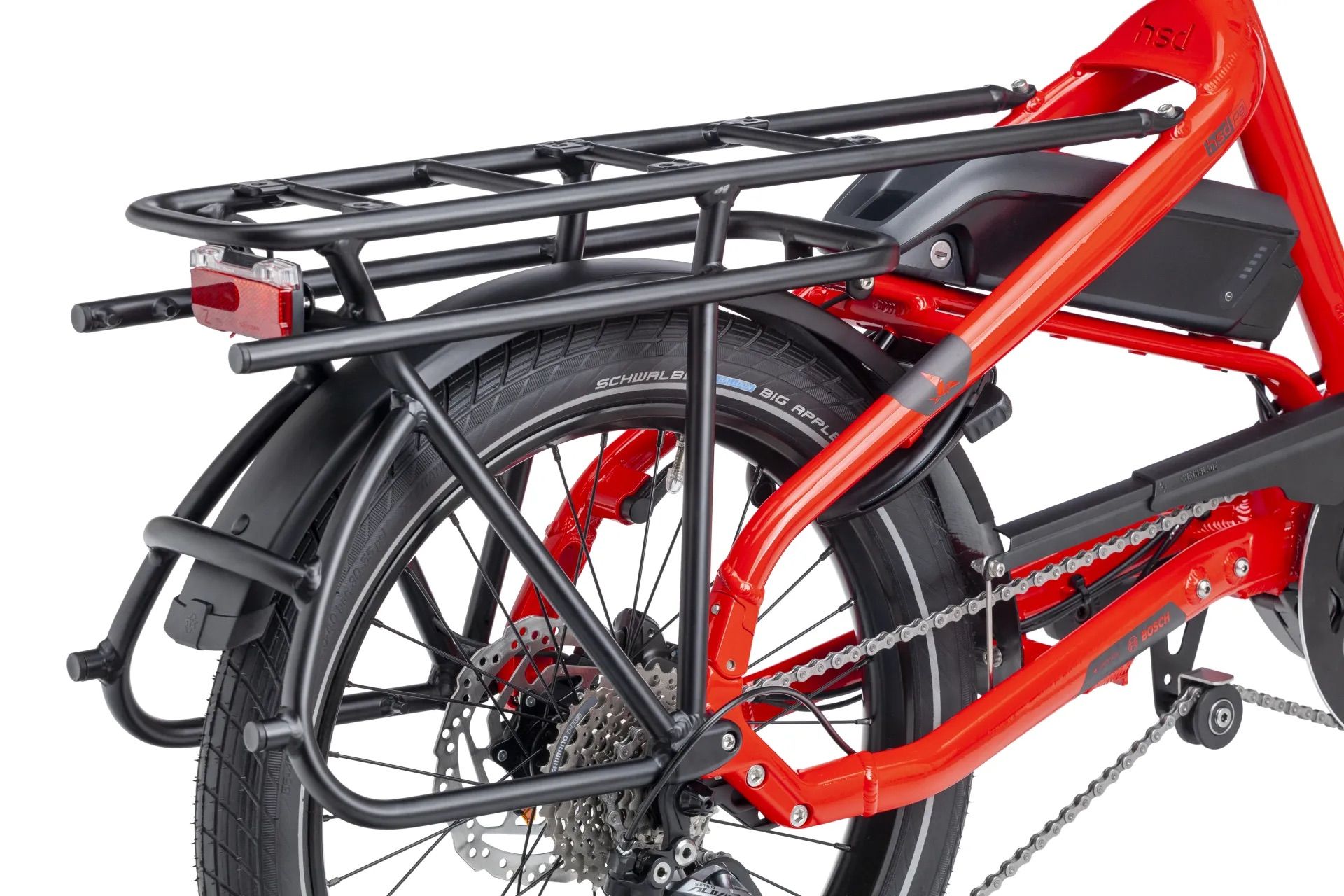

- Integrated Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb) works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
- Fits easily on buses, subways and taxis for electric multi-modal commuting
Specifications
Frame and Forks
- Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg

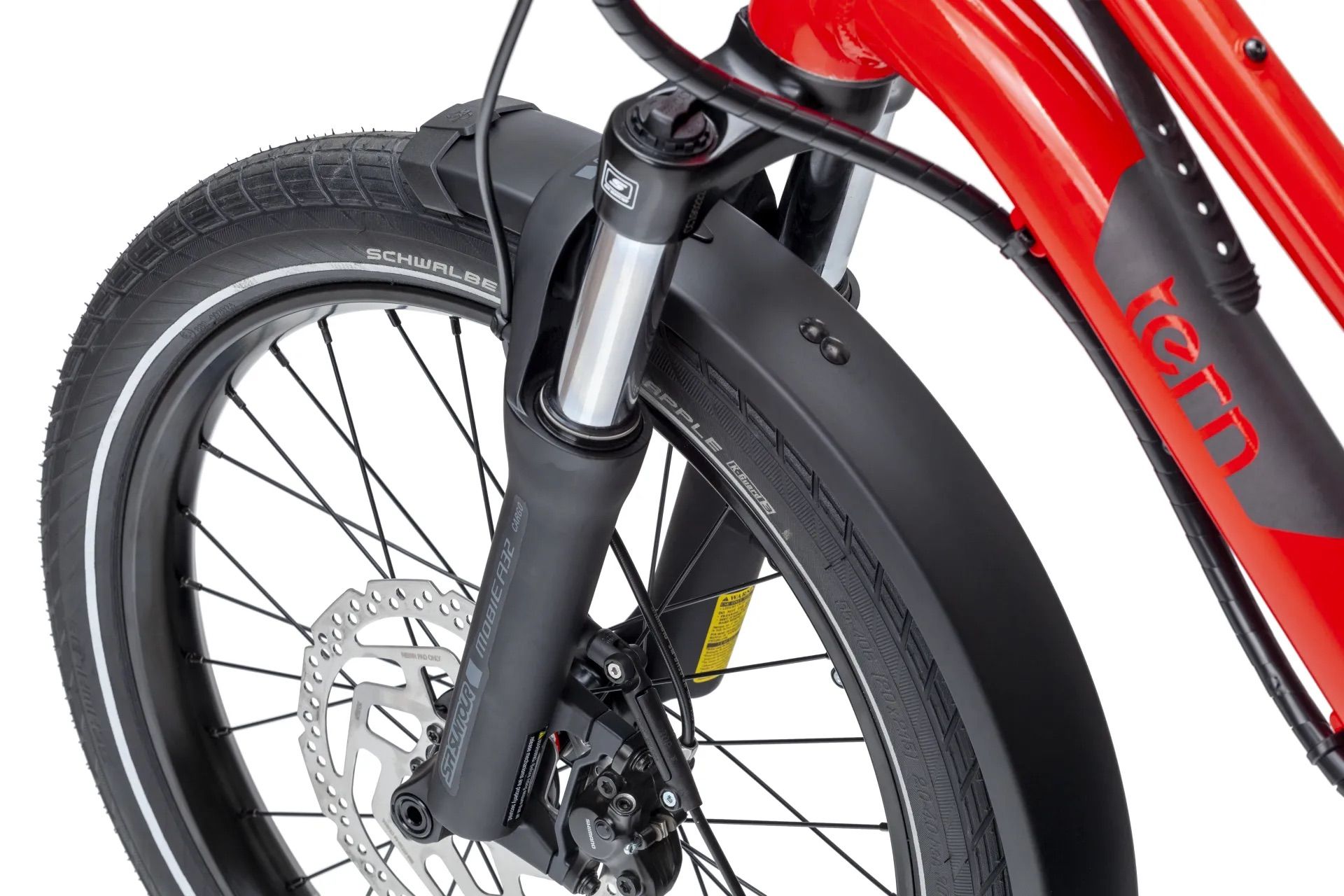

- Forks: Suntour custom for Tern, Chromoly steerer, 32mm stanchions, Thru-axle, 70mm travel, EFBE approved: 170 kg
Drivetrain
- Crankset: Tern HSD custom
- Rear Derailleur: Shimano Alivio Shadow
- Cassette: Shimano Shimano 11-32 Tooth, 9 Speed
- Chain: 9 Speed, DHT for eBike, GST corrosion resistant coating
Braking/Shifting
- Shifters: Shimano Alivio, 1 x 9 Speed, trigger
- Front Brakes: Shimano, hydraulic disc, 180mm rotor
- Rear Brakes: Shimano, hydraulic disc, 180mm rotor
- Brake Levers: Shimano, hydraulic disc
Wheels
- Front Wheel: Tern Atlas H, cargo wheel
- Rear Wheel: Tern Atlas H, cargo wheel
- Front Hub: Novatec, Thru-axle, sealed bearings
- Rear Hub: Shimano disc
- Spokes and Nipples: Stainless steel
- Rims: Tern Atlas H, wide 35mm
- Tyres: Schwalbe Big Apple, 55-406, puncture protection, Reflex
Finishing Kit
- Handlebars: Tern Sweep, 6061-AL, Tern Andros adapted
- Stem: Tern Andros, adjustable, forged construction, patented technology
- Seatpost: Tern Telescope, 34.9 / 30.9 mm, 2014-AL
- Saddle: Tern Upright by Velo
- Pedals: Urban with non-slip surface
Electric Power
- Motor: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: Bosch PowerPack 500
- Display: Bosch Purion
- Range: 500 Wh: 51-118 km (32-74 mi)
- Charger: 220V, 4A (EU); 100-240V, 4A (US)
