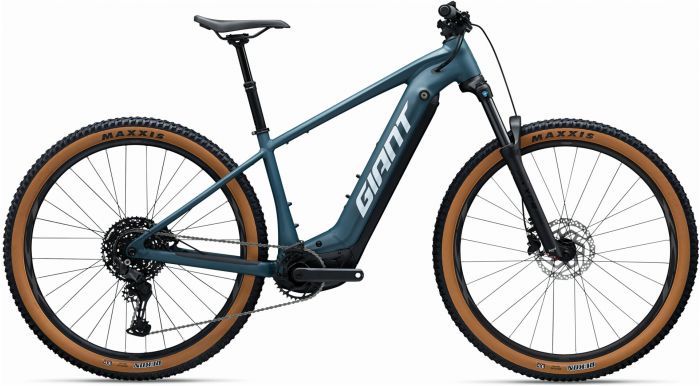

Giant Fathom E+ 2026 Electric Bike

More Information
Brand	Giant
Colour	Deep Lake
Suitable for	Everyone
Wheel Size	29-inch

Giant started out building Chromoly frames in 1972 and have since pioneered the construction of Aluminium and Composite frames and components. Many of their high-end bikes have won championships and design awards, and with over 12,000 Giant dealers around the world, their long standing reputation clearly precedes them.

Skip to the beginning of the images gallery

Details

Take control of the trail with this fun new hardtail E-bike. Now you can climb with greater ease and ride farther-the perfect formula for a great day on the trail.

Features

Smooth Power Delivery

The new SyncDrive Sport motor delivers smooth, instantaneous power with 75Nm of torque to help riders climb steep hills and extend their trail riding capabilities.

Balanced, Confident Handling

Lightweight aluminium frame with trail-friendly geometry, 130mm of front suspension travel, and stable 29-inch wheels with tubeless tyres puts you in control even in the toughest off-road terrain.

Long-Lasting Battery

Integrated EnergyPak Smart with 625Wh of capacity is easy to charge up to 80 percent in 2.5 hours with Giant's 4A Fast Charger.

Technologies

Aluxx SL Aluminium Technology: This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for high-performance ride quality.
Energypak: Giant's latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding.
Energy Pak Plus: This range extender can boost total capacity by 250Wh. It has all the latest technologies combined with an up-to-date design that fits a select number of bikes. It has smart technology so it automatically turns on when your battery loses power, giving you peace of mind that you can reach your destination.
Ride Control Dash: This two-in-one unit features buttons to control support modes plus an integrated colour display. You can check range, battery level and support mode, along with standard cycling data such as speed and distance without having to another screen to the E-bike. It also has an ANT+ connection so you can connect a heart rate monitor and other fitness devices.
Smart Assist: All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider's needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only E-Bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don't need as much.
Sync Drive Pro 2: The SyncDrive Pro 2 motor delivers 85Nm of torque and up to 400% support. Powered by a 36V system, it runs cooler and more efficient, blending seamlessly with rider input for lasting, responsive performance on any terrain.

Specification

Frame and Forks

Frame: ALUXX Aluminum, Overdrive 1.125" - 1.8" Head Tube, 148 x 12mm Thru-Axle, Integrated KSA40 Kickstand Mount
Forks: SR Suntour XCR34 2CR Coil Boost 130mm Travel 15 x 110mm AH Axle

Drivetrain

Crankset: Forged Allumin Direct-Mount Chainring Steel 36 Tooth, Forged Alumium Crank Arms
Rear Derailleur: Shimano Cues 10-Speed
Cassette: Shimano Cues 11-48 Tooth 10-Speed
Chain: Shimano LinkGlide CN-LG500

Braking/Shifting

Shifters: Shimano Cues
Brakes: Shimano MT200, Hydraulic Disc, 180mm
Brake Levers: Shimano BL-MT200

Wheels

Rims: Giant XCT 29 Tubeless Ready 25mm E-Bike Optimising
Hubs: ETracker Boost Alloy 6 Bolt Disc 15 x 110mm
Hubs: ETracker Boost Alloy 6 Bolt Disc 12 x 148mm
Spokes: Stainless Steel
Tyres: Maxxis Rekon 29 x 2.4", EXO, 60TPI

Finishing Kit

Handlebars: Giant Connect TR Riser 31.8 x 750mm [Small], 780mm [Medium-XX-Large]
Grips: Giant Sole-O
Stem: Giant Contact
Seatpost: Giant Contact Switch Core Dropper Seatpost, 100mm Travel
Saddle: Giant Ergo Contact Trail, ESG
Pedals: Anti-Slip Platform

Electric Power

Motor: Giant SyncDrive Pro 2 85Nm PedalPlus 6-Sensor Technology
Battery: Giant EnergyPak Smart 750Wh
Charger: Giant EnergyPak Smart Charger 4A
Display: Giant RideControl Dash 2, High-Angle Visibility, Full Color LCD Display
Controller: Giant RideControl Dash 2, Smart Assist Automatic Mode, 5 Support Levels
