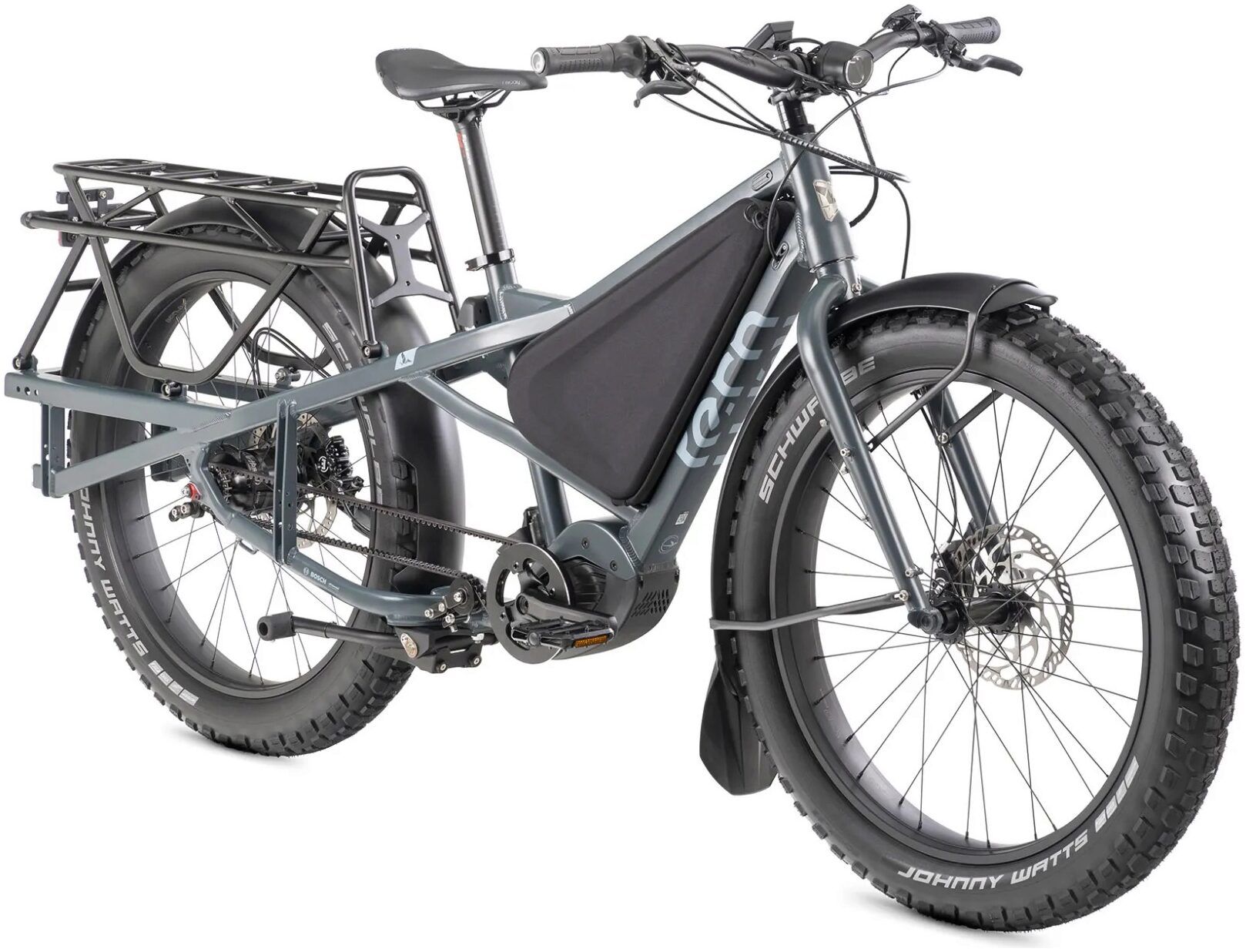

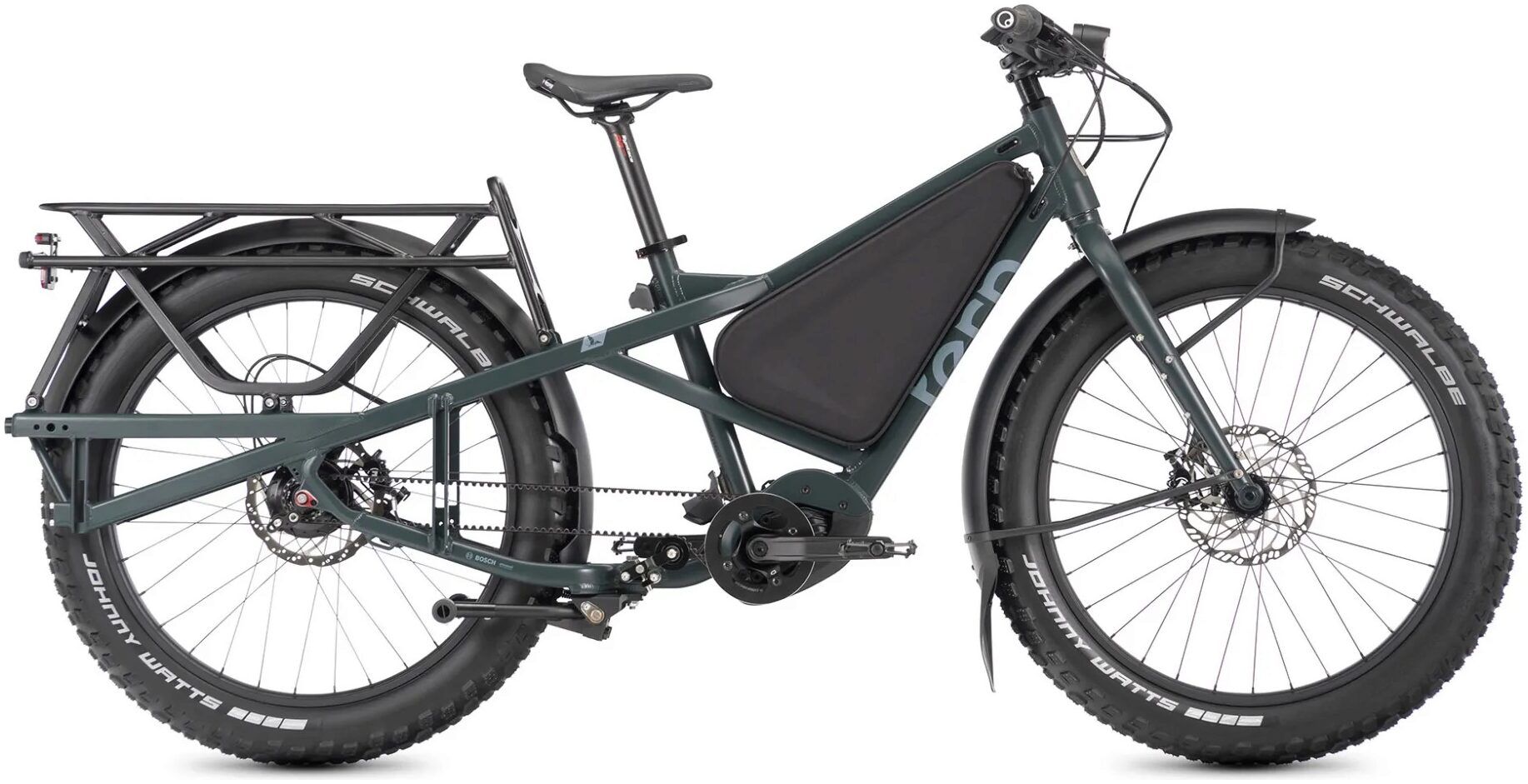

Tern Orox R14 2024 Electric Bike

More Information
Brand	Tern
Colour	Granite
Suitable for	Everyone

Tern specialise in folding bikes and folding electric bikes. Their prime motive other than to provide you with an efficient and user-friendly cycling experience is to help preserve the environment. You will find many well-considered features on all of their models and they are an absolute pleasure to ride.

Skip to the beginning of the images gallery

Details

What makes it an R14?

Highly-durable and virtually maintenance-free Rohloff Speedhub
Silent, smooth, and rust & grease-free Gates Belt Drive
Custom 27.5" Schwalbe Johnny Watts all-terrain tires with optimized tread take on even the toughest conditions

Orox highlights

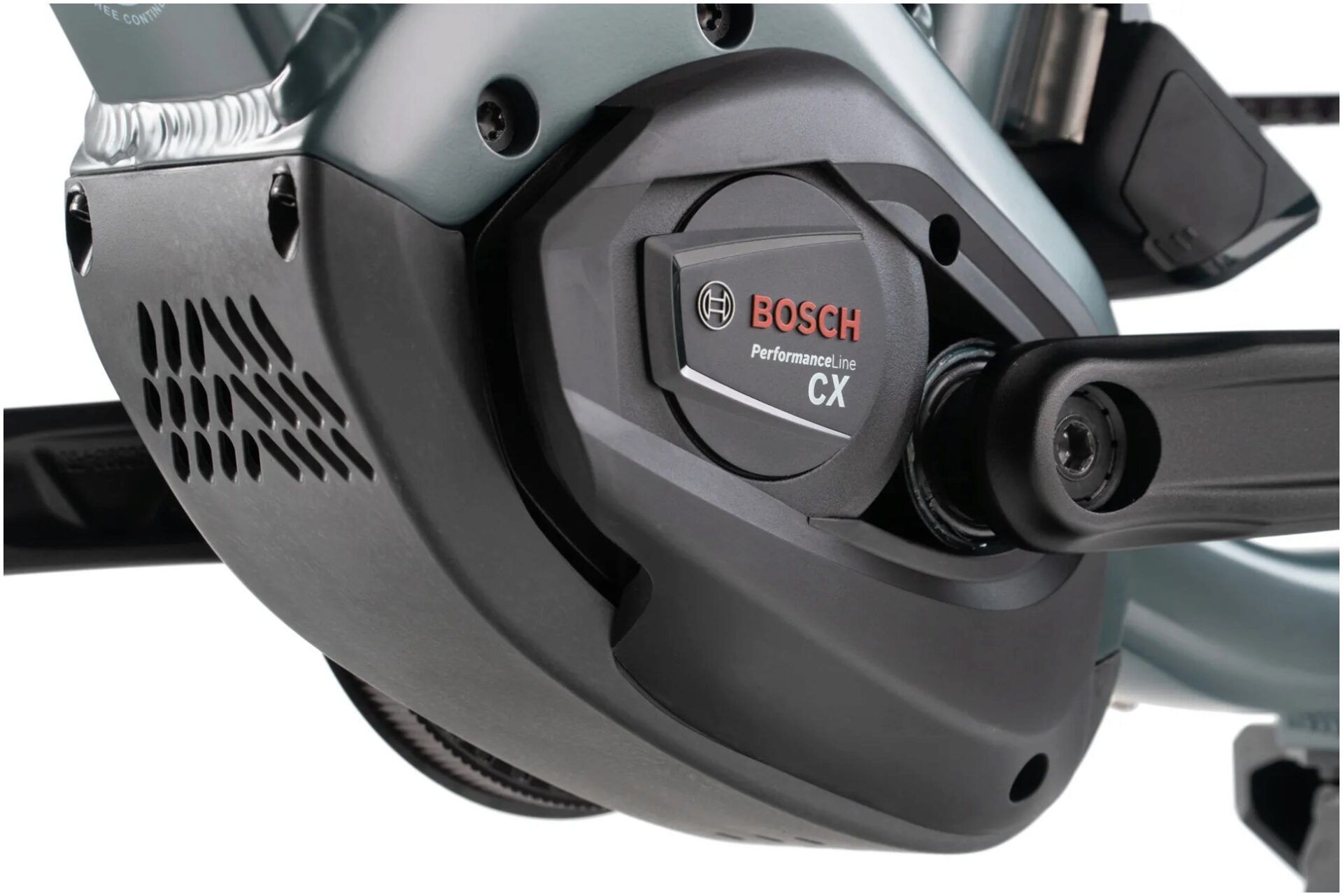

Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
Dual-battery system draws from up to two batteries for ultra-long range
Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking

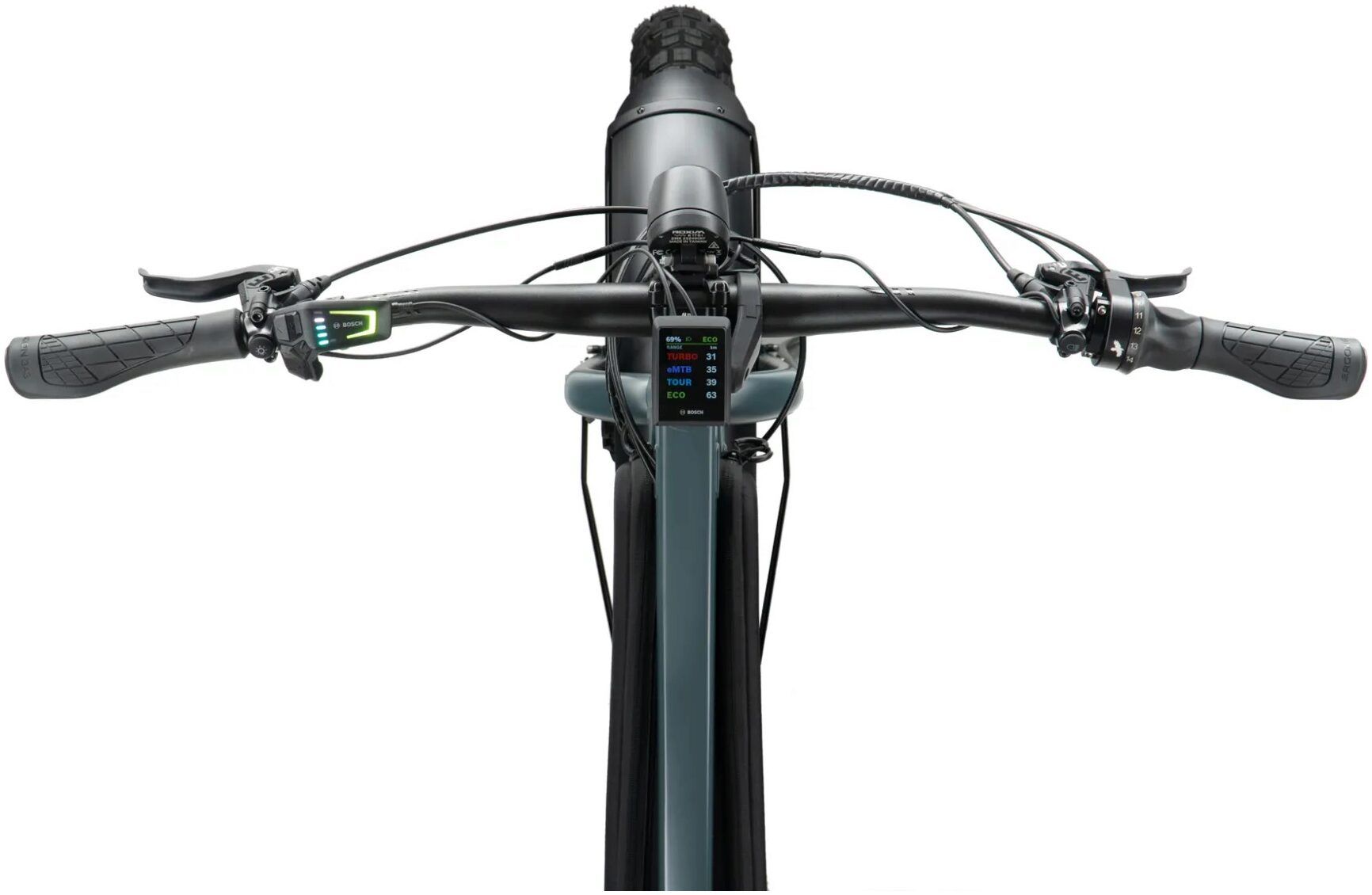

Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
Powerful and responsive Magura 4-piston hydraulic brakes
EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
Two frame sizes to fit riders 155 - 195cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

Specifications

Frame and Forks

Frame: Tern Orox, 6061-AL, patented design, EFBE tested and approved
Forks: Atlas X, butted chromoly steel, EFBE tested and approved
Headset: FSA, 1.5", angular contact bearings

Drivetrain

Crankset: Tern Orox custom, Gates CDX CNC machined beltring
Cassette: Gates CDX, precision CNC machined cog
Chain: Gates Carbon Drive CDX Belt

Braking/Shifting

Shifters: Rohloff, Twist
Front Brake: Magura MT5, 4-piston hydraulic disc, 203mm
Rear Brake: Magura MT5, 4-piston hydraulic disc, 203mm
Brake Levers: Magura MT5, hydraulic

Wheels

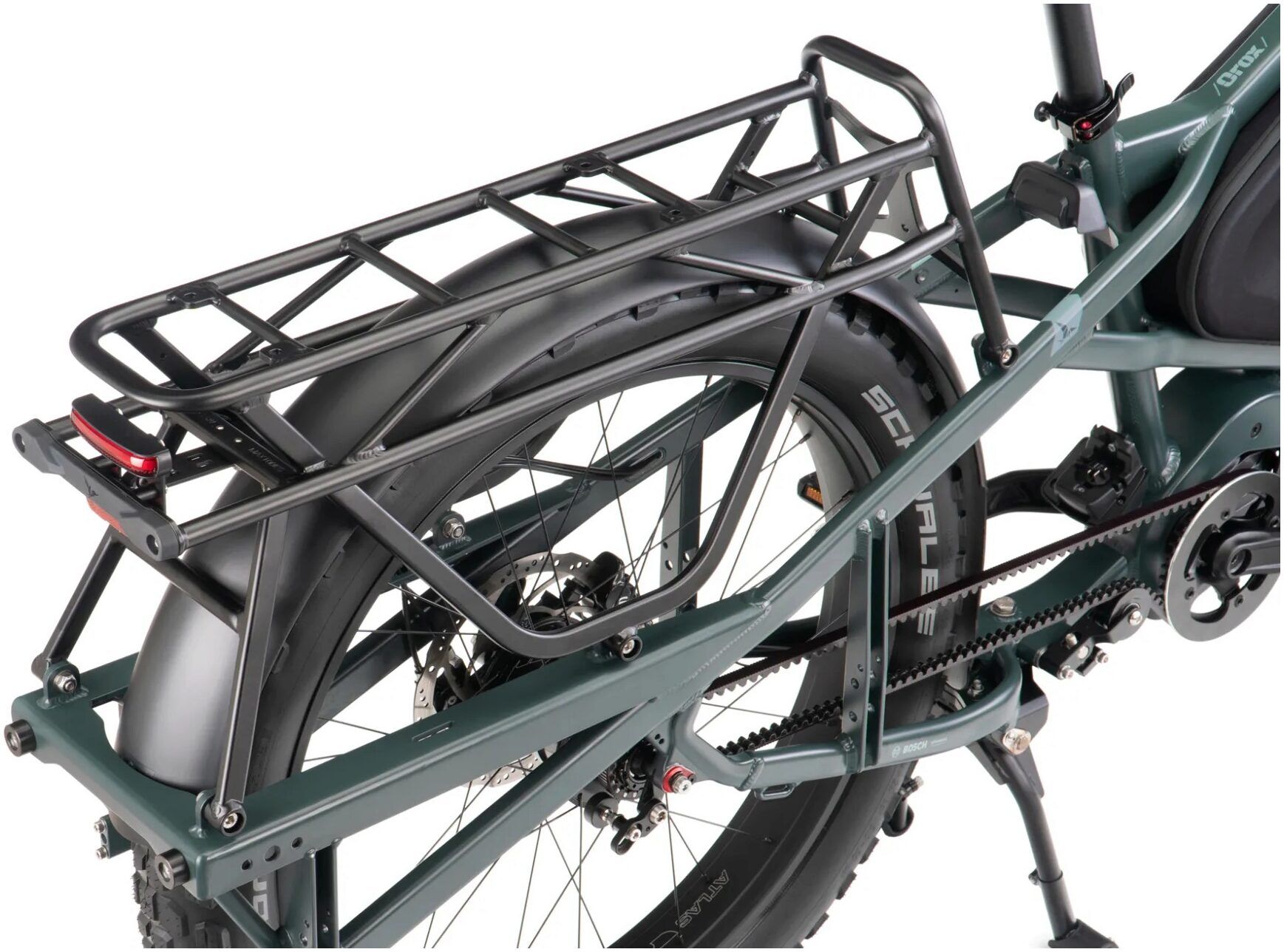

Wheelset: Tern Atlas X, ultra-heavy duty cargo construction
Front Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex / T20 Torx

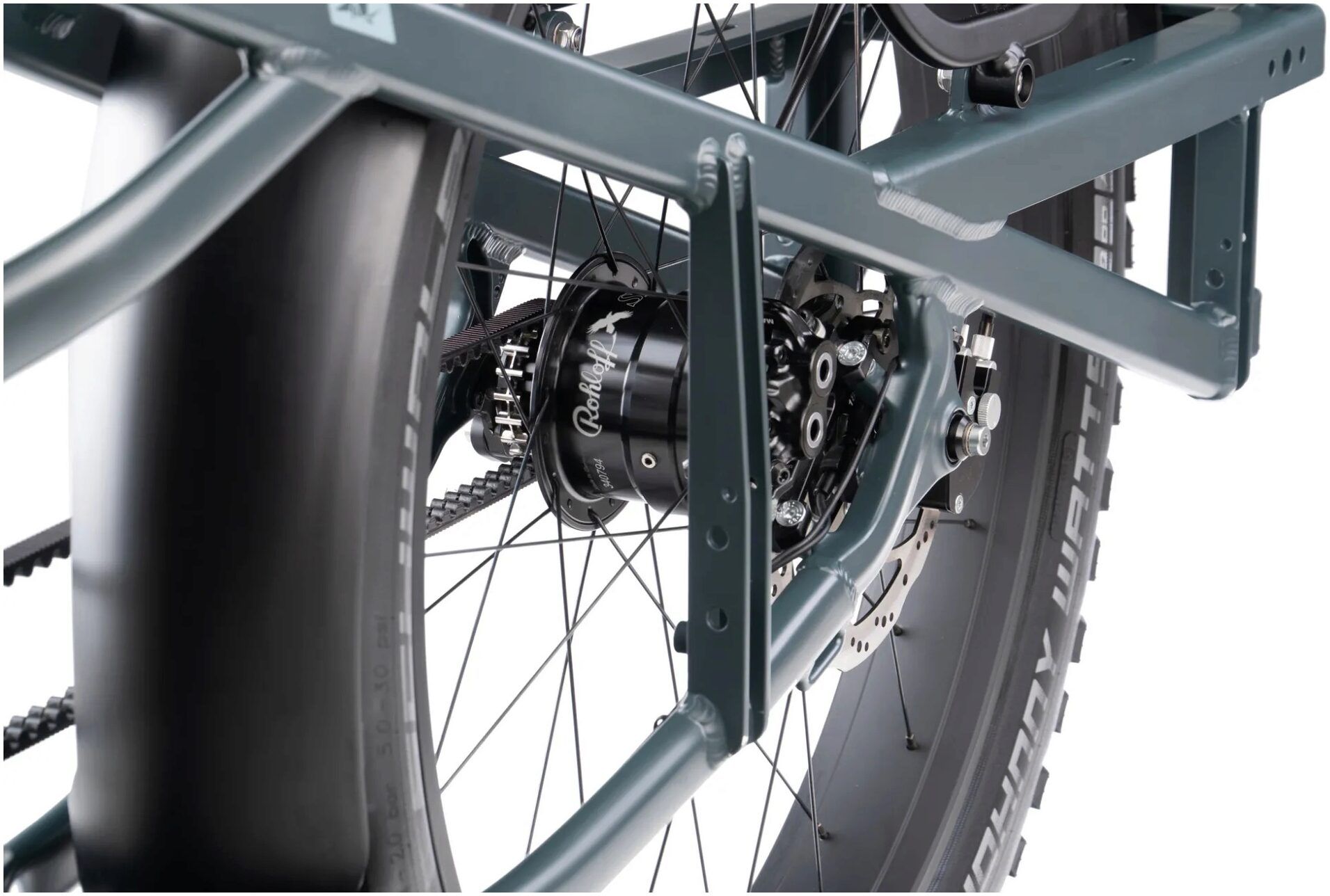

Rear Hub: Rohloff, 526% range, Boost

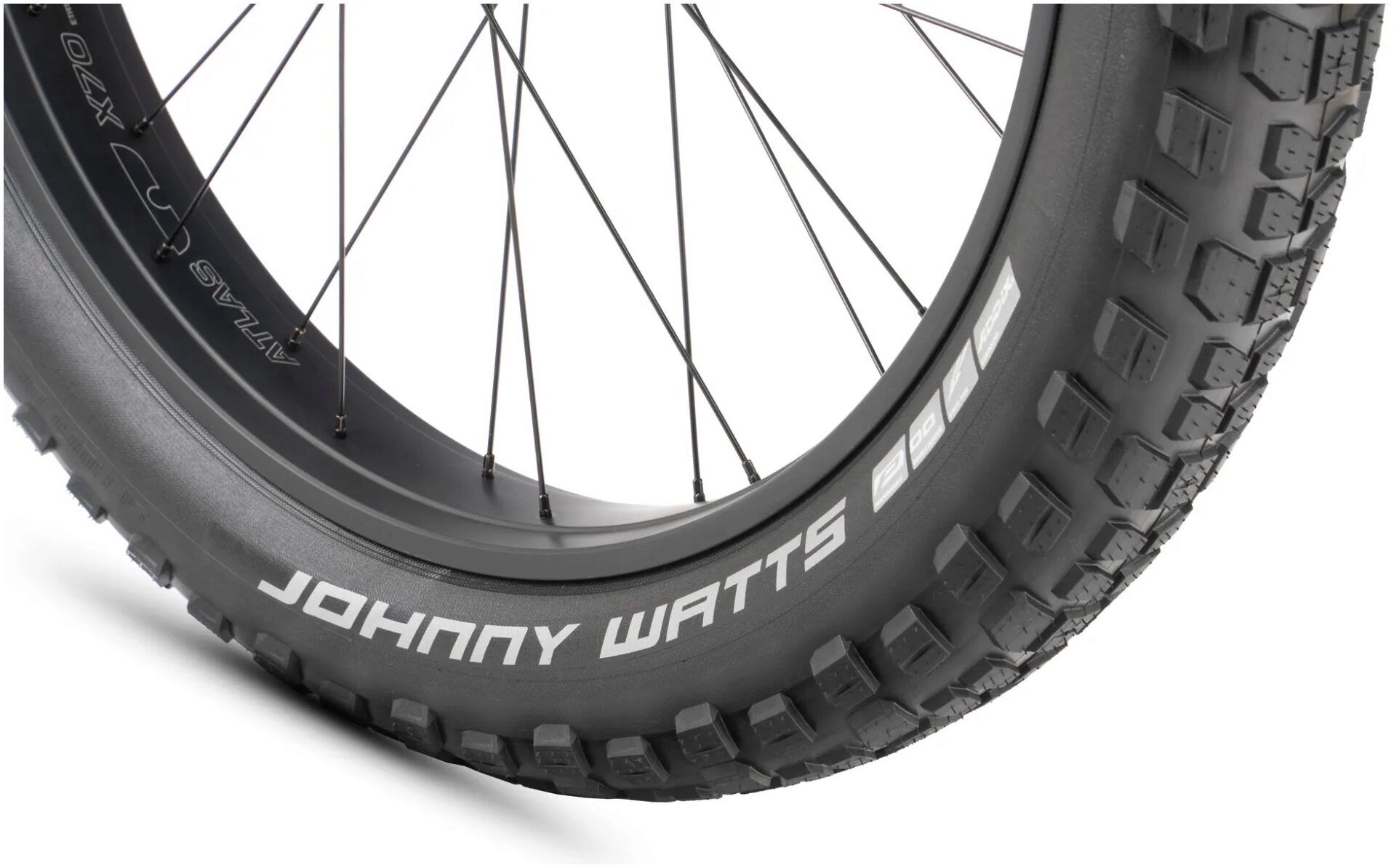

Tyres: Schwalbe Johnny Watts
