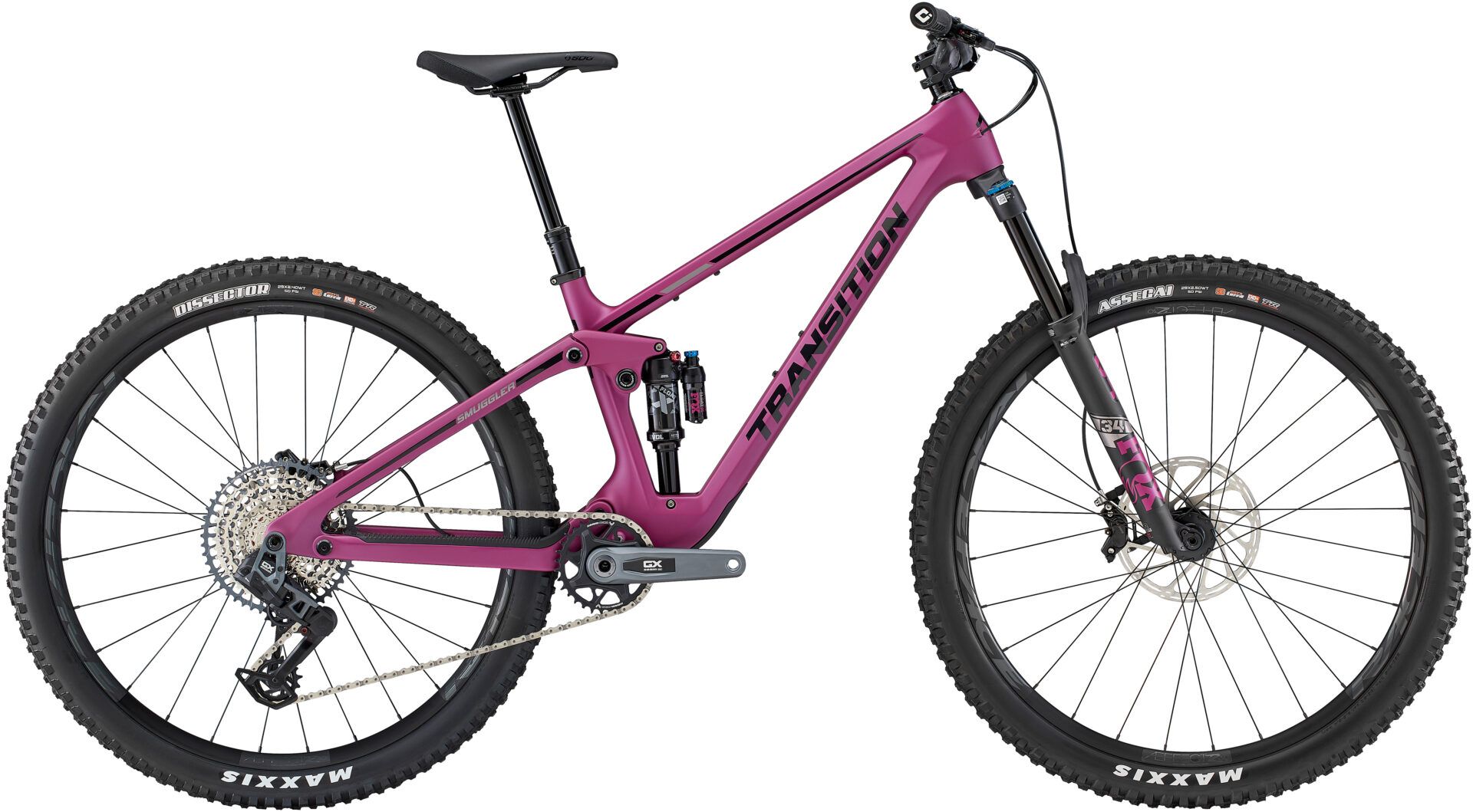

Transition Smuggler Carbon GX AXS 2025 Bike

The Trusty Tool For Any Trail

Like the reliable tool you grab for every job, the Smuggler is the go-to bike for any trail pointed up, down, and all around.

With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in Transition's line-up. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favourite single-track, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.

Specification

Frame and Forks

• Frame: Smuggler Carbon 130mm
• Forks: Fox Float 34 Grip 2 Performance Elite (140mm)
• Headset: FSA NO.42 / 48 / ACB
• Rear Shock: Fox Float X Performance Elite (210 x 50mm)

Drivetrain

• Crankset: SRAM GX AXS (170mm x 32 Tooth)
• Derailleur: SRAM GX AXS
• Cassette: SRAM GX AXS (10-52 Tooth)
• Chain: SRAM GX AXS

Braking/Shifting

• Shifters: SRAM GX AXS
• Brakes: SRAM Code Silver Stealth
• Front Rotor: SRAM Centerline (200mm)
• Rear Rotor: SRAM Centerline (180mm)

Wheels

• Rims: Raceface Aeffect R
• Hubs: Raceface Trace 28 Hole
• Spokes: Raceface 2.0/1.7/2.0

Finishing Kit

• Handlebars: ANVL Mandrel Alloy 35, Small (800 x 20mm) Medium / Large / X-Large (800 x 30mm) XX-Large (800 x 40mm)
• Grips: ODI Elite Flow
• Stem: ANVL Swage (40mm)
• Seatpost: OneUp Dropper Post, Small (150mm), Medium (180mm) Large / X-Large / XX-Large (210mm)
• Saddle: SDG Bel Air V3
