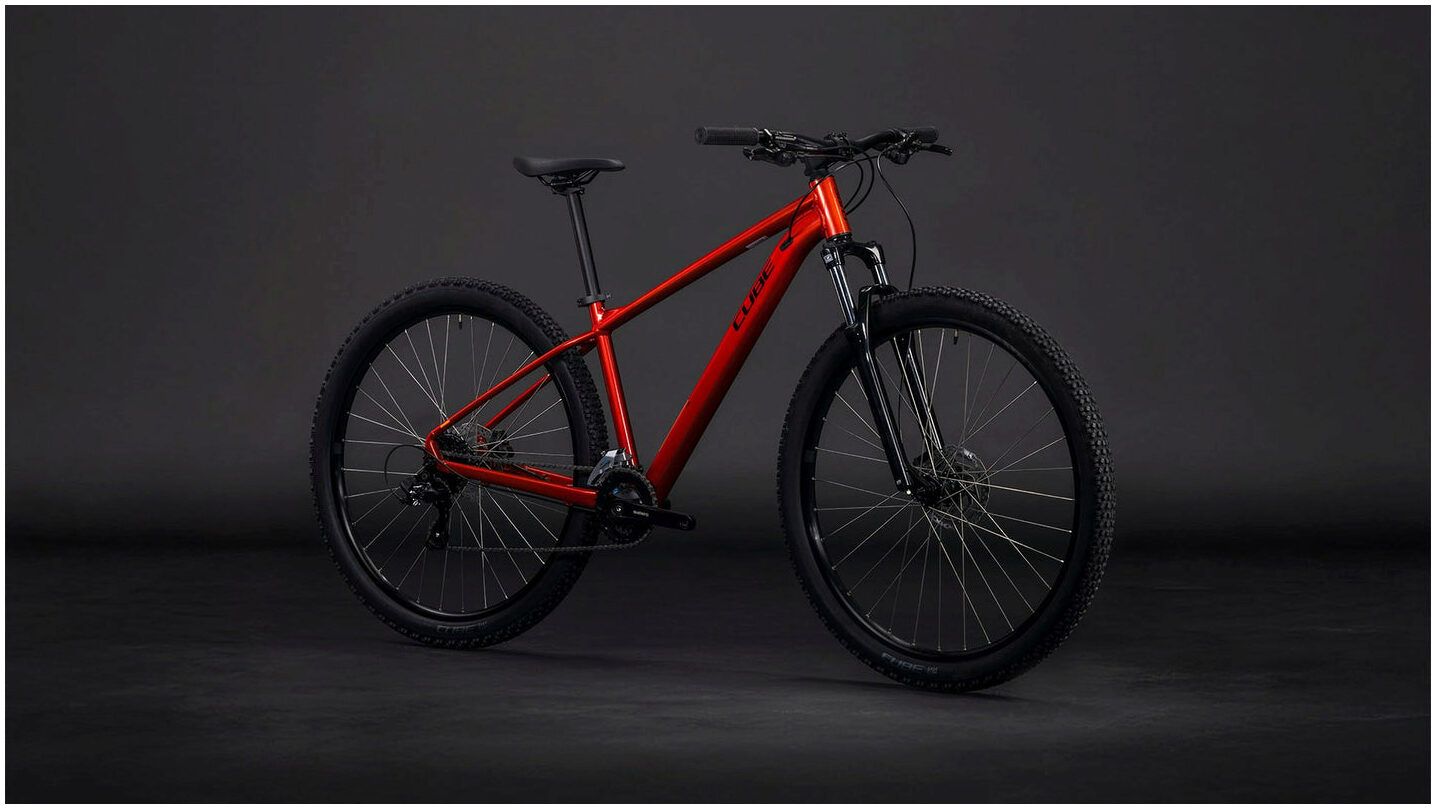

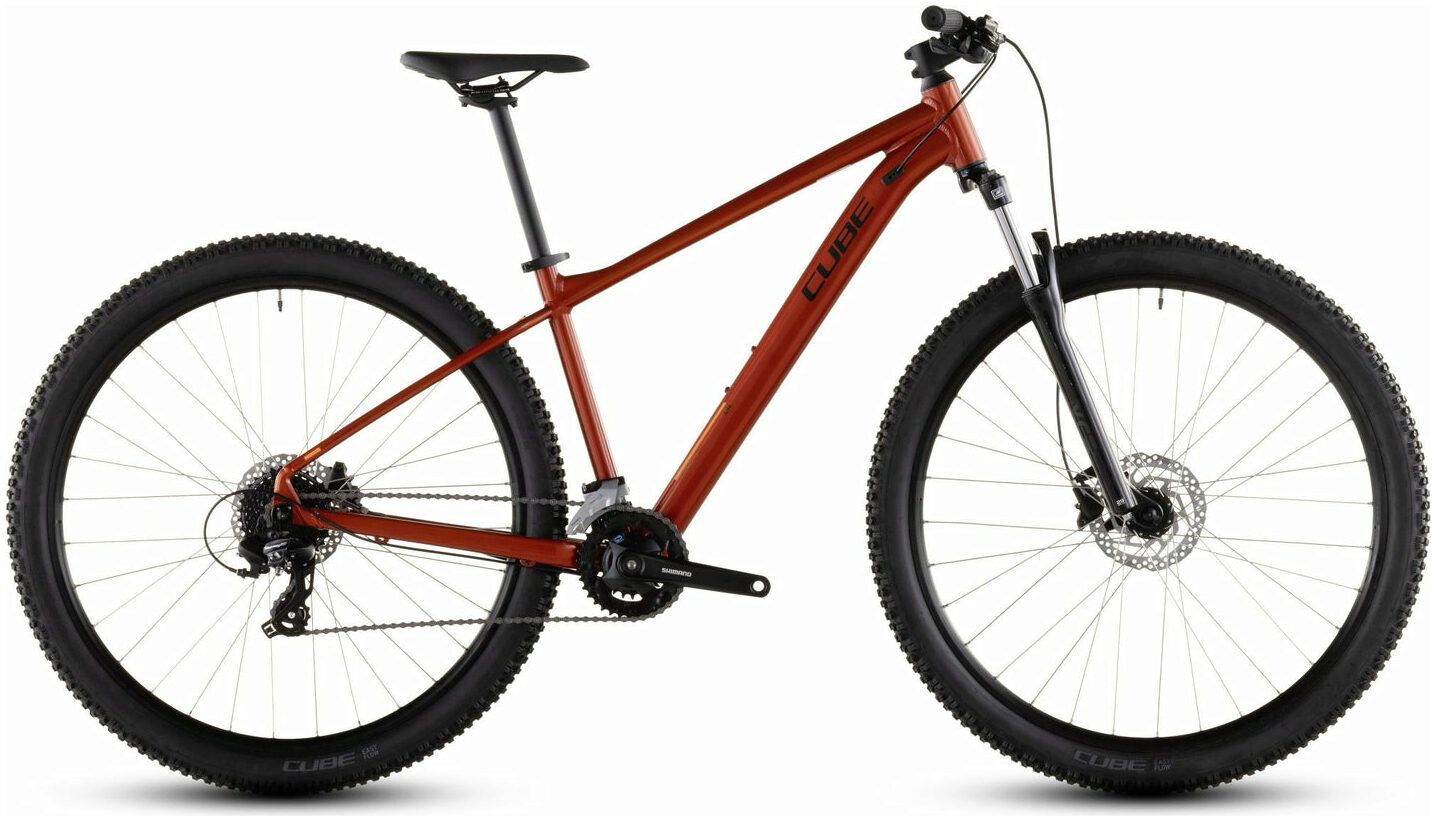

Your bike should be an extension of you, so that you can just enjoy the ride. That's why, with the Aim ONE, we fitted a 100mm suspension fork and grippy 2.25in tyres. Together, they help keep you comfortable and in control, no matter what surface you're riding on. Shimano's 2x8-speed gears give you the range you need at the push of a button, and powerful Shimano hydraulic disc brakes bring you safely to a stop no matter what the weather's doing. And Size Split, with its huge range of sizes, means every rider can find their perfect Aim.

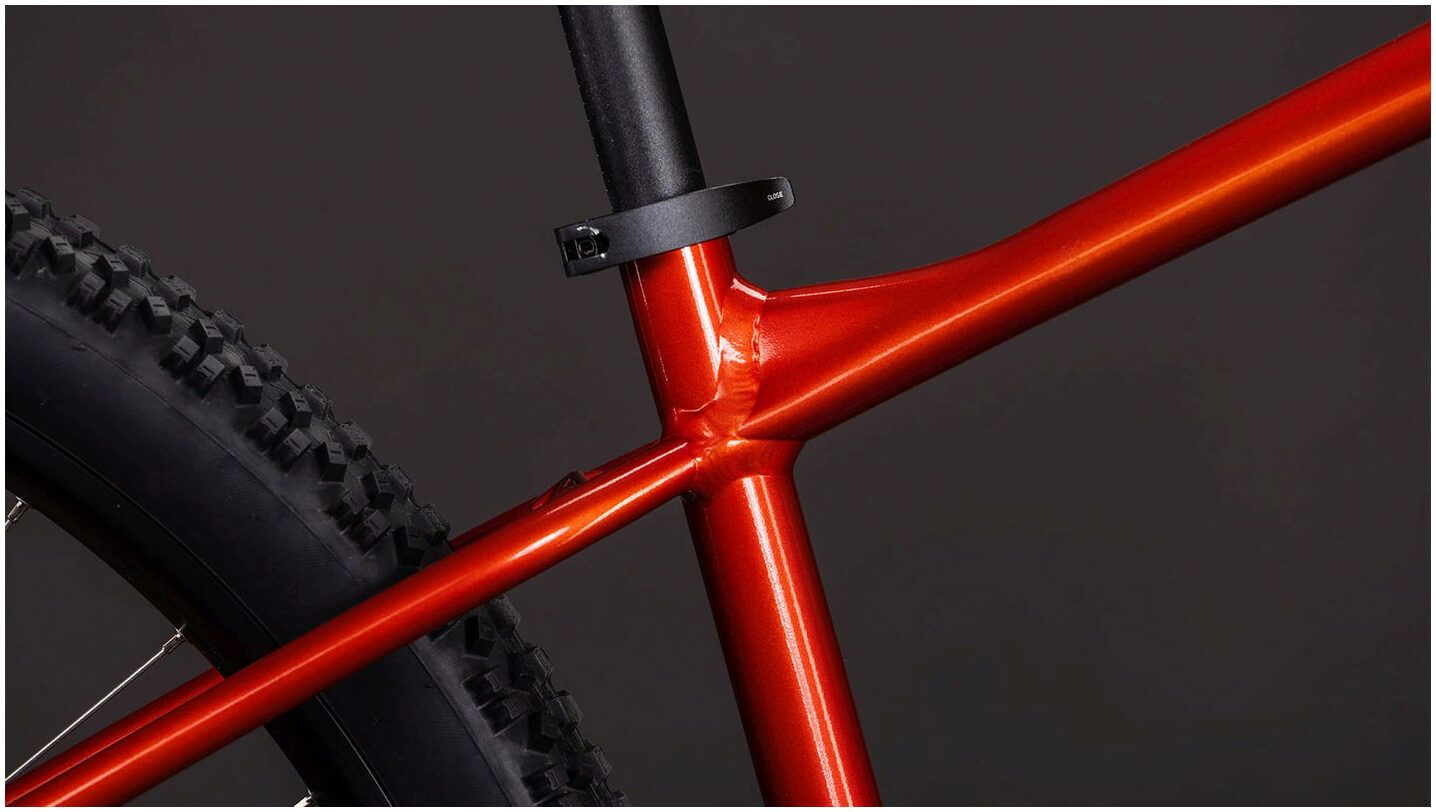

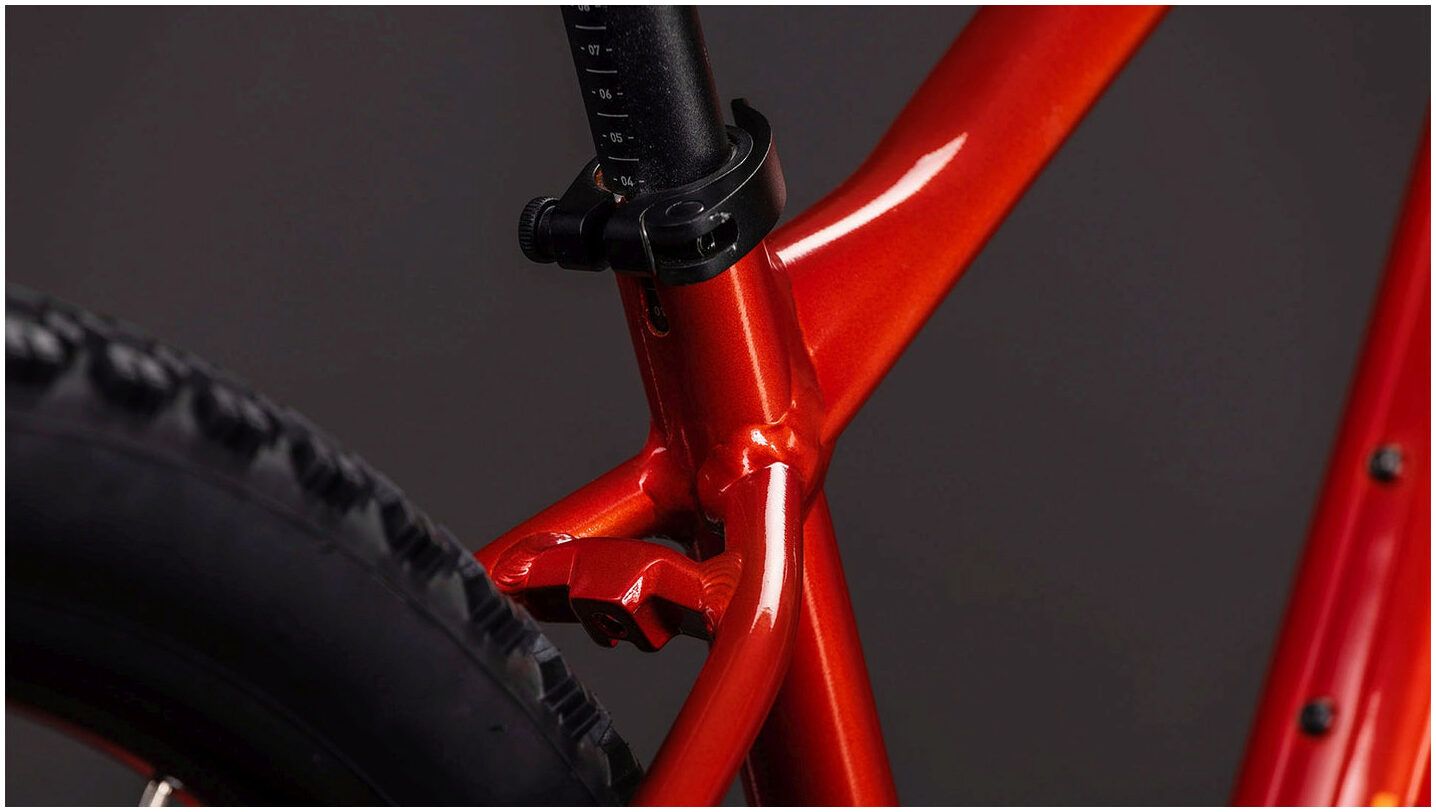

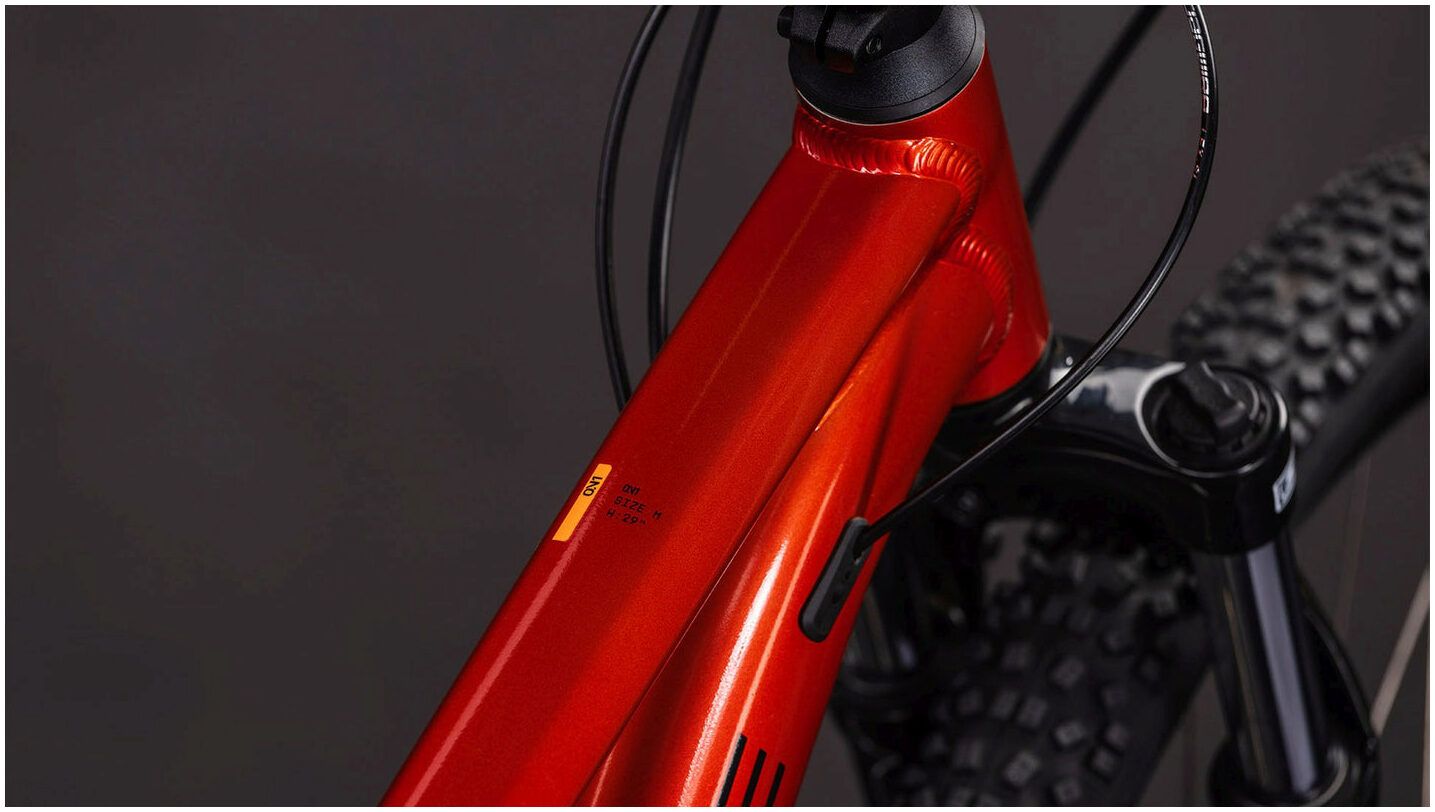

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Specifications
Frame and Forks
- Frame: Aluminium Lite

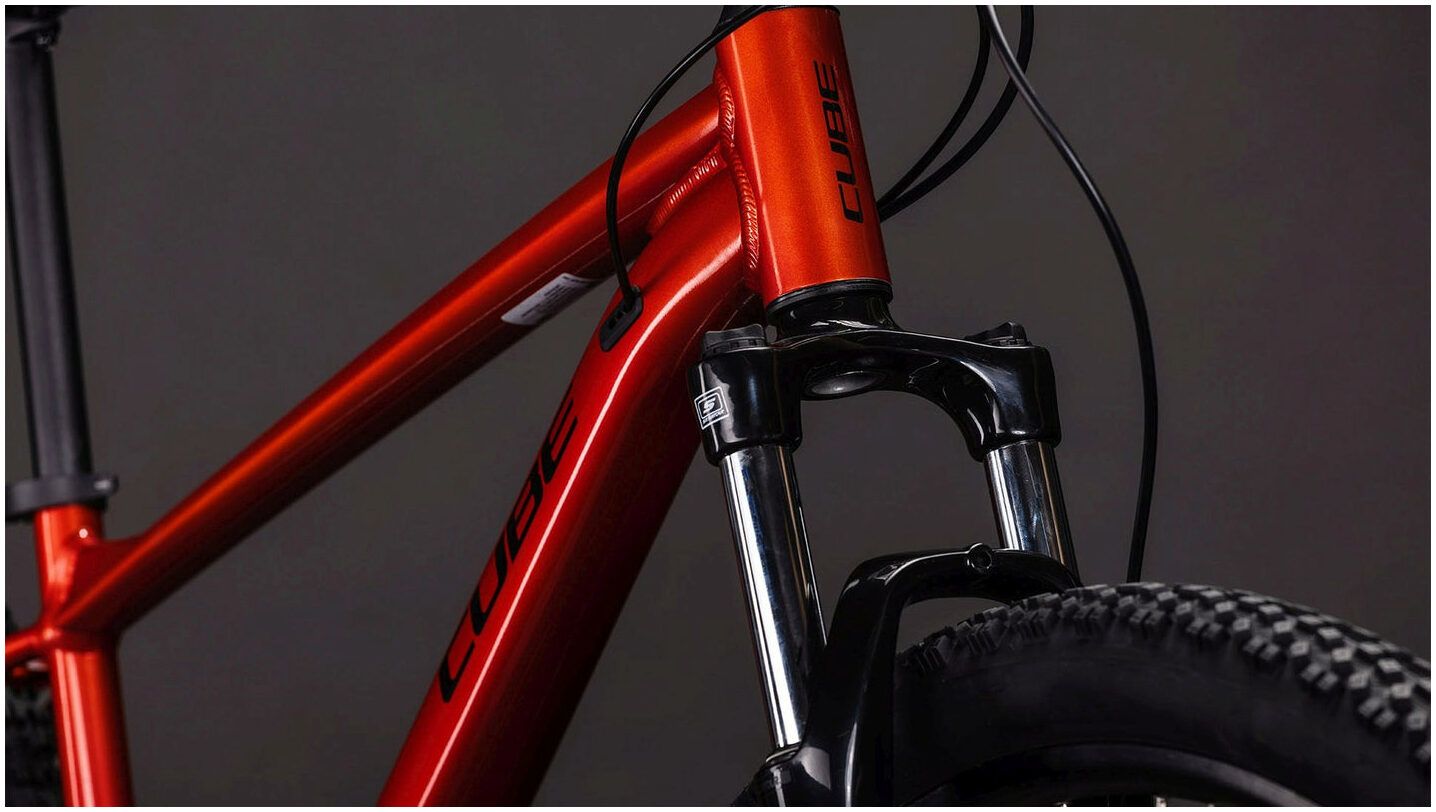

- Forks: SR Suntour XCE, 100mm
- Headset: Cube FPH863, Semi-Integrated
Drivetrain
- Crankset: Shimano FC-M315, 36 x 22 Tooth, 170mm
- Front Derailleur: Shimano FD-M315, Top Swing, 31.8mm Clamp
- Rear Derailleur: Shimano RD-TX800, 8-Speed
- Cassette: Shimano CS-HG200, 12-32 Tooth
- Chain: KMC Z8.3
Braking/Shifting
- Front Brake: Shimano BR-MT200, 160mm
- Rear Brake: Shimano BR-UR300, 160mm
- Brake Levers: Shimano BR-MT200/UR300
- Shifter Levers: Shimano SL-M315, Rapidfire-Plus
Wheels
- Wheels: Acid Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
- Tyres: Cube MTB, 2.25:
Finishing Kit
- Handlebars: Cube Rise Trail Bar, 680mm
- Grips: Acid Icon
- Stem: Cube Performance Stem, 31.8mm
- Seatpost: Cube Performance Post, 27.2mm
- Saddle: Acid Venec Lite
- Pedals: Cube PP MTB
