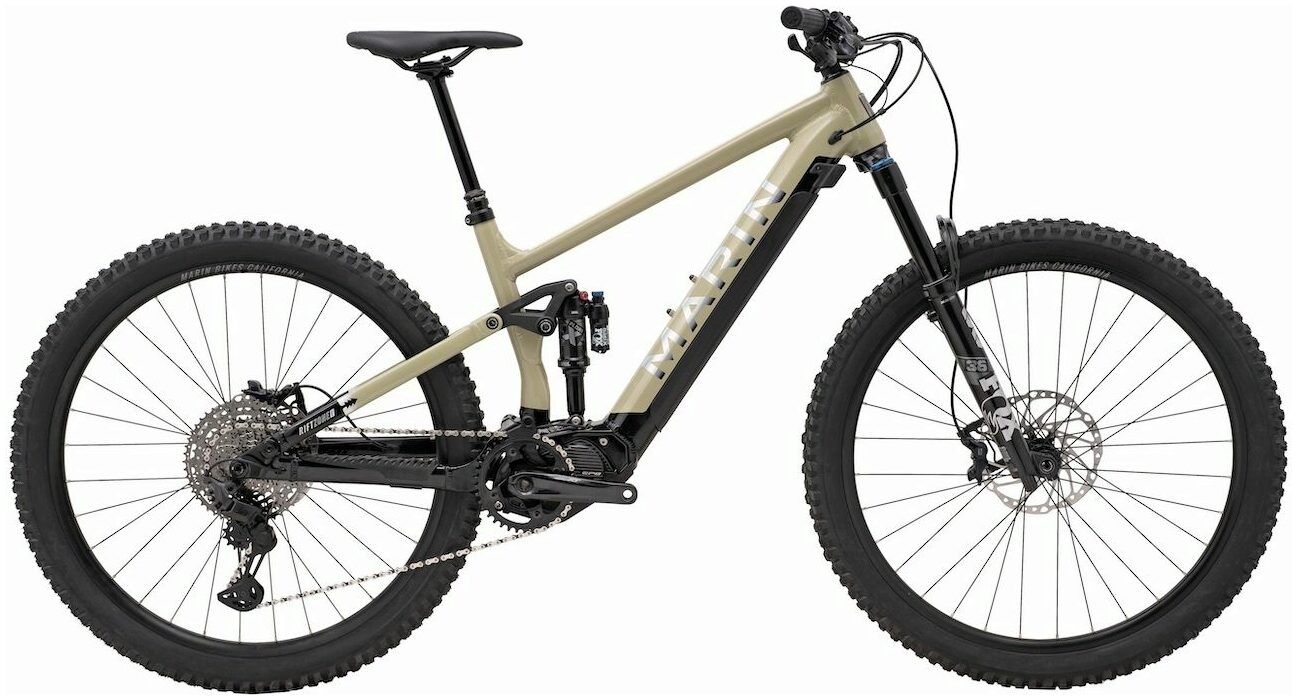

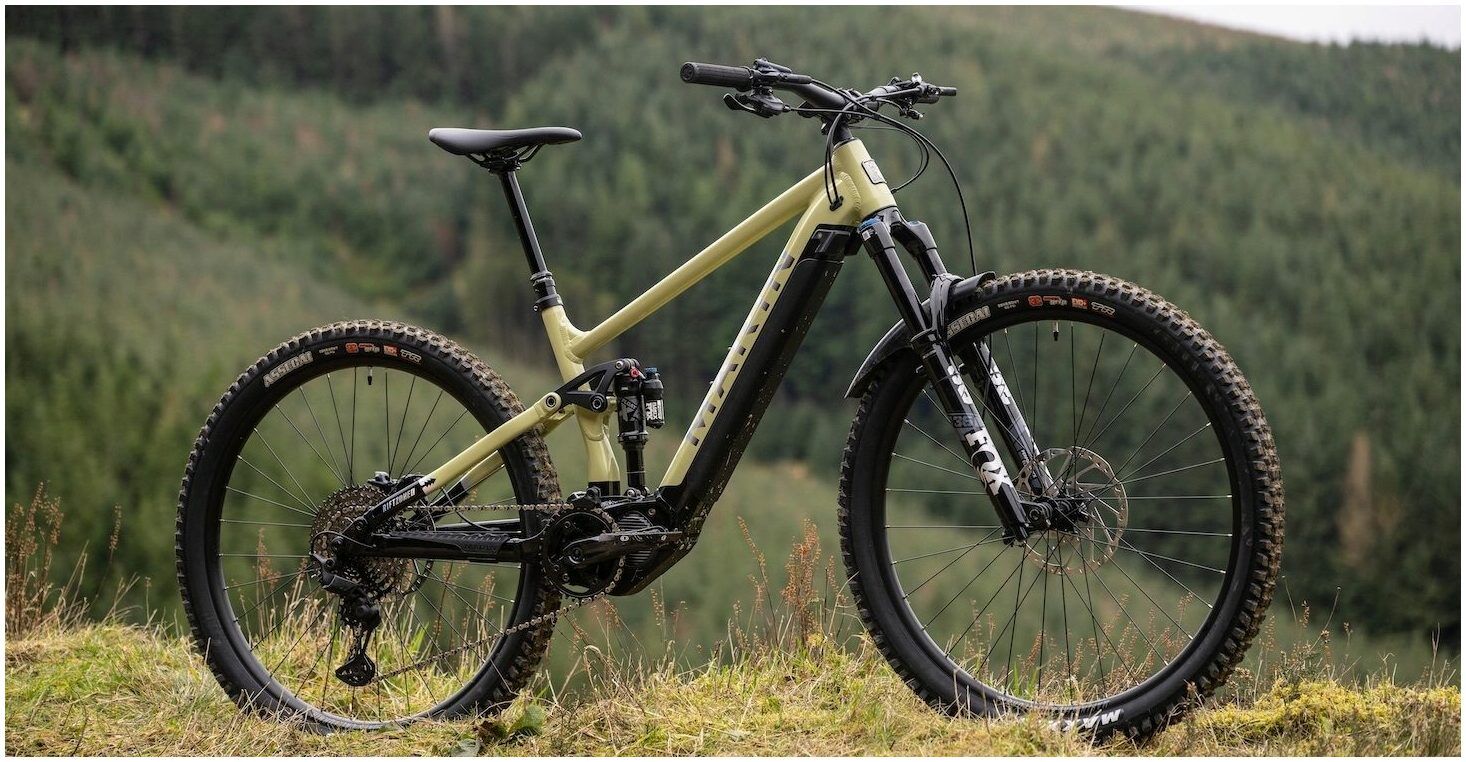

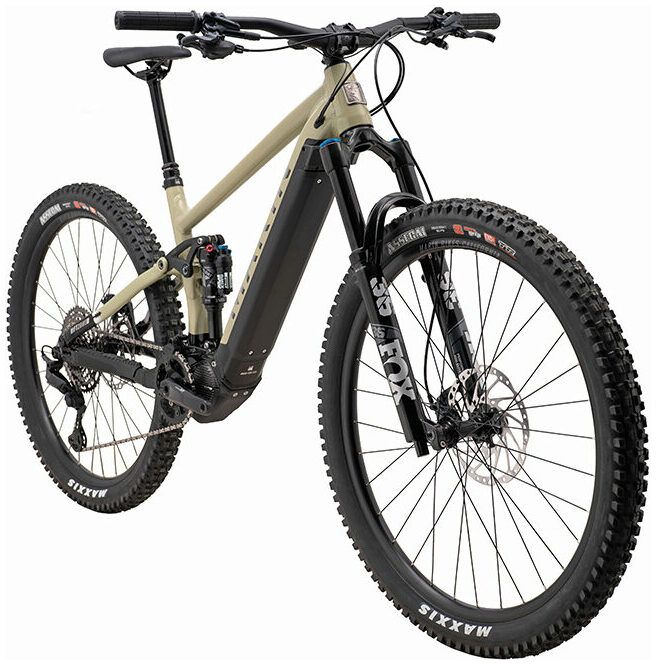

Marin Rift Zone E2 29 2024 Electric Bike

Mountain Biking With A Boost

• The Jack-of-all-trades Mtb, Electrified
• Maximizing Fun

Our top-spec, no-holds-barred Rifty, the Marin Rift Zone E2 packs a powerful punch but still keeps that price tag down to earth. We’ve hand-picked hard-charging Fox suspension, a top-performance Shimano STEPS EP8 drive unit, Shimano’s XT 11-speed drivetrain and a 630WH battery for maximum range. And we’ve included CushCore tire inserts and Marin tubeless sealant straight out of the box.

Key Upgrades From The Marin Rift Zone E1

• Shimano EP8 Drive Unit
• Fox 36/Float X Performance Elite Suspension
• Shimano Deore XT LINKGLIDE 11-Speed Drivetrain
• TRP DH-R Evo 4-Piston Hydraulic Disc Brakes

Technology

Series 4 Aluminum Frame

Rift Zone E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

Multitrac Suspension

The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.

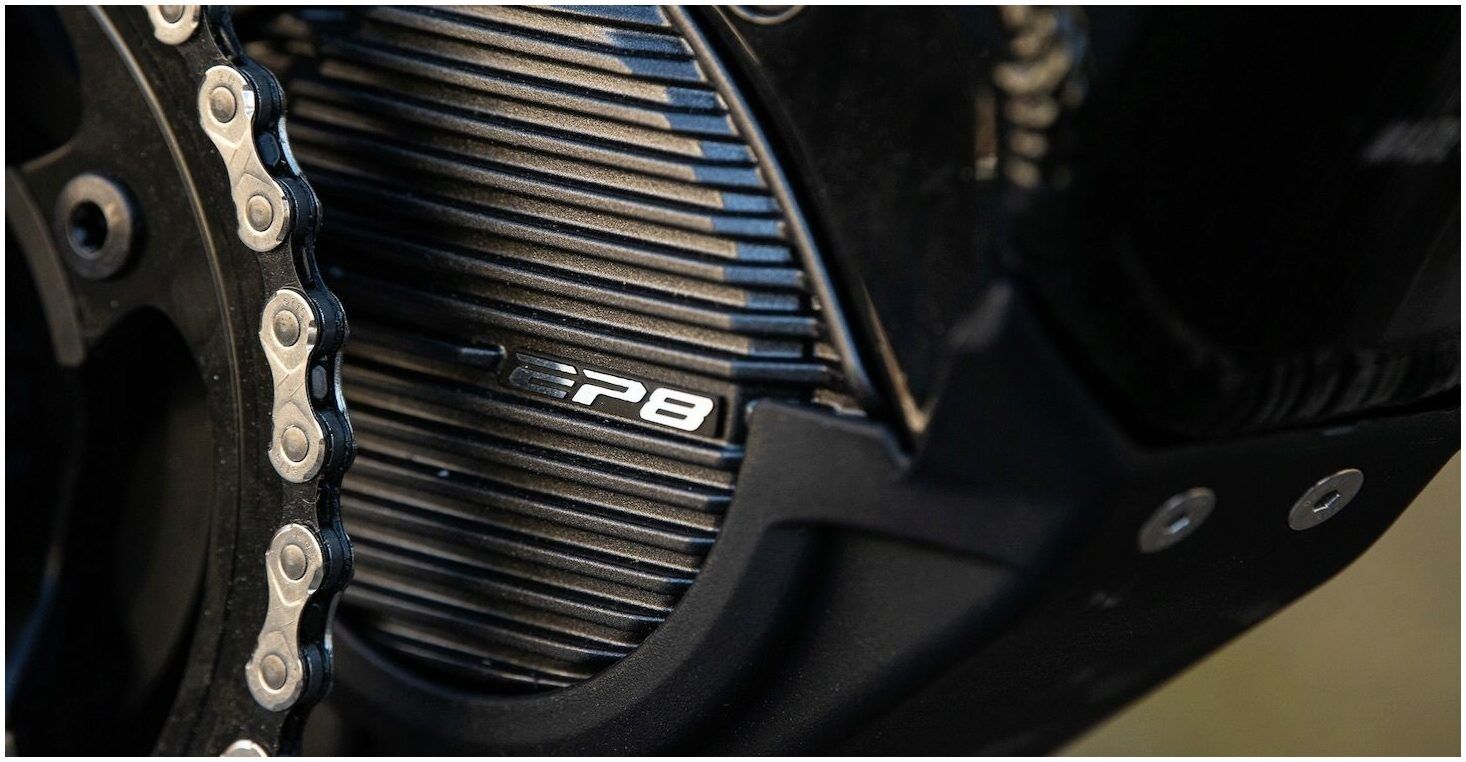

Shimano Steps

Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor down low to help ensure that the Rift Zone E performs like the analog version, but with a 250W boost. Three levels of power give riders options to balance electric power, speed and range. Electric assist up to 20mph in the US, 25km/h in Europe.

Specifications

Frame and Forks

• Frame: All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
• Fork: Fox 36 Performance Elite, 140mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
• Rear Shock: Fox Float X, Performance Elite Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom

Drivetrain

• Rear Derailleur: Shimano, Deore XT RD-M8130, 11-Speed, SGS, LinkGlide

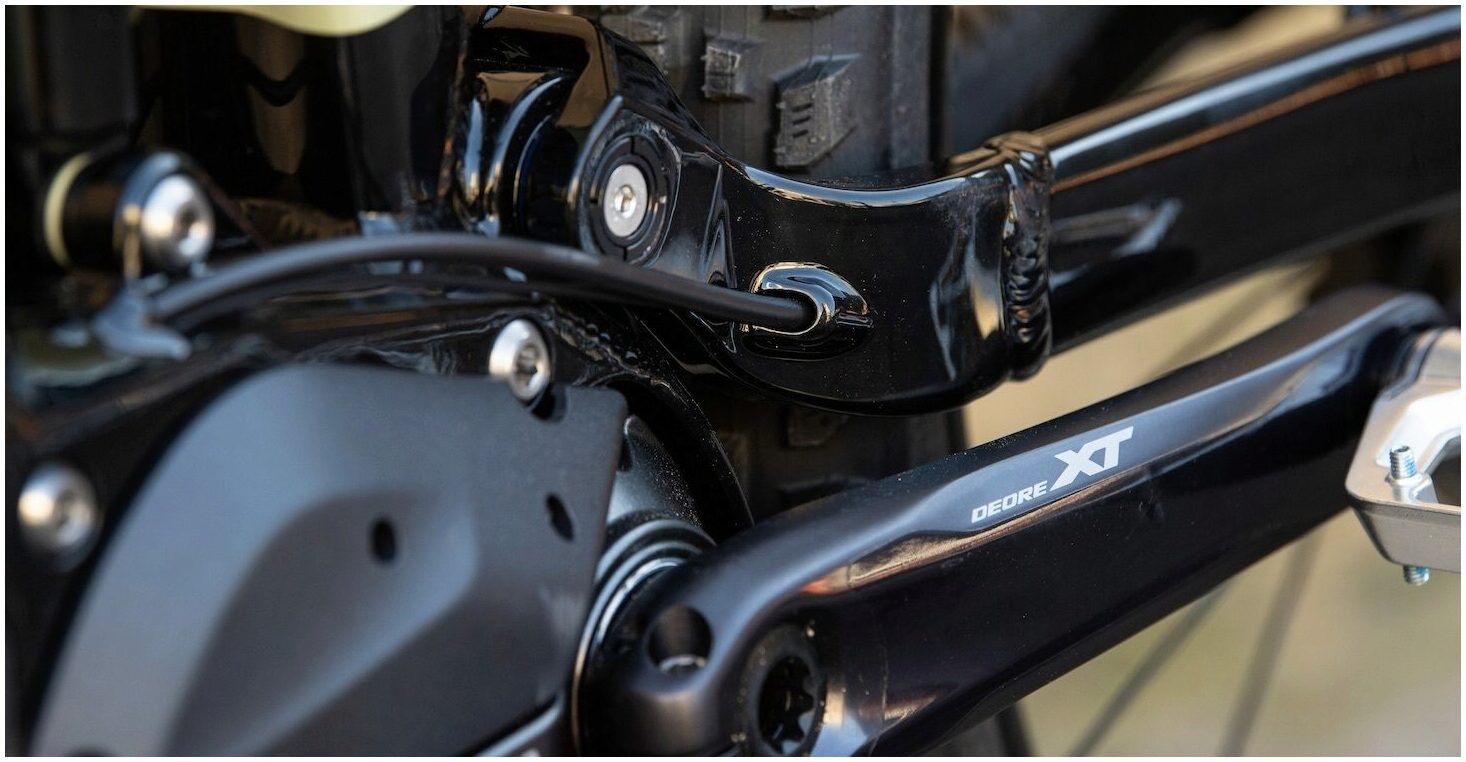

• Crankset: Shimano XT M8150, 160mm Length, 38 Tooth Chainring
• Cassette: Shimano XT LinkGlide LG-600, 11-Speed, 10-50 Tooth
• Chain: KMC E-11S
• Chainguide: Shimano CS-EN800 Chainguide

Braking/Shifting

• Brakes: TRP DH-R EVO 4-Piston Hydraulic, 203mm Rotors, 2.3mm Thick
• Brake Levers: TRP DH-R EVO
• Gear Shifters: Shimano Deore XT SL-M8130-R, LinkGlide, I-Spec EV

Wheels

• Front Hub: Shimano FH-TC500, 110x15mm, Centerlock , 32H
• Rear Hub: Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
• Rims: Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
• Tyres: Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing

Finishing Kit

• Headset: FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
• Handlebar: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
• Stem: Marin CNC, 35mm Length, 35mm Bar Bore
• Grips: Marin Grizzly Lock On
• Saddle: Marin eMTB Saddle
• Seat Post: X-Fusion Manic, 1x Composite Remote, Size Small 125mm Travel, Size Medium and Large 150mm Travel, Size X-Large 170mm Travel, 30.9mm
• Pedals: Marin MTB Plastic
• Weight:

Electric Power

• Motor: Shimano Steps EP801 Drive Unit, 250W, 85Nm
• Battery: Shimano BT-EN806, Internal 630Wh

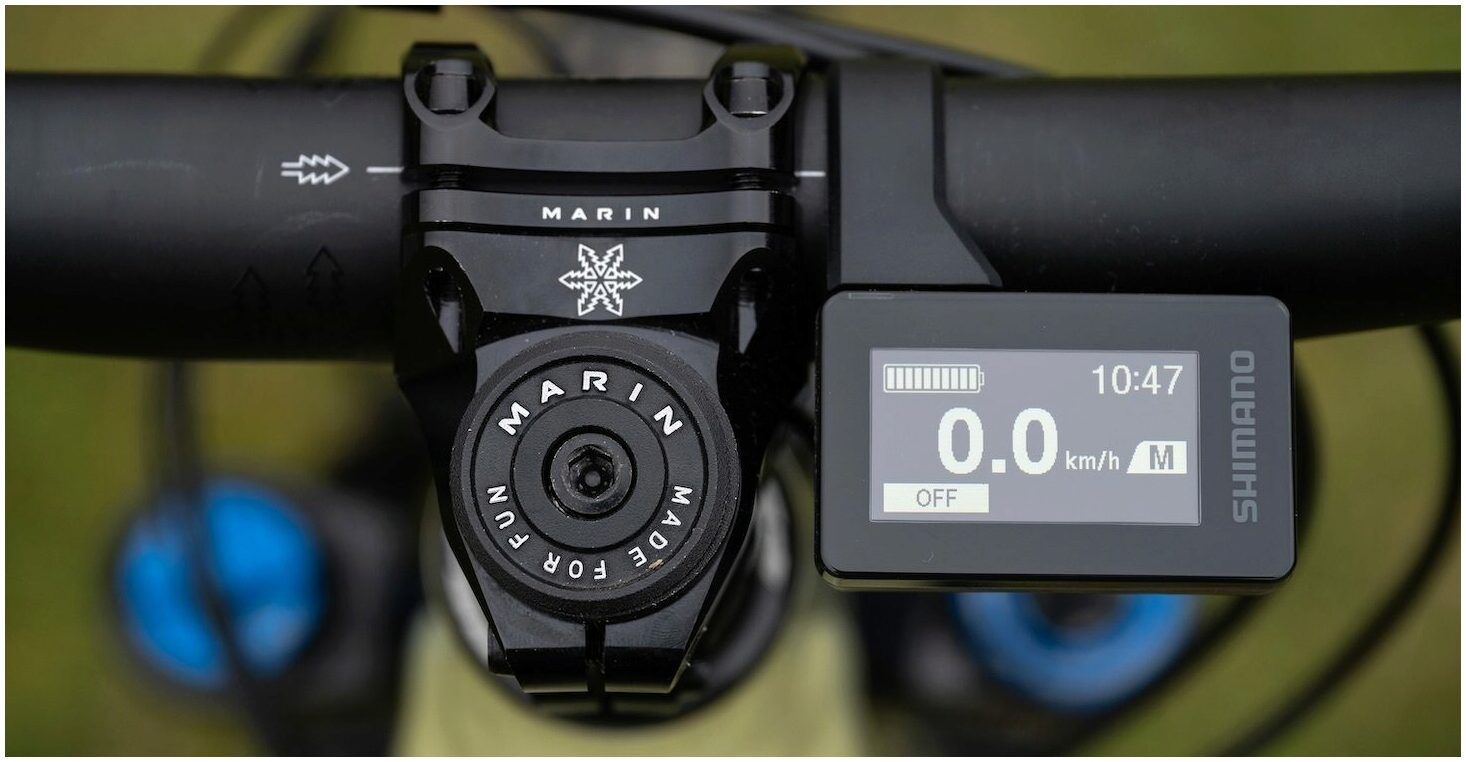

• Display: Shimano SC-E600
• Switch: Shimano SW-EN600L Left Hand Switch for Assist Mode Change
• Charger: Shimano Battery Charger EC-E6002
