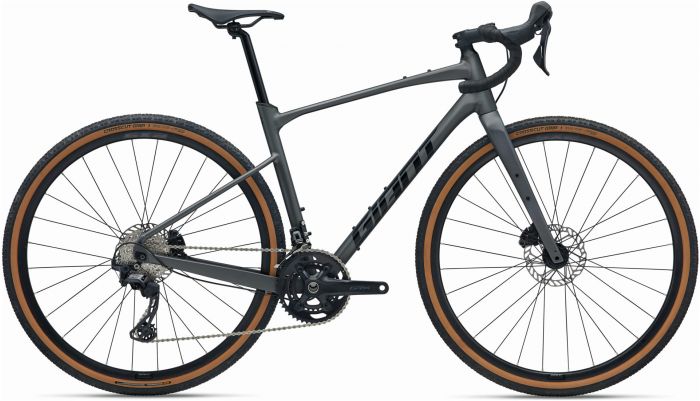

Giant Revolt 0 2026 Bike

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

Features

Confident Handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned Compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable To The Terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Technologies

• Aluxx Aluminium Technology: This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
• D Fuse Technology: The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
• Flip Chip Dropout: Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
• Over Drive: Giant's original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.

Specification

Frame and Forks

• Frame: ALUXX-Grade Aluminum, 12 x 142mm Thru-Axle, Disc, Flip Chip Dropout
• Forks: Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12mm Thru-Axle, Disc

Drivetrain

• Crankset: Shimano FC-RX610-2, 30 / 46 Tooth X-Small: 170mm, Small: 170mm, Medium: 172.5mm, Medium / Large: 172.5mm, Large: 175mm, X-Large: 175mm
• Bottom Bracket: Shimano, Threaded
• Rear Derailleur: Shimano GRX RX-820
• Front Derailleur: Shimano GRX RX-820
• Cassette: Shimano 105, 11 x 34 Tooth
• Chain: KMC x 12L-1

Braking/Shifting

• Shifters: Shimano GRX RX-610, 2 x 12
• Brakes: Shimano GRX RX-410 Hydraulic, Giant Mph Rotors 160mm
• Brake Levers: Shimano GRX RX-610 Hydraulic

Wheels

• Rims: Giant S-X2 , Alloy
• Hubs: Giant Alloy, 12mm Thru-Axle
• Spokes: Stainless
• Tyres: Giant Crosscut Grip TR, 700 x 40c, Tubeless

Finishing Kit

• Handlebars: Giant Contact XR D-Fuse, 31.8mm X-Small: 42cm, Small: 42cm, Medium: 44cm, Medium / Large: 44cm, Large: 46cm, X-Large: 46cm
• Grips: Cork Tape With Gel
• Stem: Giant Contact, 8-Degree X-Small: 50mm, Small: 60mm, Medium: 70mm, Medium / Large: 80mm, Large: 80mm, X-Large: 90mm
• Seatpost: Giant D-Fuse, Alloy, 14mm Offset
• Saddle: Giant Grit
• Pedals: Not Included
