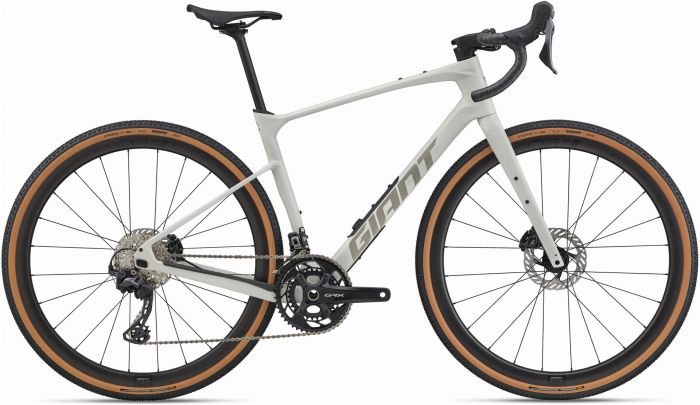

Giant Revolt Advanced 0 2026 Bike

More Information
Brand	Giant
Colour	Snow Drift
Suitable for	Everyone
Wheel Size	700c

Giant started out building Chromoly frames in 1972 and have since pioneered the construction of Aluminium and Composite frames and components. Many of their high-end bikes have won championships and design awards, and with over 12,000 Giant dealers around the world, their long standing reputation clearly precedes them.

Skip to the beginning of the images gallery

Details

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Technologies

Advanced Composite Technology: Giant's High Performance Grade raw carbon material is used to produce this custom frame material in Giant's own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
D Fuse Technology: The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Over Drive: Giant's original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.

Specification

Frame and Forks

Frame: Advanced-Grade Composite, 12 x 142mm Thru-Axle, Disc, Flip Chip Dropout, Down Tube Storage
Forks: Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12mm Thru-Axle, Disc

Drivetrain

Crankset: Shimano GRX RX-820, 31 / 48 Tooth X-Small: 170mm, Small: 170mm, Medium: 172.5mm, Medium / Large: 172.5mm, Large: 175mm, X-Large: 175mm
Bottom Bracket: Shimano, Press Fit
Rear Derailleur: Shimano GRX RX-820
Front Derailleur: Shimano GRX RX-820
Cassette: Shimano CS-HG710, 12-Speed, 11 x 36 Tooth
Chain: KMC x 12L-1

Braking/Shifting

Shifters: Shimano GRX RX-820, 2 x 12
Brakes: Shimano GRX RX-820 Hydraulic, Shimano SM-RT70 Rotors 160mm
Brake Levers: Shimano GRX RX-820 Hydraulic

Wheels

Rims: Giant CXR 2 WheelSystem, 35mm
Hubs: [F] Giant Alloy, CenterLock, 12mm Thru-Axle, [R] Giant Alloy, 3-Pawl 36 Tooth Driver, CenterLock, 12mm Thru-Axle
Spokes: Sapim Sprint
Tyres: CADEX GX, 700 x 40c, Tubeless

Finishing Kit

Handlebars: Giant Contact XR D-Fuse, 31.8mm X-Small: 42cm, Small: 42cm, Medium: 44cm, Medium / Large: 44cm, Large: 46cm, X-Large: 46cm
Grips: Stratus Lite 3.0
Stem: Giant Contact AeroLight, -10 Degree X-Small: 50mm, Small: 60mm, Medium: 70mm, Medium / Large: 80mm, Large: 80mm, X-Large: 90mm
Seatpost: Giant D-Fuse SL, Composite, -5/+15mm Offset
Saddle: Giant Grit
Pedals: Not Included
