Adventure Road And Off-road Riding
Features
Long Distance Commuting.
Endurance And All-weather Pavement.

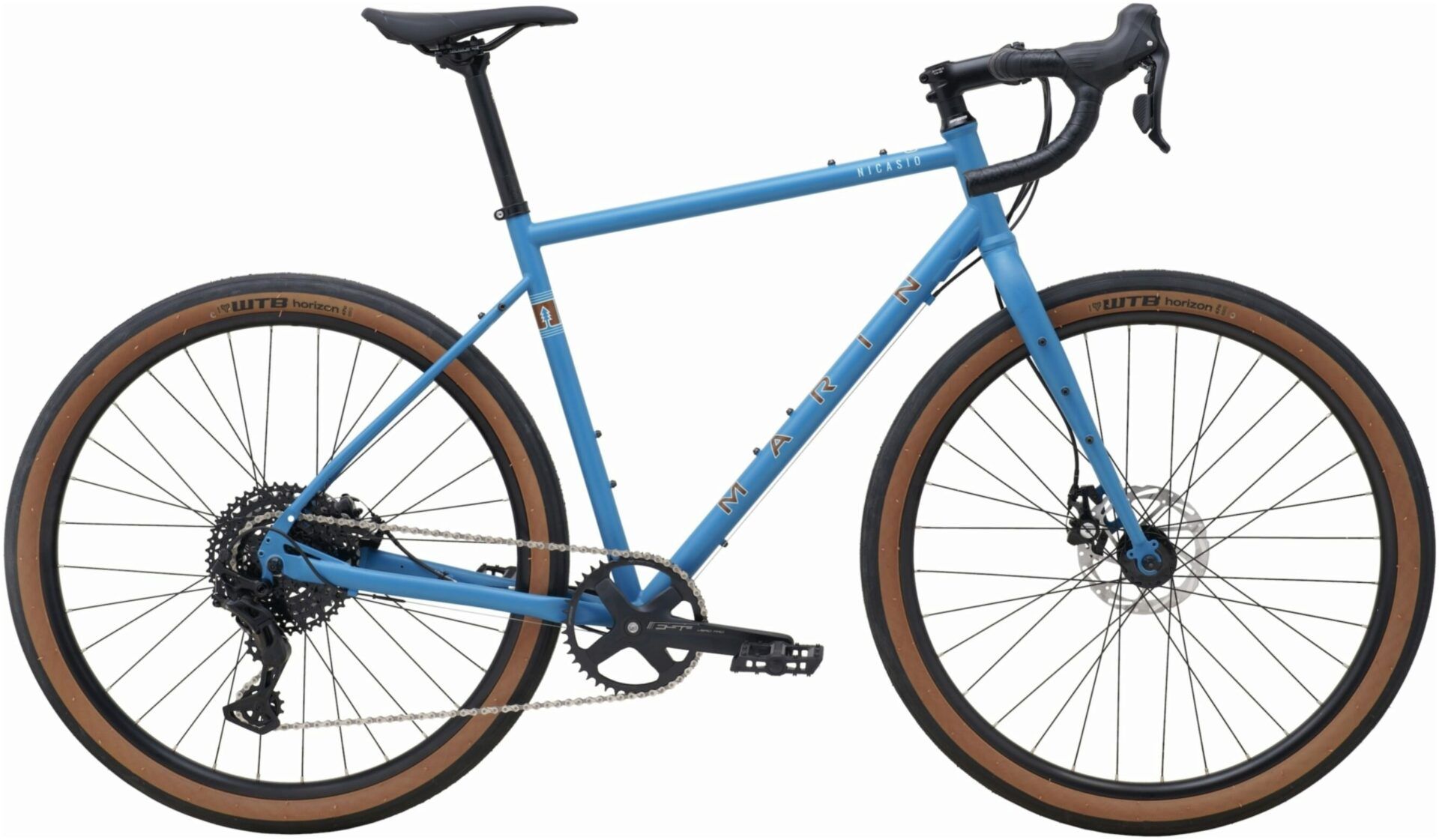

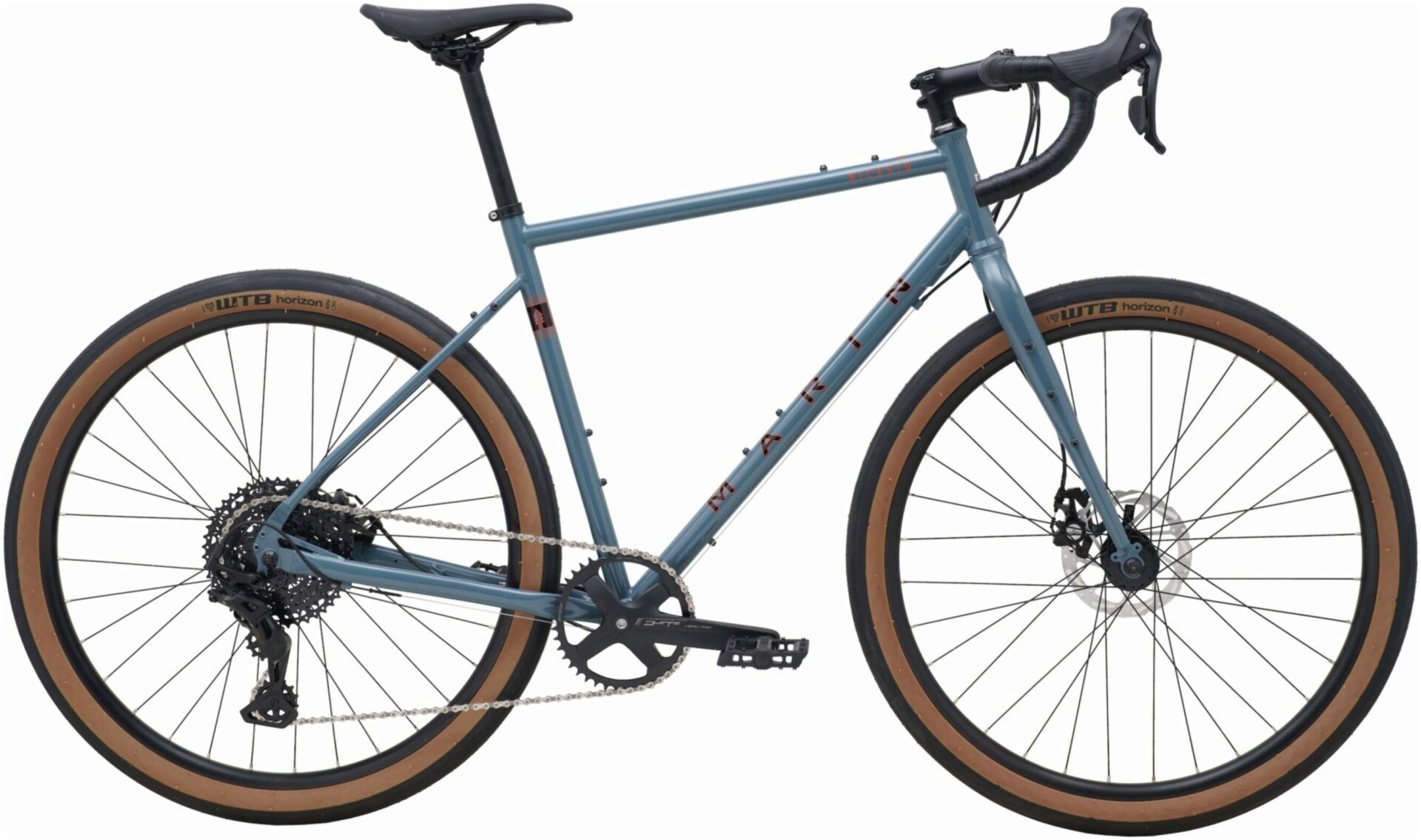

The Marin Nicasio+ Is Our Nic’ With A Modern Twist, Switching In Big-volume 47Mm Rubber, 650B Wheels And A Sleek And Straightforward 1X Drivetrain. We Also Specced A Microshift Sword Black 1X9 Drivetrain, Powerful Tektro Mechanical Discs And Plenty Of Marin Components. Those Wtb Horizon 650Bx47Mm Tires Not Only Provide A Cloud-like Ride, But Also Look Super Dreamy With Tan Sidewalls.
Key Upgrades from the Nicasio.
- 650x47mm wheelset with WTB Horizon tires
- microSHIFT wide range 1x9 drivetrain
Technology
Beyond Road Geometry
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off-pavement use.
Steel Frame Construction
The Nicasio uses a Series 2 or Series 1 butted 4130 CrMo frame with disc brakes, full fender and rack mounts, and two to three bottle bosses.
Disc Brakes
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
Tire Clearance
The Nicasio frame and fork has clearance for up to 700C x 35mm or 650B x 47mm tires.
New Step-Thru Variant
The new Nicasio ST brings a step-thru version of the popular model. Great for those who are looking for easy mounting and dismounting, even with baskets and baby seats.
Specifications
Frame and Forks
- Frame: Steezy Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
- Fork: CrMo, Fender and Rack Eyelets, IS Disc Mount
Drivetrain
- Rear Derailleur: microSHIFT SWORD Black, 1x9 with Clutch Mech
- Crankset: FSA Vero Pro, Narrow Wide, 42 Tooth
- Cassette: microSHIFT 9-Speed, 11-46 Tooth
- Bottom Bracket: Sealed Cartridge Bearings, Square Taper
- Chain: KMC X9
Braking/Shifting
- Brakes: Tektro MDC400, Road Mechanical, 160mm Rotor (Front and Rear)
- Gear Shifters: microSHIFT SWORD Black, 1x9 Specific
- Brake Levers: microSHIFT SWORD Black
Wheels
- Front Hub: Forged Aluminum Alloy, Disc, 32H
- Rear Hub: Forged Aluminum Alloy, Disc, 32H
- Rims: Marin Aluminum Double Wall, 25mm Inner, Disc Specific
- Tyres: WTB Horizon, 650Bx47mm
Finishing Kit
- Headset: FSA ORBIT CE No.8B, Sealed Cartridge Bearings
- Handlebar: Marin Butted Alloy, Compact 16º Flared Drop
- Stem: Marin 3D Forged Alloy
- Grips: Marin Comfort Tape
- Saddle: Marin Beyond Road Concept
- Seat Post: Marin Alloy, 27.2mm
- Pedals: Commute Platform
