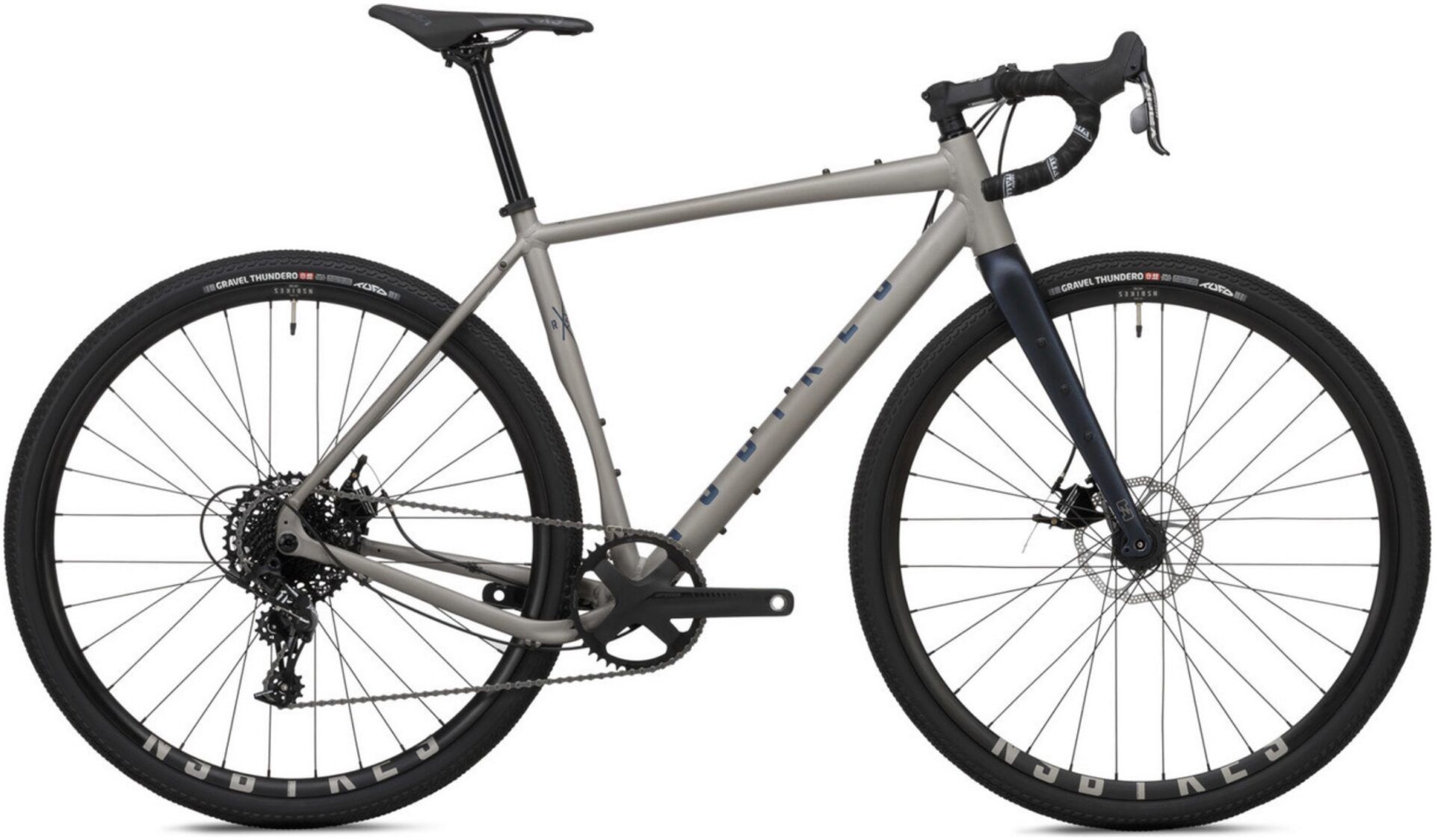

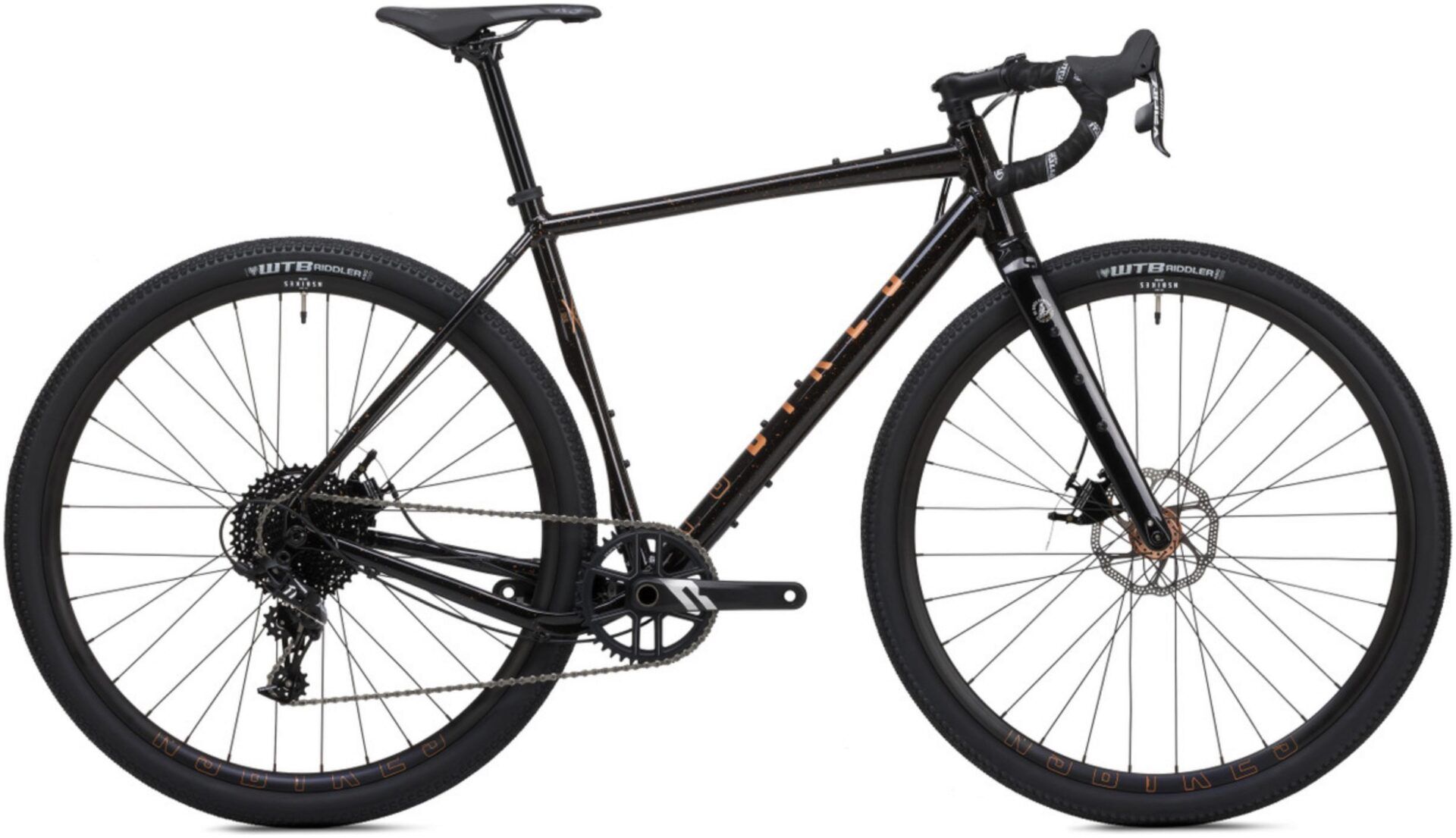

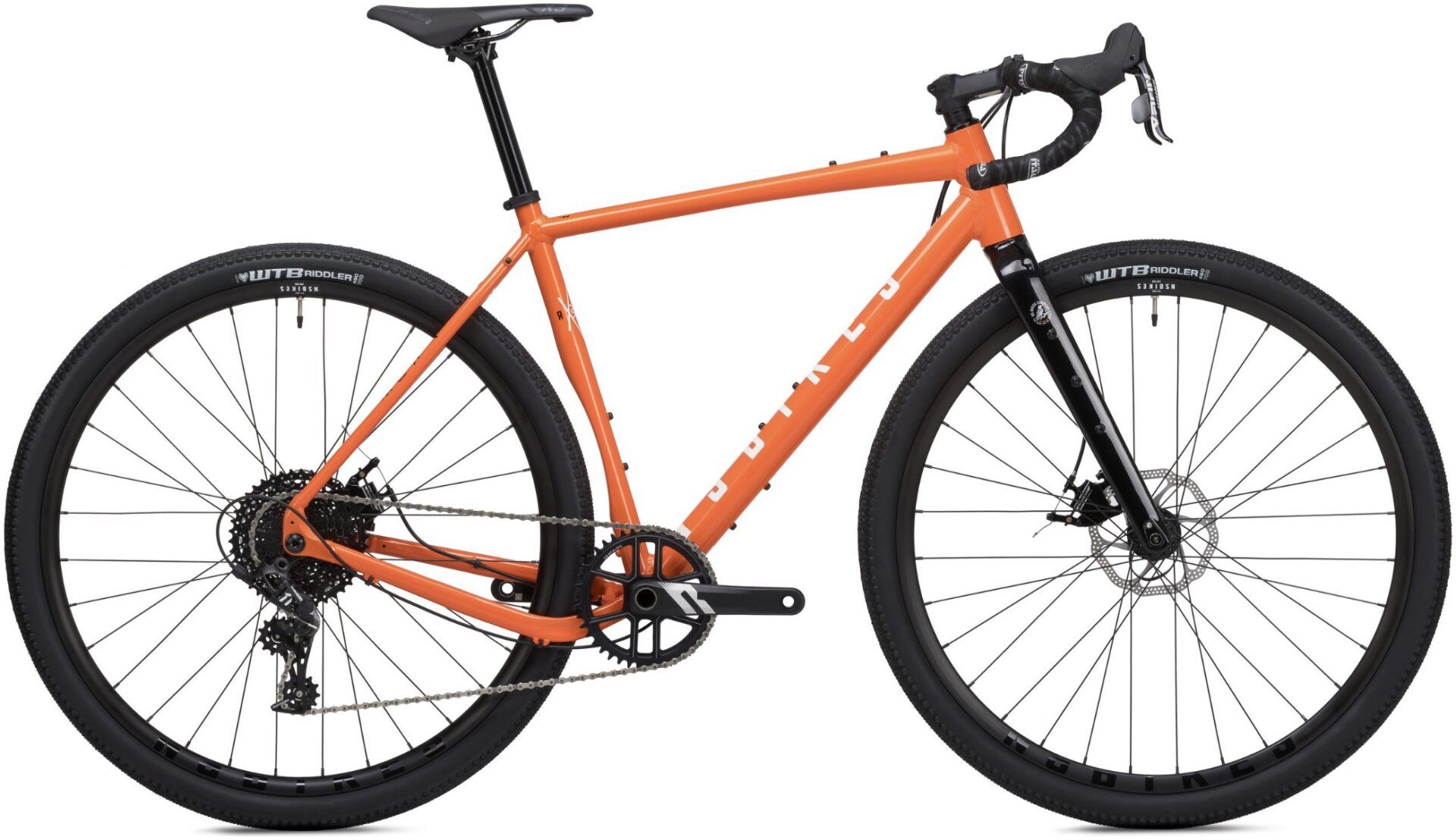

NS Bikes RAG+ 2 2025 Bike

Gravel cycling has exploded recently and it’s no wonder. These bikes are truly do-everything machines, both for beginners and experienced cyclists. We were in the game from the beginning with a gravel bike that had dirt heritage in its dna. The rag+ has become a favorite among our employees and friends, even those who would never even consider a drop bar bike before. The range of applications is endless - from commuting to amateur cx racing, or simply to be used as a fitness bike. Multiple mounting points allow you to take anything you need along with you, so the rag+ is also ready for your next big adventure. Rag is short for road & gravel and the 'plus' is there because you can run it with standard 700c road tires, 700c gravel tires (up to 45c) or even 27.5” wheels with tires as big as 2.2”! It features the latest technologies including a proper 1x drivetrain with a wide range cassette, disc brakes and thru-axles. The elegant aluminum frame is complemented with a full carbon fork. The 2022 model has undergone geometry revisions that make this bike more stable and comfortable: the headtubes are taller, placing the rider in a more comfortable position. We didn’t go too far that though – we still want to retain the sporty character of the bike), the reach is longer and head angle is slacker.

Features

Frame

Tough and light alloy frame

Technology

Thru-axles, 1x drivetrains, disc brakes, tubeless ready rims: everything that makes a true modern gravel bike rock!

Huge Tyre Clearance

WTB RADDLER TCS 40c tires
Clearance for 650B tires up to 2.2"

Unique Design

Unique graphic design, hardcore heritage is in the DNA of all NS bikes – even if they have drop bars!

Specifications

Frame and Forks

• Frame: NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142 x 12 mm dropouts
• Fork: NS Gravel+ full carbon fork, 15 mm dropouts, 1.5" tapered steerer tube, NS thru axle

Drivetrain

• Rear Derailleur: SRAM Apex, 11 Speed
• Crankset: Rondo – Small: 170 mm, Medium: 172.5 mm, Large: 175 mm, 42 Tooth
• Cassette: SunRace CSMS7 11–42 Tooth
• Bottom Bracket: PF 86.5
• Chain: SRAM, 11 Speed

Braking/Shifting

• Front Brake: Funn Hydro-Mechanical, 160 mm
• Rear Brake: Funn Hydro-Mechanical, 160 mm
• Gear Shifters: SRAM Apex, 11 Speed

Wheels

• Front Hub: NS Bikes 100 x 15 mm (sealed bearings)
• Rear Hub: NS Bikes 142 x 12 mm (sealed bearings)
• Rims: Alex Draw 2.1P asymmetrical, 29", 32 Hole, tubeless ready
• Tyres: WTB Riddler 700 x 45c (front and rear)

Finishing Kit

• Headset: GW integrated tapered IS42/IS52, sealed bearings
• Handlebar: NS Flare 31.8 – Small/Medium: 420 mm, Large/X-Large: 440 mm
• Stem: RAG+ Stem 31.8 – Small: 80 mm, Medium: 90 mm, Large: 100 mm, X-Large: 110 mm, angle -8°
• Grips: Selle Italia SMOOTAPE Gran Fondo
• Saddle: Selle Italia X3
• Seat Post: Kalloy 27.2 mm
