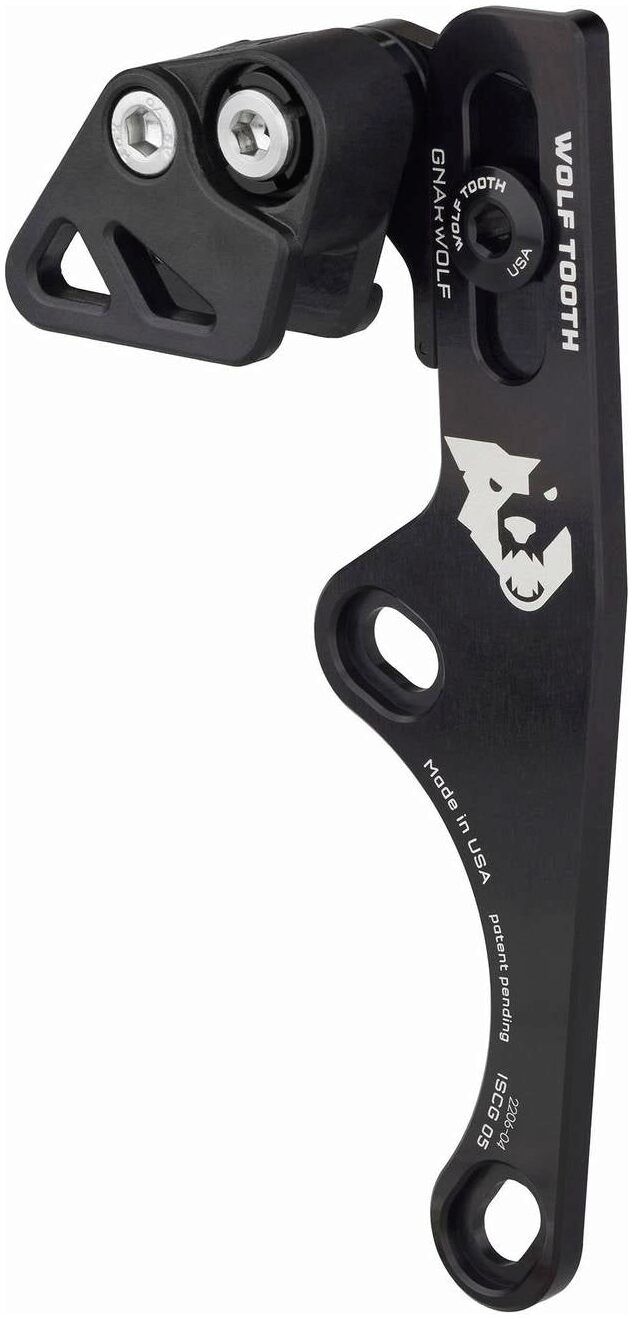

Wolf Tooth ISCG-05 Gnarwolf Chain Guide
| Brand | Wolf Tooth |
|---|---|
| Colour | Black |
The Wolf Tooth GnarWolf Chainguide rev2 is designed for maximum chain retention for mountain biking, extreme gravel, and particularly rough CX races. It is compatible with most bikes using 1x drivetrains that have an ISCG-05 mount and round and oval chainring sizes 28-34T.
The base of the GnarWolf allows for the vertical adjustment necessary for differing chainring sizes, while the GuideLock Quick Adjustment System moves the chainguide head to accommodate chainlines from 45-51mm. Adjusting the GuideLock Quick Adjustment System requires just a 4mm hex to operate an expanding elliptical mandrel to move the head securely into place without the use of shims.
Features
- 8mm of chainline adjustment via GuideLock quick adjustment system - no shims required
- Infinite vertical adjustment between 28–36T for round chainrings and 28–34T for oval chainrings
- Loosen one screw to flip the guide out of the way for easy chain removal without losing any adjustments
- All adjustments made with a common 4mm hex key
- Designed for Enduro, heavy trail, mud, and DH riding - extremely stiff and strong while remaining lightweight at 44g
- Specific guide shaping optimised for use with both oval and round chainrings
- Quick installation in just a few minutes - no crank arm removal required
Specification
- Designed to fit on any bike with an ISCG 05 mount
- Optimised for use with both elliptical and round chainrings
- Round chainrings: 28–36T or Oval chainrings: 28–34T
- For 1x drivetrain use only
- Minimum distance of 10mm required between crank and centre of ring
- Not compatible with crankset-mounted bashrings
- Some bikes may need modifications or will not work due to frame geometry
- Ibis Mojo 3 - will not work
- Ibis Ripmo - will not work
- Ibis Ripley - will not work
- Specialised Stumpjumper 2016-2017 - requires 1mm spacers/washers between ISCG05 mounts and the guide (To prevent interference)
- Evil The Following - will not work (Upper swing arm interferes)
- Santa Cruz Tallboy & Nomad - will not work
