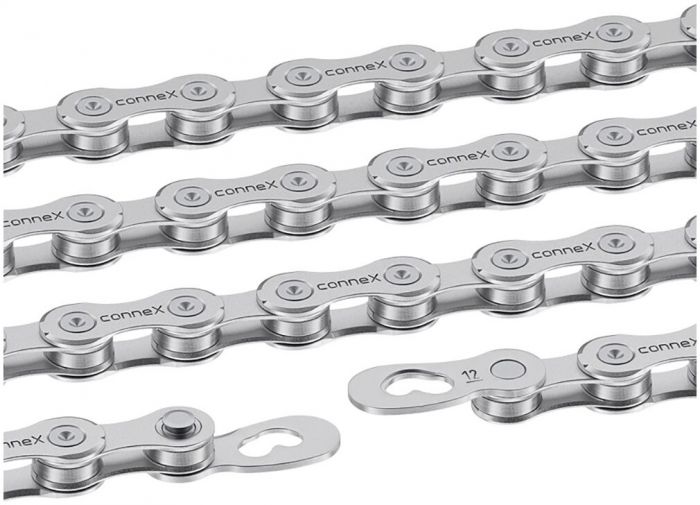

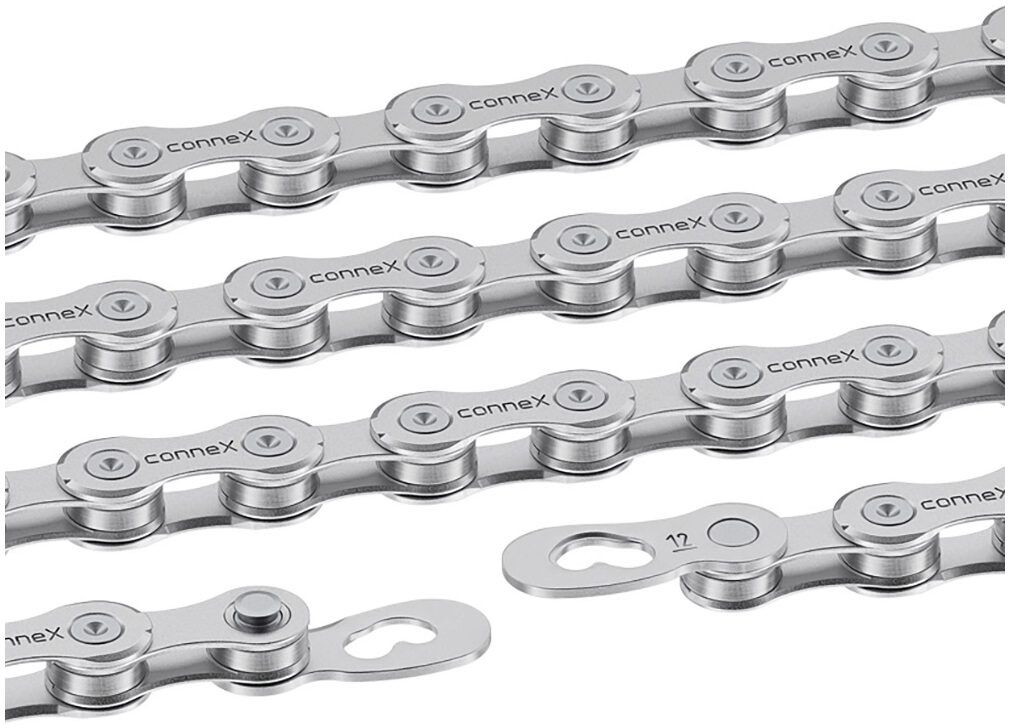

Connex 12S0 12-Speed Chain

12-Speed Steel Performance and Value Chain

Specially developed to meet the requirements of the latest generation of high-performance shifting systems*. The optimised geometry of the inner link lends the chain exceptional wear properties. The Connex Speed Wing link shifting performance on current 12-Speed shifting systems is extremely fast and quiet.

Technology

Innovative Bike Engineering From Germany Since 1893

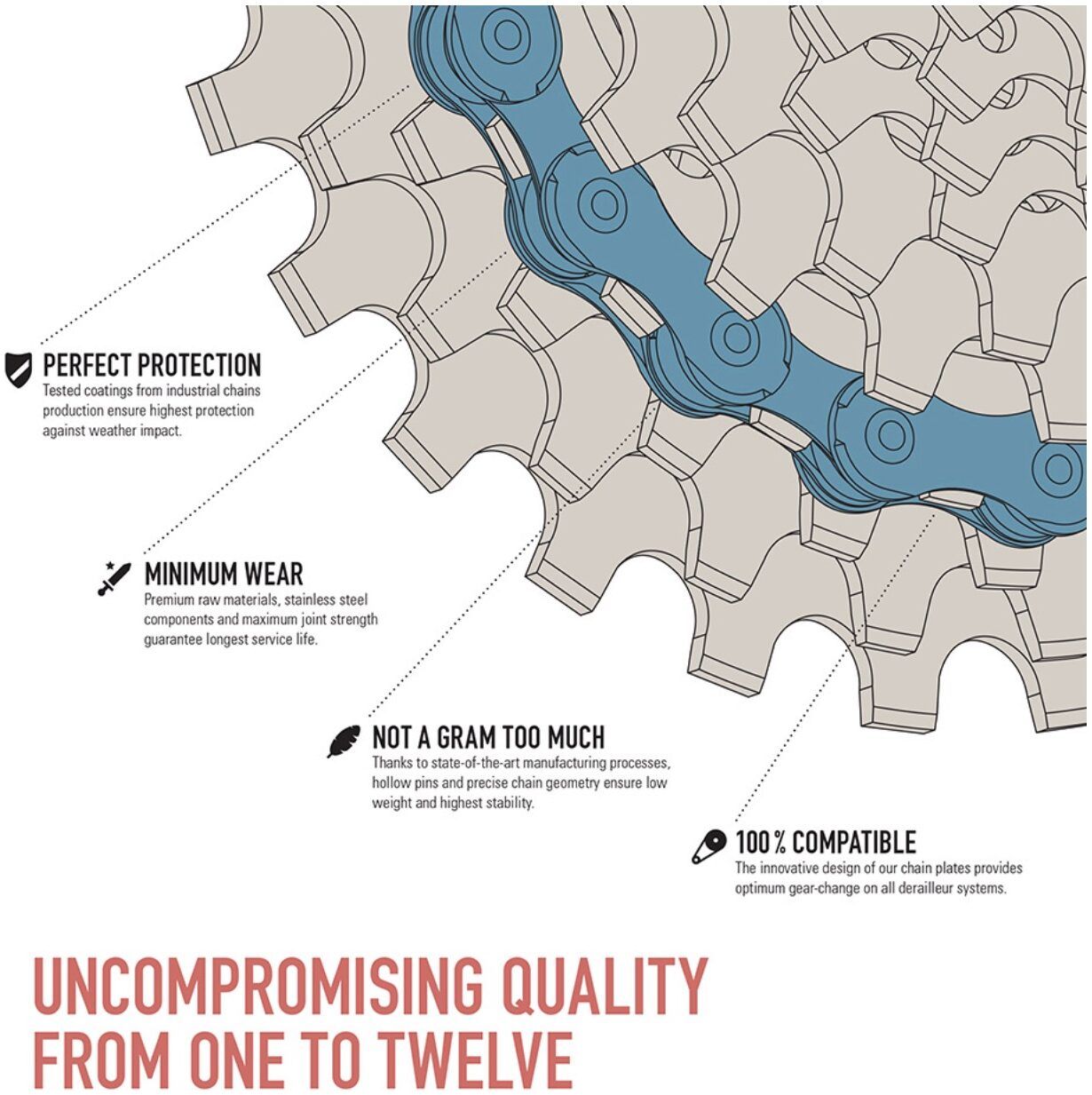

Those who expect the highest performance will find no alternative to Connex chains: The optimised geometry of the plates enables extremely rapid and virtually silent gear changes on all derailleur systems.

Highly developed Peripheral chamfering of the outer plate ensures optimum gear-changing performance. Innovative radial riveting of the pins, combined with a special pin coating, guarantees top performance and long wear, even under the high forces of cross gearing.

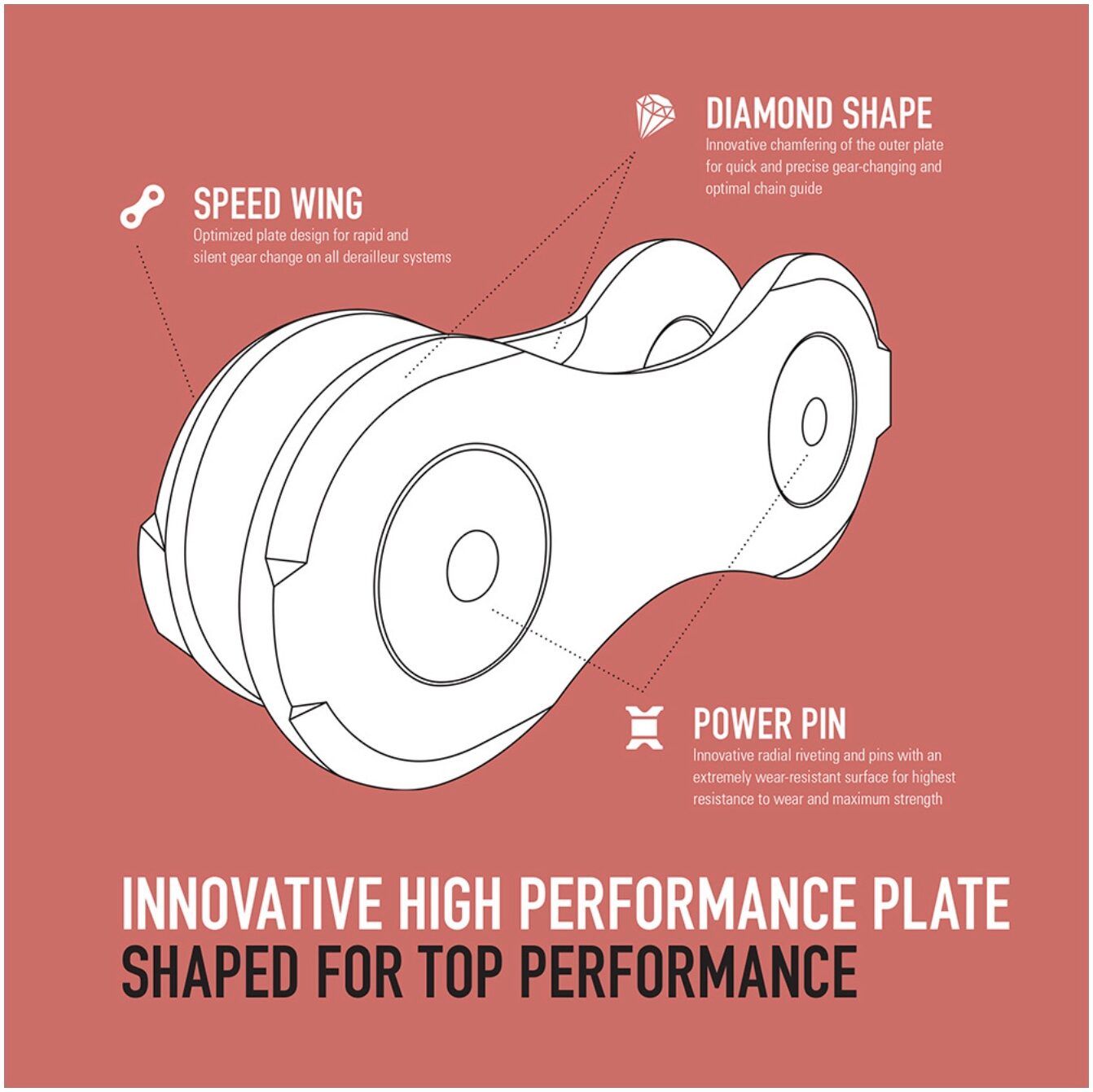

Speed Wing

Optimised plate design for rapid and quiet gear changes.

Diamond Shape

Innovative chamfering of the outer plate for quick and precise gear-changing and optimal chain guide.

Power Pin

Innovative radial riveting and pins with an extremely wear-resistant surface for highest resistance to wear and maximum strength.

Features

• The 12S0 is the standard model in the 12-Speed Connex chain series. Precision-made in Germany using long-lasting, heat-treated steel it offers quiet, high-performance gear changes with exceptionally low wear characteristics

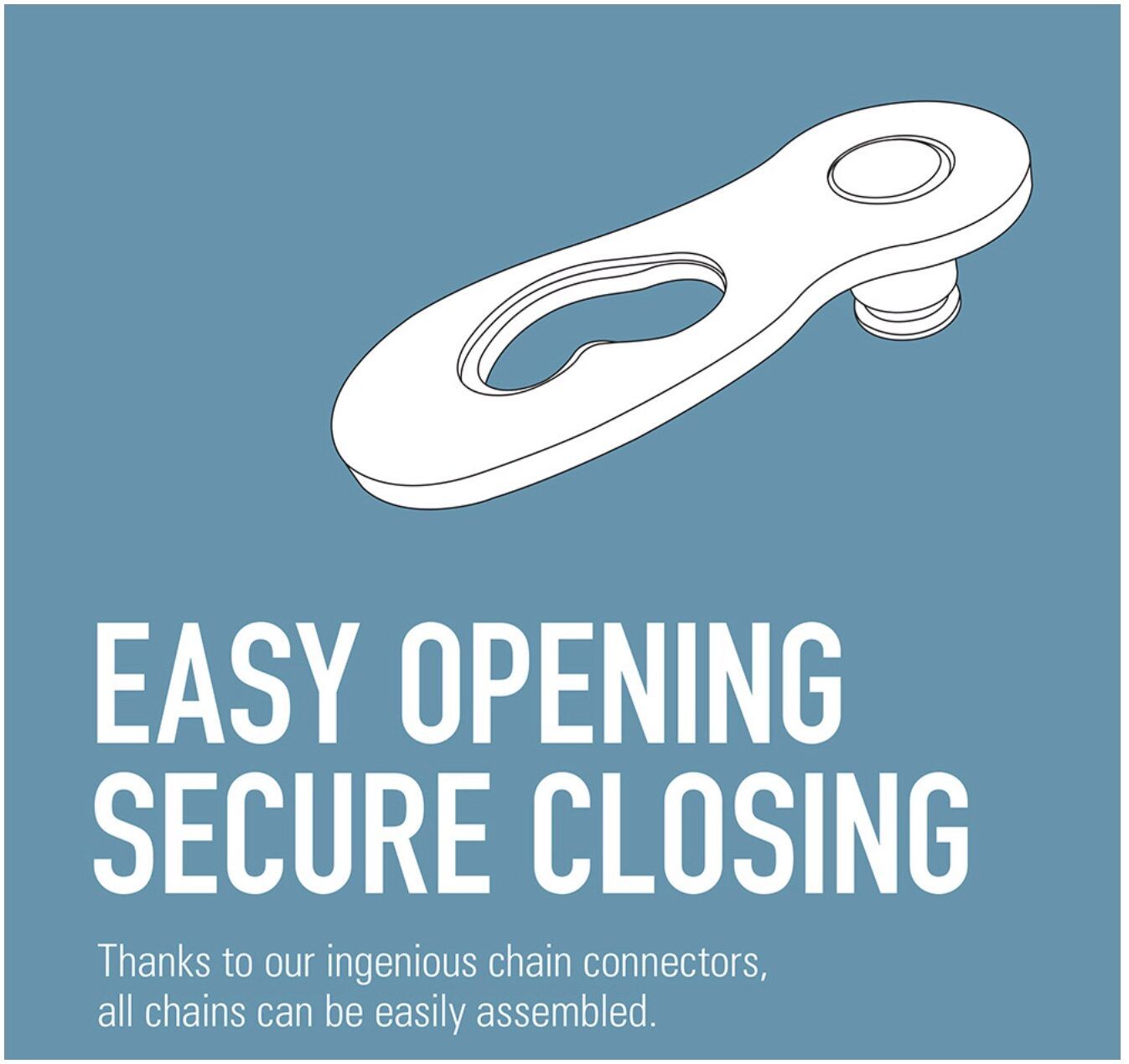

• Supplied with the exclusive, re-usable, tool-free Connex QR joining link
• Compatible with all bicycle 12-Speed gear systems except SRAM's 'FlatTop' 12-Speed
• For Flat top use - please see the Connex 12SR chains

Specification

• Link Count: 126
• Measurement: 1/2" x 1 1/128"
• Pin Length: 5.30mm
• Width Interior: 210mm
• Pressure: 2000N
• Pin Hardening: XHB
• Weight: 285g
