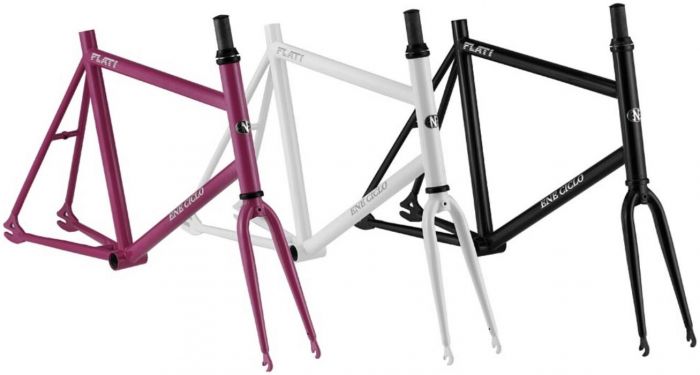

Dia-Compe ENE Ciclo Flat-1 Frameset

More Information
Brand	Dia Compe
Suitable for	Everyone
Sizes	460mm

Dia-Compe started to produce bicycle brakes in Japan in 1930. Since then Dia-Compe has always been leading the bicycle industry and has been keeping providing high quality products, and invented Aluminium Cold Forge Technology.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The Flat-1 is the ultimate urban mini velo frameset. Designed for the streets of Japan, this frame was born out of the need for a compact bike on narrow streets and to store at home.

Available in one adult size, this single speed/fixed gear format frameset accepts 20 x 1 3/8 or 20 x 1.75 wheels (406 or 451 ETRTO) meaning the brake drop will alter depending on the wheel size used. Example - when using a 20 x 1 3/8 wheel size Dia-Compe recommended using Dia-Compe's BRS 101 brakes which have a drop of 43-57mm.

Dia-Compe these framesets its important to think about gearing when selecting components for the build, due to the small wheel size a larger gearing should be considered to give a 'normal' gear ratio (I.e if running a 16t freewheel, then the chainring will probably want to be circa 50t+).
