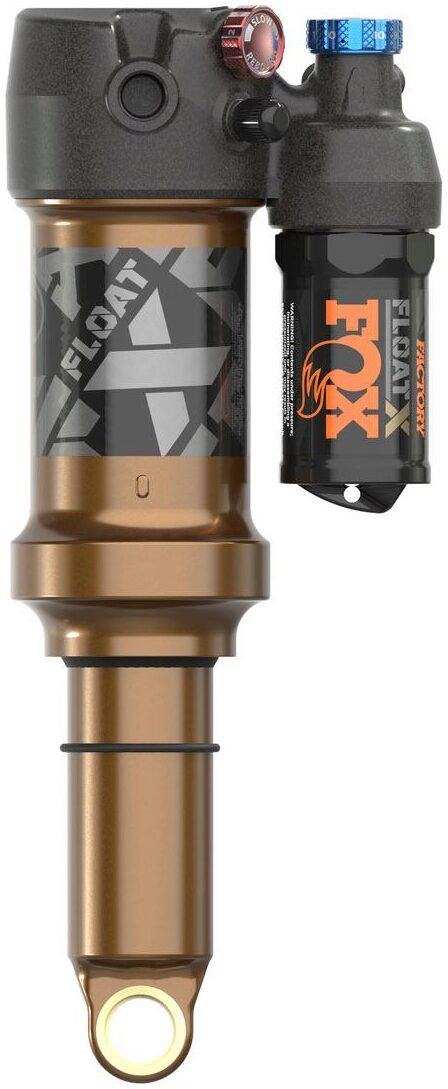

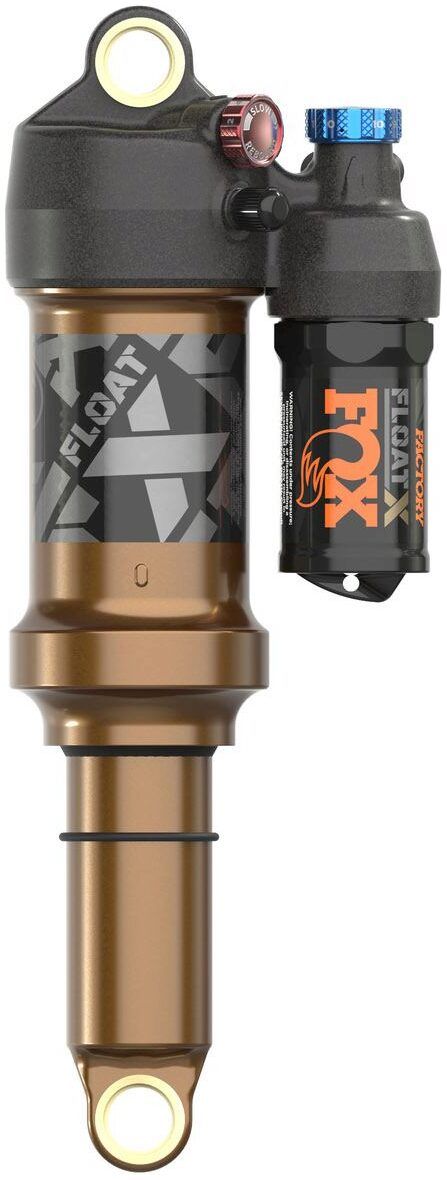

Fox Float X Factory 2-Position 2023 Rear Shock
| Brand | Fox |
|---|---|
| Colour | Black |
Heavyweight Features In A Lightweight Package
Designed specifically to meet the demands of aggressive trail riders, the new Float X combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.
“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race.
Features
- All-New chassis and damper
- High-flow main piston
- Air seal package
- Volume spacers with smaller increments
- MCU bottom out bumper
- Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
- Independent firm mode circuit - Clockable 2 position adjuster
- Increased rebound adjuster range (over DPX2)
- Optimised reservoir lengths per shock size
- Hydraulic top out feature
- Reduced damper noise
- Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
- Bearing hardware compatible both sides
- Air valve location offers improved frame fitment and pump access
Sizing
2-Position Sizes
- Standard Sizes: 190 x 45mm / 210 x 50mm / 210 x 52.5mm / 210 x 55mm / 230 x 57.5mm / 230 x 60mm / 230 x 65mm
- Trunnion Sizes: 185 x 52.5mm / 185 x 55mm / 205 x 60mm / 205 x 62.5mm
2-Position Adjustments
- Independent 2 Position Open/Firm Lever
- Low Speed Rebound – 16 Clicks
- Low Speed Compression – 11 Clicks
