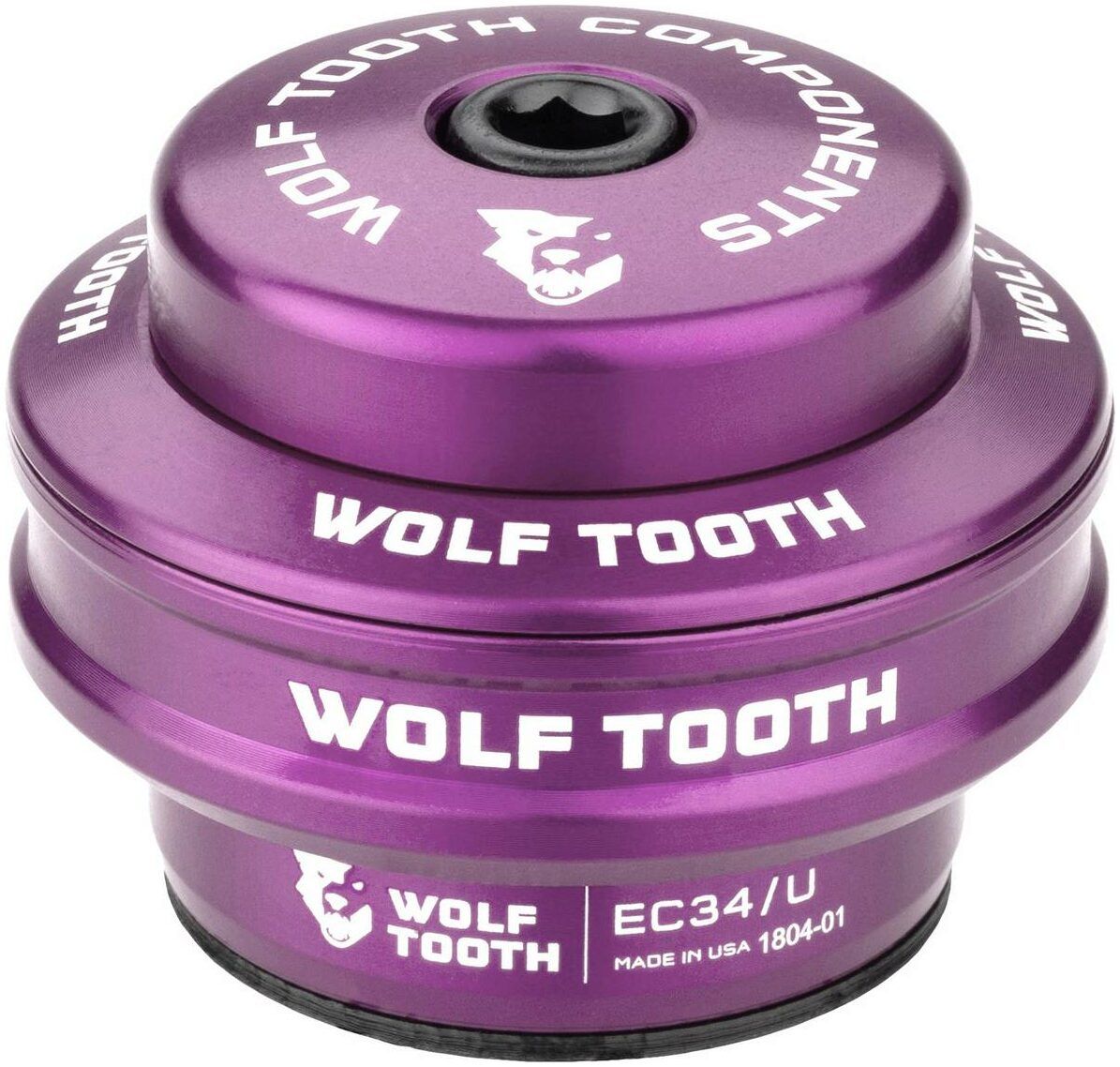

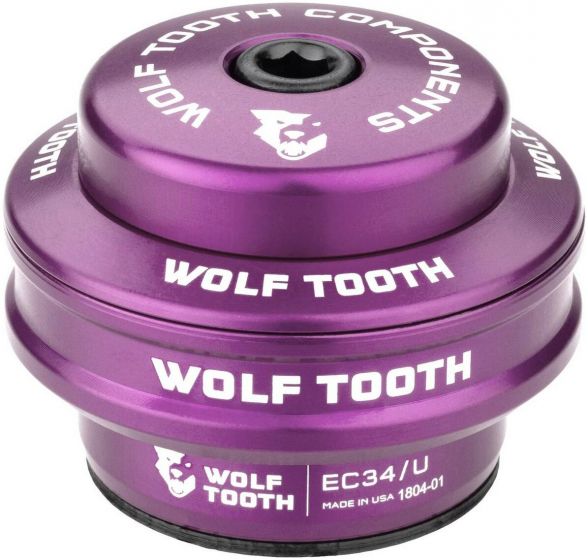

Wolf Tooth Premium EC34/28.6 Upper Headset

Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminium. Wolf Tooth's headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable. Available in a variety of colors. These EC headsets are for frames with external bearing cups, which places the bearing outside of the frame with these headsets. Premium Headsets with Enduro stainless steel bearings have a lifetime warranty on the bearings.

Features

• Stack height designation for EC headsets includes 10mm cup (See tech specs)
• Compatible with any frame that uses an external cup headset with a 34mm upper head tube inner diameter and 34mm, 44mm, or 49mm lower head tube inner diameter
• Uppers and lowers sold separately
• Enduro stainless steel sealed bearings included on both the upper and lower
• Upper headsets ship with a star nut (For steel or aluminium steerer tubes only)
• For forks with carbon steerer tubes, a compression plug is required (Sold separately). Never use a star nut on a carbon steerer tube
• A crown race adapter (Sold separately) allows use of forks with smaller 1-1/8" or 1-1/4" steerer tubes in a larger 1-1/2" bottom headset cup
• EC34 lowers are not compatible with Surly 1-1/8" straight steerer forks

Upper assembly features:

• Ultralight Stem Cap With Integrated Spacer plus an aluminium bolt and a star nut
• 5mm cover = 16mm total stack, 15mm cover = 25mm total stack, 25mm cover = 35mm total stack
• O-ring seal prevents water intrusion around the steerer tube
• Custom-molded upper lip seal provides additional protection for upper bearing

Lower assembly features:

• Custom molded dual-lip seal on the crown race to protect lower bearing in the toughest conditions
• 12.25mm stack
• Service and additional parts available
