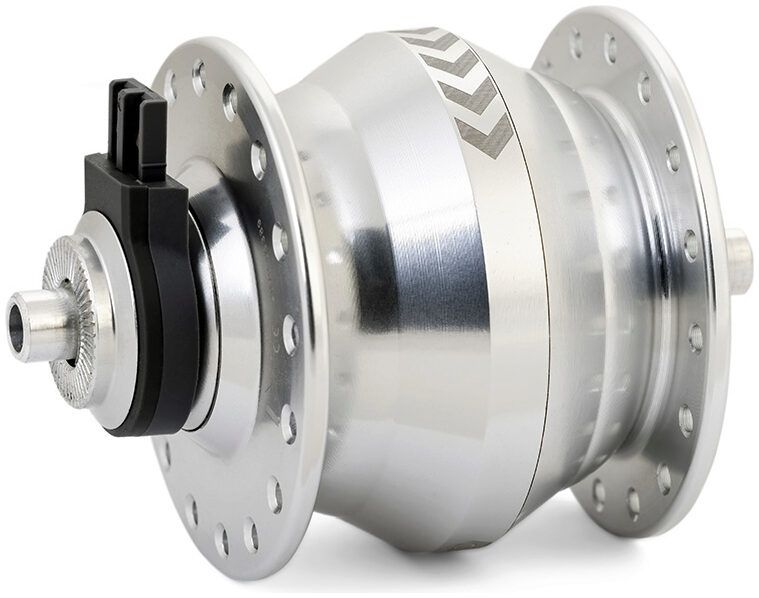

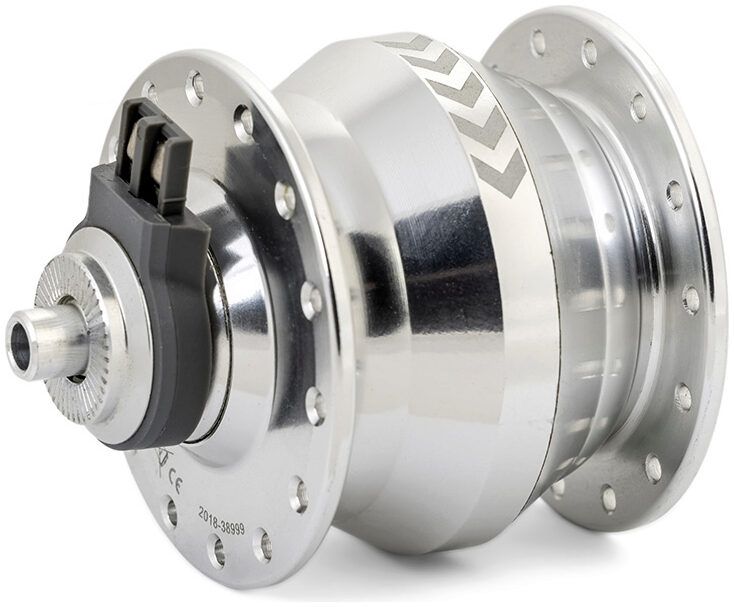

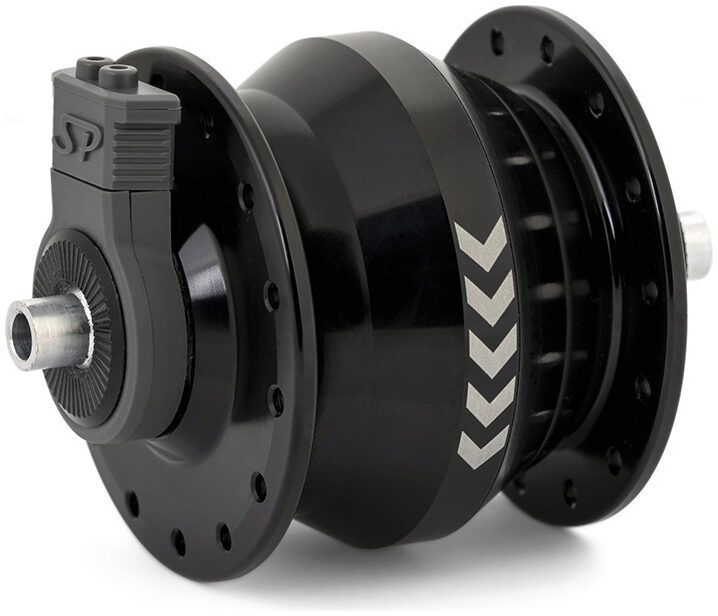

SP SV-8FC Rim Brake Dynamo Front Hub

This QR type hub is ideally suited to folding bikes at 6V3W output and perfect for rim brakes with OLD 74mm.From 2018, SP SV-8-FC is the only dynamo hub you can find at Brompton official website. It is super light and small. Ideal for premium Brompton bikes. The smooth oval shape of the hub was optimised for balance, while attaining an unprecedented weight of only 350g.

Technology

SV-8 Dynamo Hub 6V3W for 400~536mm

SV-8 Series dynamo hubs are not only the smallest in its appearance, but also are the lightest at the market. This model is designed for wheel size from 400 to 536mm at a 6V3W rating. It is also ready for use with 700c wheels at 6V2.4W output. SP respects the 6V3W German standard. All SP dynamo hubs are compatible with standard hub dynamo products including dynamo lamps and converters for USB powered devices. Enjoy small and light.

Specification

• Axle Type: QR
• Brake Type: Rim Brake
• Spoke PCD: 52mm
• Flange Diameter: 60mm
• O.L.D Axle Size: 74mm
• Max Hub Diameter: 58mm
• Spoke Holes: 28H / 32H
• Weight: 350g
