Enduro 3802 W LLB CXD Bearings

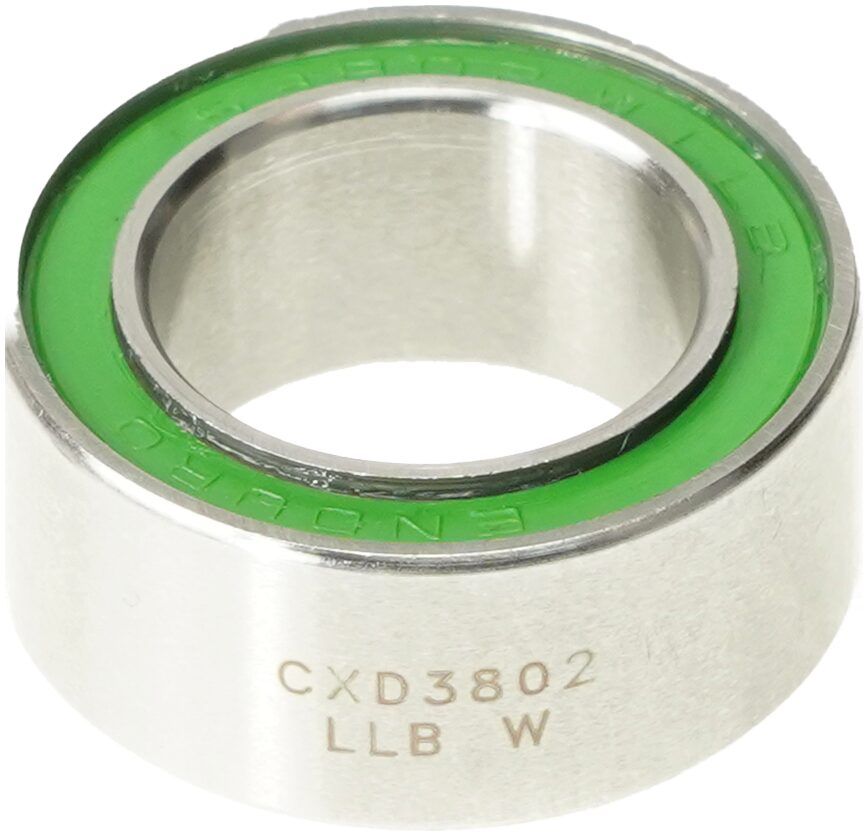

CXD 3802 LLB W - XD-15 Ceramic-Hybrid, ABEC-5, Double-Row, Radial Bearing (C3 Clearance) - 15mm x 24mm x 10mm

An Enduro Bearings exclusive, our XD-15 Ceramic-Hybrid bearings combine corrosion-proof, cryogenically treated nitrogen steel races with Silicon Nitride Grade 3 ceramic balls in a proprietary process that results in the ultimate high performance bearing setup. The deep-groove design raceways allow for maximum sized Grade 3 Silicon Nitride ceramic balls for for increased contact area and improved performance and longevity. Dual-lip labyrinth (LLB) seals protect from the elements, and contain the 90% fill Kluber NBU52 grease that runs smoother with time and is highly resistant to being washed out.

The most impressive feature of XD-15 ceramic-hybrid bearings is, unlike other bearings, they only get better with time and use. As the bearings wear-in, the super-hard ceramic balls actually make the XD-15 races even smoother. So, when compared to other ceramic-hybrid bearings on the market that claim speed and power advantages on day one, Enduro XD-15 bearings not only provide the same initial advantages on day one, but will become faster and smoother with time and use, while the other ceramic-hybrid options will only get slower. We are so confident in the performance of XD-15 Ceramic-Hybrid bearings that we offer an unlimited lifetime bearing and race warranty.

This bearing is used primarily by White Industries in their rear hubs. The extra-wide double-row design greatly reduces flex in the axle of the rear hub, while precisely filling the same space as two 6802 single-row bearings.

The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD-15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.

Bearings Seals

LLB Seals

Enduro's most popular light contact seal. LLB seals are comprised of Nitrile material rubber with a steel insert and ideally suited for constantly spinning bottom bracket and hub bearings. Rather than one thick 2RS seal lip rubbing on a blunt surface, LLB type utilizes two razor thin sealing lips riding in the bearing race groove. The outer lip keeps the water and contaminants out, while the inner lip retains grease for smooth function and longer intervals between servicing.

Specification

• Static Load: 520 Lbf, 2.31 Kn
• Weight: 10.5g
