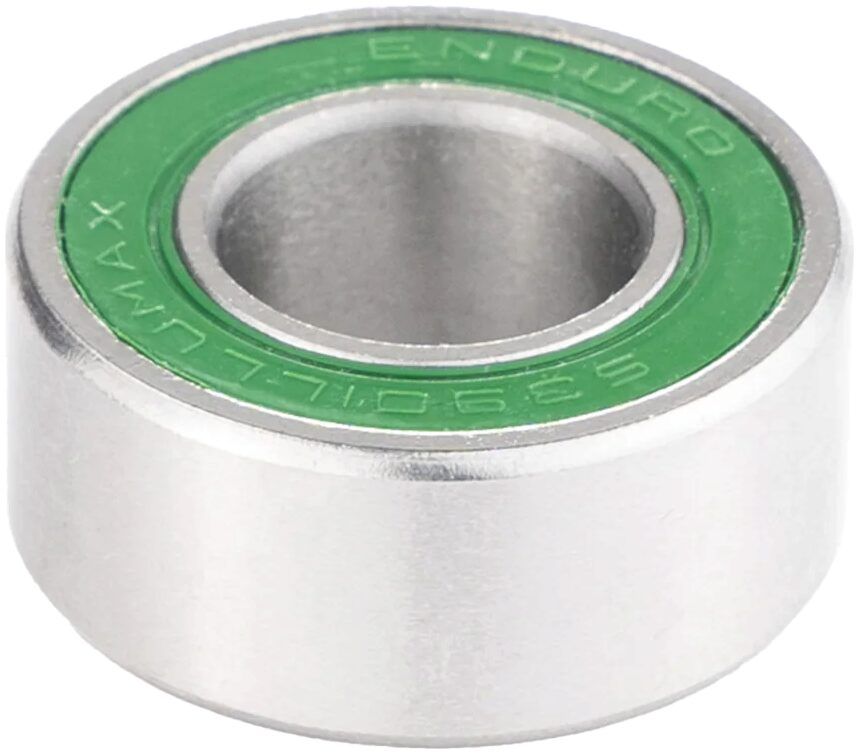

Enduro 3901 LLU MAX Stainless Steel Bearings
| Brand | Enduro |
|---|---|
| Colour | Silver |
S3901 LLU MAX - Stainless Steel, MAX-Design, Double Row, ABEC-3, Radial Suspension Bearing -12mm x 24mm x 10mm
Enduro Bearings pioneered MAX type bearings 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX bearings provide 35-40% more load capacity than standard radial bearings by employing with a special design where the maximum number of balls (full-complement) are inserted into the bearing, via a custom ground slot in the races. The race grooves are also deeper on these bearings to provide increased lateral support to counteract the twisting and multi-directional forces associated with mountain bike pivots. This 440C Stainless Steel, MAX-type, Double-Row, ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area and load bearing capacity over single-row bearings.
This bearing is most commonly used as a suspension pivot bearing
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Bearings Seals
LLU Seals
Are medium contact, dual lip seals that slot into a groove on the inner race. With more sealing pressure than LLB seals, LLU seals are ideal for suspension pivots and headsets that only rotate a few degrees rather than continually spinning. The increased seal pressure helps retain the 90% grease fill to continually lubricate the balls and races, while keeping dirt and moisture out.
Features
- Static Load: 1117bf / 4.97kN
- Weight: 9.3g
