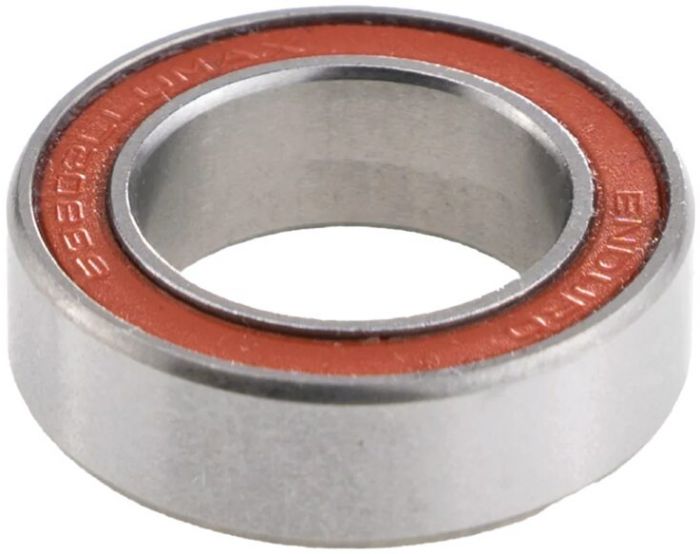

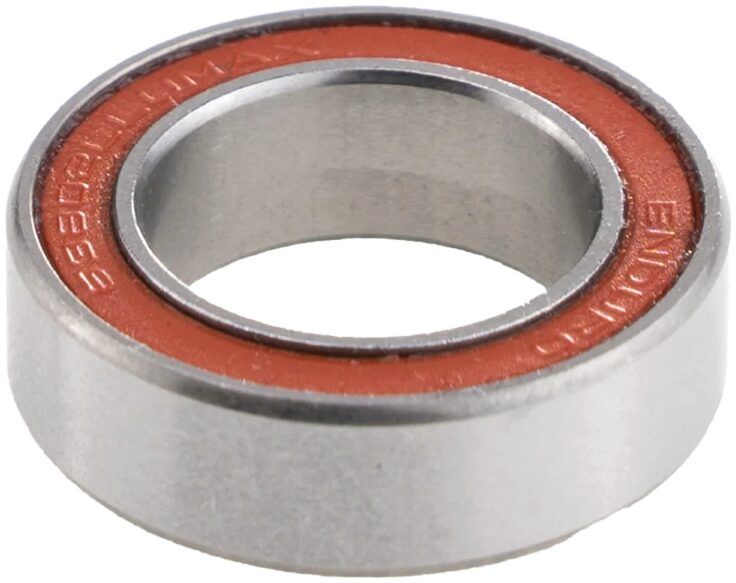

Enduro ABEC 3 63802 LLU MAX Bearings

63802 LLU MAX - MAX-Design, Extra-Wide, ABEC-3, radial suspension bearing - 15mm x 24mm x 7mm

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The extra-wide design greatly reduces flex in the suspension linkage.

This bearing is generally used as a suspension pivot bearing.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.

Bearings Seals

LLU Seals

Are medium contact, dual lip seals that slot into a groove on the inner race. With more sealing pressure than LLB seals, LLU seals are ideal for suspension pivots and headsets that only rotate a few degrees rather than continually spinning. The increased seal pressure helps retain the 90% grease fill to continually lubricate the balls and races, while keeping dirt and moisture out.

Features

• Static Load: 897lbf / 3.99kN
• Weight: 25.2g
