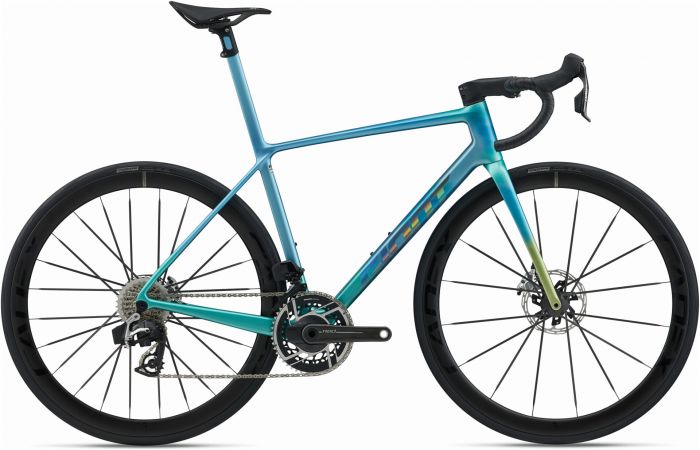

Giant TCR Advanced SL 0 RED 2026 Bike

More Information
Brand	Giant
Colour	Turbo Teal
Suitable for	Everyone
Wheel Size	700c

Giant started out building Chromoly frames in 1972 and have since pioneered the construction of Aluminium and Composite frames and components. Many of their high-end bikes have won championships and design awards, and with over 12,000 Giant dealers around the world, their long standing reputation clearly precedes them.

Skip to the beginning of the images gallery

Details

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro's choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

Technologies

Advanced SL Composite Technology: Professional Grade raw carbon fibre is woven in Giant's composite factory to produce Giant's lightest, stiffest and highest quality frames. This is the technology used by Giant's pro racers in almost every cycling discipline.
Integrated Seatpost: Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 40 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.
Compact Road Design: Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
Over Drive Aero: Found inside the head tube of the Defy, Propel and TCR ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
Power Core: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

Specification

Frame and Forks

Frame: Advanced SL-Grade Composite, 12 x 142mm Thru-Axle, Integrated Seatpost, Disc
Forks: Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12 x 100mm Thru-Axle, Disc

Drivetrain

Crankset: SRAM RED E1 DUB, 35 / 48 Tooth With Integrated Quarq Power Meter X-Small: 165mm, Small: 165mm, Medium: 170mm, Medium / Large: 170mm, Large: 172.5mm, X-Large: 172.5mm
Bottom Bracket: SRAM DUB Ceramic, Press Fit
Rear Derailleur: SRAM RED AXS E1
Front Derailleur: SRAM RED AXS E1
Cassette: SRAM RED, 12-Speed, 10 x 33 Tooth
Chain: SRAM RED E1, 12-Speed

Braking/Shifting

Shifters: SRAM RED AXS E1
Front Brake: SRAM RED E1 Hydraulic, SRAM CenterLine XR Rotors 160mm
Rear Brake: SRAM RED E1 Hydraulic, SRAM CenterLine XR Rotors 140mm
Brake Levers: SRAM RED AXS E1

Wheels

Rims: CADEX Max 40 WheelSystem, 40mm
Front Hub: CADEX R3 Aero Hub, CenterLock, 12mm Thru-Axle
Rear Hub: CADEX R3-C48 Aero Hub, 48 Tooth Ratchet Driver, CenterLock, 12mm Thru-Axle
Spokes: CADEX Aero Carbon Spoke
Tyres: CADEX Road Race GC, Tubeless, 700 x 30mm, Folding

Finishing Kit

Handlebars: Giant Contact SLR X-Small: 420/370mm, Small: 420/370mm, Medium: 440/390mm, Medium / Large: 440/390mm, Large: 440/390mm, X-Large: 440/390mm
Grips: Stratus Lite 2.0
Stem: Giant Contact SLR AeroLight X-Small: 80mm, Small: 90mm, Medium: 100mm, Medium / Large: 110mm, Large: 110mm, X-Large: 120mm
Seatpost: Giant Integrated Seatpost, -5/+15mm Offset
Saddle: CADEX AMP
