Marin DSX 2 2026 Bike
| Brand | Marin |
|---|---|
| Colour | Clay / Orange |
| Suitable for | Everyone |
| Wheel Size | 700c |

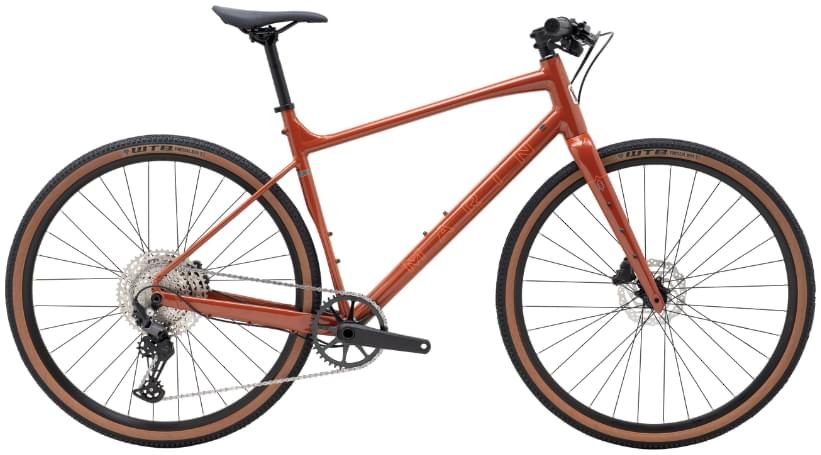

The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminium frames and carbon forks with large tyre clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes,long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
Specification
Frame and Forks

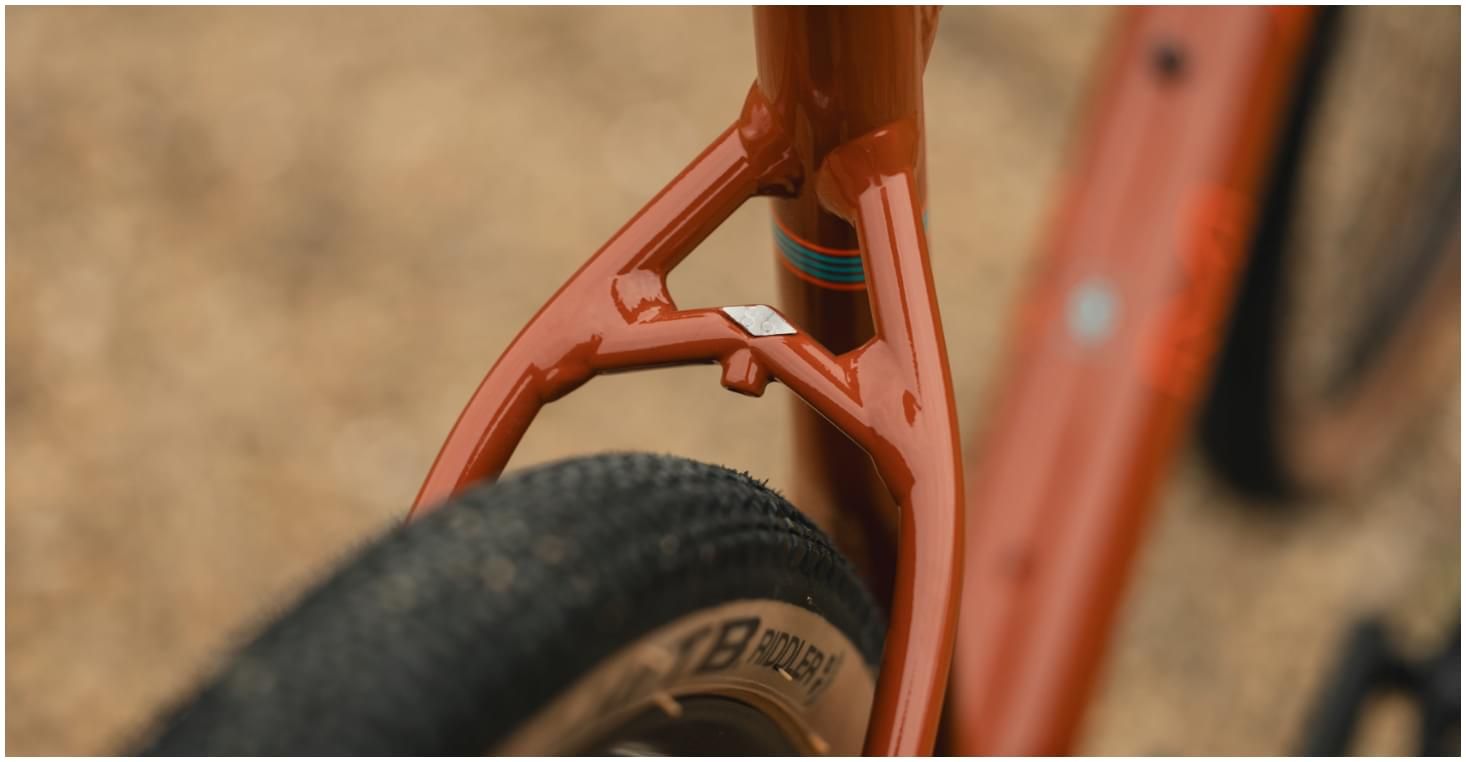

- Forks: Marin Full Carbon with Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Headset: FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Drivetrain
- Crankset: Forged Alloy 1 x 11, Hollow Spindle, Steel Narrow Wide 42 Tooth Chainring
- Bottom Bracket: External Sealed Cartridge Bearings
- Rear Derailleur: Shimano Deore, RDM6100, 12-Speed
- Cassette: Shimano Deore, CS-M6100, 12-Speed, 10-51 Tooth
- Chain: KMC x 12
Braking/Shifting
- Shifters: Shimano Deore, SLM6100, 12-Speed

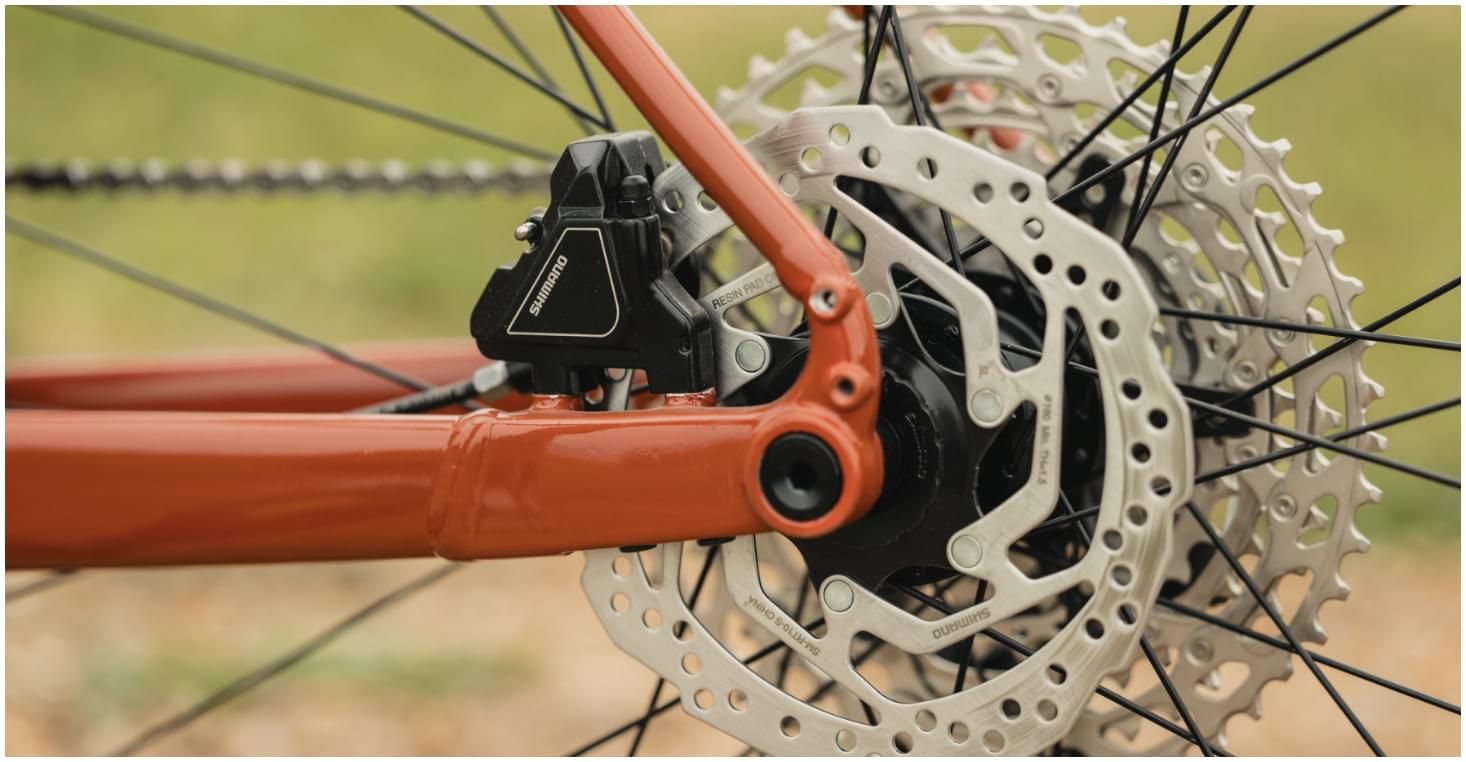

- Front Brake: Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
- Rear Brake: Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
- Brake Levers: Shimano Hydraulic
Wheels
- Rims: Marin Aluminium Double Wall, Disc Specific
- Front Hub: Forged Aluminum, 100 x 12mm, Disc Specific, 32 Hole
- Rear Hub: Forged Aluminium Alloy, 142 x 12mm, Disc Specific, 32 Hole
- Spokes: 14 Gauge Black Stainless Steel
- Tyres: WTB Riddler, 700c x 45mm
Finishing Kit
- Handlebars: Marin Mini Riser
- Grips: Marin MTB
- Stem: Marin 3D Forged Alloy
- Seatpost: Marin Alloy, 27.2mm
- Saddle: Marin MTB
