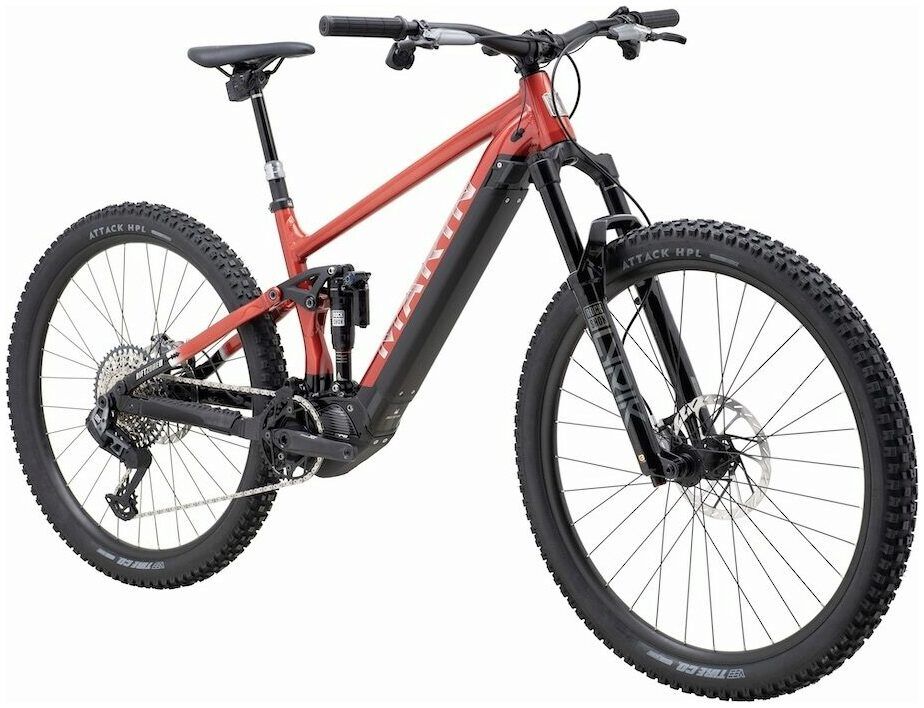

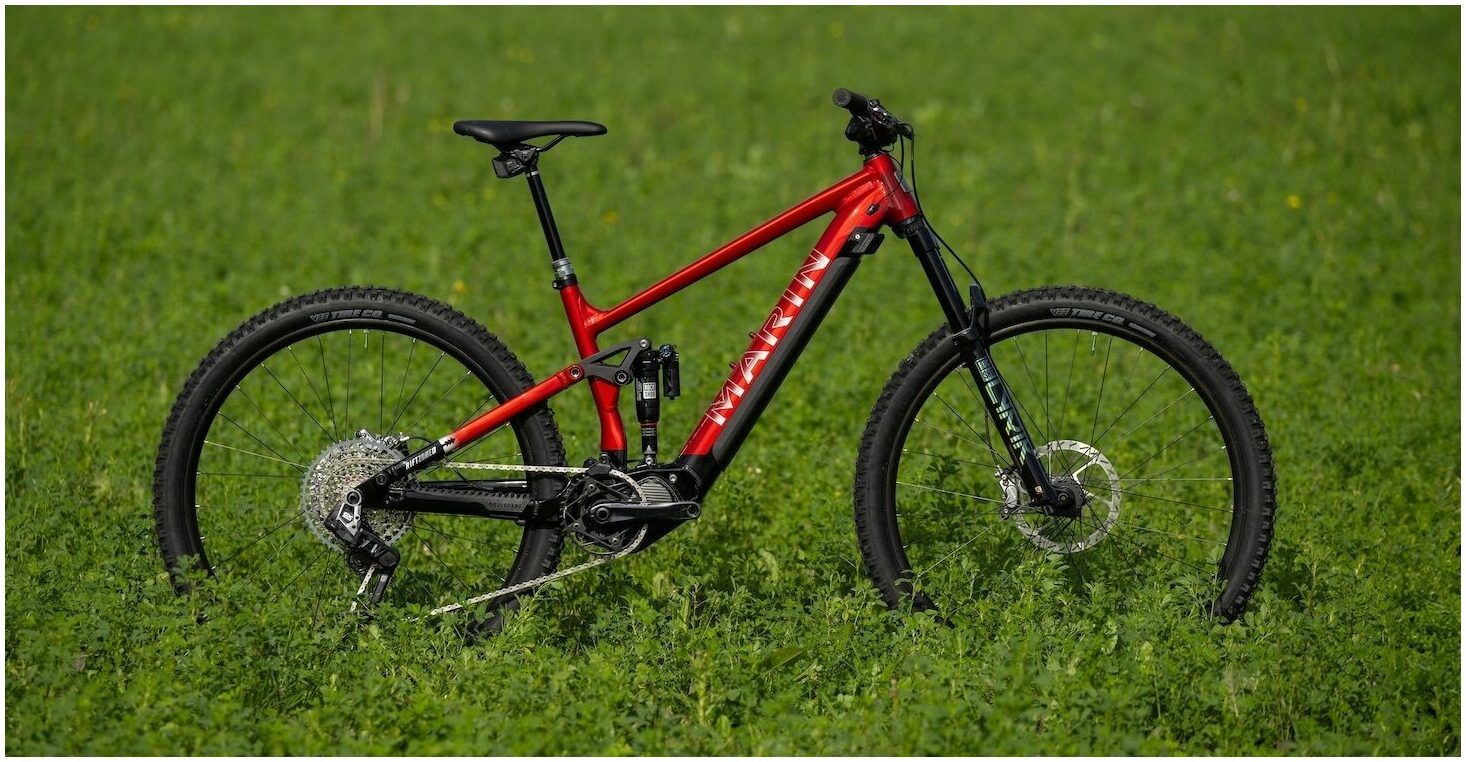

Marin Rift Zone E XR AXS 29 2024 Electric Bike

XR stands for Extra Rad. We turned the Rifty E up another notch with this one - RockShox Lyrik Ultimate fork and Super Deluxe Ultimate Shock, Vee Tyre Co rubber, Shimano XT drivetrain, next-gen Shimano EP801 motor, SRAM Code 4-piston brakes. And the cherry on top? SRAM AXS wireless shifting and a wireless RockShox Reverb dropper post. Our highest spec, highest tech Rifty E ever.

Technology

Series 4 Aluminum Frame

Rift Zone E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

MultiTrac Suspension

The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.

Shimano STEPS

Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor down low to help ensure that the Rift Zone E performs like the analog version, but with a 250W boost. Three levels of power give riders options to balance electric power, speed and range. Electric assist up to 20mph in the US, 25km/h in Europe.

Specifications

Frame and Forks

• Frame: Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery / Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
• Forks: RockShox Lyrik Ultimate, 150mm Travel, 29", 15 x 110mm Maxle Stealth, 42mm Offset
• Rear Shock: RockShox Super Deluxe Ultimate, 210 x 55mm, 25mm x M8 Hardware, Custom Tune

Drivetrain

• Crankset: Shimano XT M8150, 160mm Length, 38 Tooth Steel SRAM Chainring

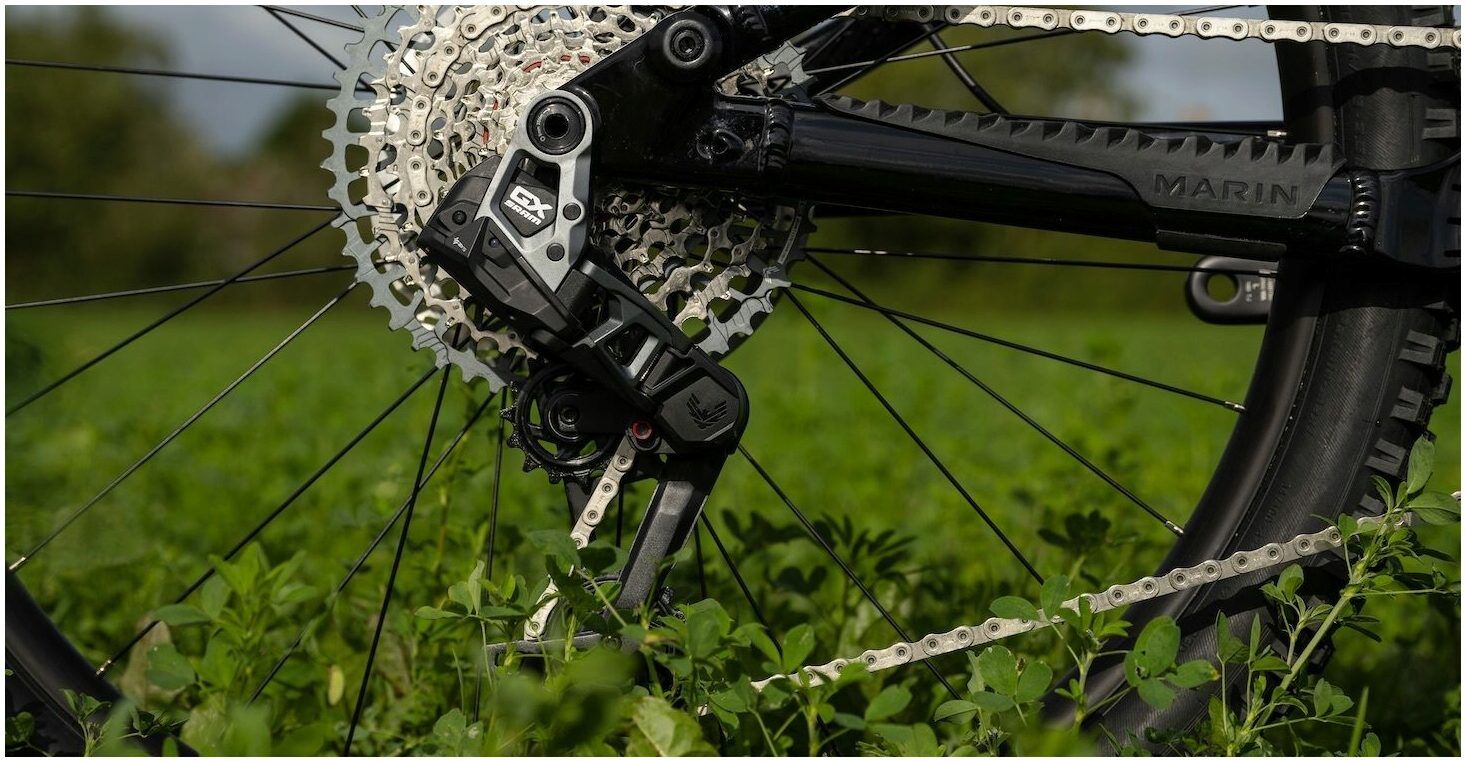

• Rear Derailleur: SRAM GX AXS

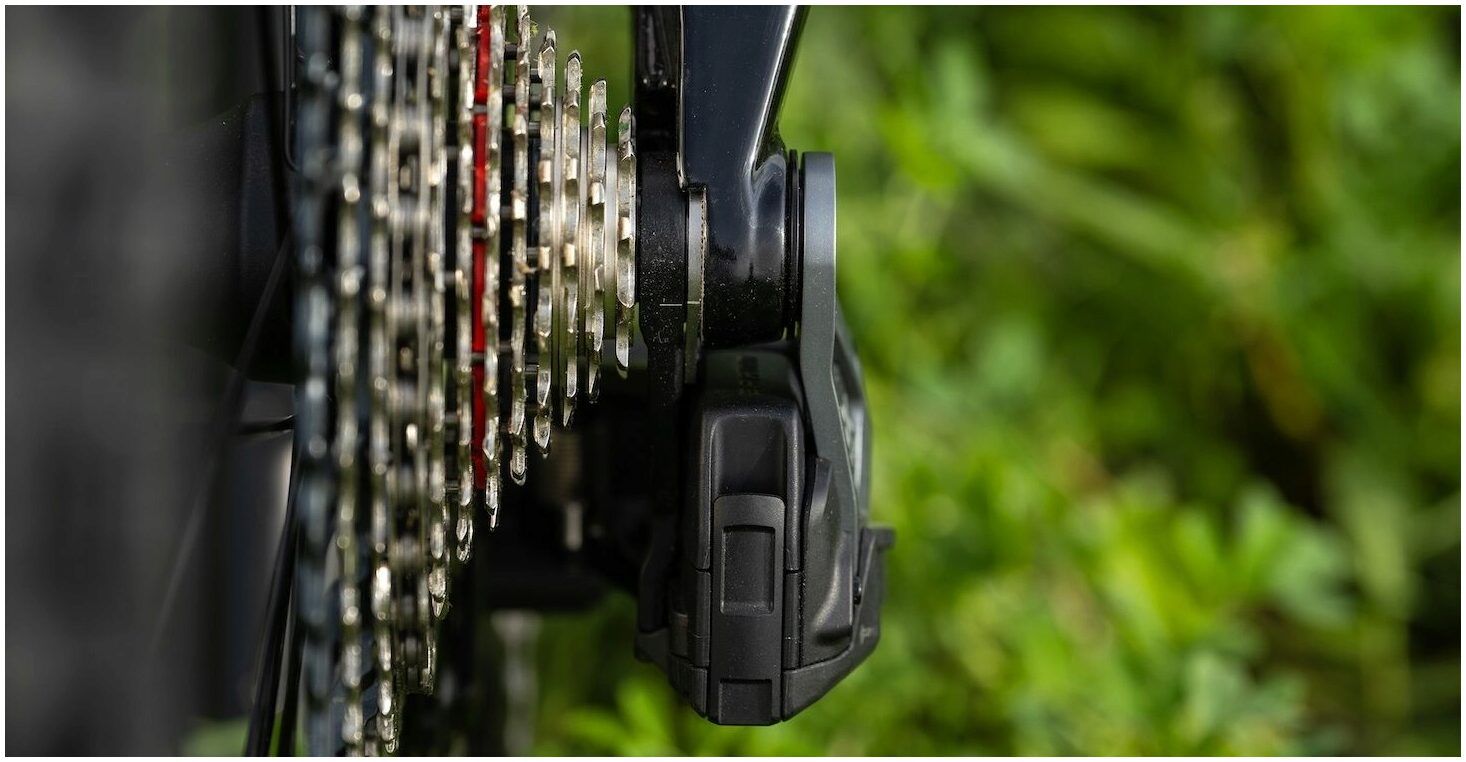

• Cassette: SRAM CS-XS-1275, 10-52 Tooth
• Chain: SRAM GX

Braking/Shifting

• Shifters: SRAM AXS POD
• Brake Levers: SRAM Code Bronze Stealth
• Front Brakes: SRAM Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor
• Rear Brakes: SRAM Code Bronze, 4-Piston Hydraulic Disc, 180mm HS2 Rotor with Bolt on Speed Sensor

Wheels

• Rims: Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
• Front Hub: Formula DC-711, 15 x 110mm, 6-Bolt, 32 Hole
• Rear Hub: Formula DCL-3482, 4 Sealed Bearings, 12 x 148mm, XD Driver, 6-Bolt, 32 Hole
• 14g Black Stainless Steel
• Front Tyre: Vee Tyre Co. Attack HPL, 29 x 2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing
• Rear Tyre: Vee Tyre Co. Attack HPL, 29 x 2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing

Finishing Kit

• Handlebars: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
• Grips: Marin Grizzly Lock On
• Stem: Marin CNC, 35mm Length, 35mm Bar Bore
• Seatpost: Rock Shox Reverb AXS with POD remote, Size Small: 125mm, Size Medium: 150mm, Size Large / X-Large: 170mm
• Saddle: Marin eMTB
• Pedals: Marin MTB Plastic

Electric Power

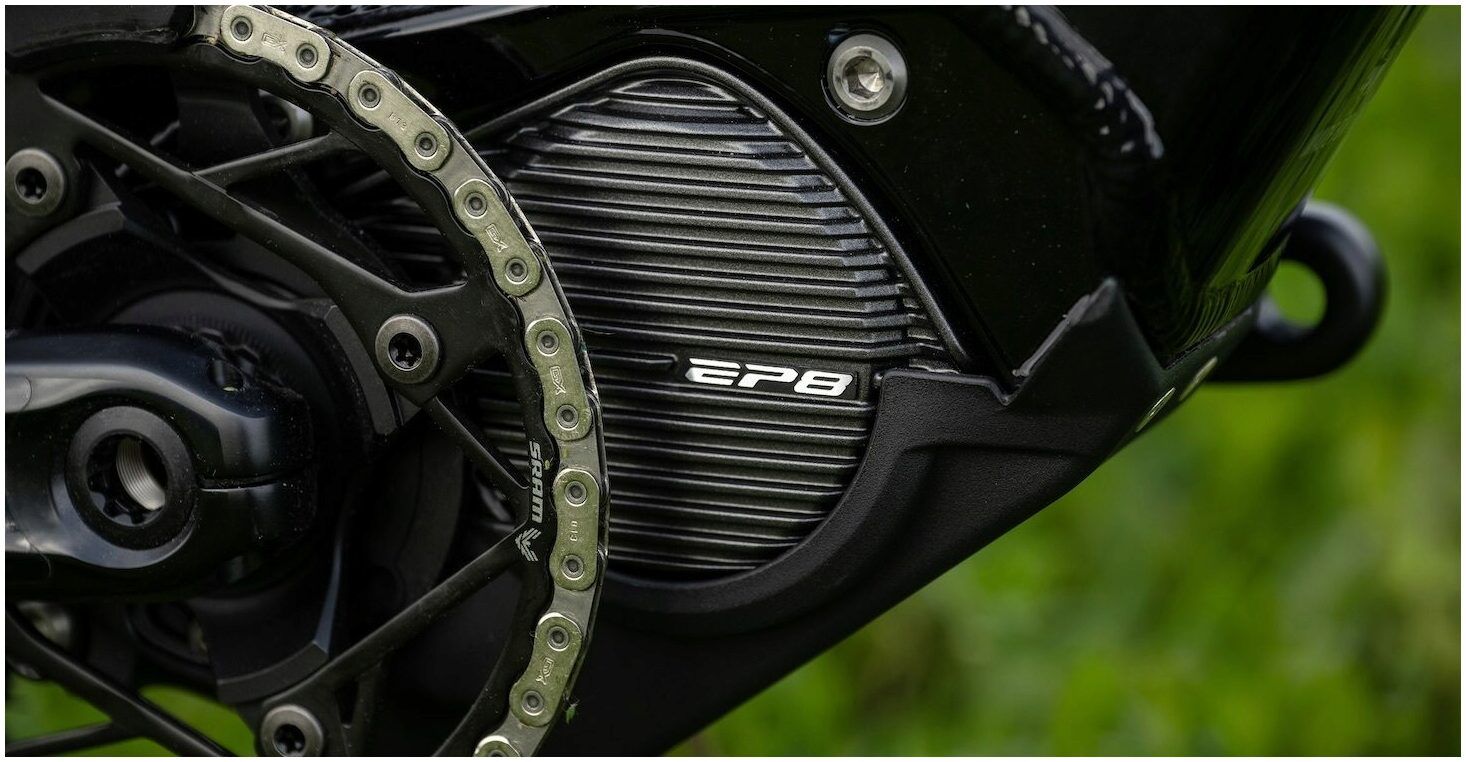

• Motor: Shimano EP801, 250W, 85Nm
• Battery: BT-8036, Internal 630Wh

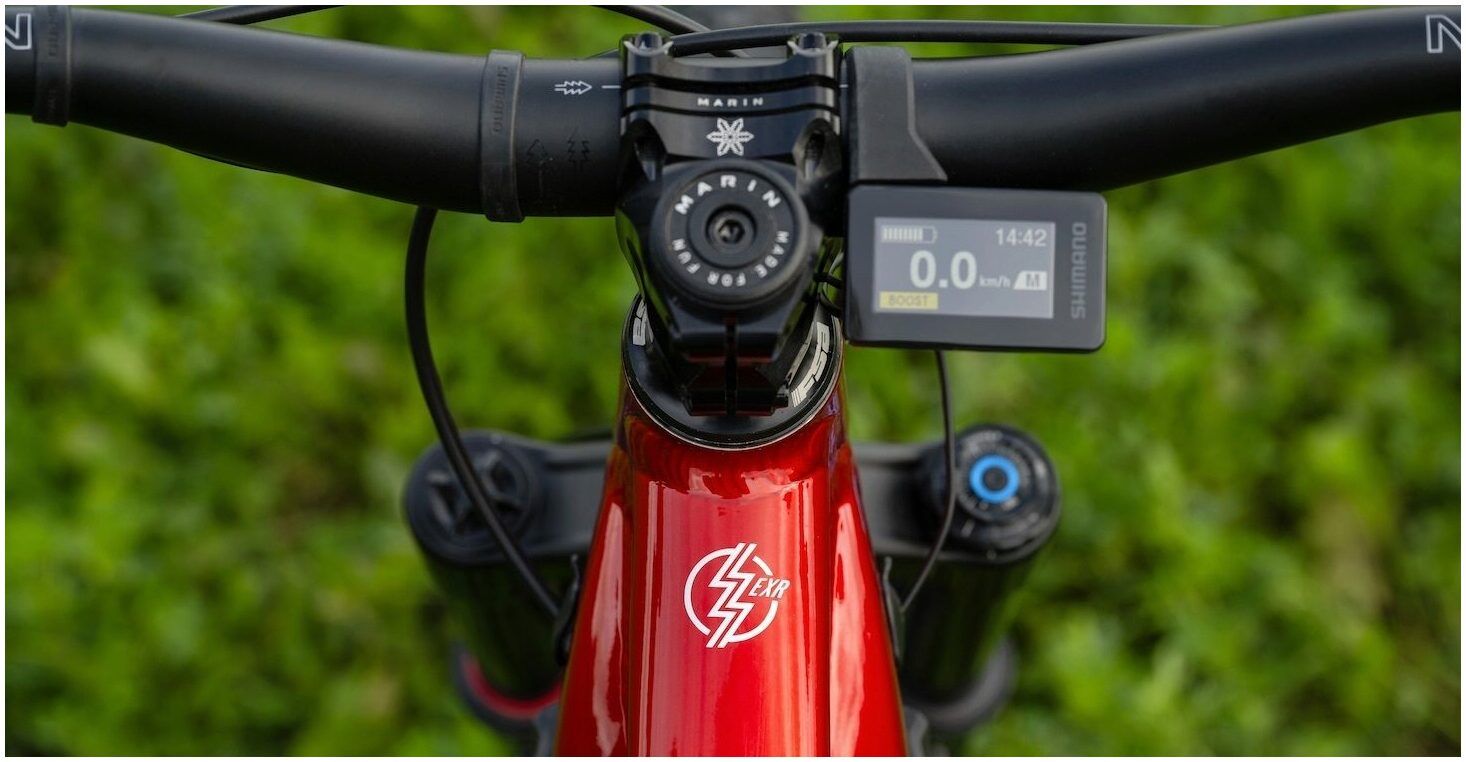

• Display: Shimano SC-E600
• Controller: SW-EN600L Left Hand Switch for Assist Mode Change
