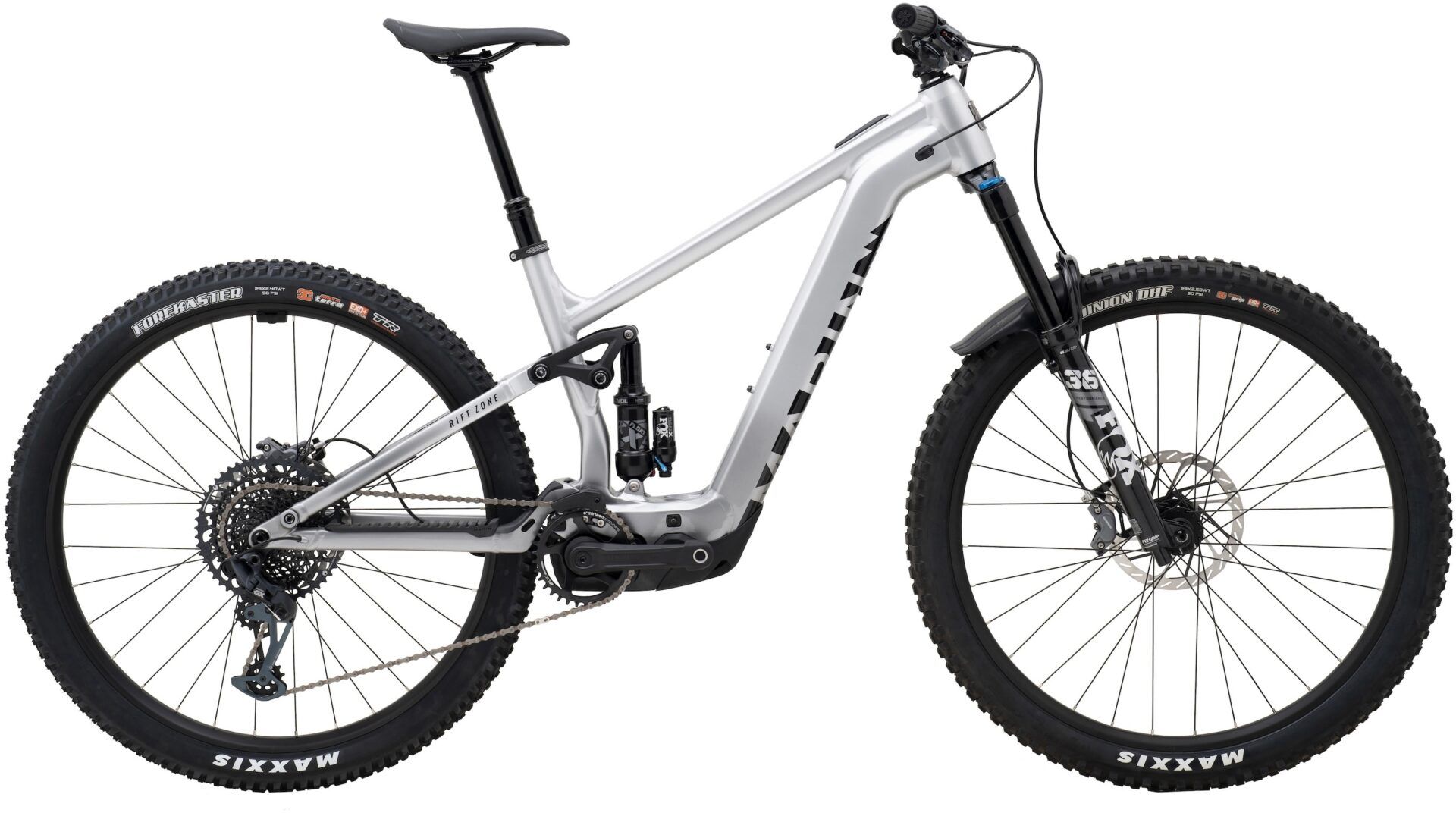

Marin Rift Zone EL 2 2025 Electric Bike

More Information
Brand	Marin
Colour	Alloy Black
Suitable for	Everyone
Wheel Size	29-inch

Marin County California is regarded as the birthplace of mountain biking. With niche communities back then shaping what it is today, and with Marin Bikes' inception coming shortly after, the company has deep roots in the sport and now offers many styles of bikes to suit off-roaders and commuters alike.

Skip to the beginning of the images gallery

Details

Marin's all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone formula and repurposes it into bikes that share the capability as the full-powered versions, but in lighter-weight packages. Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride, with a power delivery so natural you might forget it's an ebike. All of the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.

Specification

Frame and Forks

Frame: All New Series 4 Alloy Lightweight E Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Fork: Fox 36 Performance, 150mm Travel, 29", 110 x 15mm Kabolt, 44mm Offset
Rear Shock: Fox Float X, Performance, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210 x 55mm, 25xM8 Upper Mount, No Lower DU Or Hardware
Headset: FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"

Drivetrain

Crankset: E*Thirteen E*Spec Plus, 160mm Length, 34 Tooth
Rear Derailleur: SRAM GX Eagle Lunar
Cassette: SRAM XG 1275 Eagle Cassette 10-52 Tooth
Chain: SRAM NX Eagle

Braking/Shifting

Shifters: SRAM GX Eagle Lunar MMX Moun Tooth
Front Brake: SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HXS Rotor
Rear Brake: SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HXS Rotor
Brake Levers: SRAM Code Bronze Stealth

Wheels

Rims: Marin Aluminium Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Front Hub: Formula DCL-3482, 4 Sealed Bearings, 148 x 12, XD Driver, 6-Bolt, 32 Hole
Rear Hub: Formula DC-711, 110 x 15, 6-Bolt, 32 Hole
Spokes: 14 Gauge Black Stainless Steel
Tyres: Front: Maxxis Minion DHF, 29 x 2.5" MAXXGRIP, Tubeless Ready, EXO+, Rear: Maxxis Forecaster 29 x 2.4", Tubeless Ready MAXX TERRA EXO+

Finishing Kit

Handlebars: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Grips: Marin Grizzly Lock-On
Stem: Marin CNC , 35mm Length, 35mm Bar Bore
Seatpost: TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Saddle: Marin Speed Concep Tooth
Pedals: Marin MTB Plastic
