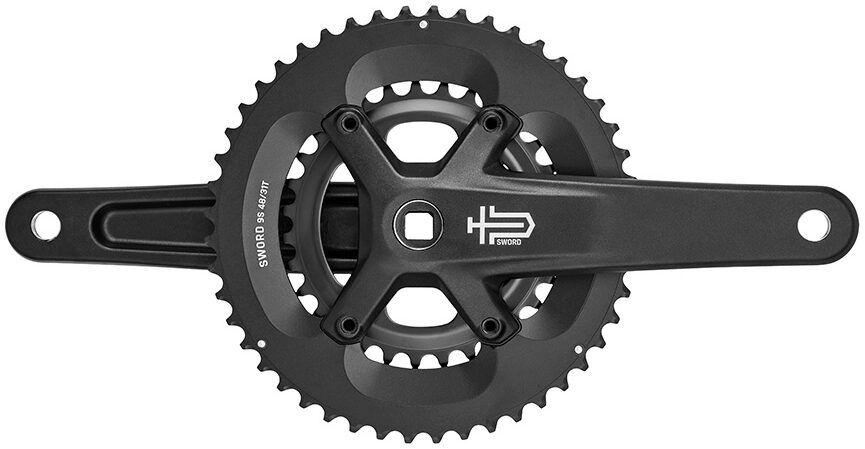

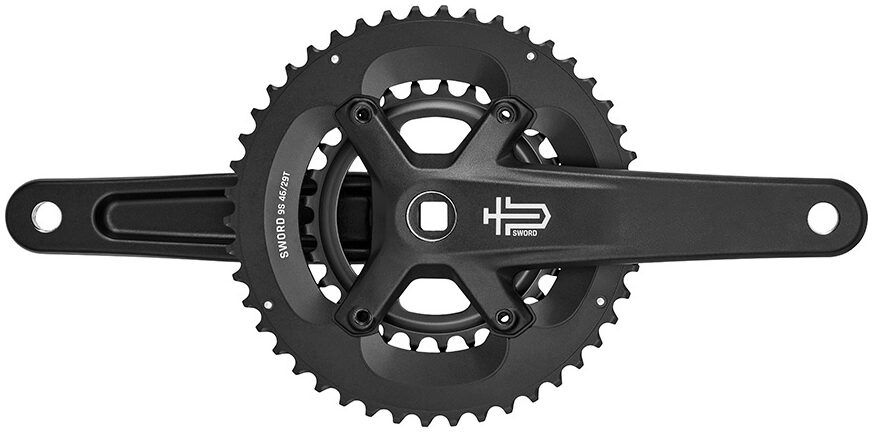

MicroSHIFT Sword Black Double 9-Speed Chainset
| Brand | MicroSHIFT |
|---|---|
| Colour | Black |
The Sword Black 2x crankset brings gravel oriented gear ratios, aesthetics, and chainline to a square taper bottom bracket platform. A wide 17T gap between chainrings extends your gear range to help you extend your ride no matter the terrain. And it can be converted from 2x to 1x simply by installing a single chain retaining ring in the outer chainring position.
Features
- Compatible with 68x113mm JIS bottom bracket
- 110/80mm Asymmetric 4-bolt BCD
- Wide gear range designed to be used with Sword Black shifters and front derailleur
Specification
- Group: Sword Black
- Speed: 10-Speed
- Chainring Type: 2x Double
- Chainring Size: 46-29T Or 48-31T
- Chainring Material: Steel Inner, Aluminium Outer
- Chainline: Wide 47mm
- Chainring BCD: 110/80 Asymmetric
- Arm Length: 165mm, 170mm, 172.5mm, 175mm
- Spindle: Standard 24mm
- Bottom Bracket Shell Width: Press Fit 86.5mm Or Threaded 68mm
- Weight: 925g (172.5mm)
Please note that a bottom bracket is not included.
