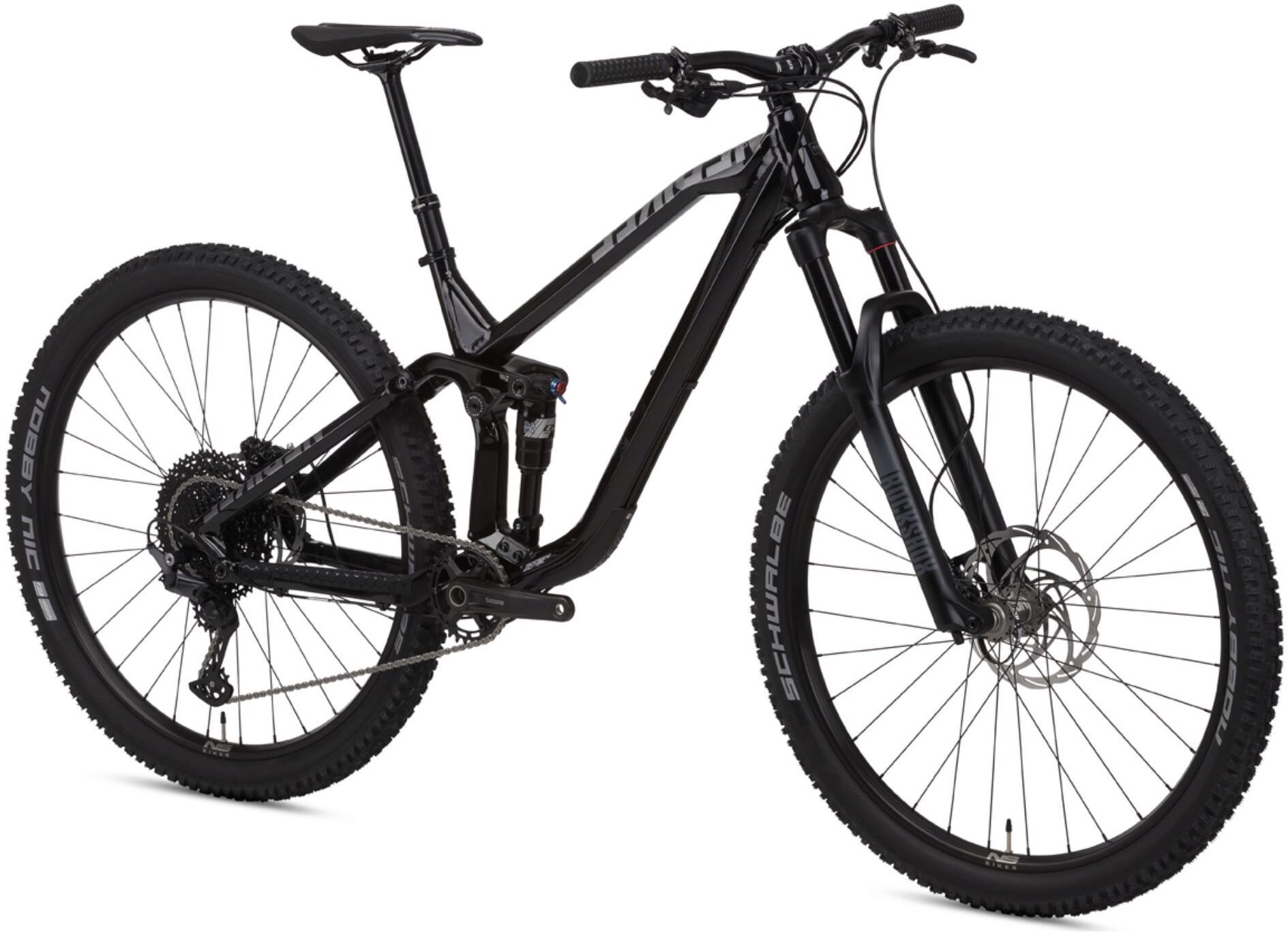

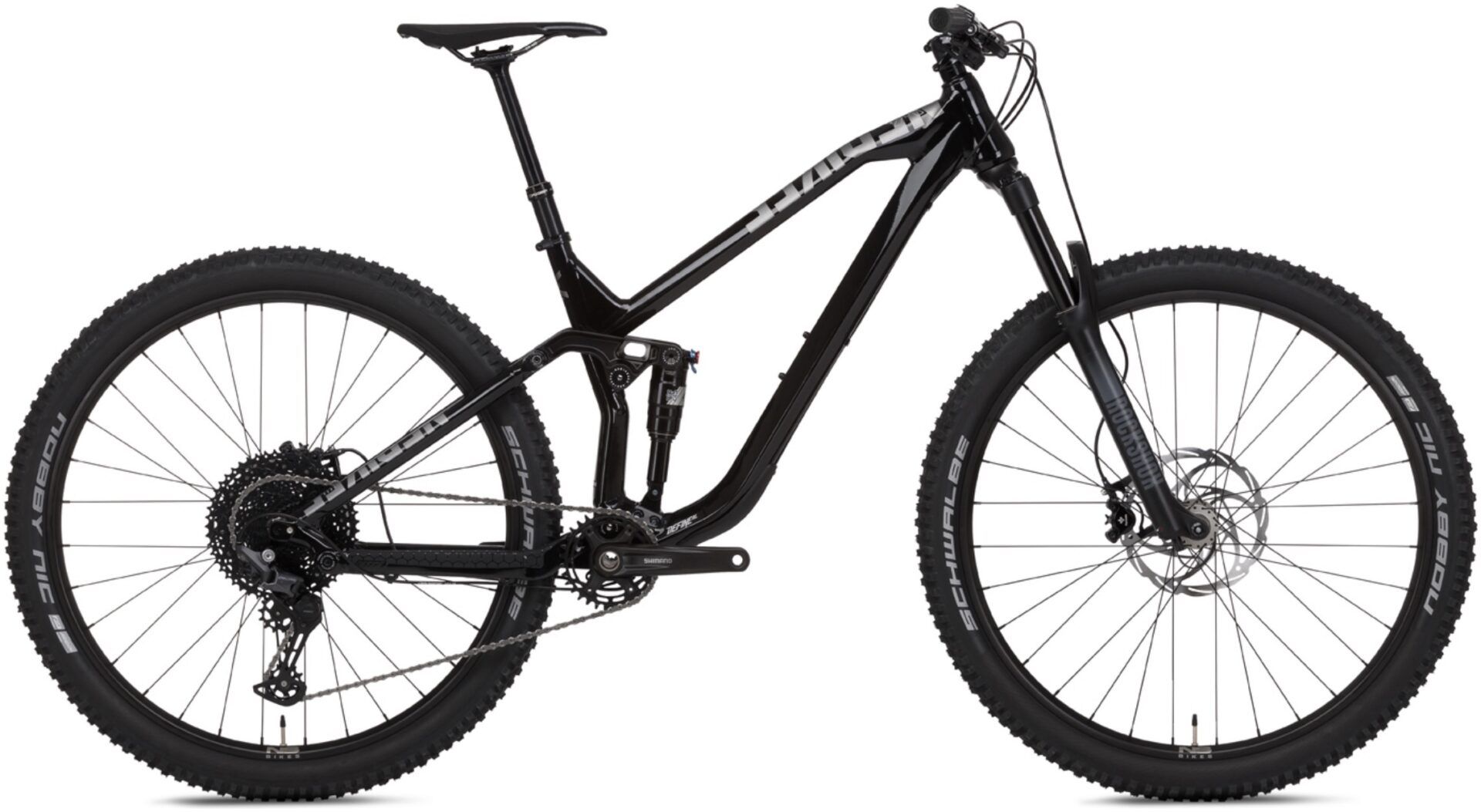

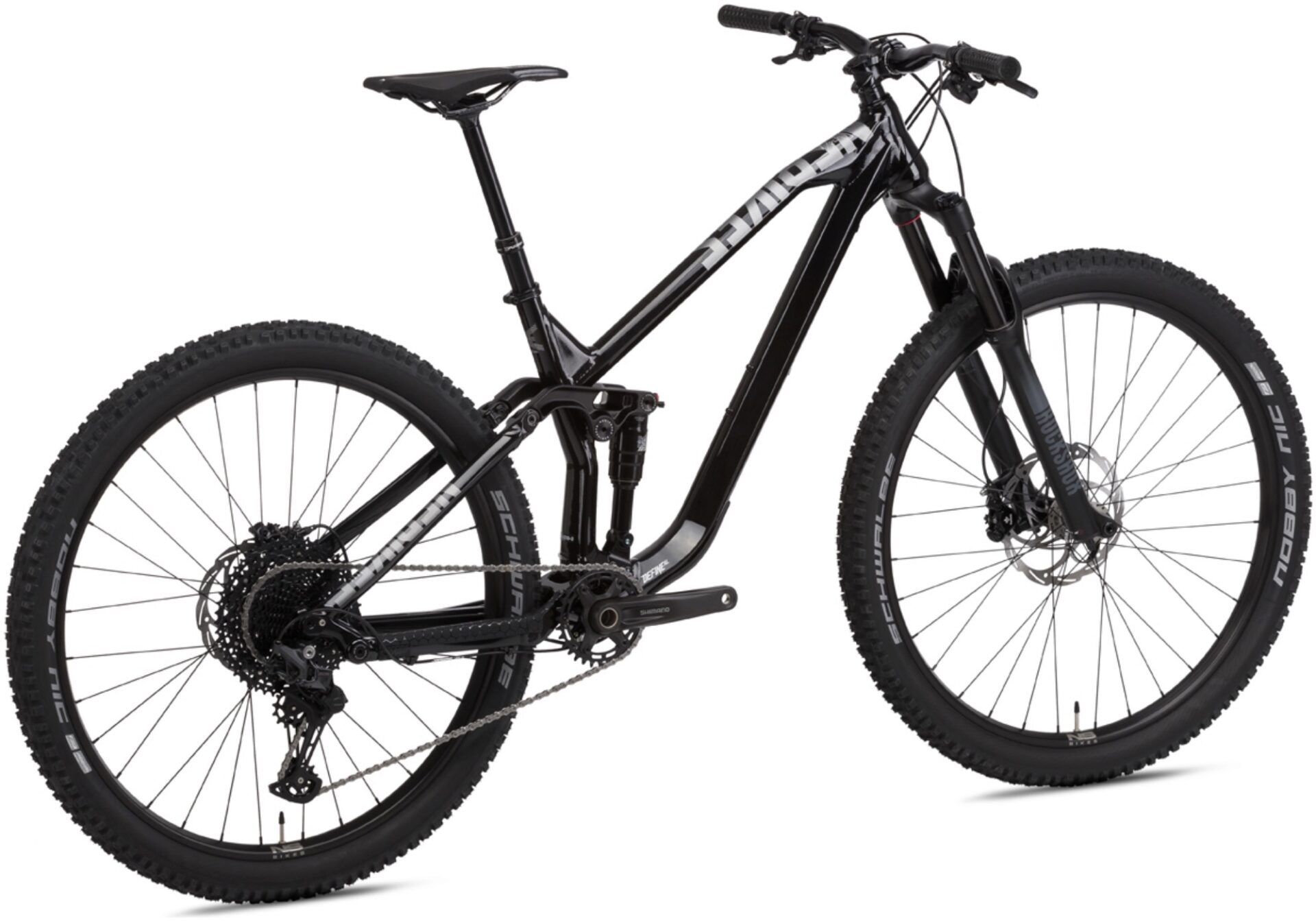

NS Bikes Define AL 130 2 2021 Bike

The beautiful carbon define is now available in metal. It was a big challenge to translate the complex lines of this bike to another material, and we have sweated every detail of this high-end alloy frame to make it as light and as sexy as possible. Some of the unique features include an adjustable bb height and semi-integrated cable guides - a practical and elegant solution of the internal / external cable routing dilemma. Big sealed pivots keep it stable and guarantee long periods of smooth, service free function. There are a few things that we borrowed directly from the snabb - and that is the kinematics of the 4-bar suspension that everyone loves (pinkbike: "there is so little pedal-induced bobbing at play here that it sort of boggles the mind”).

Adjustable Bottom Bracket Height

You can raise the BB height by 5mm from the stock settings by using the adjustable shock mount, or you can completely transform the bike by changing the shock mount and shock—altering the travel from 155 mm to 130 mm or vice versa.

*Different lengths of shock mounts available separately.

Oversized Bearings, Sealed Main Pivot

The pivot that is most difficult to replace is hidden inside the frame and remains completely isolated from dirt and water inside the frame.

Hybrid Cable Routing

The cables appear to be threaded through the downtube and chainstay, but they are actually hidden in a special channel within the frame’s construction. This design makes cable replacement easy—anytime, anywhere.

Specifications

Frame and Forks

• Frame: NS Define AL with 130mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing
• Sizes: Small, Medium, Large
• Fork: RockShox 35 Gold RL, 140mm travel, 110x15mm Boost, 1.5T, 44mm offset
• Rear Shock: X-Fusion O2 RLX Trunnion 185x55mm

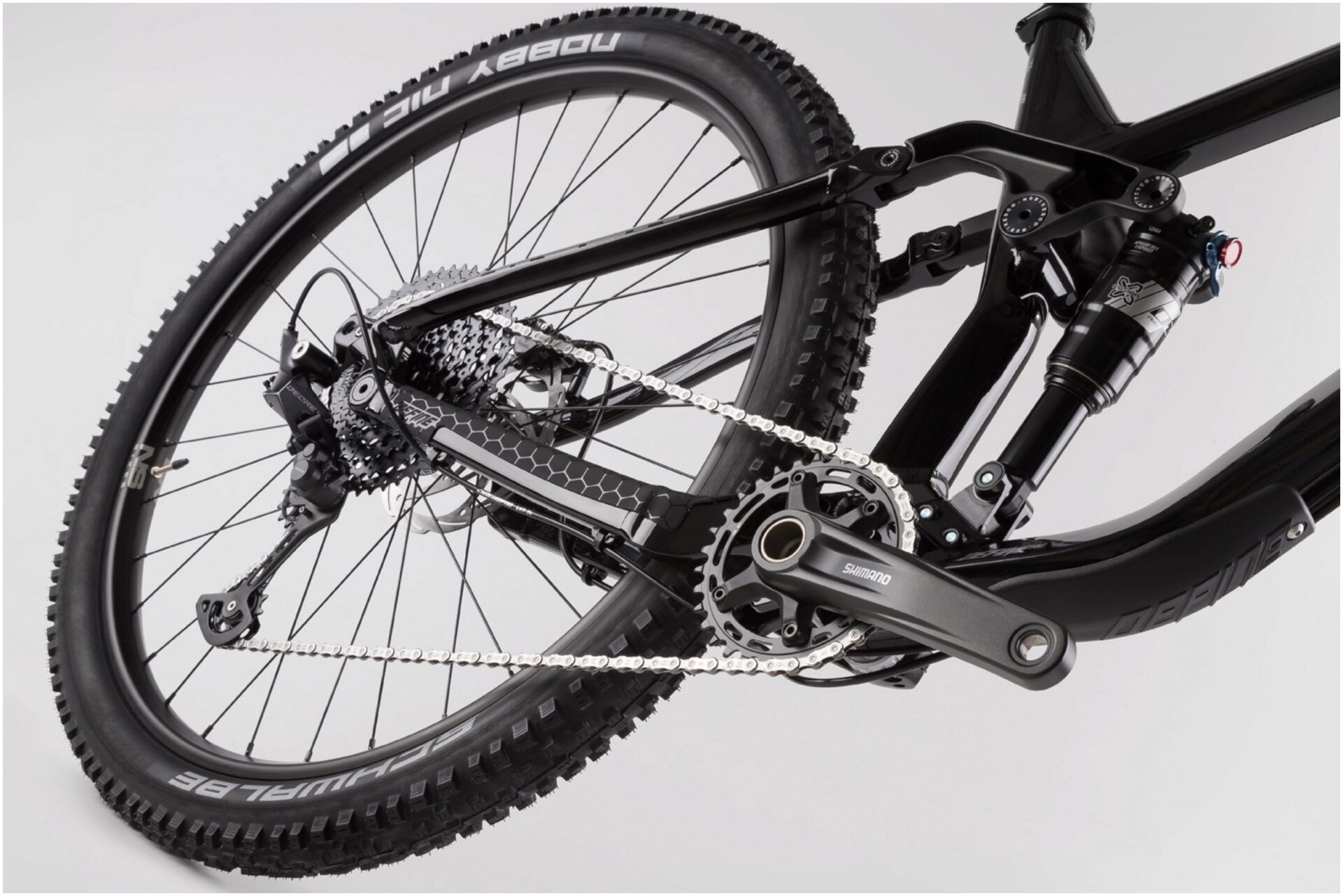

Drivetrain

• Front Derailleur: /
• Rear Derailleur: Shimano Deore M6100, 12-Speed
• Crankset: Praxis Cadet HD 170mm 32-Tooth
• Cassette: Sunrace CSMZ800, 12-Speed, 11-51-Tooth
• Bottom Bracket: Shimano BSA 73mm
• Chain: Shimano, 12-Speed

Braking/Shifting

• Brakes: Formula Cura [Front: 200mm, Rear: 180mm]
• Brake Levers: Formula
• Gear Shifters: Shimano Deore M6100, 12-Speed

Wheels

• Front Hub: NS Rotary 15 Boost 15x110 disc (sealed bearings)
• Rear Hub: NS Rotary Cassette 148x12mm Boost (sealed bearings)
• Rims: Octane One Solar 29”, 32h, tubeless compatible
• Spokes: Spokes with 14mm nipples
• Tyres: Schwalbe Nobby Nic 29x2.35" (Front & Rear)

Finishing Kit

• Headset: NS custom tapered 1&1/8"-1.5" IS42/IS52, reach adjustable offset cups (+/-10mm), sealed bearing

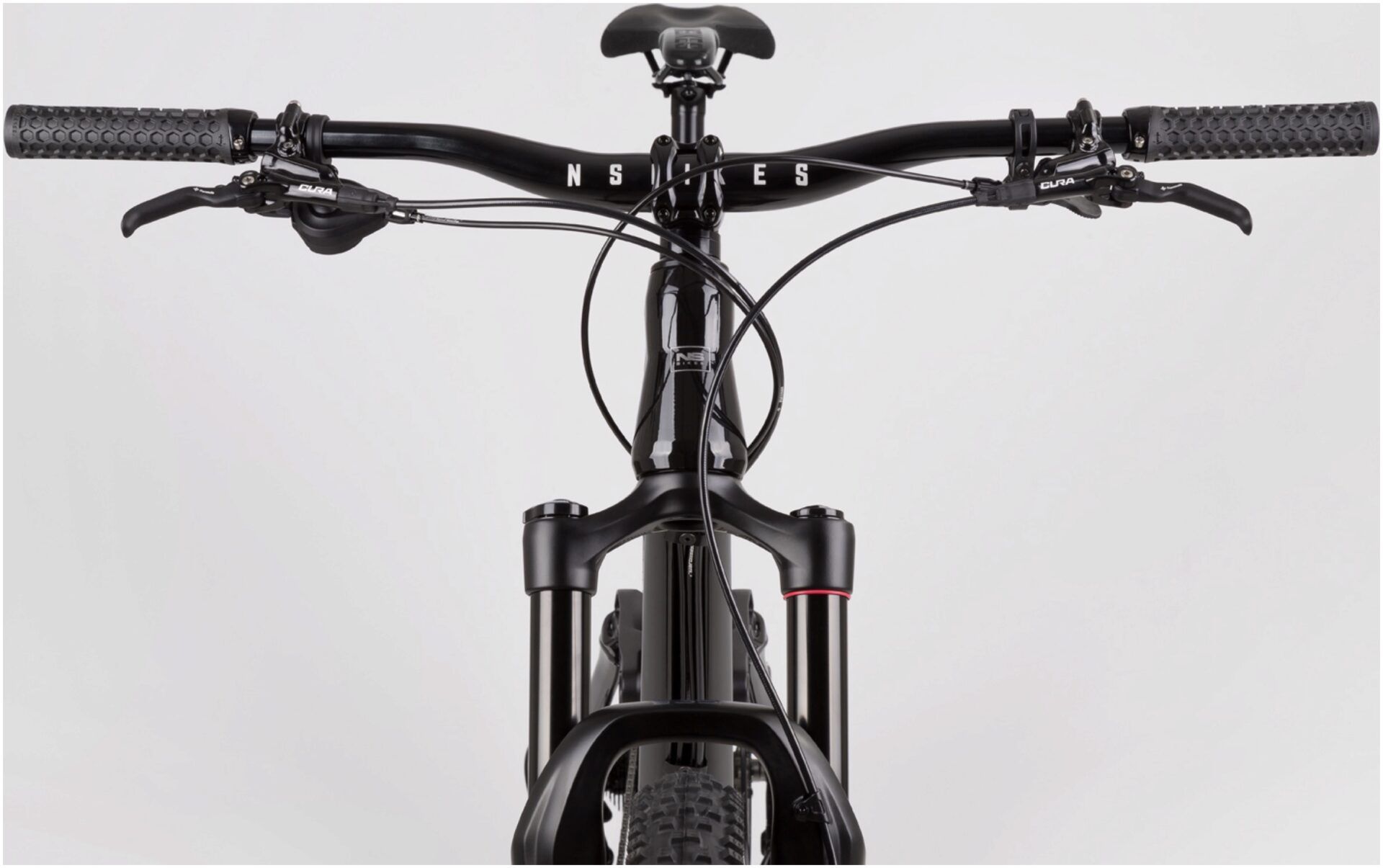

• Handlebar: NS 35, 780mm wide, 20mm rise
• Stem: NS Tone 35, 45mm
• Grips: NS Hold Fast
• Saddle: Octane One Crit, CrMo hollow rails
• Seat Post: X-Fusion Manic internal — (Small: 125mm, Medium: 150mm, Large: 170mm)
• Pedals: /
• Weight: 15 kg
