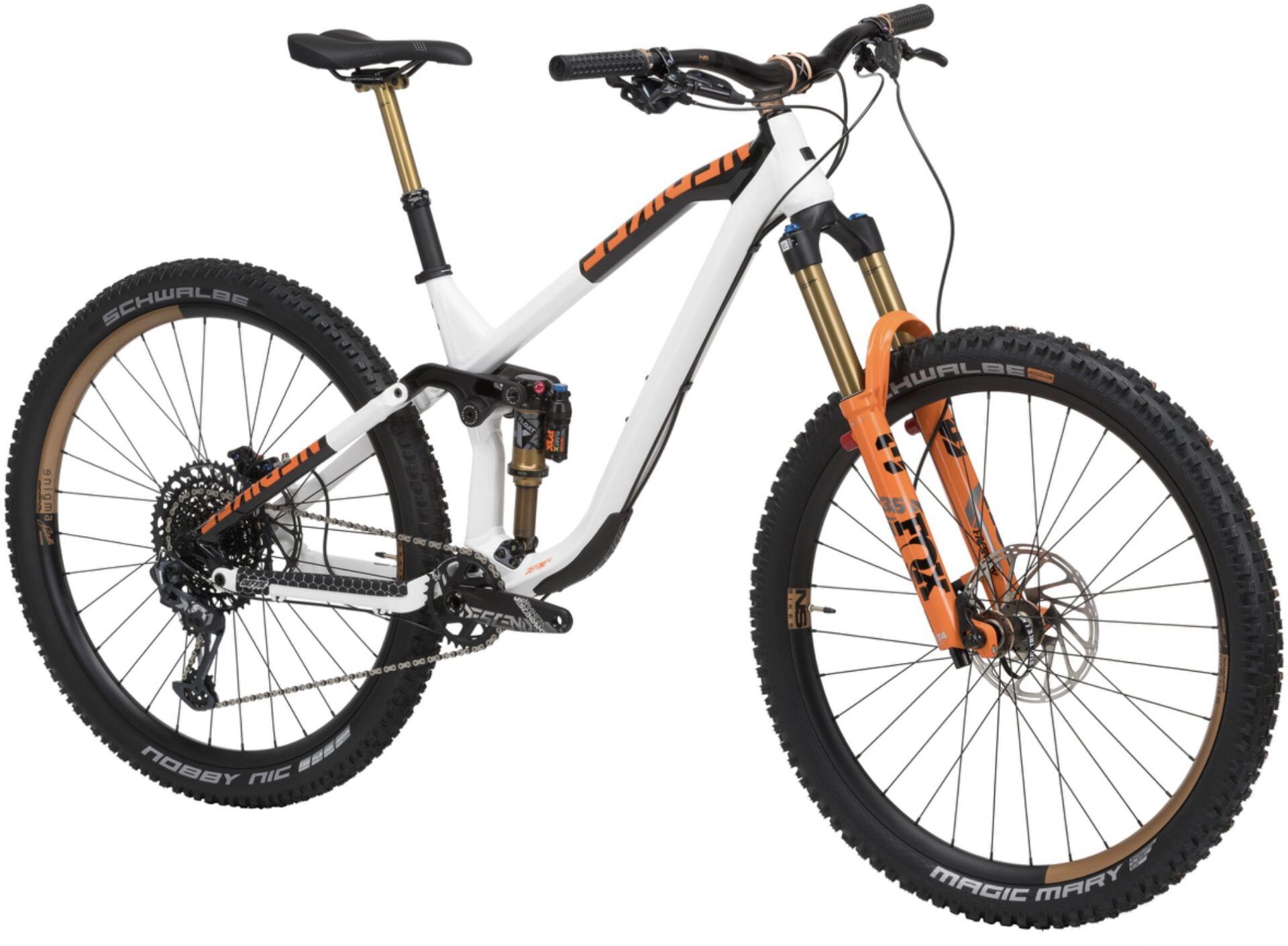

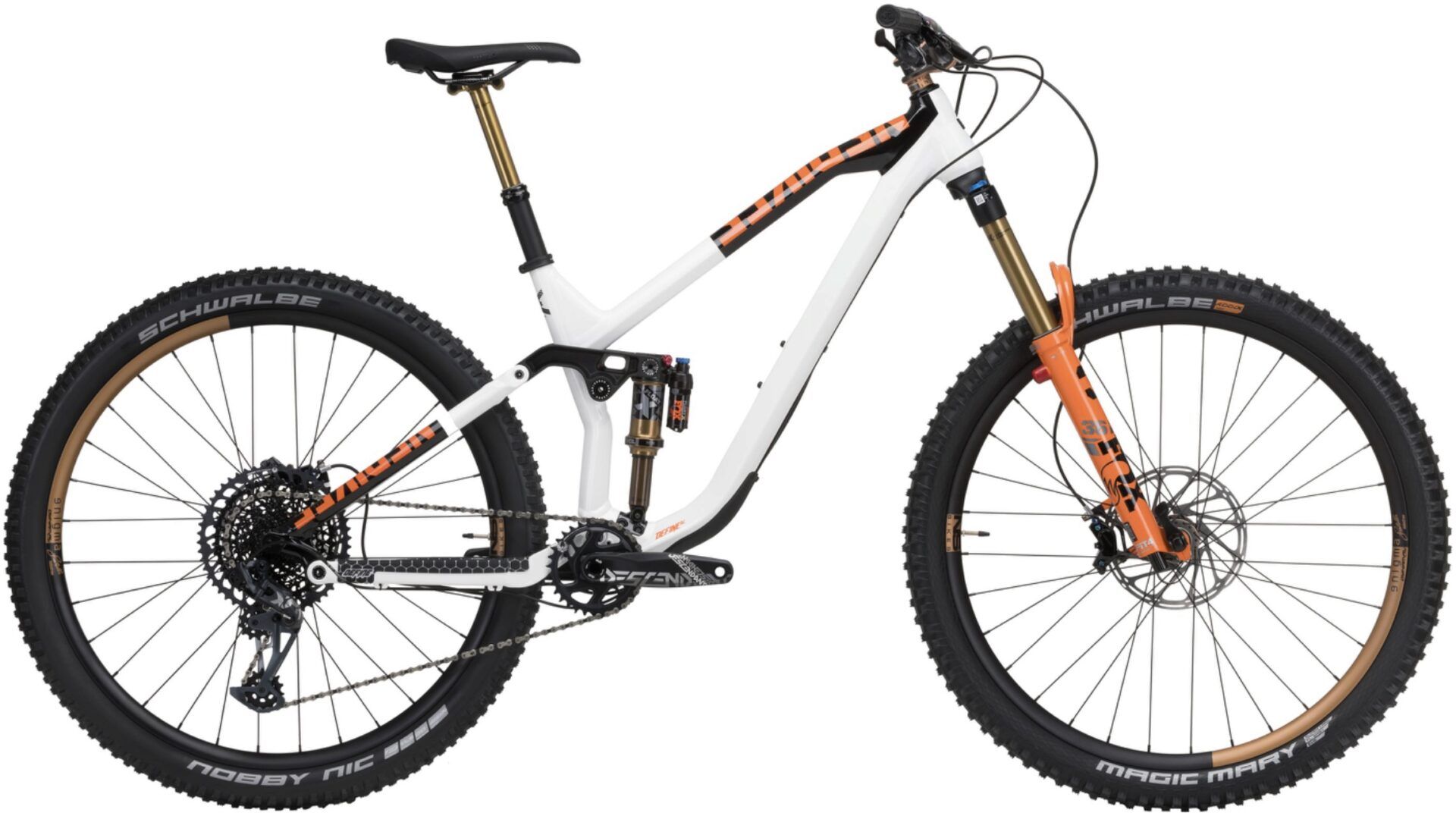

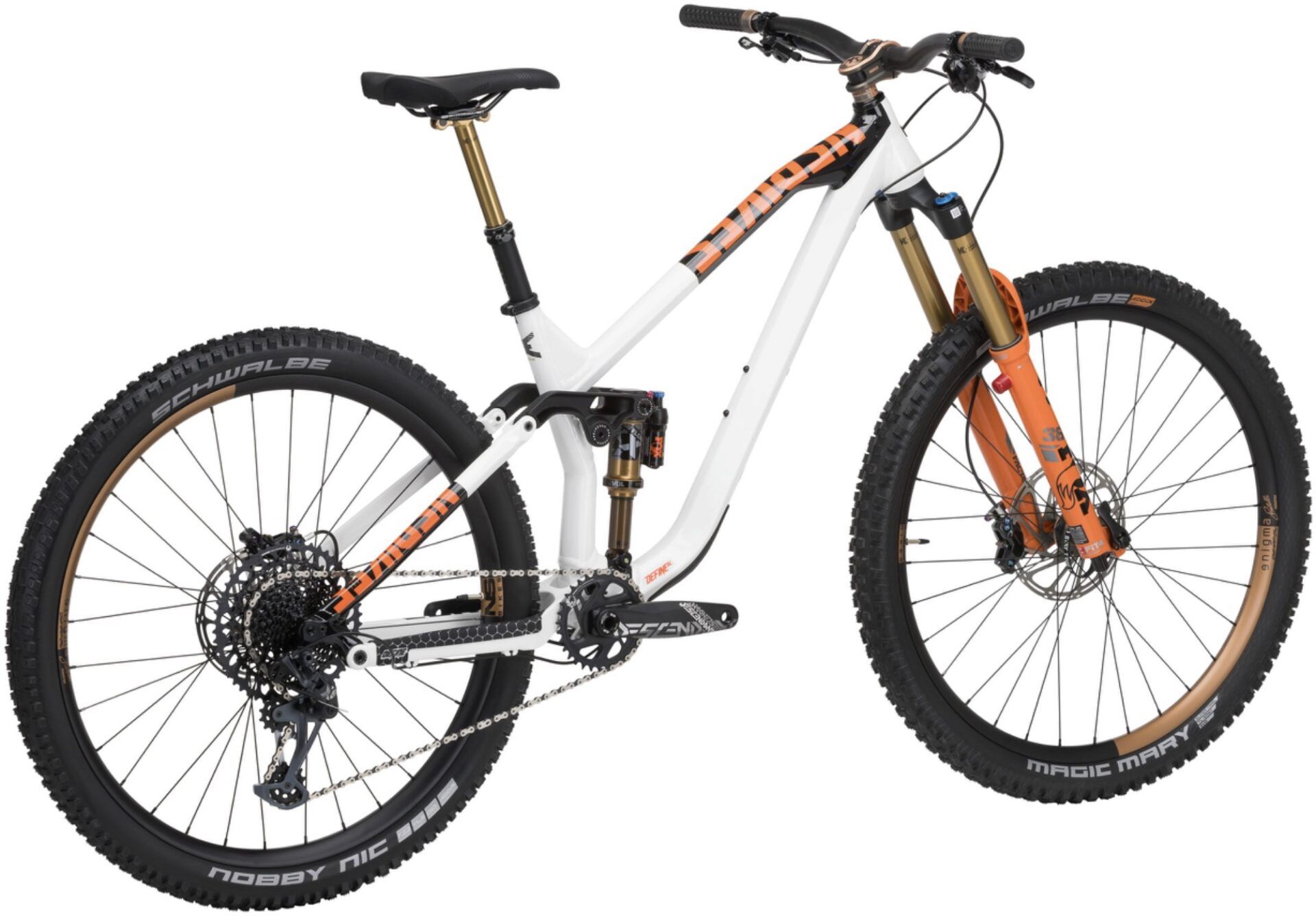

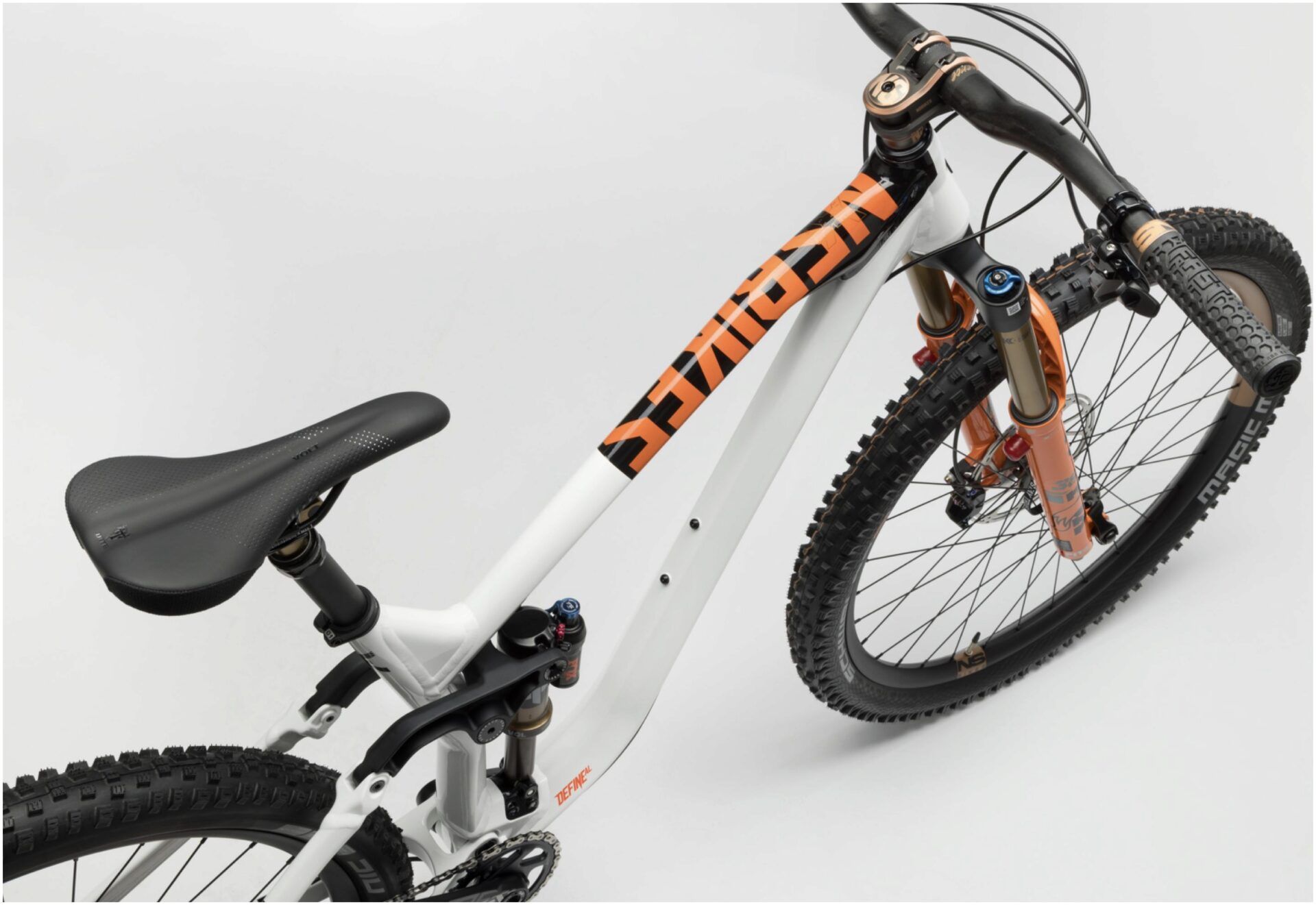

NS Bikes Define AL 150 0 2025 Bike

With over 150mm of travel in the rear and a 160mm fork this alloy 29er can can blast through the roughest stuff, while feeling great on a wide range of trails. This bike can pedal up the sections that others have to walk and fly over sections that others have to plough through. The adjustable reach and bb height will let you dial the bike to your riding style and the trails you plan to ride. The frame’s unique semi-internal cable routing is a solution that is elegant and easy to service. Large, sealed pivots guarantee long periods of smooth, service free function.

Specifications

Frame and Forks

• Frame: NS Bikes Define AL With 150mm travel
• Fork: Fox Factory 36 Float FIT4, 160mm travel, 3pos-Adj, 15x110mm, 1.5" tapered steerer tube, 44mm offset

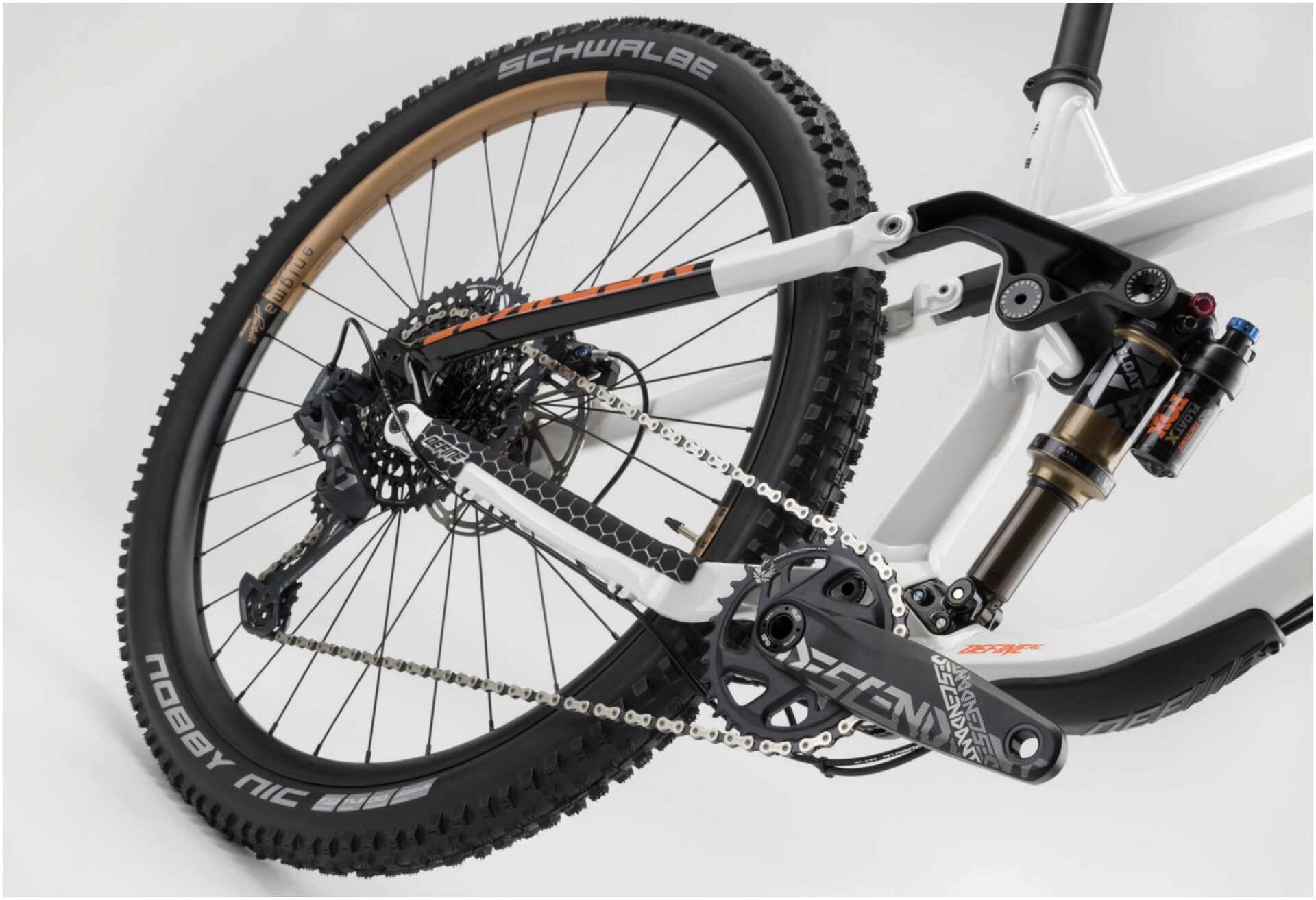

Drivetrain

• Rear Derailleur: SRAM X01 Eagle Lunar, 12s

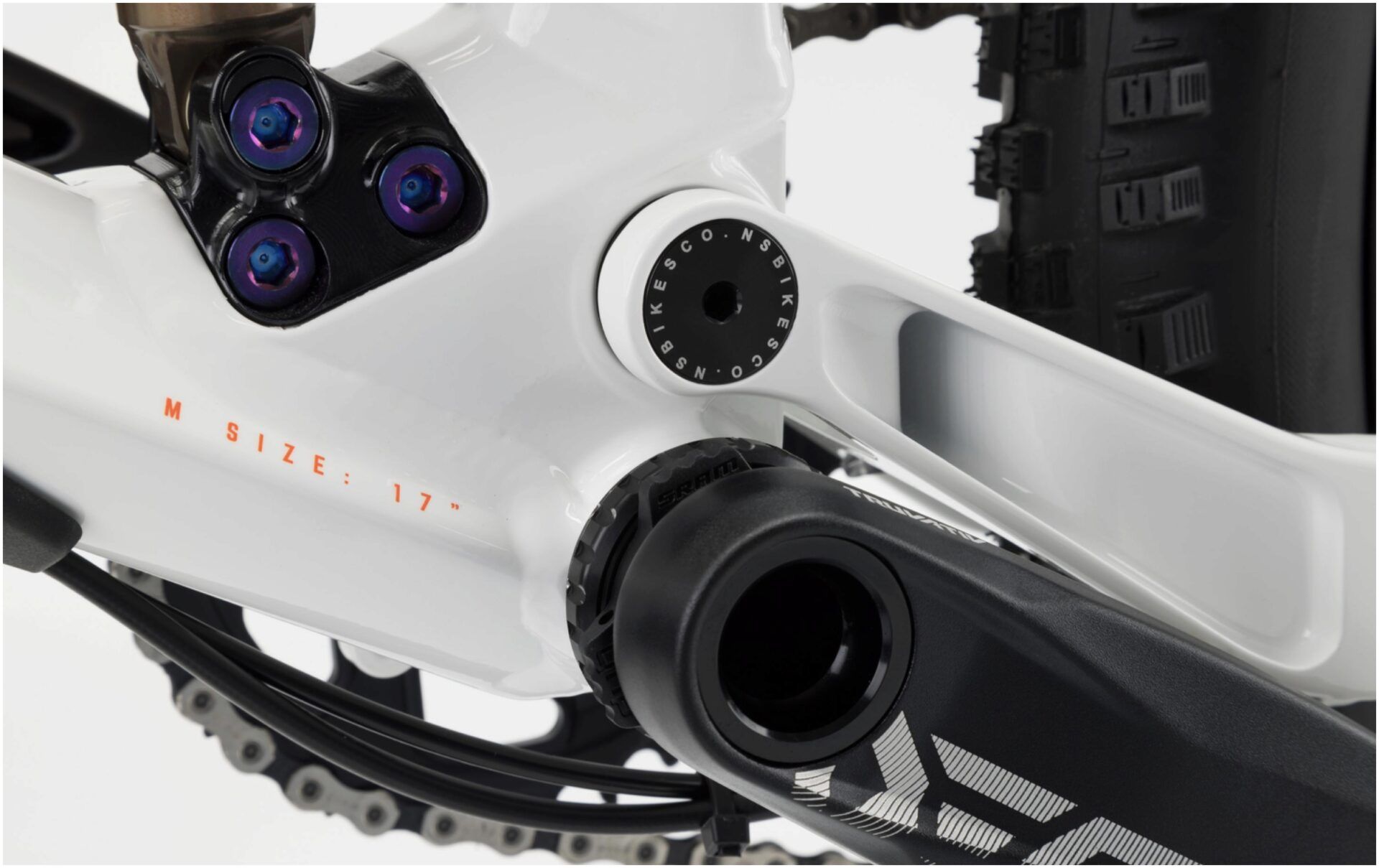

• Crankset: Truvativ Descendant 7K DUB 170mm, 32t
• Cassette: SRAM XG-1275, 10-50t, 12s
• Bottom Bracket: SRAM DUB BSA 73mm
• Chain: SRAM GX Eagle, 12s

Braking/Shifting

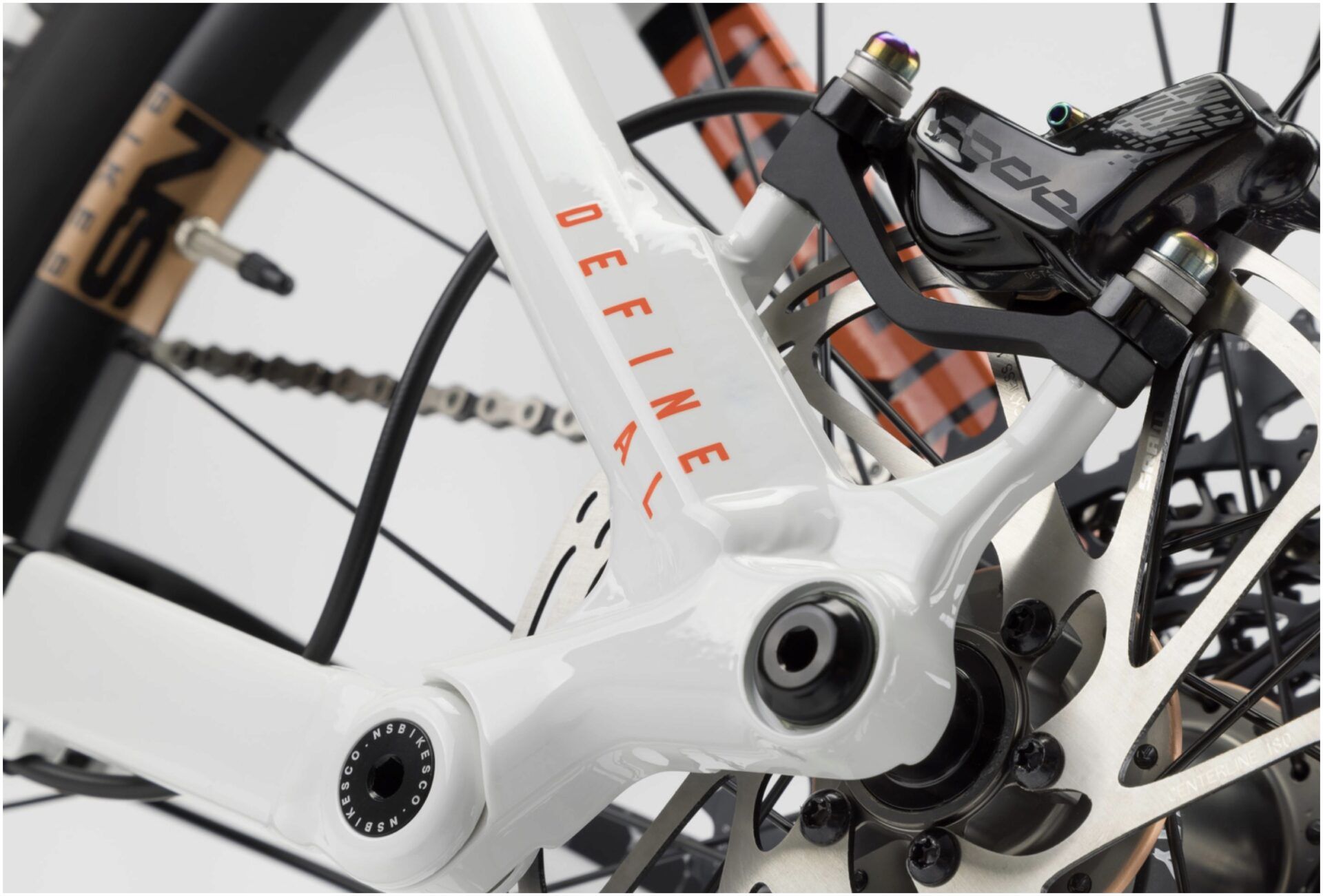

• Brakes: SRAM Code RSC (4 piston), Front: 200mm / Rear: 180mm
• Gear Shifters: SRAM GX Eagle 12s

Wheels

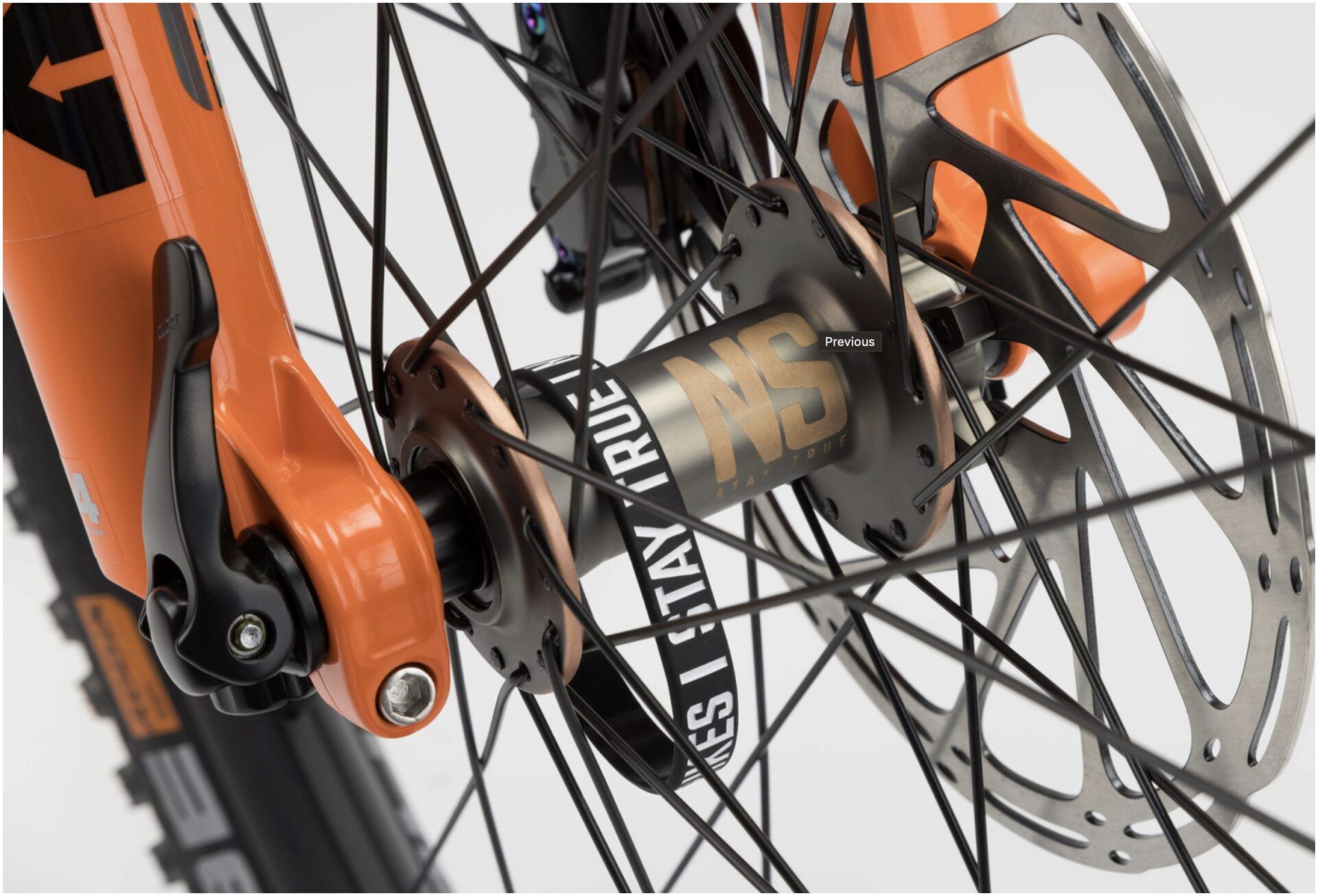

• Front Hub: NS Bikes Rotary 110x15mm (sealed bearings)
• Rear Hub: NS Bikes Rotary Cassette 148x12mm (sealed bearings)
• Rims: NS Bikes Enigma Roll 29" (front), NS Bikes Enigma Rock 29" (rear), 32h, TLR
• Tyres: Front: Schwalbe Magic Mary 29x2.35", TL-Easy / Rear: Schwalbe Nobby Nic 29x2.35", TL-Easy

Finishing Kit

• Headset: NS Bikes custom tapered IS42/IS52 reach adjustable offset cups (+/-10mm), sealed bearings
• Handlebar: NS Bikes Licence Carbon 800mm, 38mm rise, ⌀35mm
• Stem: NS Bikes Quantum Lite 45mm, ⌀35mm
• Grips: NS Bikes Hold Fast Supersoft
• Saddle: WTB Volt Medium Cromoly
• Seat Post: Fox Transfer Factory (S, M: 150mm, L: 175mm), ⌀31.6mm
