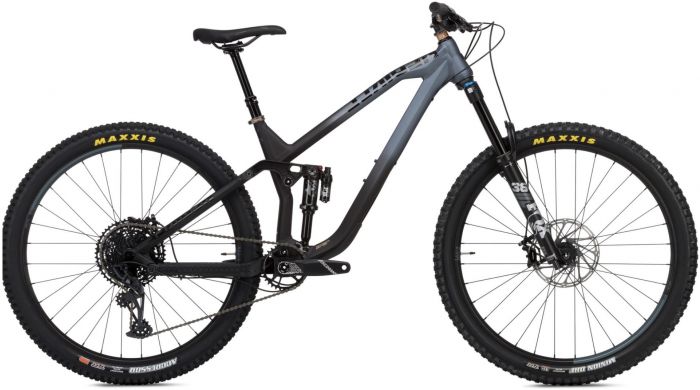

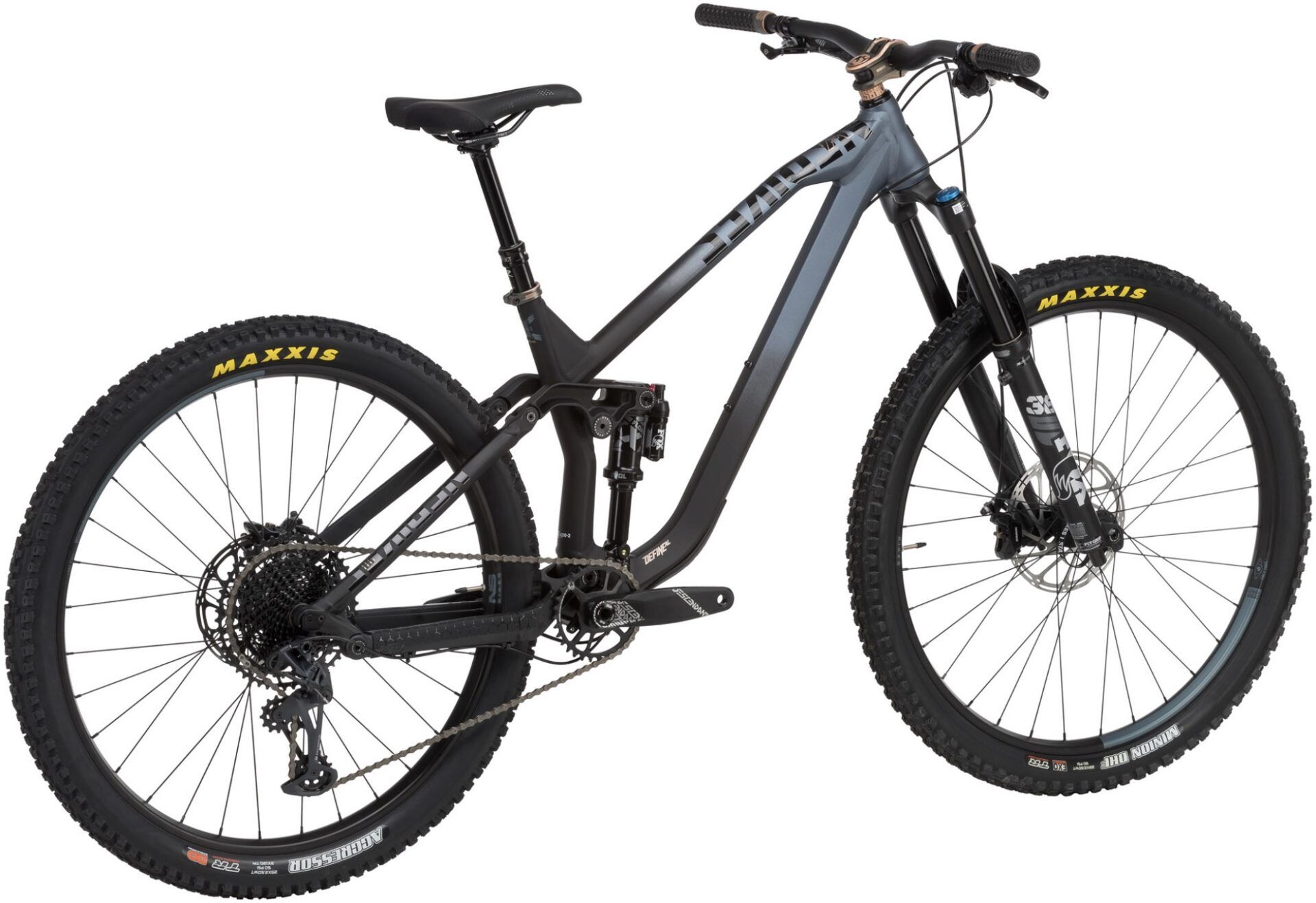

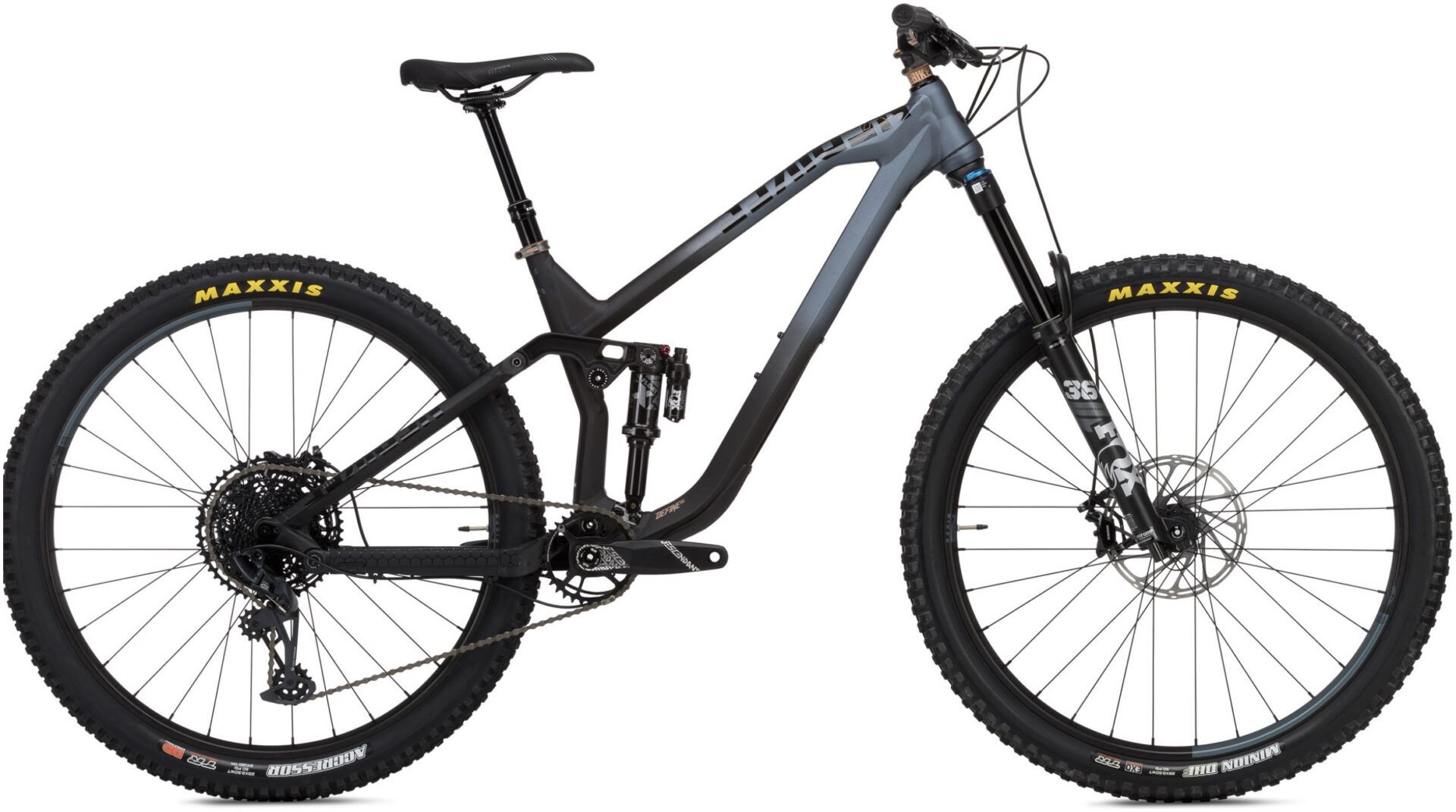

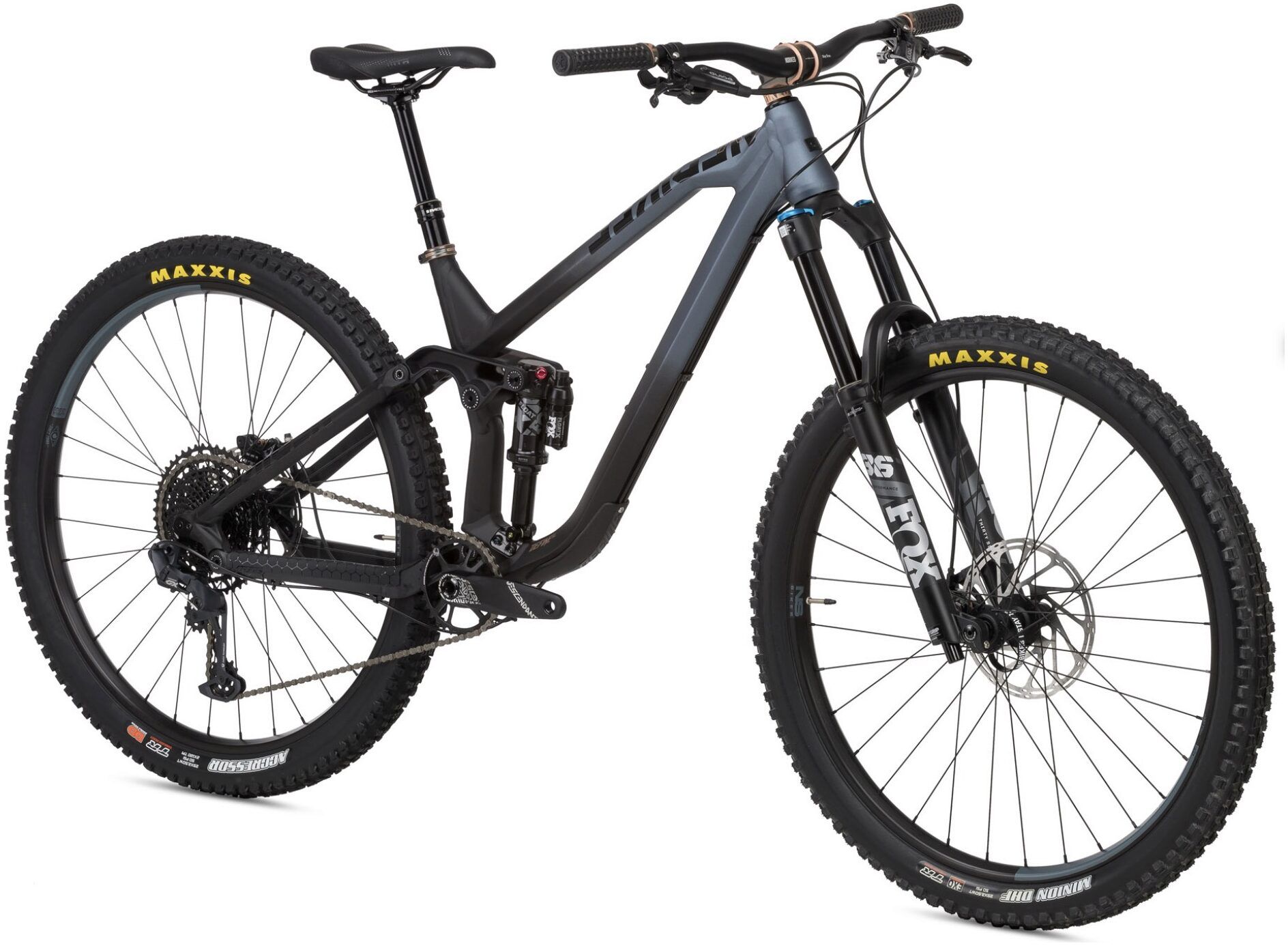

NS Bikes Define AL 150 1 2025 Bike
| Brand | NS Bikes |
|---|---|
| Colour | Black / Blue |
| Suitable for | Everyone |
| Wheel Size | 29-inch |
With over 150mm of travel in the rear and a 160mm fork this alloy 29er can can blast through the roughest stuff, while feeling great on a wide range of trails. This bike can pedal up the sections that others have to walk and fly over sections that others have to plough through. The adjustable reach and bb height will let you dial the bike to your riding style and the trails you plan to ride. The frame’s unique semi-internal cable routing is a solution that is elegant and easy to service. Large, sealed pivots guarantee long periods of smooth, service free function.
Features
Adjustable Bottom Bracket Height
You can raise the BB height by 5mm from the stock settings by using the adjustable shock mount, or you can completely transform the bike by changing the shock mount & shock (changes travel from 155 mm to 130 mm or vice versa).

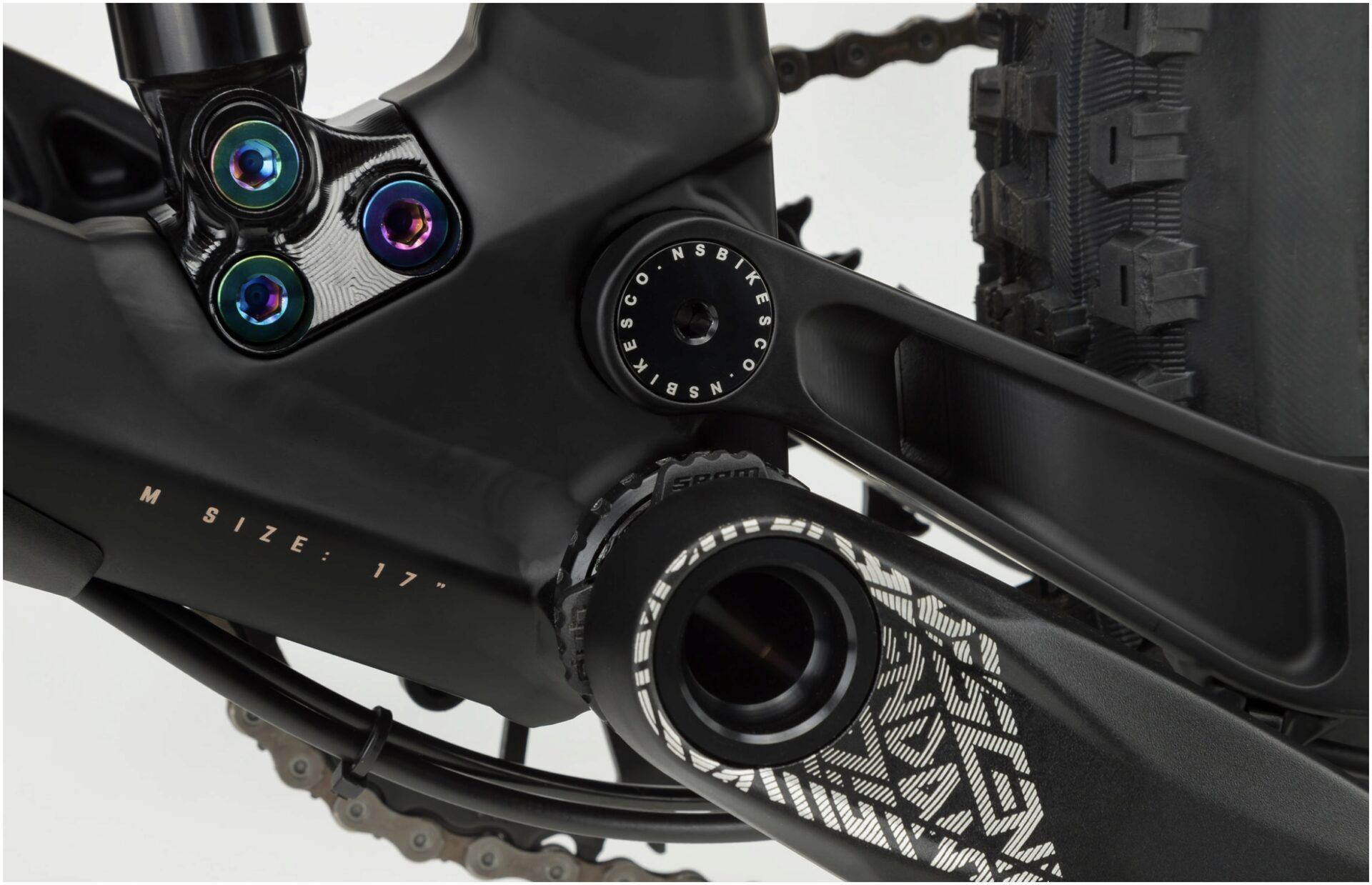

Oversized Bearings, Sealed Main Pivot
The pivot that is most difficult to replace is hidden inside the frame and remains completely isolated from dirt and water inside the frame.
Hybrid Cable Routing
The cables appear to be threaded through the downtube and chainstay, but are actually only hidden in a special channel in the construction. Easy to replace anytime, anywhere!
Specifications
Frame and Forks
- Frame: NS Define AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes (Sizes: S, M, L)
- Fork: Fox Float 36 Performance Grip, 160mm travel, 3pos-Adj with Open Mode Adj, 110x15mm Boost, 1.5T, 44mm offset

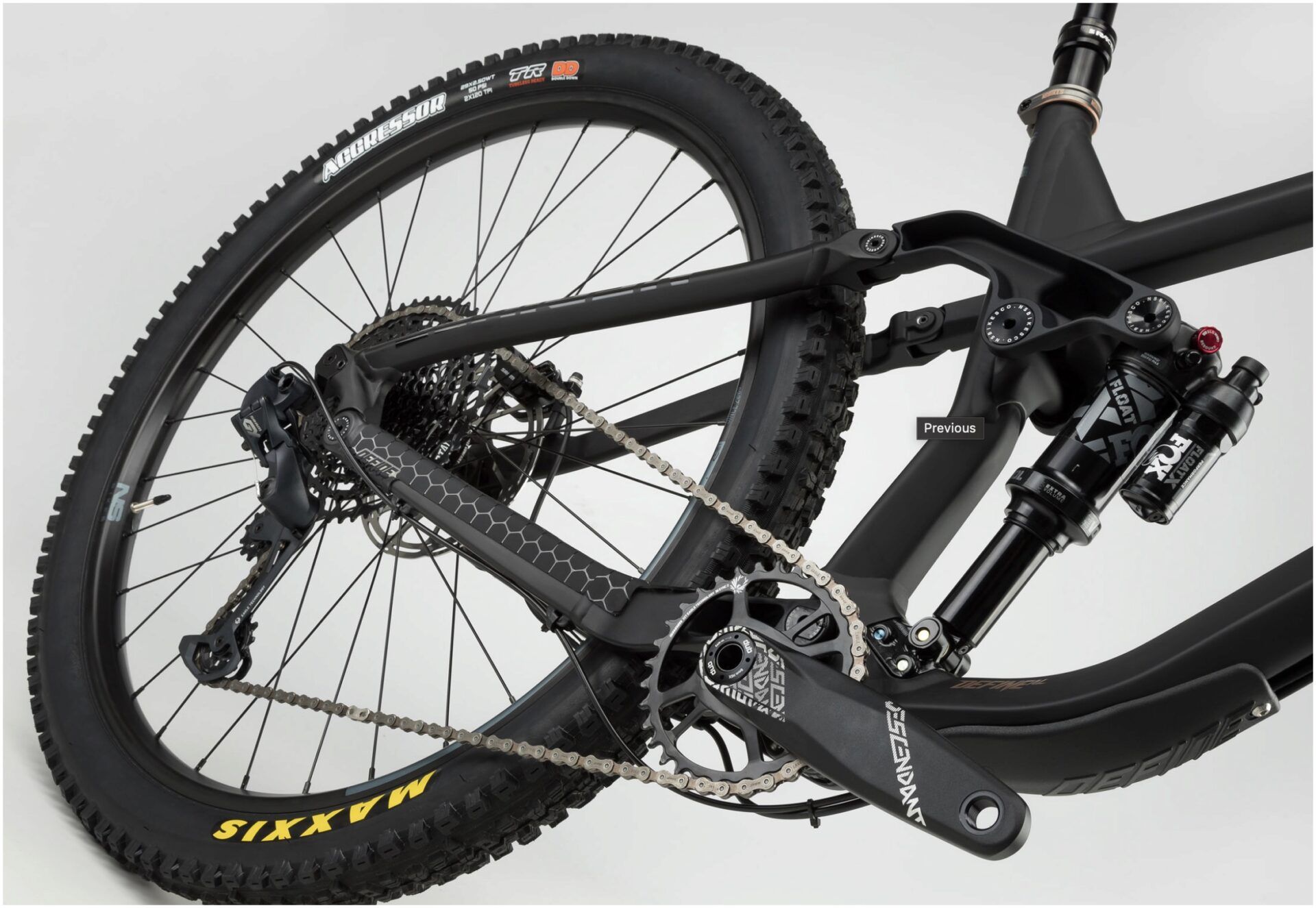

Drivetrain
- Rear Derailleur: Sram GX Eagle, 12 Speed
- Crankset: Truvativ Descendant 6K DUB 170mm, 32t
- Cassette: Sram PG-1210, 12spd, 11-50 Tooth
- Bottom Bracket: Sram DUB BSA 73mm
- Chain: Sram, 12 |Speed
Braking/Shifting

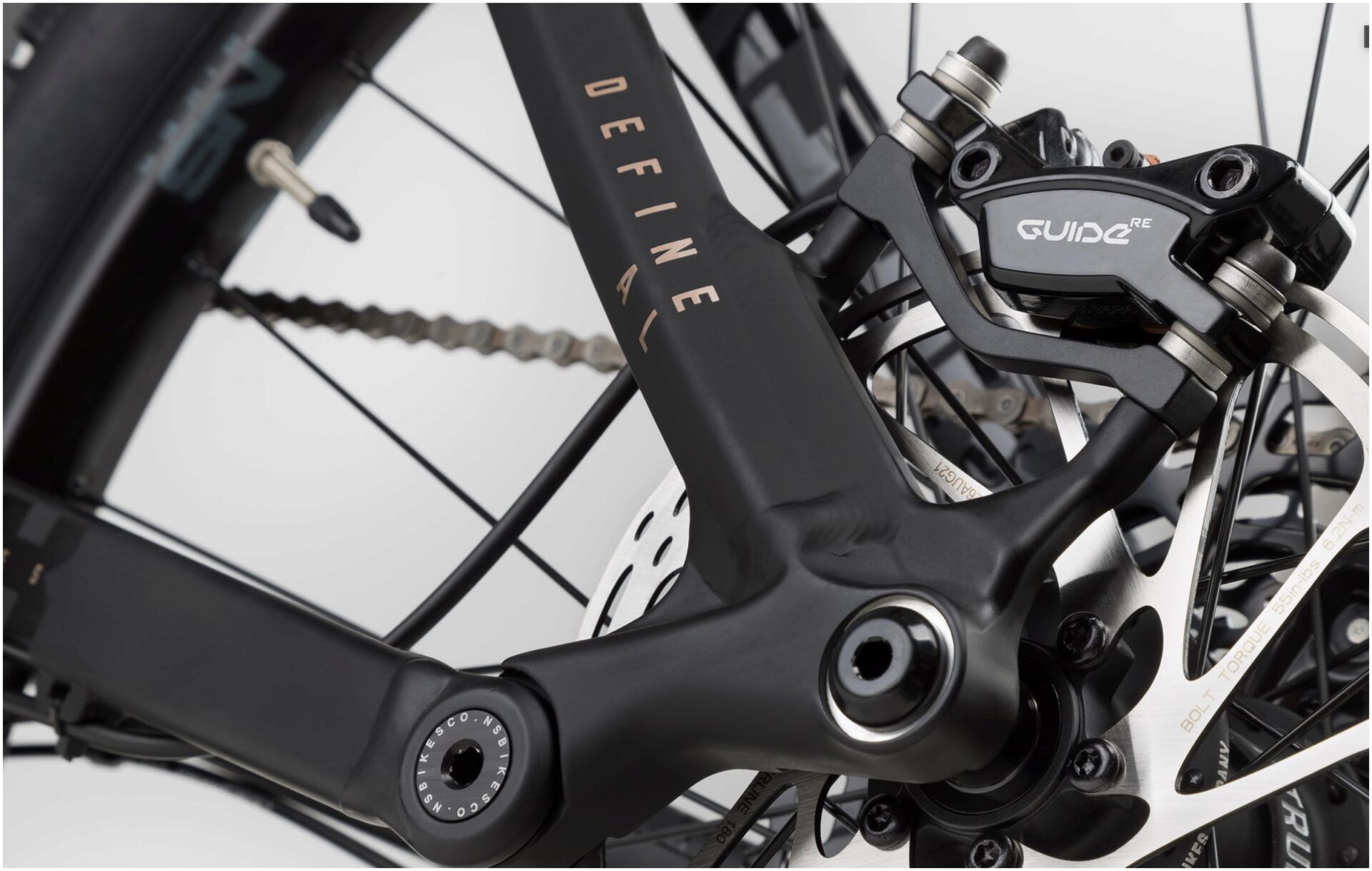

- Brakes: Front: Sram Guide RE, 200mm / Rear: Sram Guide RE, 180mm
- Gear Shifters: Sram NX Eagle, 12 Speed
Wheels

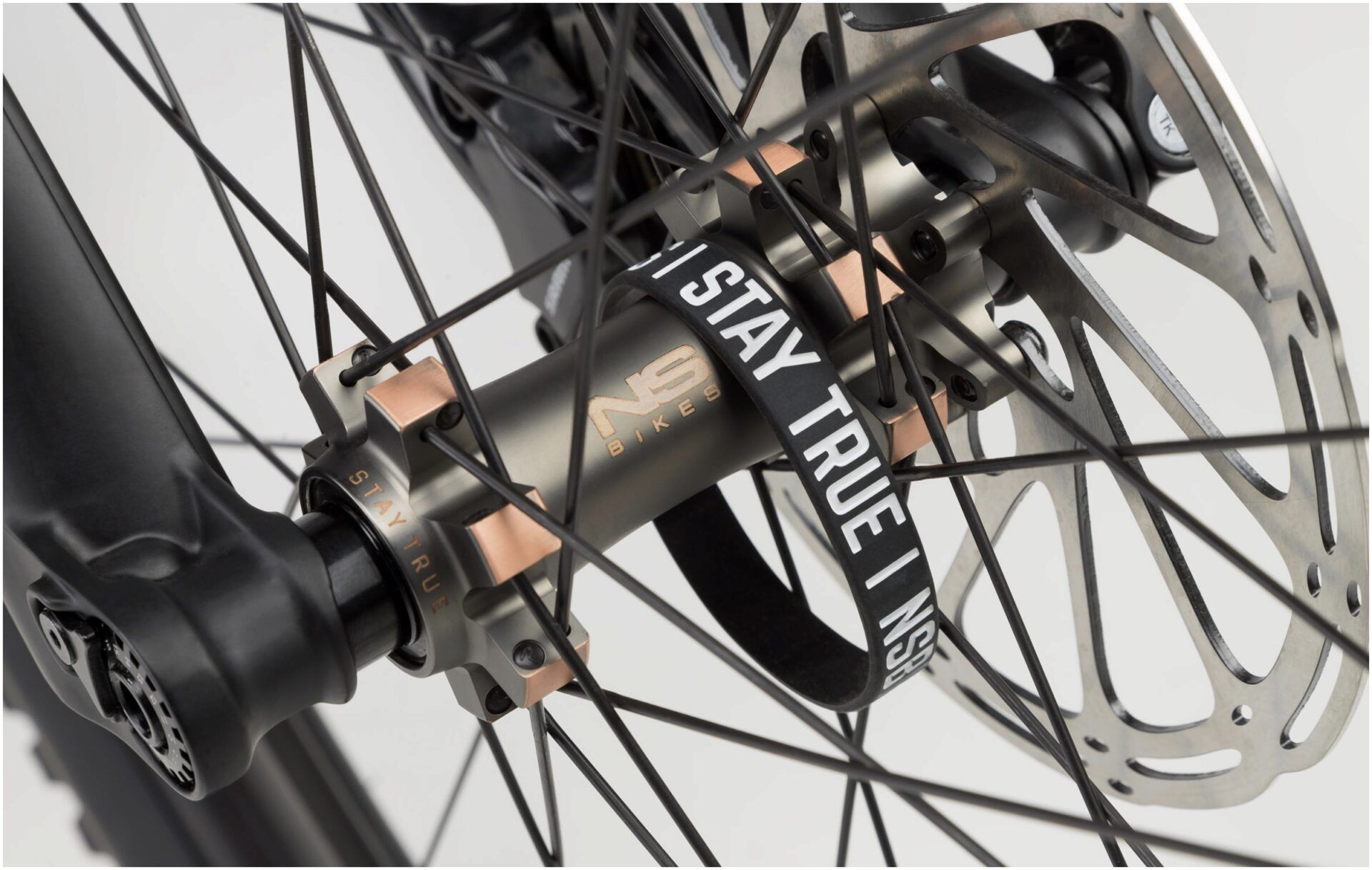

- Front Hub: NS Rotary 15 Boost 15x110 disc (sealed bearings)
- Rear Hub: NS Rotary Cassette 148x12mm Boost (sealed bearings)
- Rims: Octane One Solar 29”, tubeless compatible
- Tyres: Front: Maxxis DHF EXO/TR 29x2.5" WT / Rear: Maxxis Aggressor EXO/DD/TR 29x2.5" WT

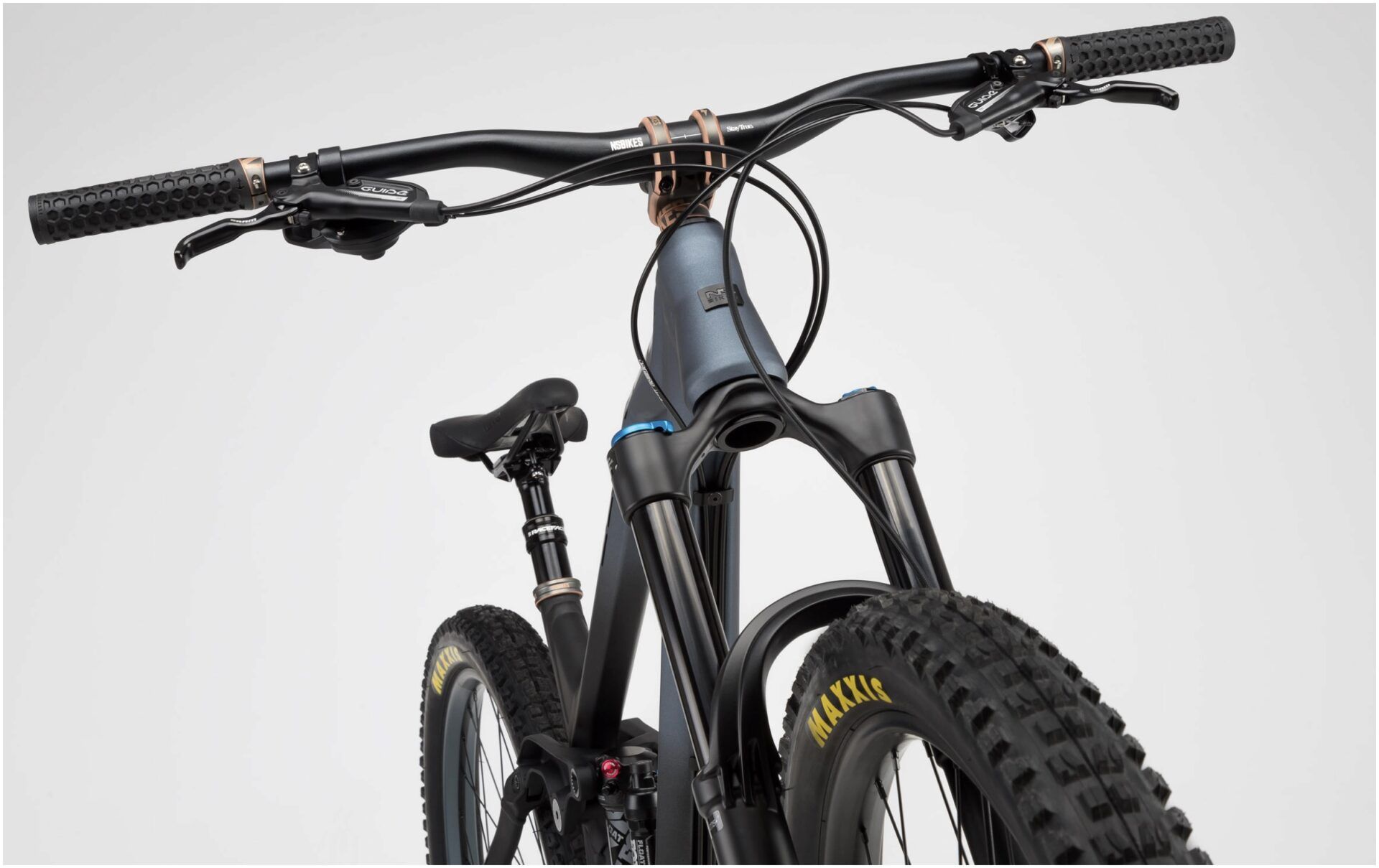

Finishing Kit
- Headset: Integrated tapered IS42/IS52, sealed bearings
- Handlebar: NS Bar 35, 800mm, 20mm rise
- Stem: NS Quantum Lite 35, 45mm
- Grips: NS Hold Fast
- Saddle: WTB Volt Medium Cromoly
- Seat Post: Race Face Aeffect R – S: 125mm, M: 150mm, L: 170mm, Ø31.6mm
