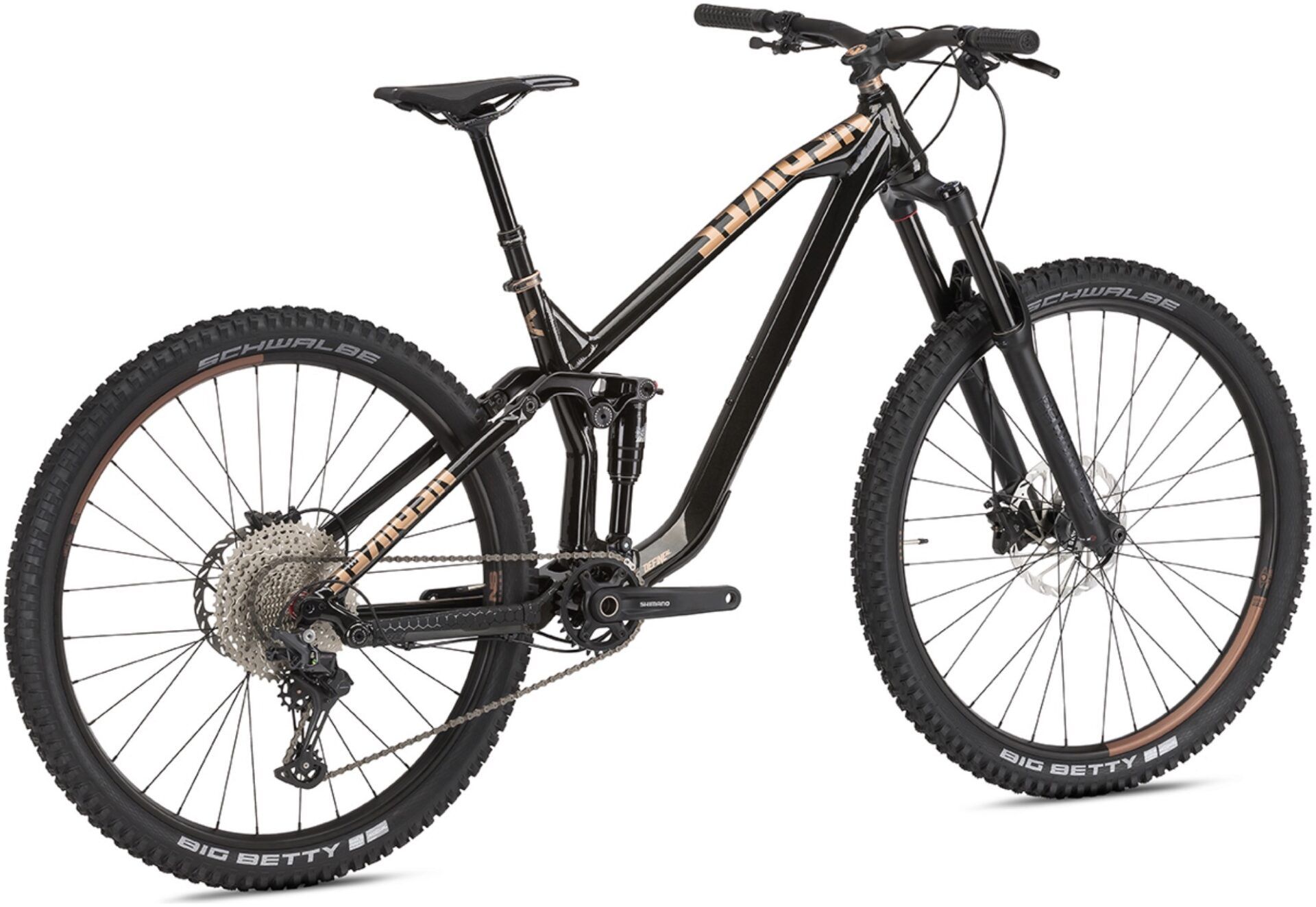

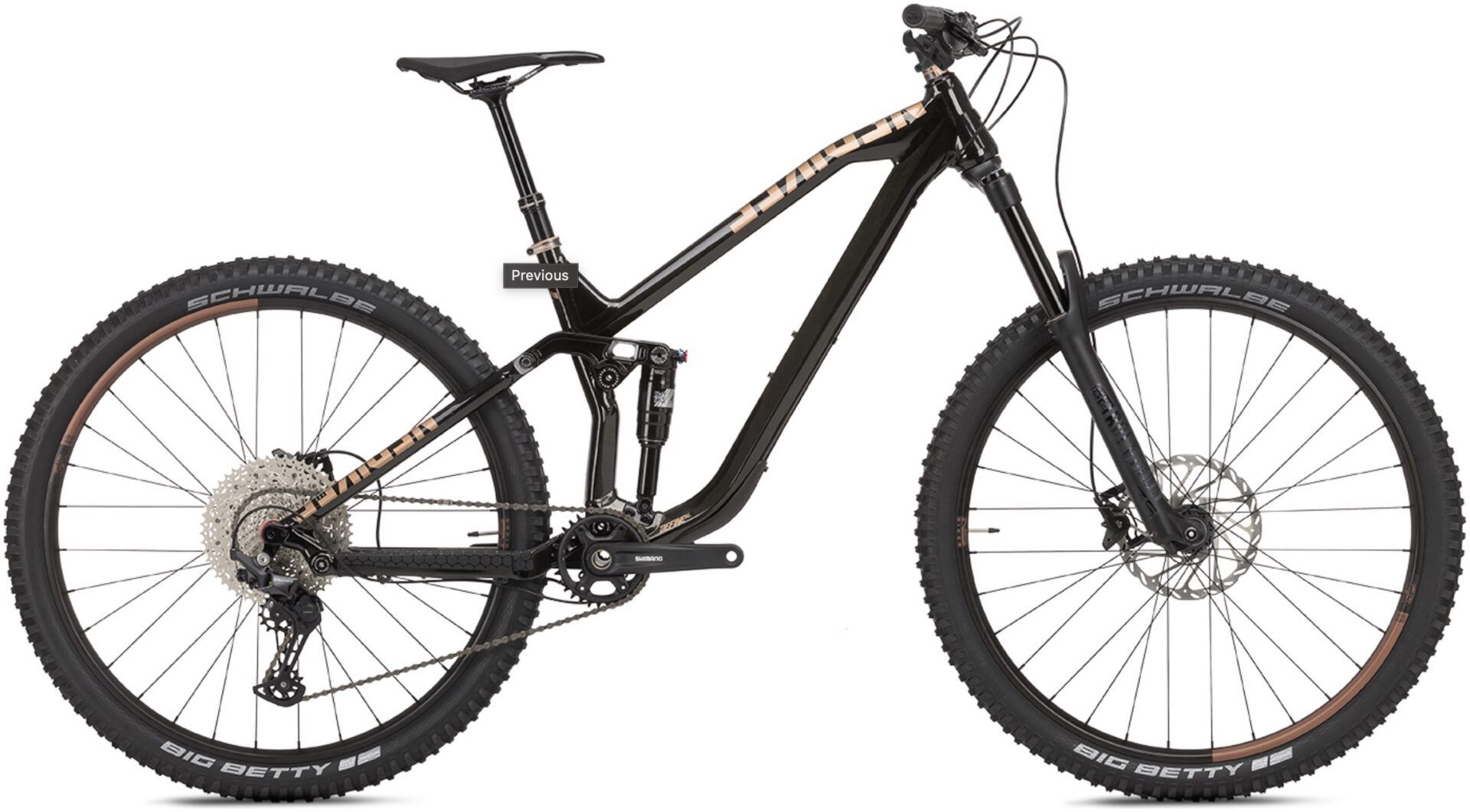

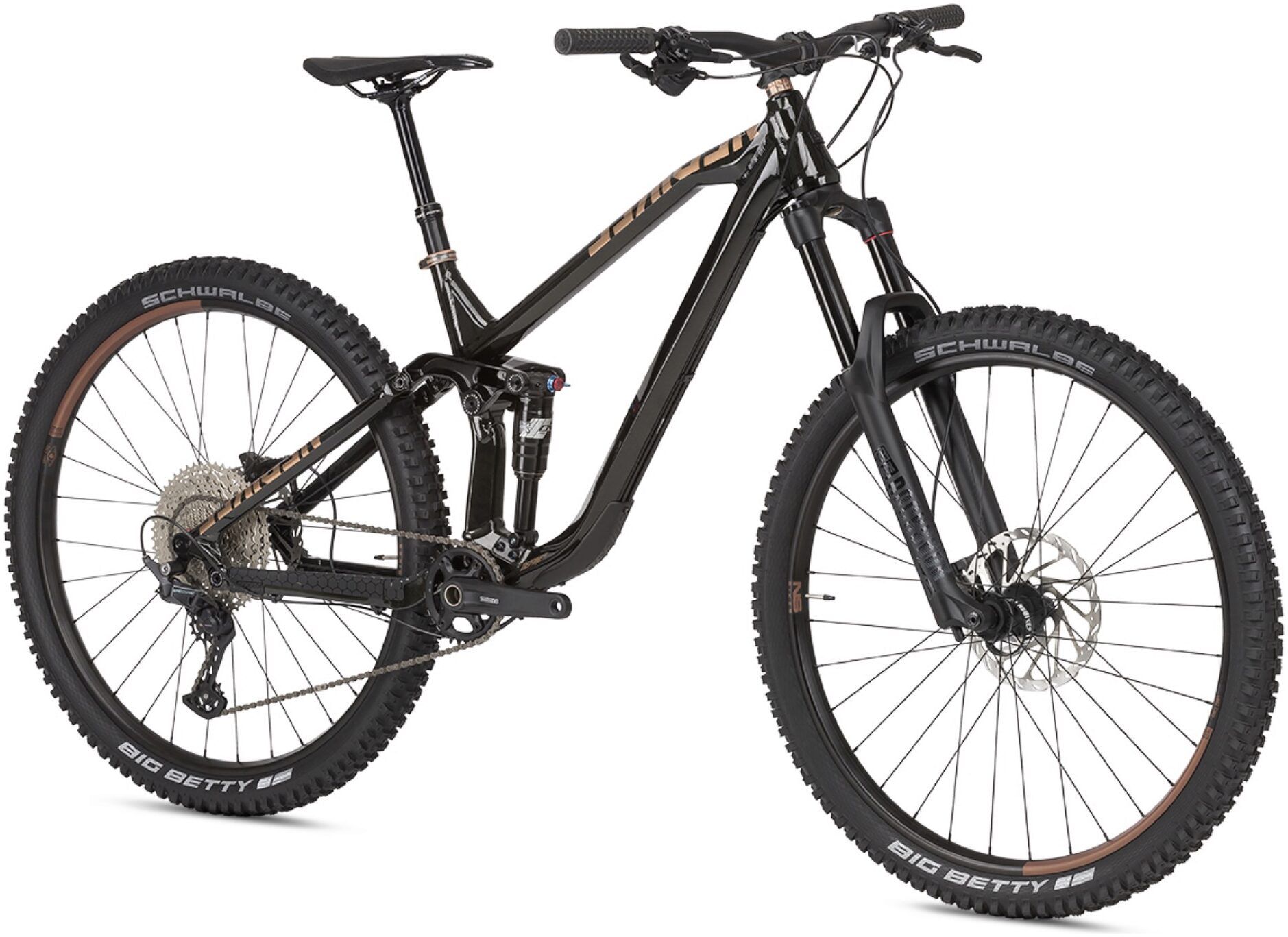

NS Bikes Define AL 150 2025 Bike
| Brand | NS Bikes |
|---|---|
| Colour | Black |
| Suitable for | Everyone |
| Wheel Size | 29-inch |
With over 150mm of travel in the rear and a 160mm fork this alloy 29er can can blast through the roughest stuff, while feeling great on a wide range of trails. This bike can pedal up the sections that others have to walk and fly over sections that others have to plough through. The adjustable reach and bb height will let you dial the bike to your riding style and the trails you plan to ride. The frame’s unique semi-internal cable routing is a solution that is elegant and easy to service. Large, sealed pivots guarantee long periods of smooth, service free function.
Features
Adjustable Bottom Bracket Height
You can raise the BB height by 5mm from the stock settings by using the adjustable shock mount, or you can completely transform the bike by changing the shock mount & shock (changes travel from 155 mm to 130 mm or vice versa).
Oversized Bearings, Sealed Main Pivot
The pivot that is most difficult to replace is hidden inside the frame and remains completely isolated from dirt and water inside the frame.
Hybrid Cable Routing
The cables appear to be threaded through the downtube and chainstay, but are actually only hidden in a special channel in the construction. Easy to replace anytime, anywhere!
Specifications
Frame:
- NS Define AL with 150mm travel
- AL6061-T6 + AL6066-T6
- Custom hydroformed tubes
Suspension:
- Rear Shock: Rock Shox Deluxe Select+ Trunnion 205x62.5
- Fork: Rock Shox 35 Gold RL, 160mm travel, 15x110mm Boost, 1.5" tapered steerer tube
Headset:
- Integrated tapered IS42/IS52, sealed bearings

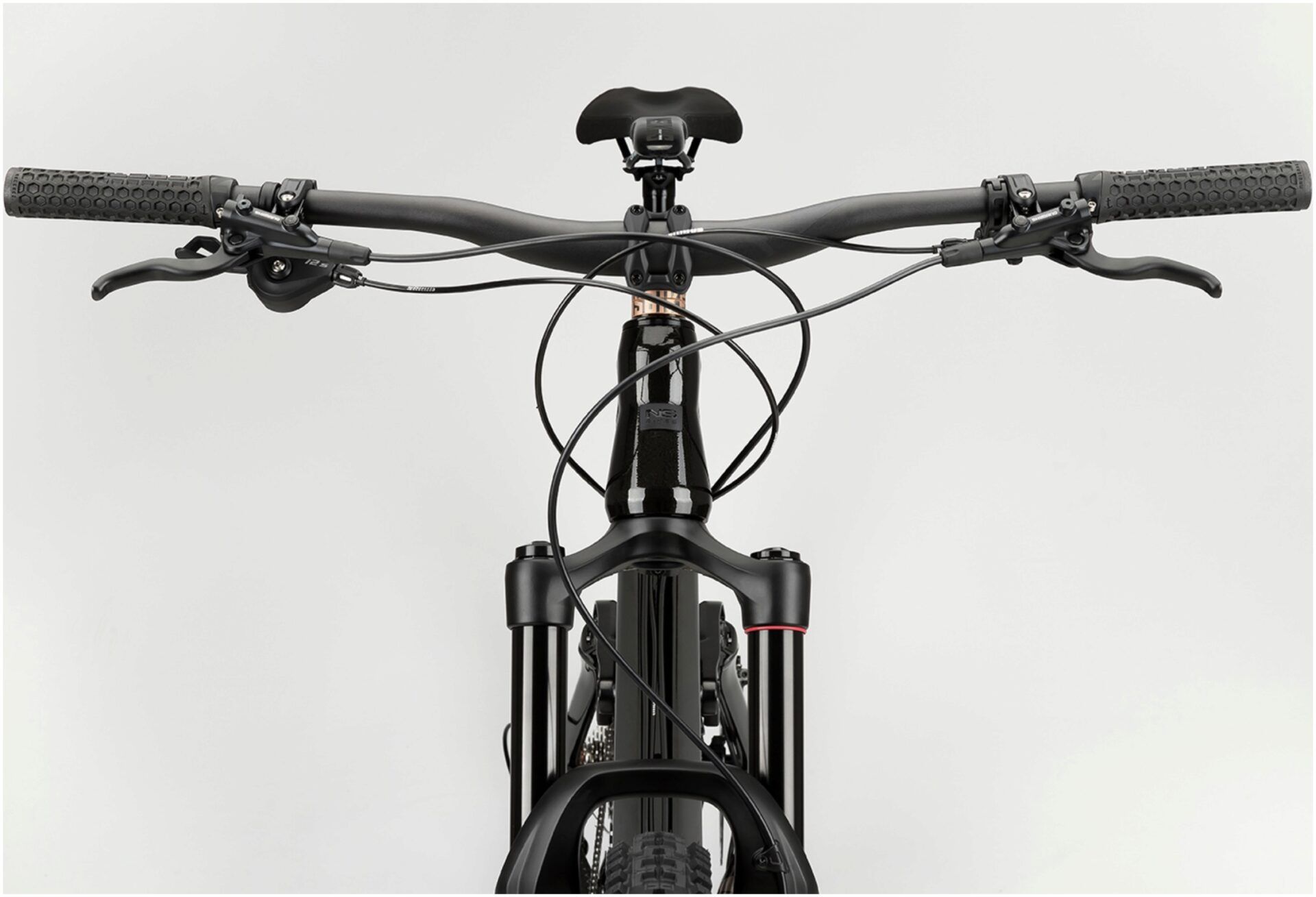

Cockpit:
- Stem: NS Tone 35, 45mm
- Handlebar: NS Bar 35, 800mm width, 20mm rise
- Grips: NS Hold Fast
Seatpost & Saddle:
- Seatpost: Kind Shock Rage-i Internal — S: 125mm, M: 150mm, L: 170mm travel, 31.6mm
- Saddle: WTB Volt Medium Steel SL
Brakes:
- Front Brake: Shimano MT410, 200mm rotor
- Rear Brake: Shimano MT410, 180mm rotor
- Levers: Shimano
Wheels:
- Rims: Octane One Solar 29”, tubeless compatible
- Spokes: With 14mm nipples
- Front Hub: NS 110x15mm Boost, sealed bearings
- Rear Hub: NS 148x12mm Boost, sealed bearings
Tyres:
- Front/Rear: Schwalbe Big Betty BikePark 29x2.4"

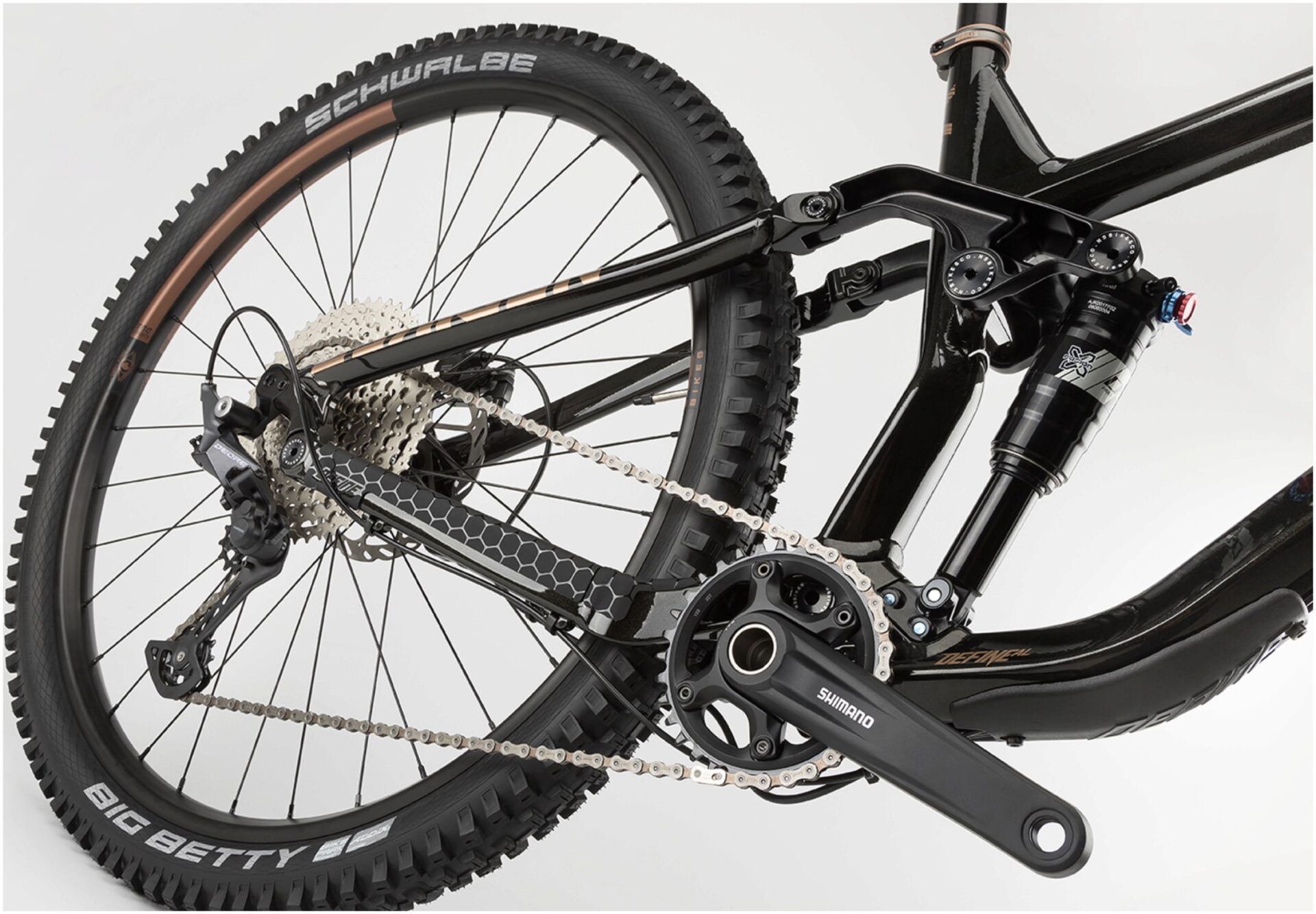

Drivetrain:
- Crankset: Shimano Deore FC-MT510-1, 170mm, 32T
- Bottom Bracket: Shimano BSA 73mm
- Chain: Shimano, 12-speed
- Rear Derailleur: Shimano Deore M6100, 12-speed
- Shifters: Shimano Deore M6100, 12-speed
- Cassette: Sunrace CSMZ800, 12-speed, 11-51T
