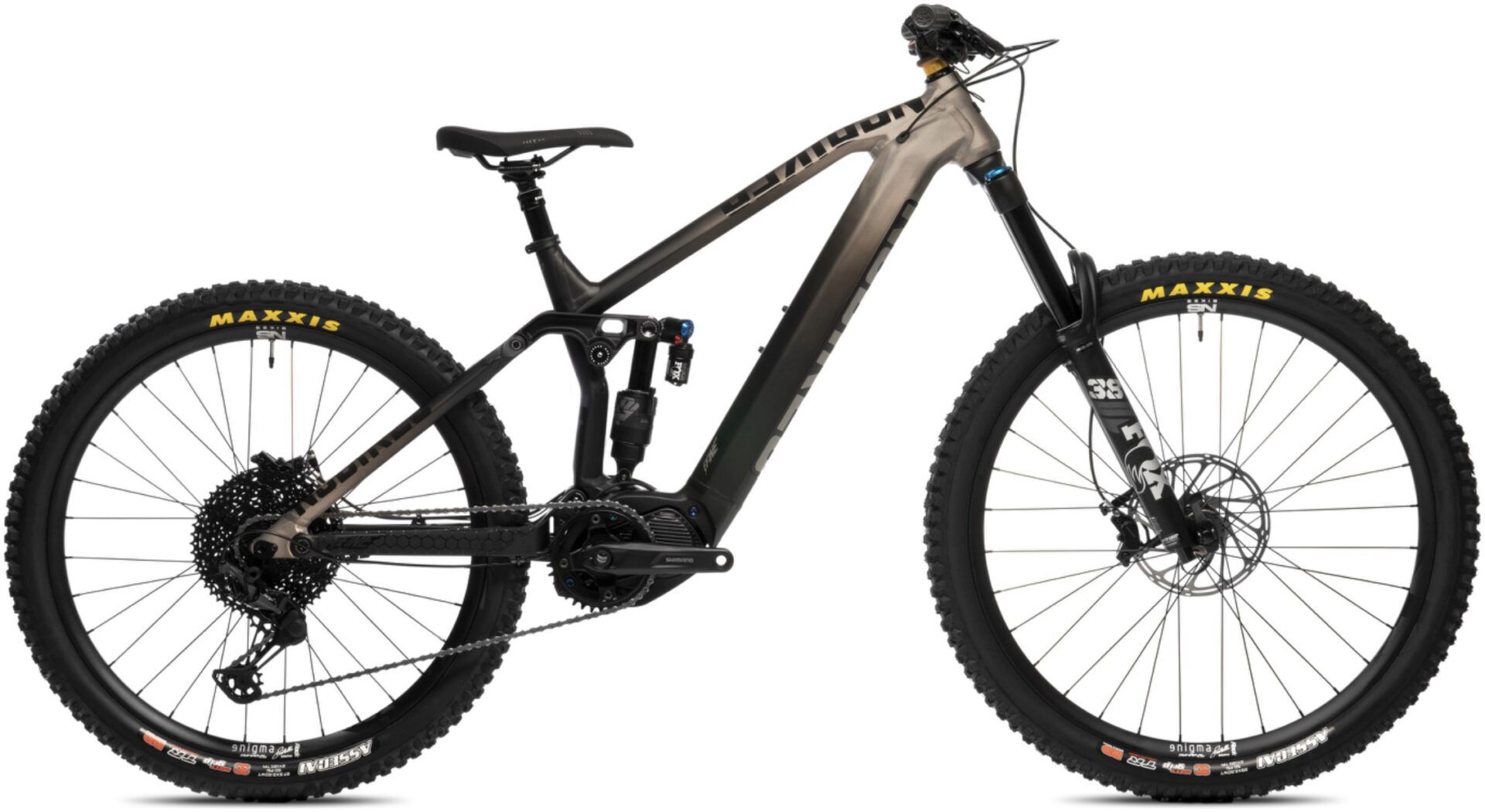

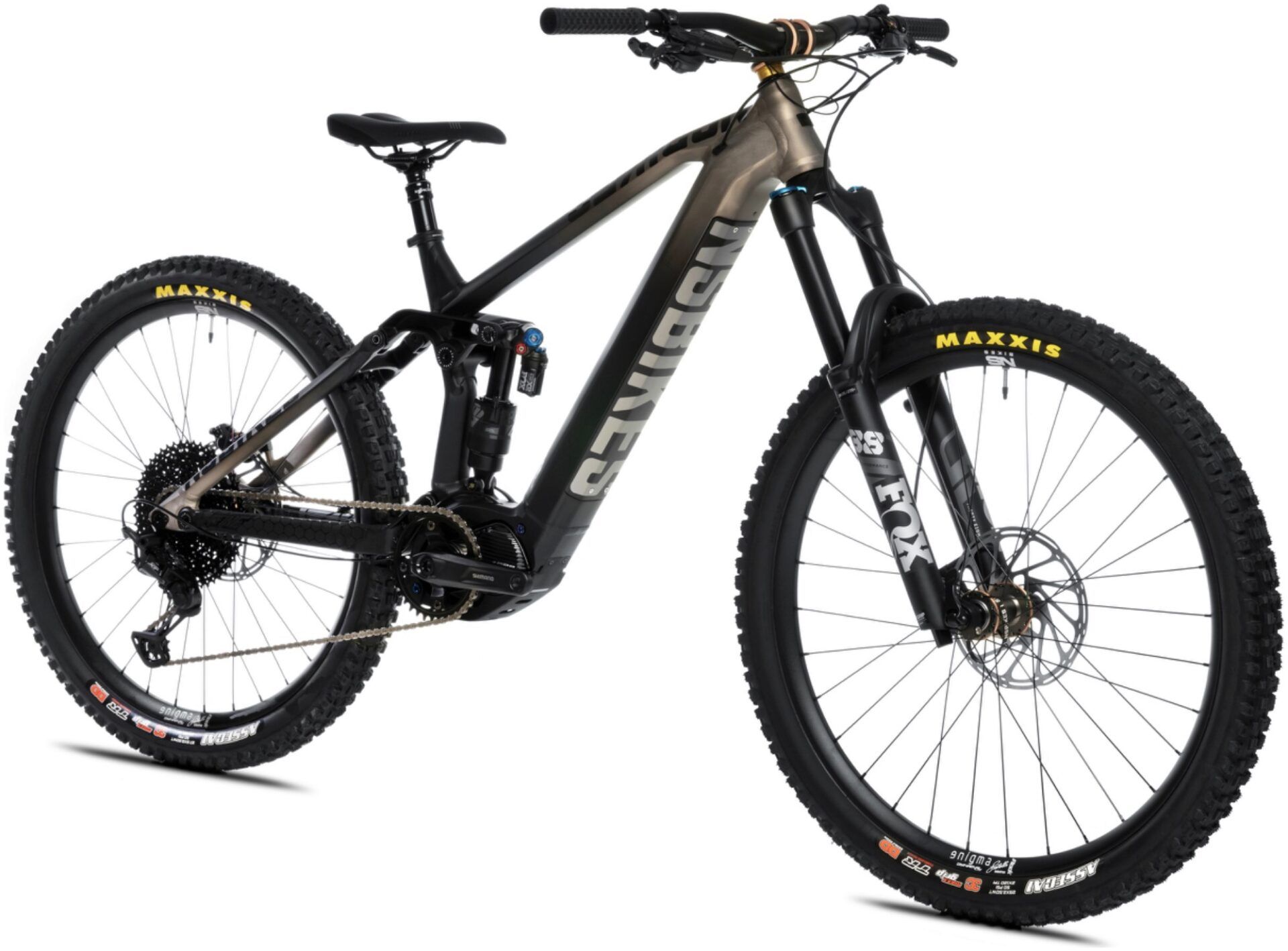

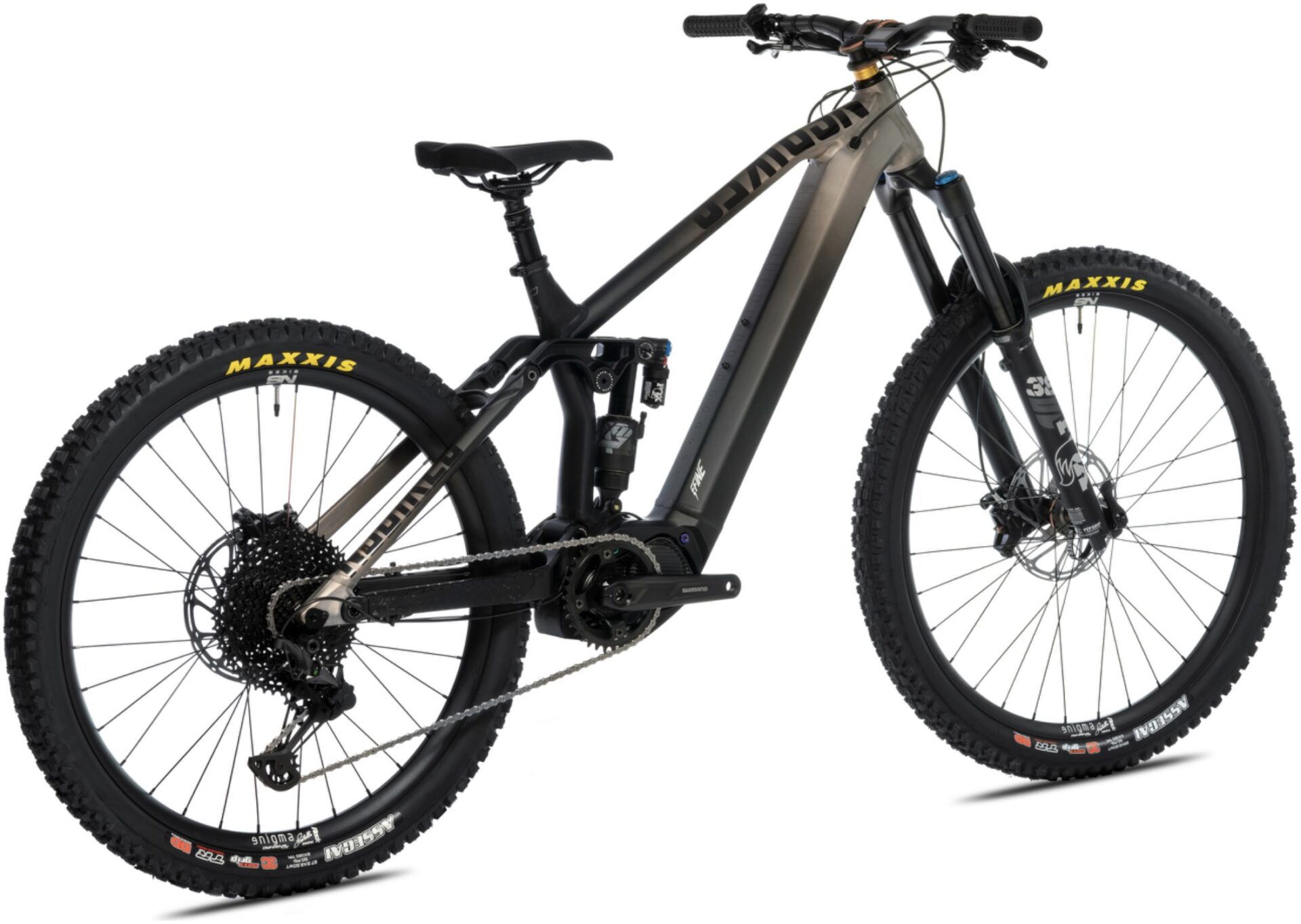

NS Bikes E-Fine 0 2025 Electric Bike

Over the years, we've tested many e-bikes, but none truly captivated our team.

Features

It took time to determine the ideal bike for ns. We realized that besides the motor, geometry and suspension are key. We sought a geometry that suits motor-assisted bikes, not a copy of our "analog" products. All that complemented by suspension for a heavier bike, aggressive tires, powerful brakes, and cockpit with a "moto" feel.

We believe that with e-fine, we completed our goals.

Regarding the motor, reliability and accessible service are crucial. We chose shimano for their shared values and excellent global service. Everyone loved the new ep8 motor from shimano. It's lighter, has significantly reduced drag, and offers improved ground clearance, low q-factor, and new 160mm cranks.

Our team dislikes wimpy rides, so we designed the e-fine as a robust machine with a fox performance 38 fork, powerful brakes, and aggressive tires. Adjustable bb height ensures that everyone finds their perfect riding position.

Specifications

Frame and Forks

• Frame: NS Bikes E-Fine AL with 160 mm travel
• Fork: Fox Performance 38 Float Grip, 15 x 110 mm Boost, 1.5" tapered steerer tube, 44 mm offset

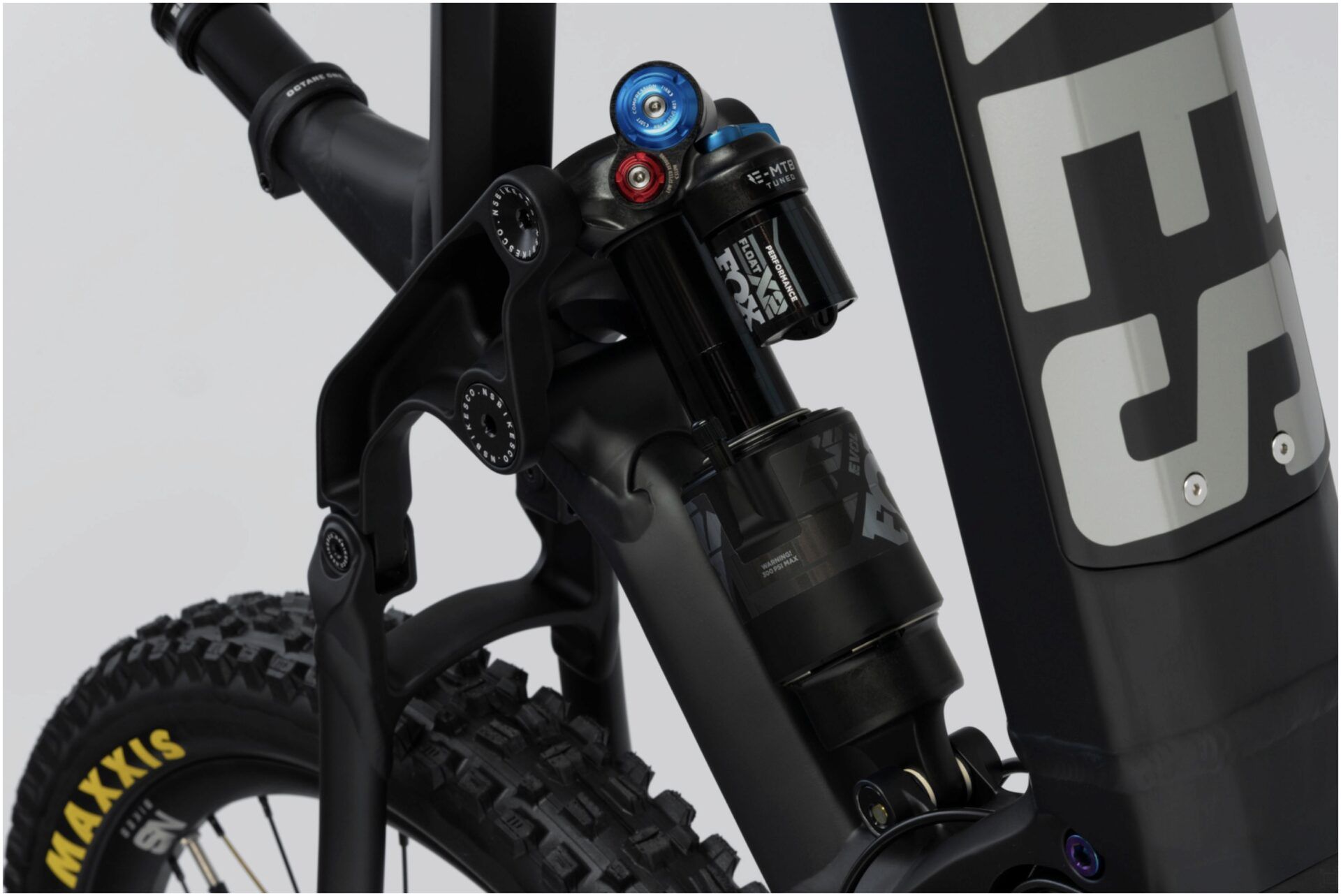

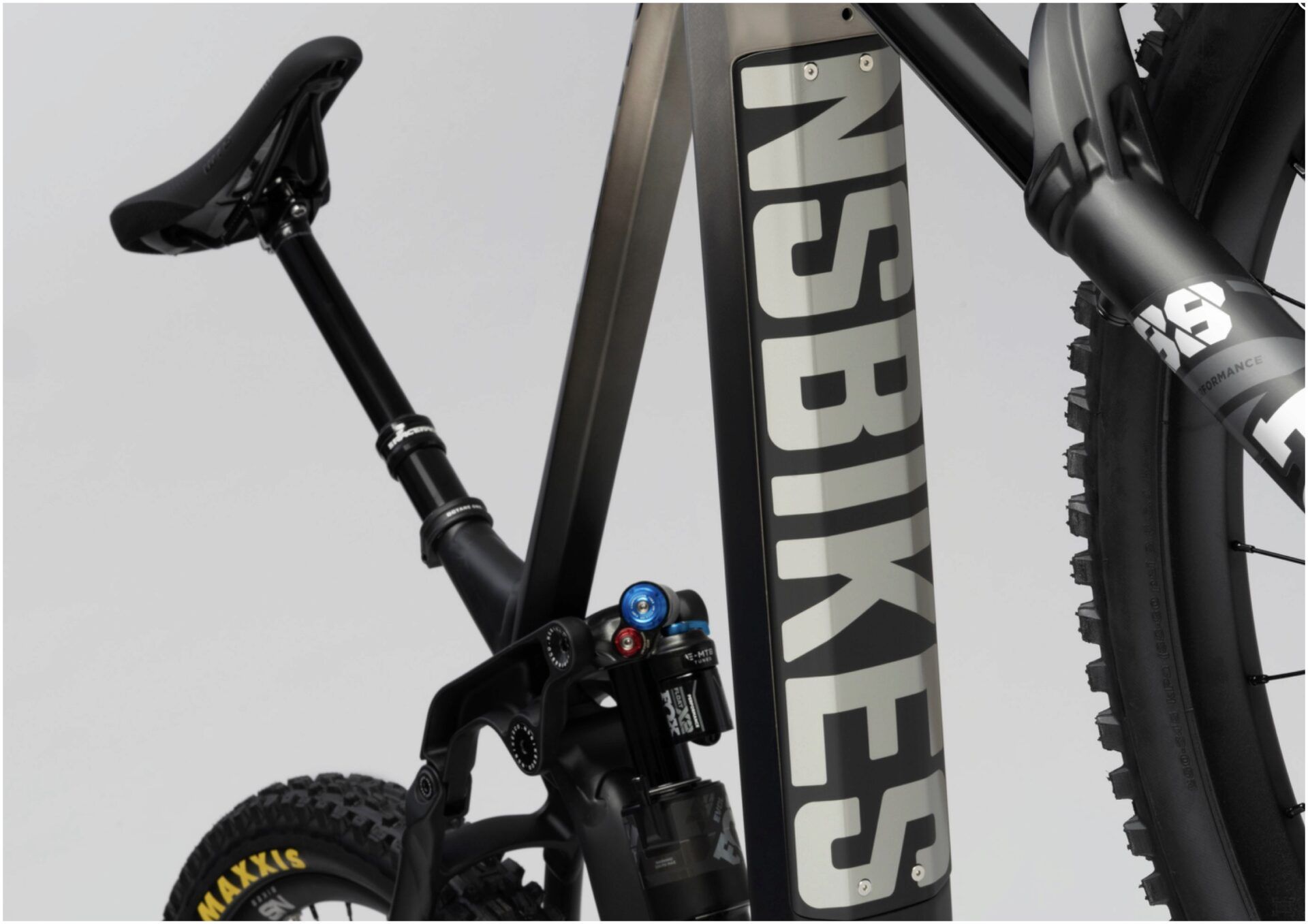

• Rear Shock: Fox Performance Float X2, Trunnion 205 x 62.5 mm

Drivetrain

• Front Derailleur: -
• Rear Derailleur: Shimano Deore RD-M8100, 12 Speed

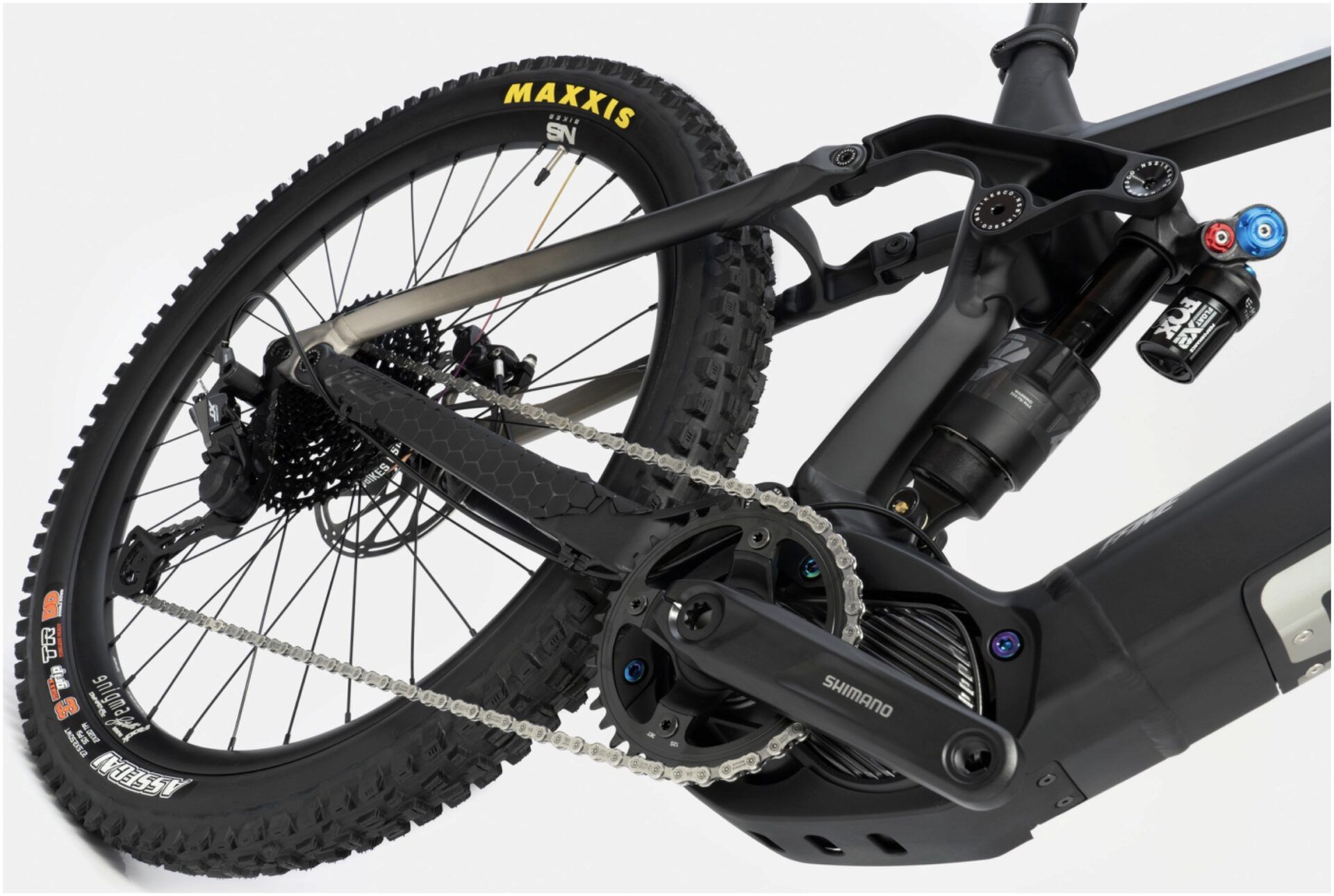

• Crankset: Shimano FC-EM600, 160 mm, 36 Tooth
• Cassette: Shimano CS-MZ800, 11–51 Tooth, 12 Speed
• Bottom Bracket: -
• Chain: Shimano Deore CN-M6100, 12 Speed

Braking/Shifting

• Front Brake: SRAM Code R, 200 mm
• Rear Brake: SRAM Code R, 200 mm
• Gear Shifters: Shimano Deore SL-M8100, Rapidfire Plus, 12 Speed

Wheels

• Front Hub: NS Bikes Rotary 110 x 15 mm Boost (sealed bearings)
• Rear Hub: NS Rotary Cassette 148 x 12 mm Boost (sealed bearings)
• Rims: NS Enigma Rock – 29" front, 27.5" rear, 32 Hole, tubeless ready
• Front Tyre: MAXXIS Assegai MaxxGrip 3C DD TR 29 x 2.50"
• Rear Tyre: MAXXIS Assegai MaxxGrip 3C DD TR 27.5 x 2.50"

Finishing Kit

• Headset: NS Bikes custom tapered IS42/IS52, sealed bearing

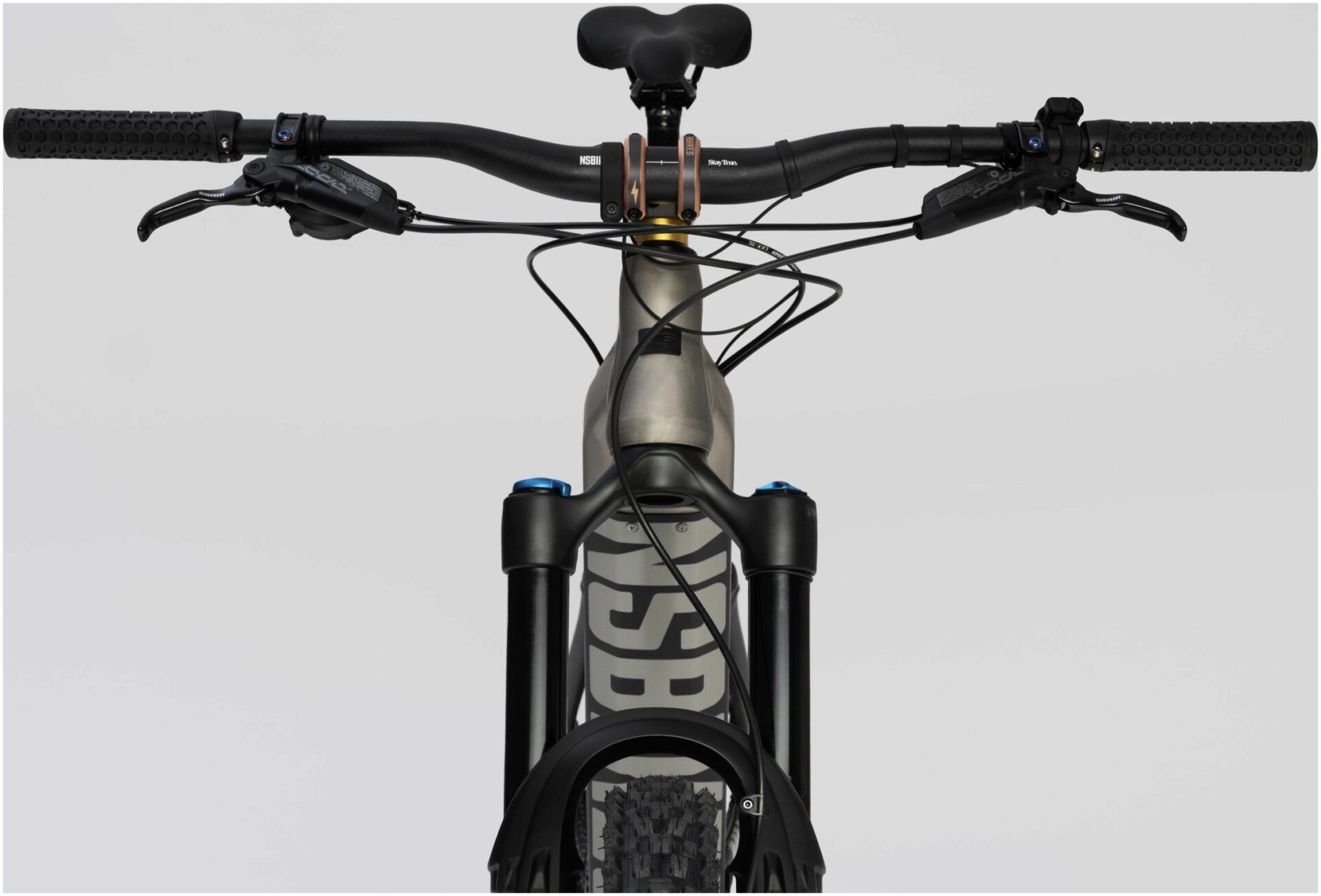

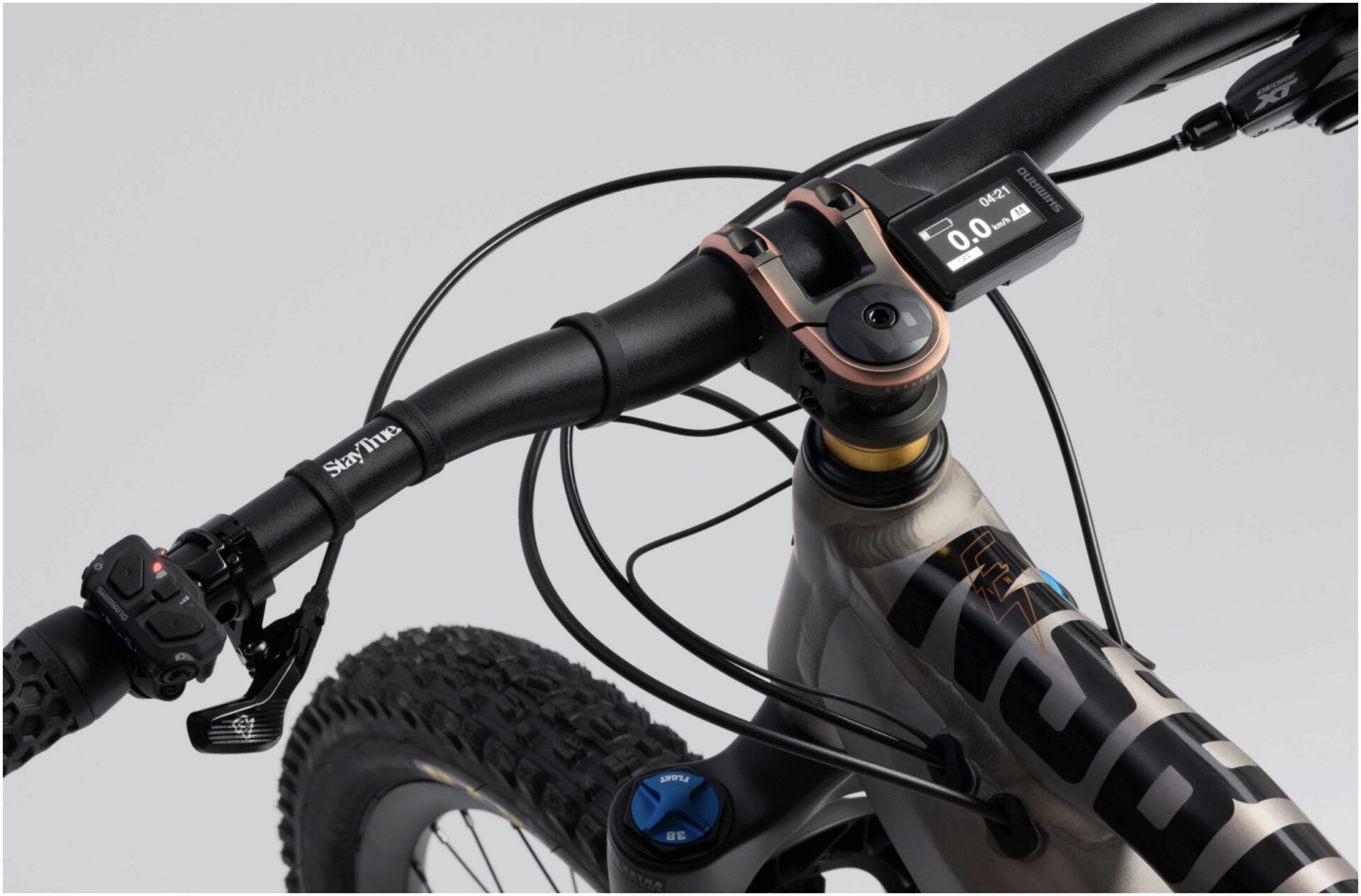

• Handlebar: NS Bar 35, 800 mm, 20 mm rise
• Stem: NS Quantum Lite 35, 45 mm
• Grips: NS Hold Fast Supersoft
• Saddle: WTB Volt Medium Steel SL
• Seat Post: Race Face Aeffect R internal – Small: 125 mm, Medium: 150 mm, Large: 170 mm, 31.6 mm

Electric Power

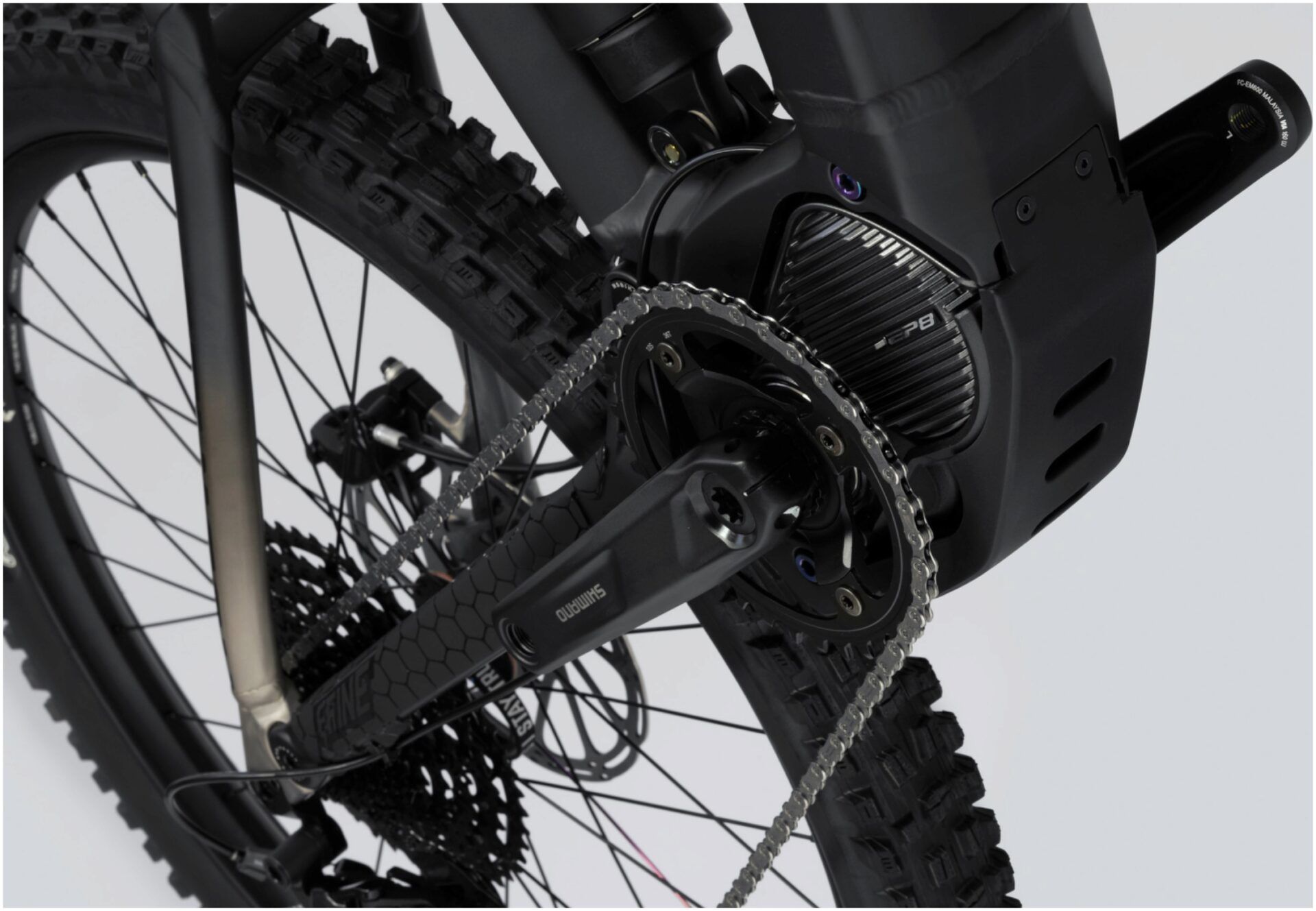

• Motor: Shimano EP8
• Battery: SHIMANO STEPS BT-E8036, 17.5 Ah / 630 Wh
