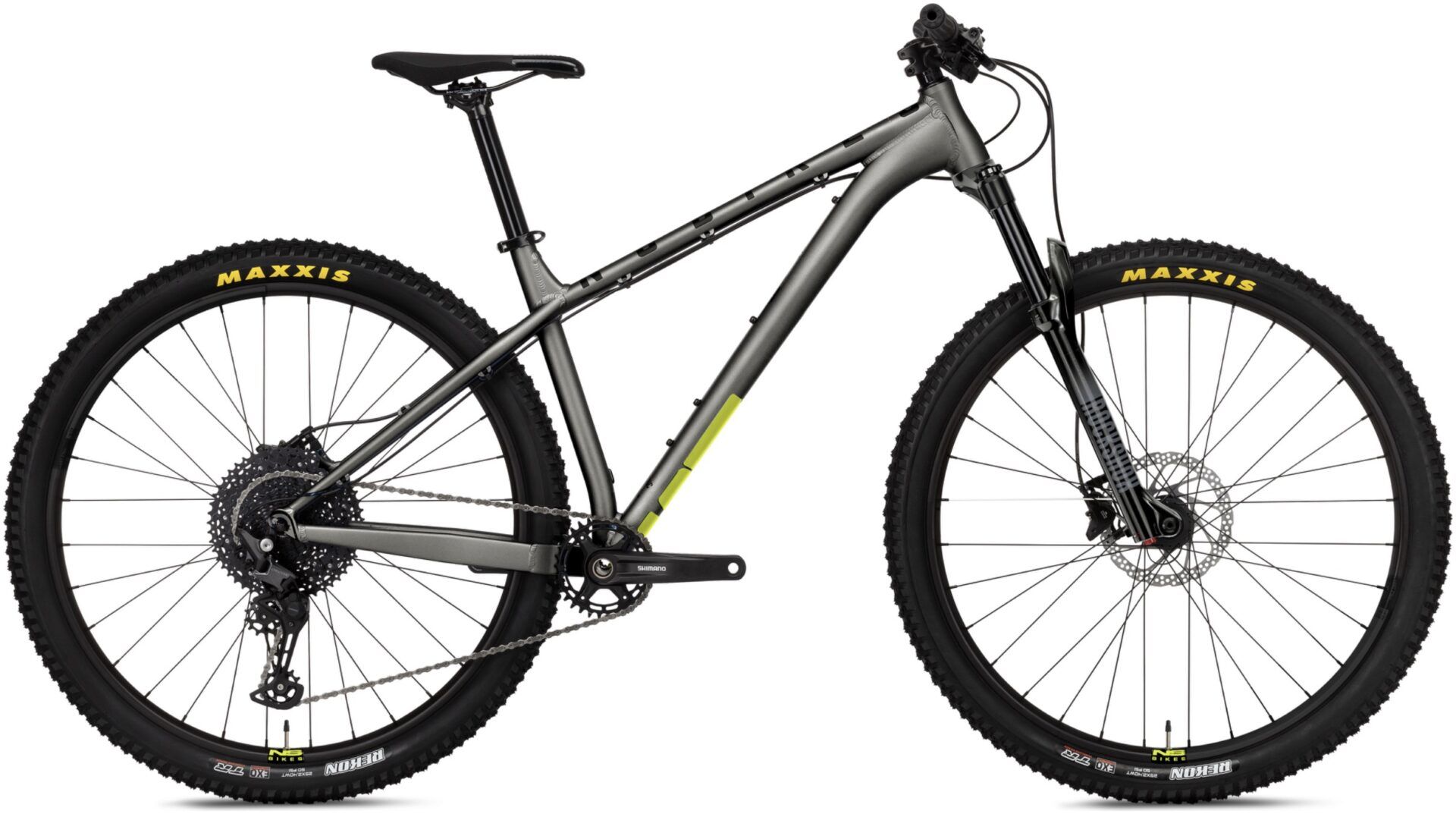

NS Bikes Eccentric Lite 1 2025 Bike

Those looking for a modern hardtail trail bike should check out the eccentric lite. Sure, it's light and looks rad, but the key point is the unique geometry – not commonly found in this category - that makes this bike special. The slack angles and long reach inspire confidence. No matter if you are a beginner or expert, you shouldn’t be riding short old-school donkeys. Both models in the eccentric lite range rock right out of the box, but they are also a great base for future upgrades.

Features

Modern Geometry

Most progressive frame geometry on the market.

Tough and Light Alloy Frame

Tange eccentric cromoly tubes (eccentric cromo).

NS Components

NS Bikes aftermarket components in unique finishes.

Specifications

Frame and Suspension

• Frame: NS Bikes AL6061-T6 custom formed and butted tubes, 135 x 10mm dropouts (Sizes: Small, Medium, Large)
• Forks: RockShox Judy Silver TK E-MTB Solo Air, 120mm travel, 110 x 15mm Boost, 1.5T, 44mm offset

Drivetrain

• Crankset: Shimano Deore FC-MT510-1, 170mm, 32 Tooth
• Bottom Bracket: Shimano BSA 73mm
• Chain: Shimano, 12 speed
• Derailleurs: Shimano Deore M6100, 12 speed
• Shifters: Shimano Deore M6100, 12 speed
• Cassette: Sunrace CSMZ800, 12 speed, 11-51 Tooth

Braking

• Front Brake: Shimano MT410, 180mm
• Rear Brake: Shimano MT410, 180mm
• Brake Levers: Shimano MT410, 180mm

Wheels and Tires

• Rims: Octane One Solar 29", 32h, tubeless compatible
• Spokes: Spokes with 14mm nipples
• Front Hub: NS 15 Boost 110 x 15mm disc (sealed bearings)
• Rear Hub: NS Cassette 135 x 10mm (sealed bearings)
• Tyres Front / Rear: Maxxis Rekon EXO TR 29 x 2.4" WT

Controls and Cockpit

• Headset: GW integrated tapered IS42/IS52, sealed bearings
• Stem: NS Drop 31.8, 50mm, angle -10°
• Handlebar: NS Bar 31.8, 760mm, 12mm rise
• Grips: NS Hold Fast

Seat and Post

• Seatpost: Kalloy 31.6mm
• Saddle: WTB Volt Medium Steel
