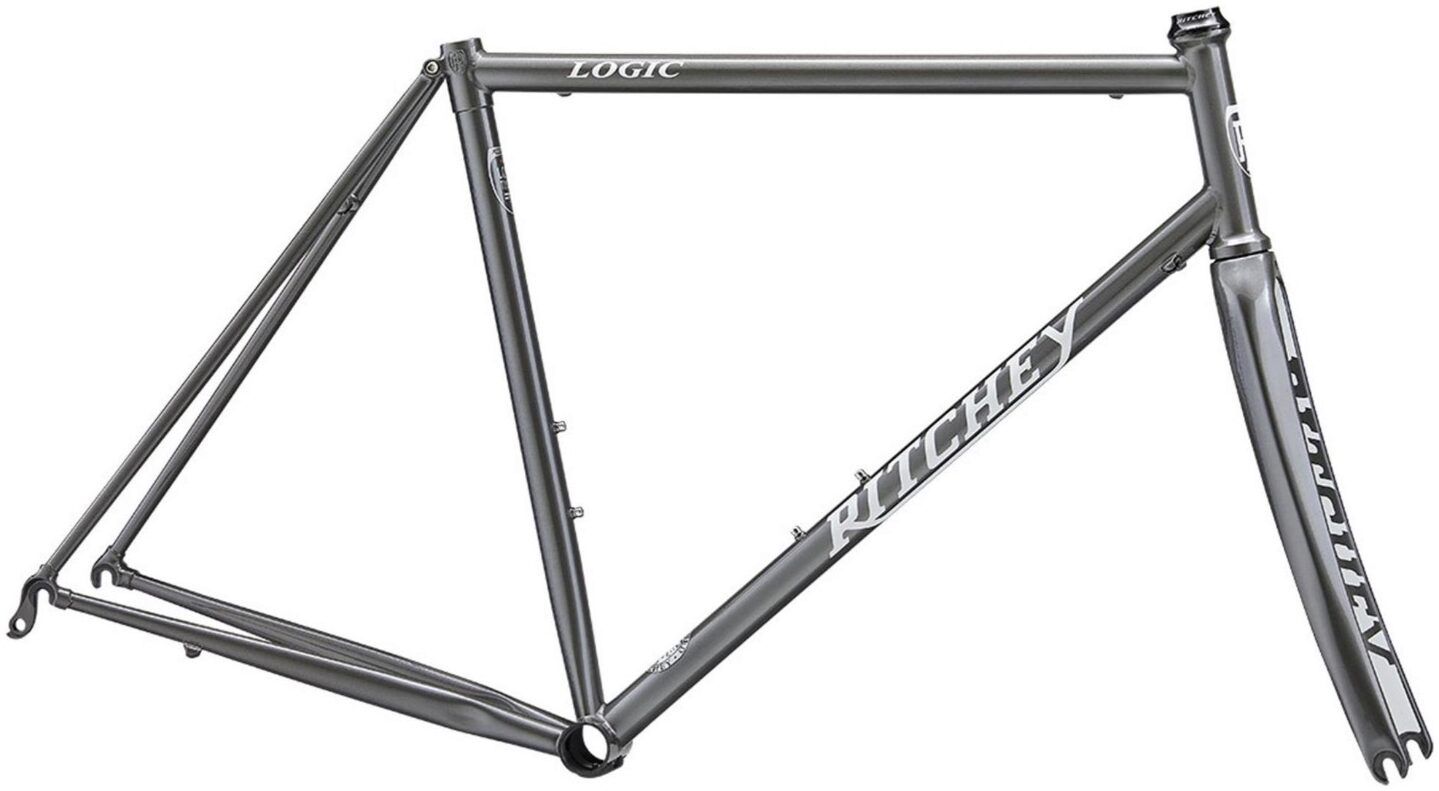

Ritchey Road Logic 2025 Frameset
| Brand | Ritchey |
|---|---|
| Colour | Anthracite |
| Suitable for | Everyone |
| Wheel Size | 700c |
The Road Logic offers a riding experience that's steeped with more than 50 years of life experiences, framebuilding heritage, innovation and exploration. The beauty of its classic lines unites with modern building techniques and proven materials to deliver a contemporary bicycle that's remarkably comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement.
Tom Ritchey's frame building experience started in the 1970s when he built his first road frame in his parent's garage in northern California. Since then, Tom has continued to explore, experience and innovate in ways that define the craft. The Road Logic is the result of Tom's expanding legacy, his prodigious experience with steel, and mastery of the subtleties and details gleaned from his tenure in the art of creating bicycles.
A true modern classic, Tom designed a heat-treated and triple-butted Ritchey Logic tubeset for the Road Logic, featuring aggressively short-butted sections optimised for TIG welding that save weight and improve ride quality. Ritchey's proprietary forged-and-machined integrated headtube uses standard drop-in bearings and saves 80 grams over a standard head tube design.
Wrapped in a delicious Anthracite coat of paint, the Road Logic also features spacing for up to 30c tyres and a Ritchey Carbon Fork that will ensure a lifetime of enjoyable pedal turns.
Technology
WCS Logic Tubing
Ritchey's proprietary and triple-butted steel tubing developed specifically for the TIG welding process to Tom's specifications.
Integrated Carbon Crown
Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.
Features
- Material heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
- Ultra-light forged and machined straight 1-1/8" headtube
- Electrophoretic Deposition (ED Coat) treated for corrosion resistance
- Seat tube clamp size 28.6mm (2.5Nm max for derailleur clamps and chain guides)
- 27.2mm seat tube with integrated seat collar (Max torque setting: 6Nm)
Specification
Frame
- Bottom bracket: 68mm - English threaded
- Crankset min/max ring size: 46/30t to 53/39t
- Chainline: 49mm
- Bottle cage mounts: 2
- Standard Quick Release front and rear
- External cable routing
- WCS headset included (Upper IS42/28.6 - 16mm stack height | lower IS42/30)
Fork
- Ritchey WCS Carbon Road Fork included
- 1-1/8" straight steerer with integrated 45-degree crown race
- Steerer length: 300mm
- Axle-crown: 371mm
- Rake/Offset: 46mm (Sizes 49/51/53cm) - 43mm (Sizes 55/57/59cm)
- 30mm maximum spacers below stem
Tyre Compatibility
- Wheel and tyre compatibility 700 x 30c tyre clearance (Depending on tyre/rim manufacturer)
- Frame spacing: 38mm
- Fork spacing: 40mm
Extras
- Sizes: 49 / 51 / 53 / 55 / 57 / 59cm
- Frame weight: 1750g (Size 55)
- Fork weight: 350g (Uncut steerer)
- Colour: Anthracite
