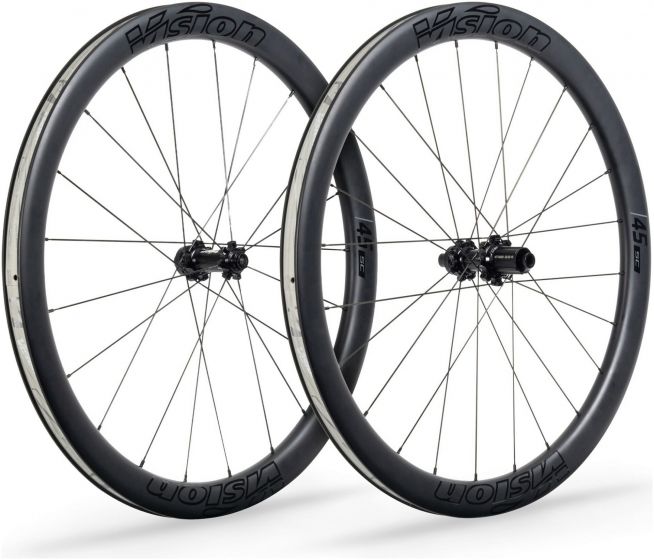

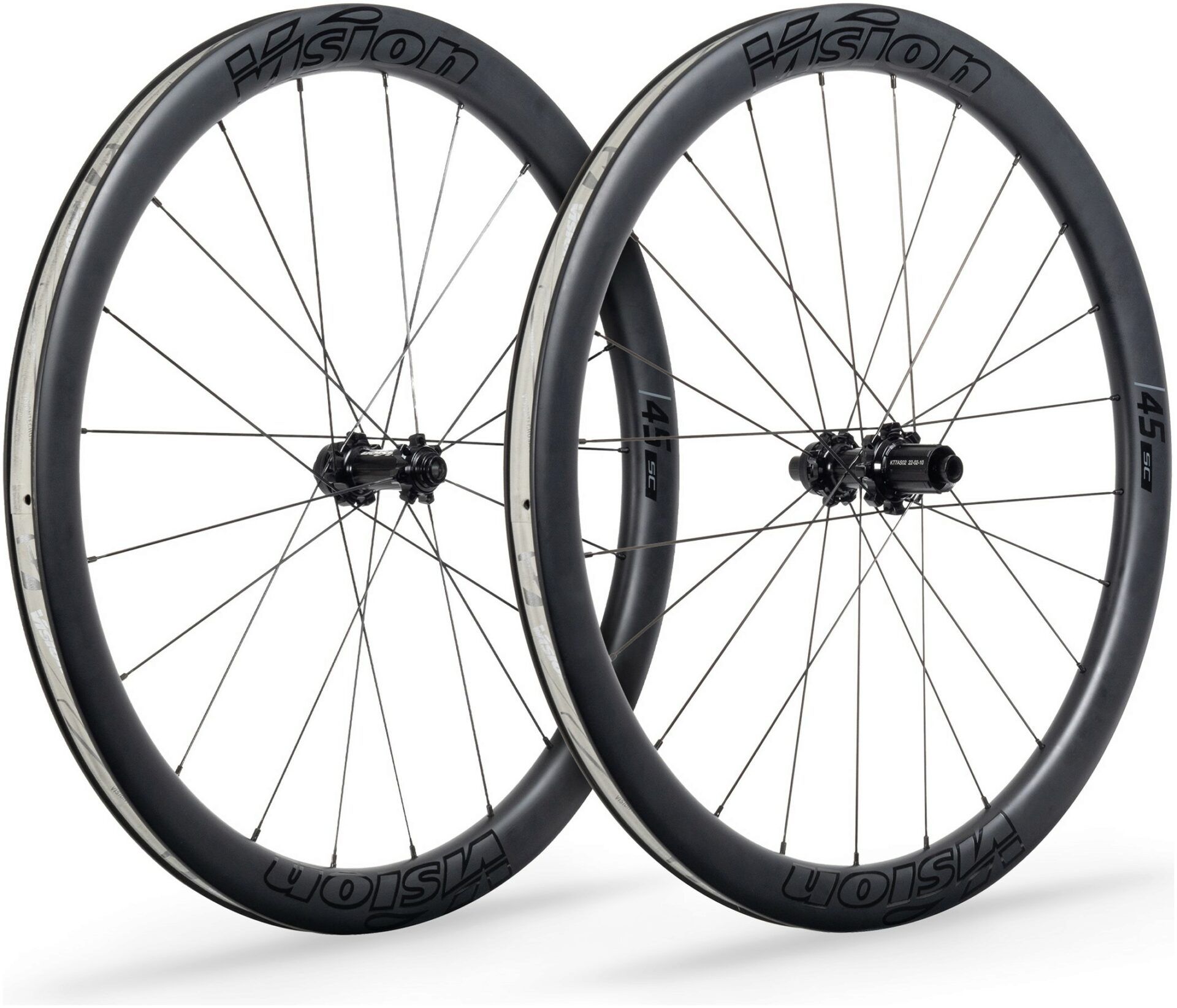

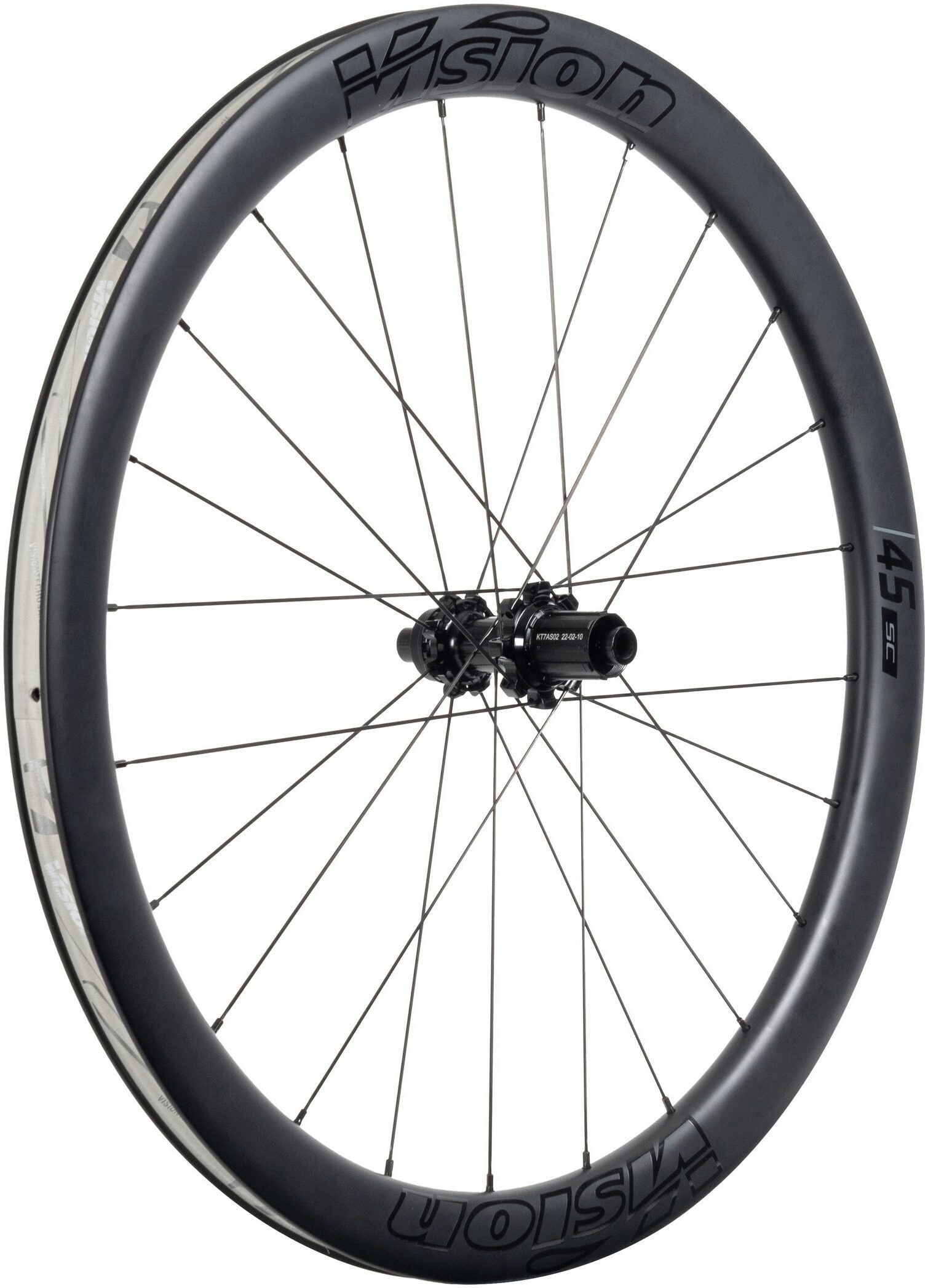

Vision SC 45 Clincher Disc 700c Wheelset

The new SC45 evolves the concepts of previous versions and bring the latest version of Vision rims, also used in the Metron range, but with more classic and less extreme construction solutions. In particular, the carbon rim with an aerodynamic profile, available with a depth of 45 or 60mm, features a 21mm internal width with hook to achieve maximum efficiency with tubeless tires ranging from 28 to 32mm. The 24 aerodynamic spokes with a 2:1 cross are laced onto direct-pull hubs. At the rear, the freehub is of the classic pawl type but in an improved version, without bearing preload adjustment but with pressure caps, to make the wheels more reliable and maintenance-friendly. Vision's technicians have conducted in-depth tests on the road and in the laboratory to refine the construction of the entire system, which now results in significantly higher stability and performance, both in terms of rolling and longevity. Often, this type of wheel is used with little maintenance in mind, which is why Vision have conducted studies on the performance decay due to usage, improving every component and coupling between parts. Even the weight, compared to previous versions, has been reduced, mainly thanks to the use of modern construction carbon, reaching 1590grams per pair for the SC45 and 1690grams per pair for the SC60.

Technology

The Perfect Choice

To give every cyclist the perfect product. This has always been Vision's goal, whether working alongside the world's top athletes or developing components for every-day cyclists. The SC wheel range represents a cornerstone in Vision's offerings, providing exceptionally high-quality carbon products derived from the Metron family but at a highly accessible price.

Technical Masterpiece

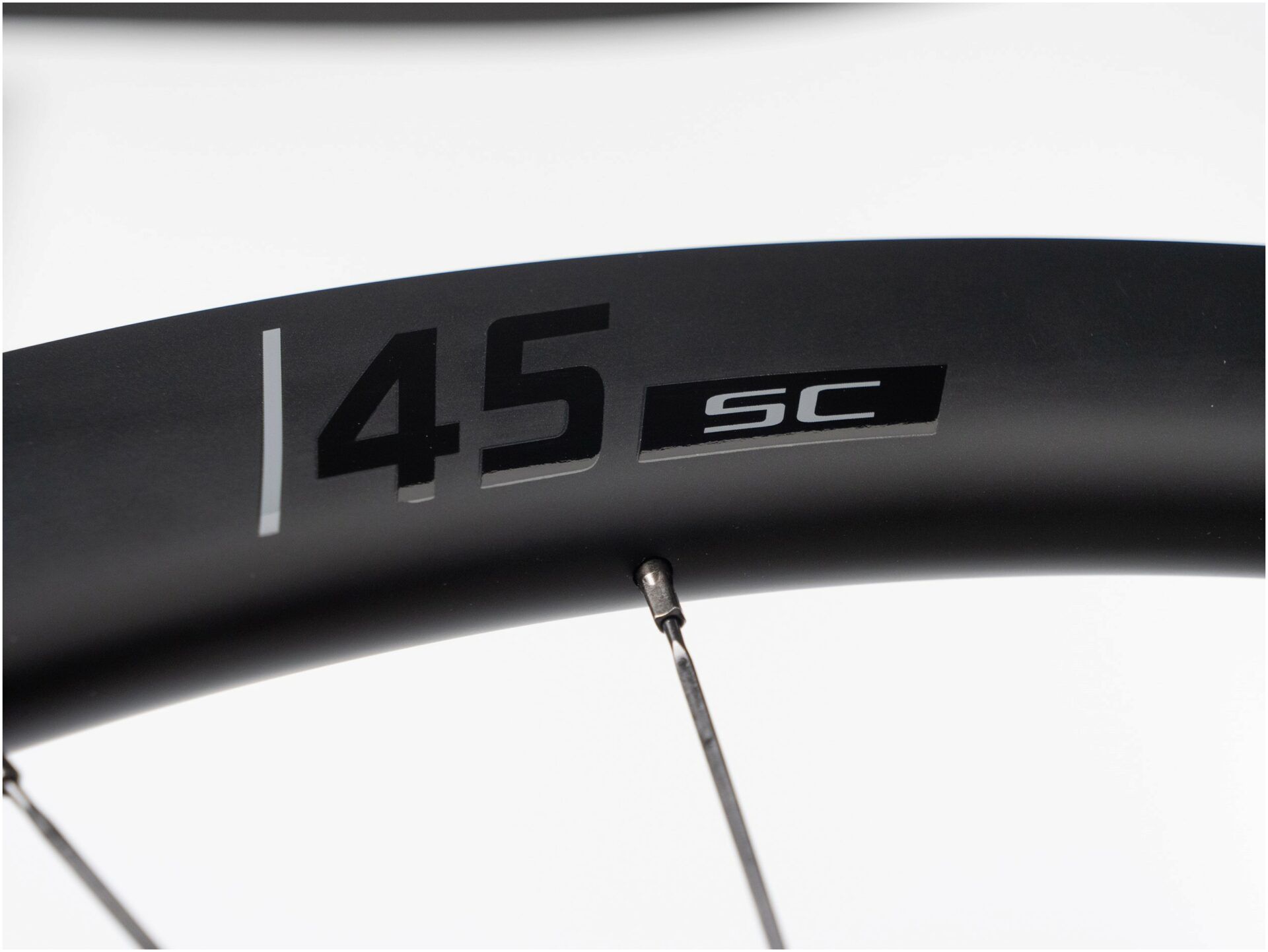

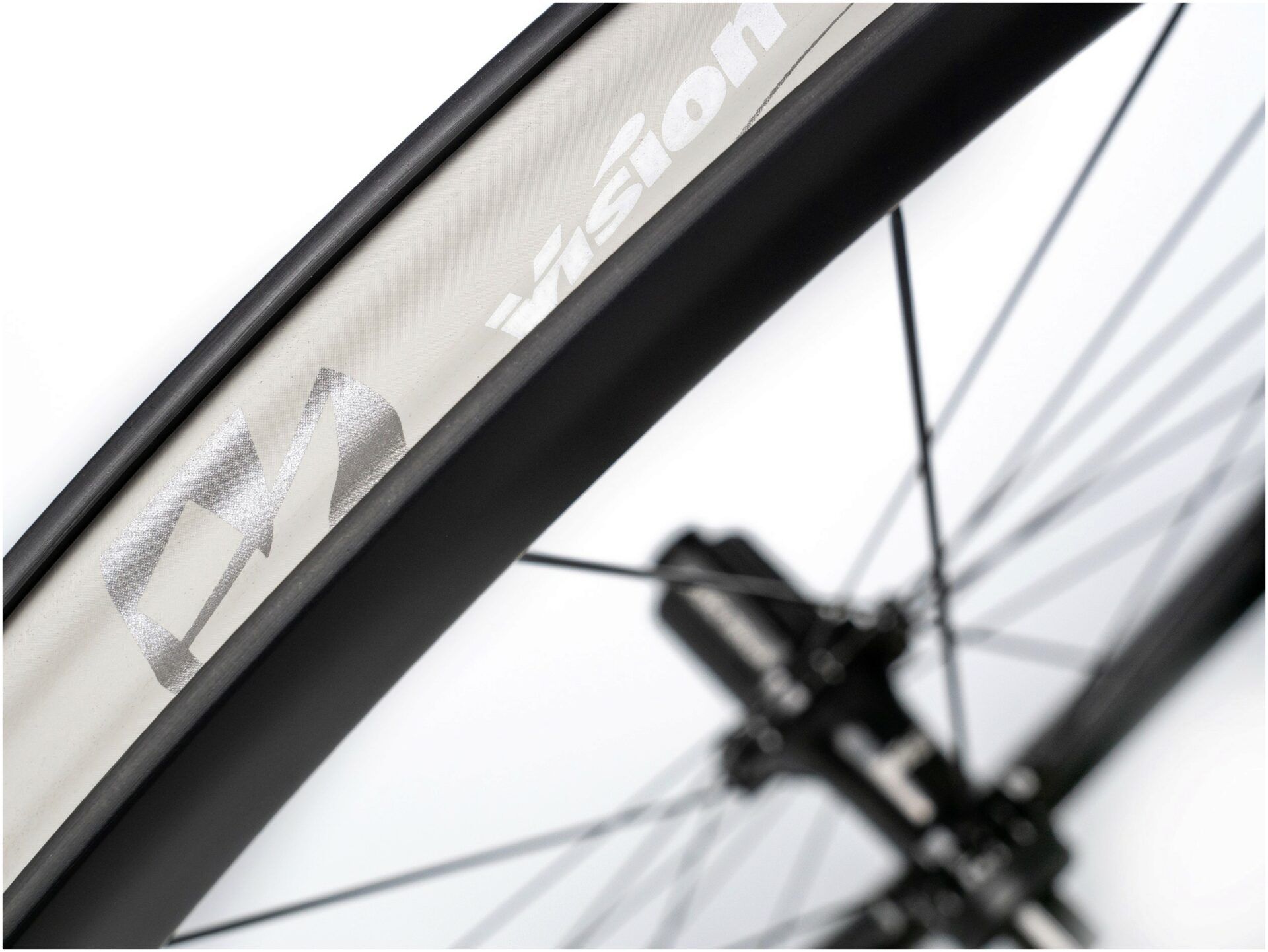

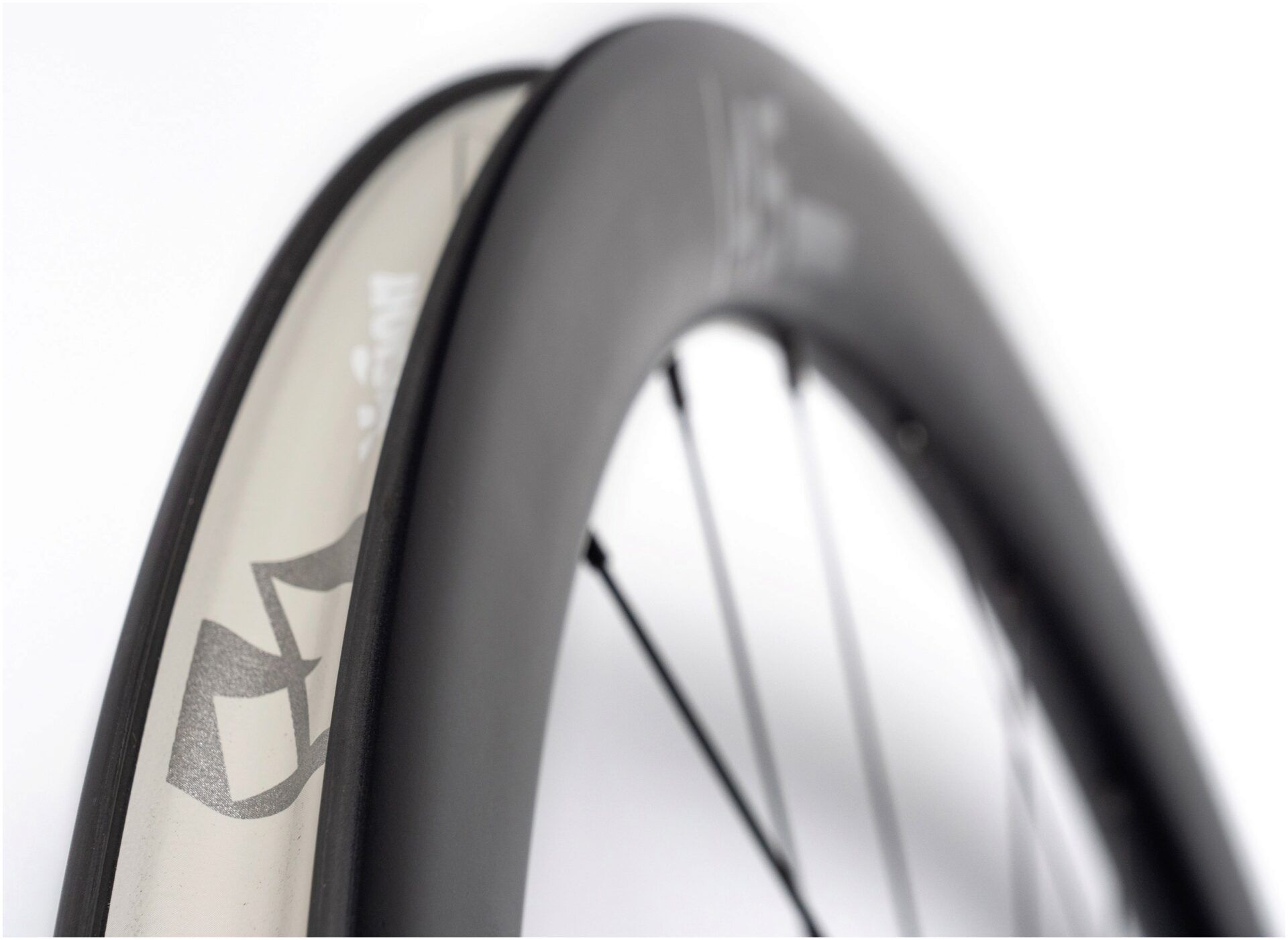

Carbon rims with a refined aerodynamic 45mm profile, features a 21mm internal width with hook to achieve maximum efficiency with tubeless tires ranging from 28 to 32mm. The 24 aerodynamic spokes with a 2: 1 cross pattern are laced onto direct-pull hubs. Compared to previous versions, the weight has been reduced due to updated carbon construction, reaching 590g / pair.

An Aero Choice

Aerodynamic development of rims has become a fundamental part of road wheel development. The new profiles of 45mm depths with a 21mm channel are the result of in-depth wind tunnel tests and CFD analyses aimed at finding the perfect profiles for aerodynamics, resistance to cross winds, and smooth handling.

Features

• Full carbon rim
• 45mm depth rim
• Tubeless read - clincher rim

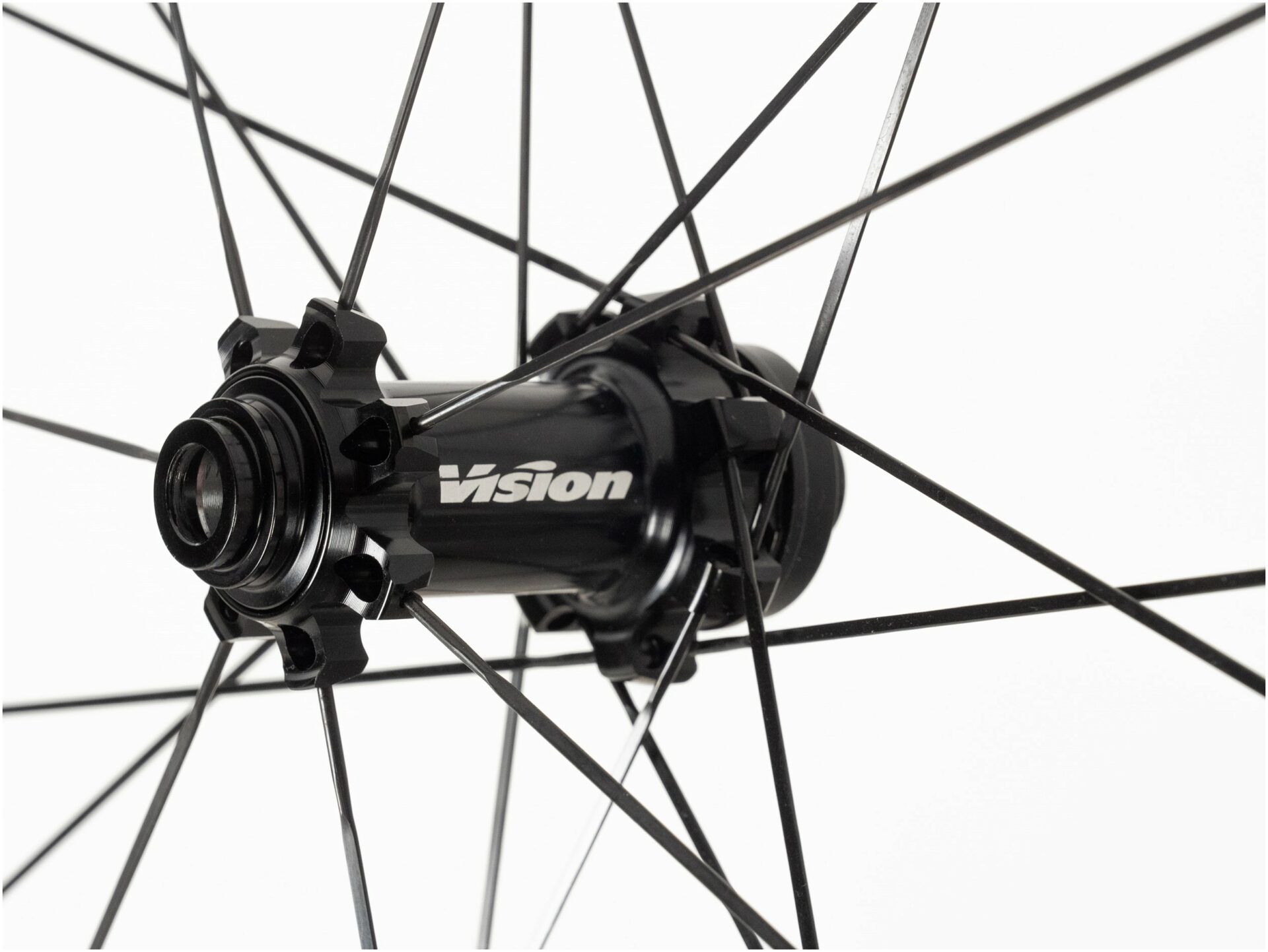

• Hubs with direct pull spokes

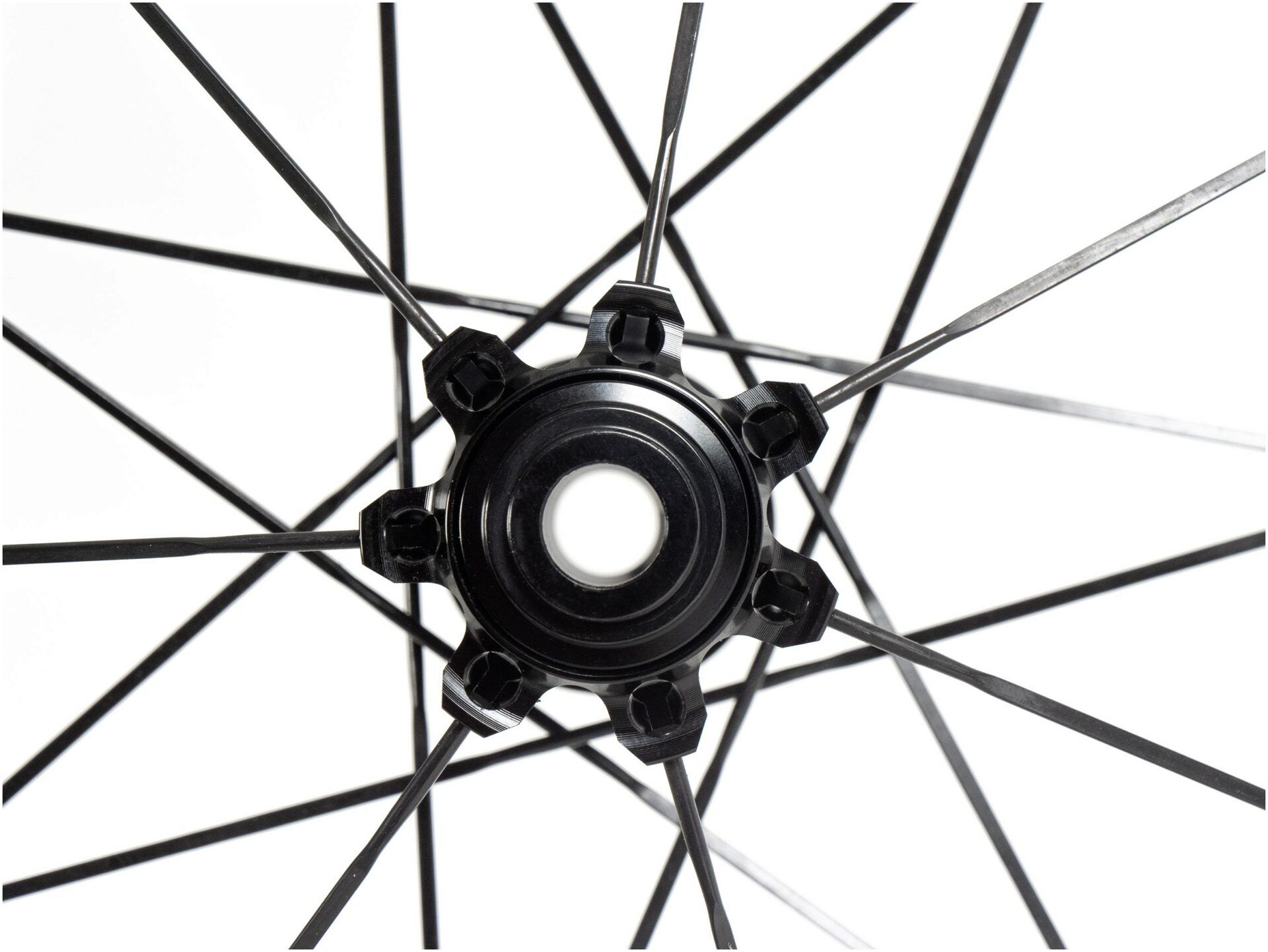

• Centre Lock rotor mount
• 6 sealed cartridge bearings (2F + 4R)
• Artisan built, entirely by hand
• Alloy freehub
• Shimano 10/11/12 sp
• SRAM XDR

Specification

• 2:1 Aero Bladed Spokes 24F/24R
• Front: TA-12
• Rear: TA-12
• Weight: 1590g Per Pair
