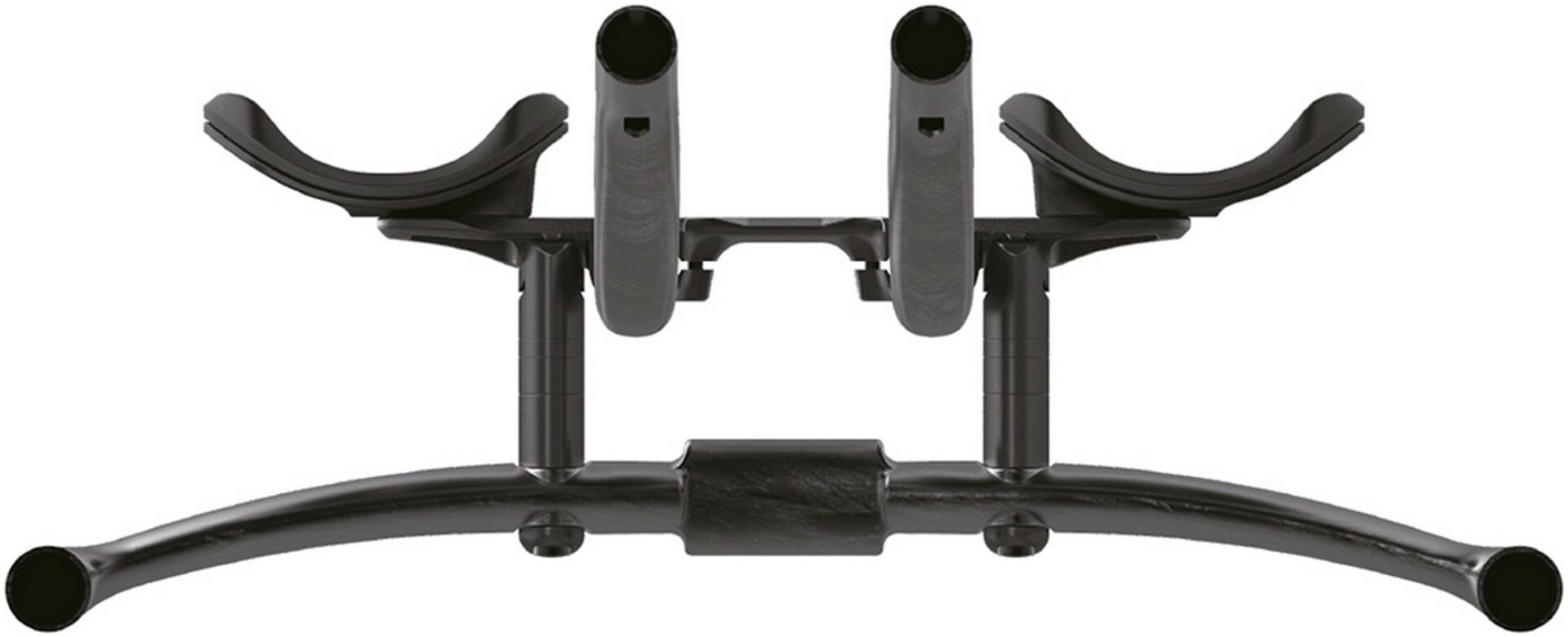

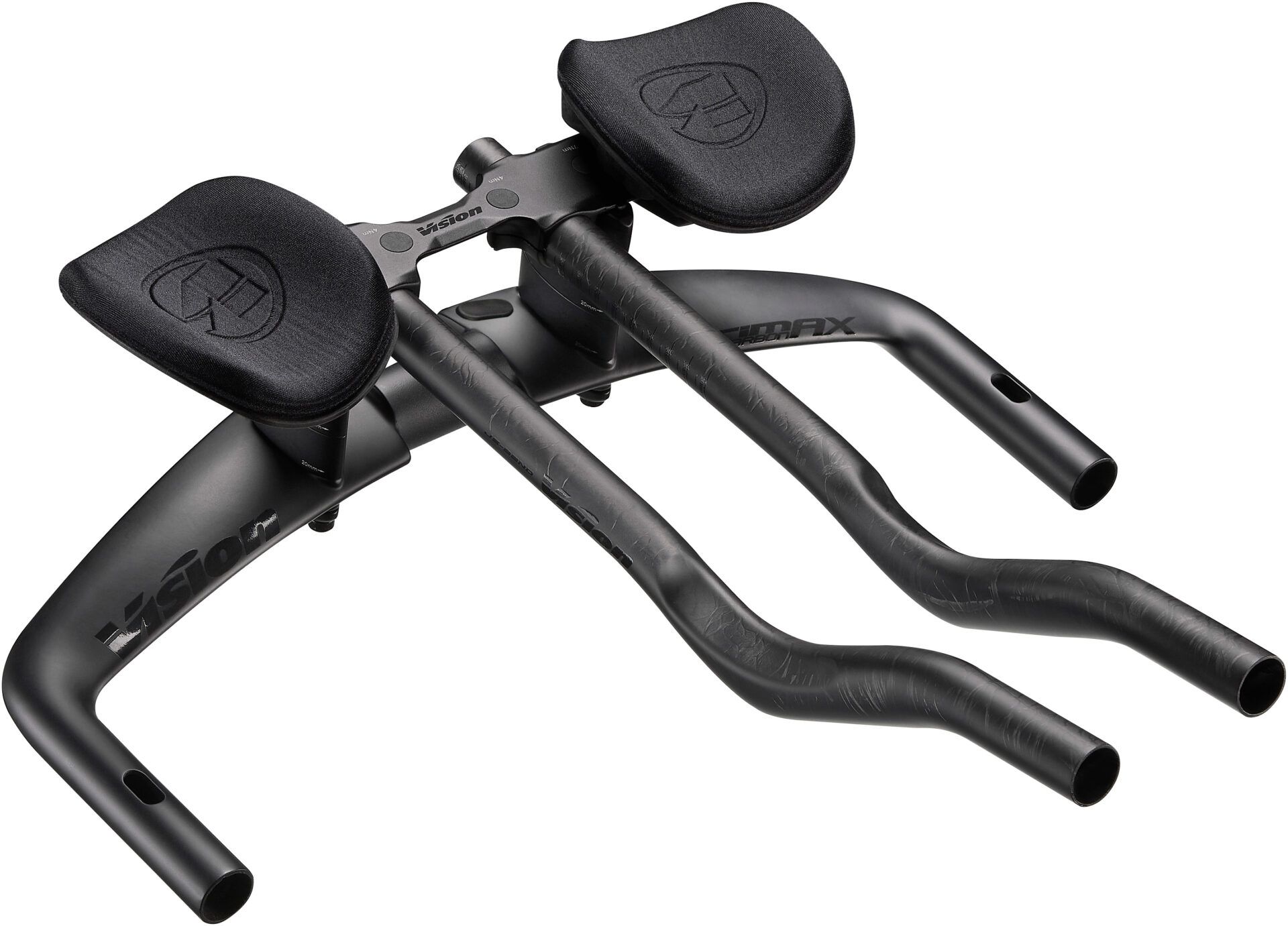

Vision TriMax Si-013 Carbon Semi-Integrated Aero Bars

The Vision TriMax Carbon Si-013 JS-Bend aerodynamic carbon handlebar is equipped with a flip-flop carbon base bar and ergonomic extensions. The ability to extensively adjust reach, stack, extension angle and arm rest positions are the foundation of the TriMax Carbon Si-013 JS-Bend design, and are easily adjustable without the use of bolts.

Technology

Ergonomics

Full carbon ergonomic extensions, with the possibility of being lengthened and shortened according to the rider’s fit.

High Compatibility

Ability to tilt the base bar and choose the stem. This means that the handlebar is compatible with all frames with a 31.8mm diameter handlebar clamp area.

Extensive Adjustability

Ability to extensively adjust reach, stack, extension angle and arm rest positions.

Features

• Highly adjustable and customizable semi-integrated design
• Lightweight carbon wing and extension
• Internal cable routing and Di2 compatible
• Forged AL6061/T6 brackets and hardware
• Composite armrests with low profile ergonomic pads

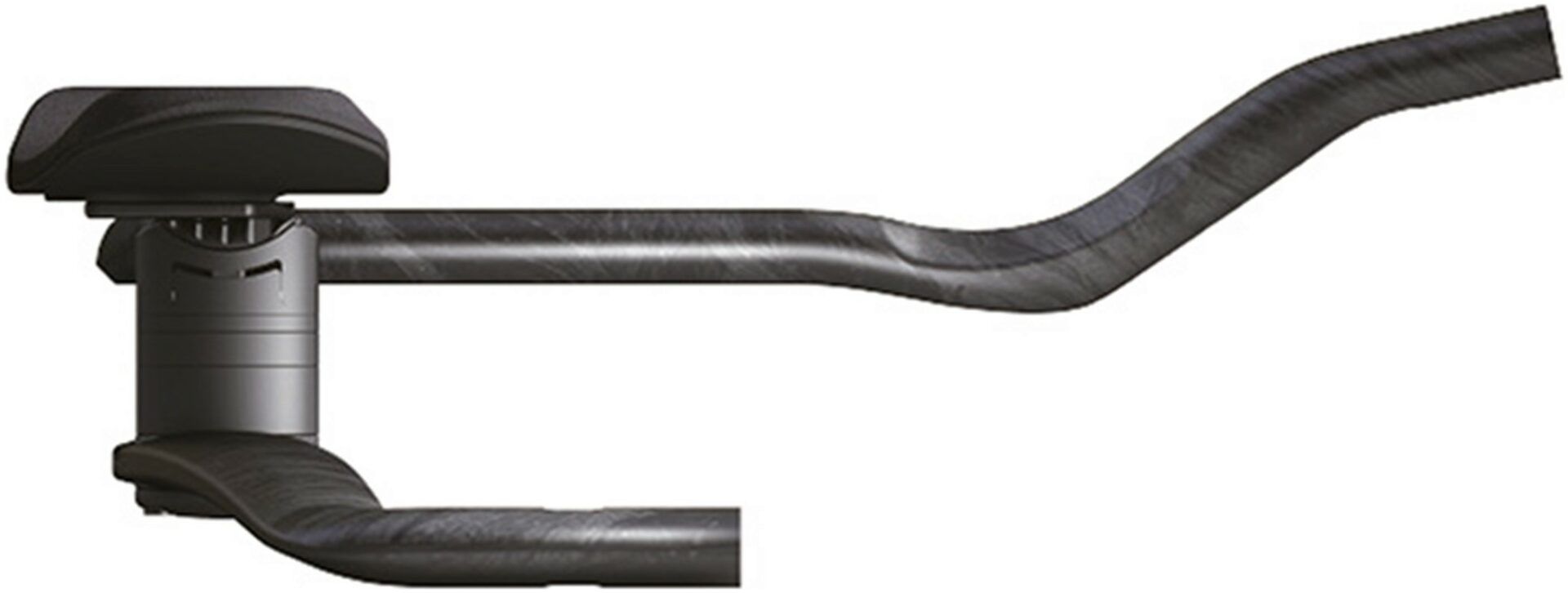

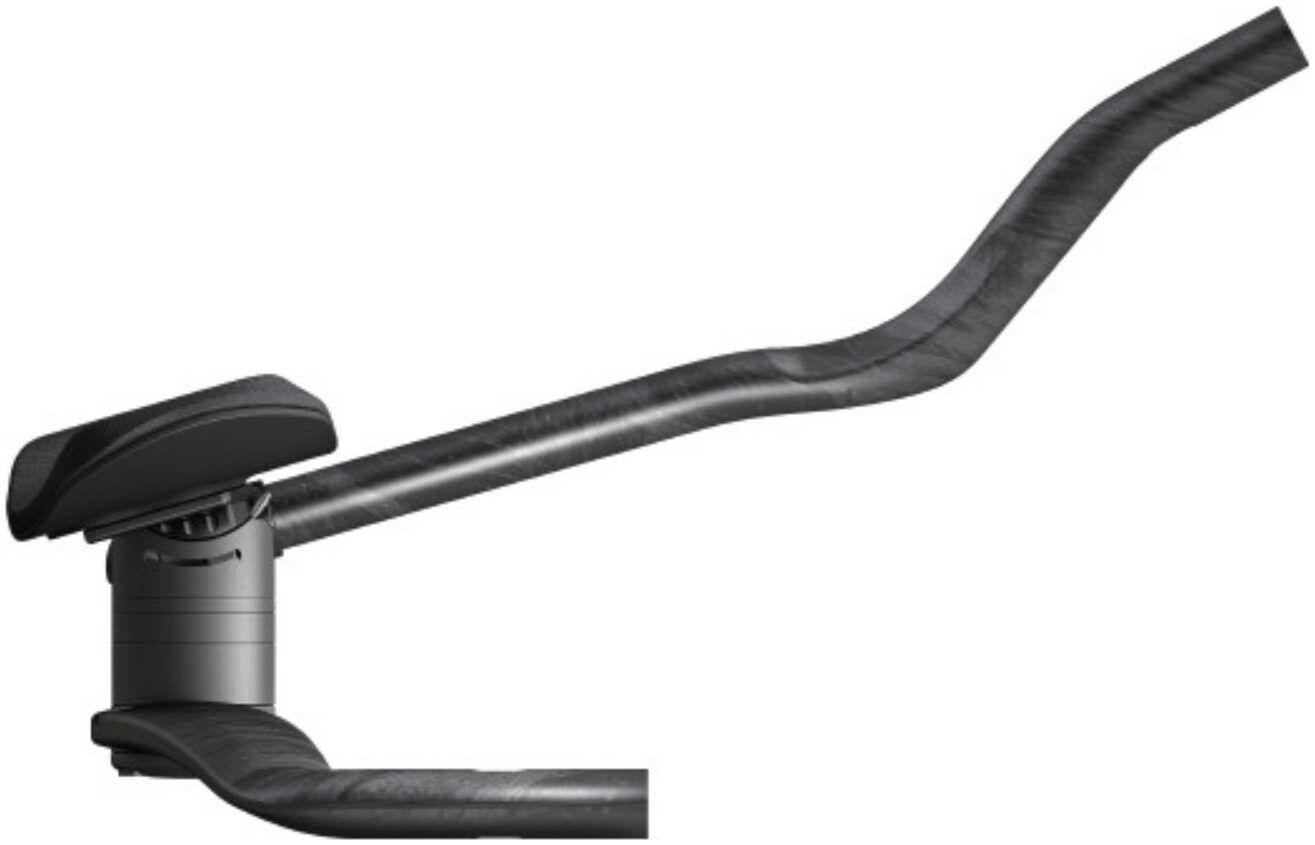

• JS-Bend extension
• UD carbon finish
• Fits with all TT bikes

Specification

• Clamp Diameter: 31.8mm
• Material: Carbon
• Weight: 1130g

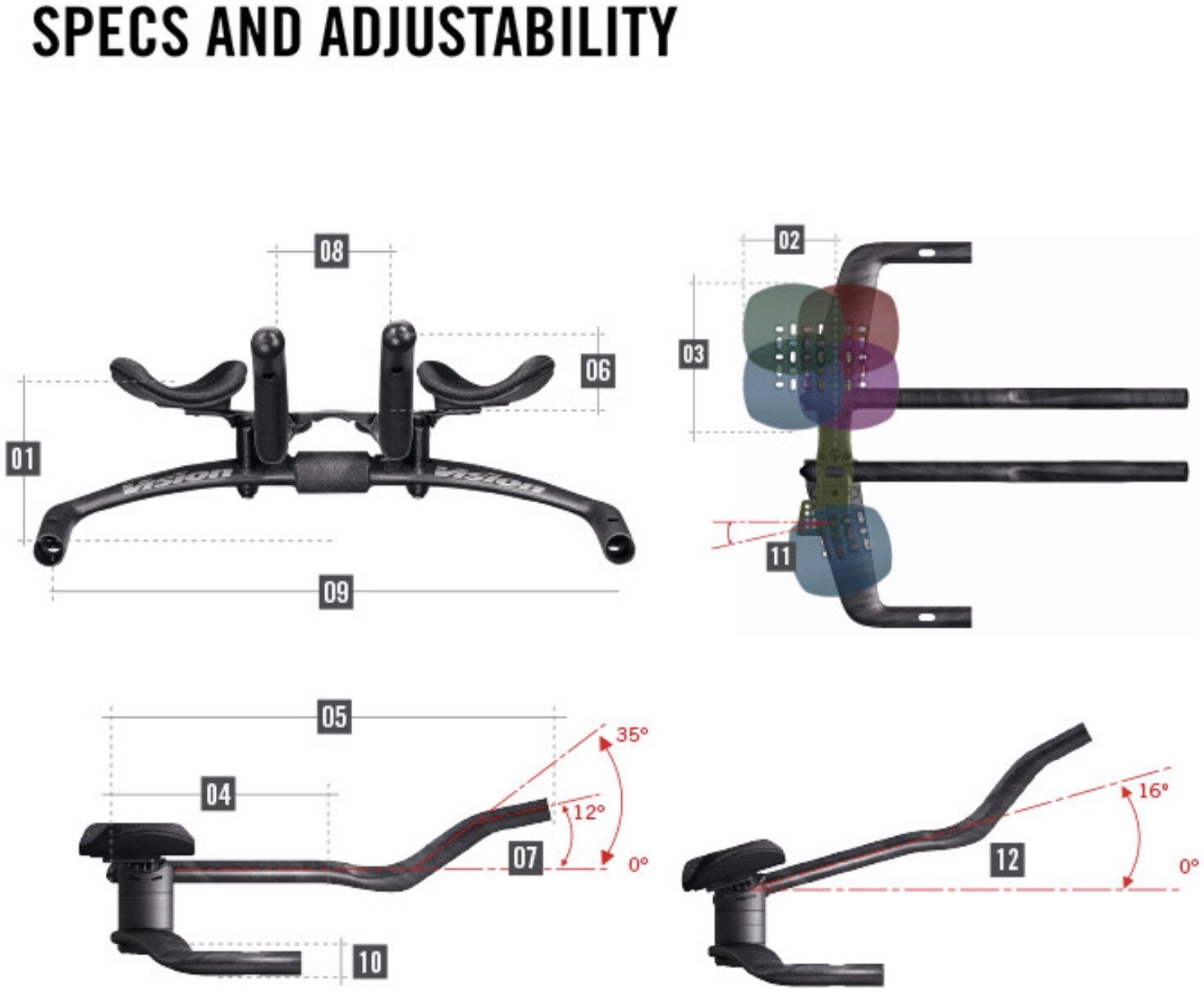

Sizing

• Stack: 70 to 145mm (Bottom of stem at centre of top of uncompressed pad - 5mm increments)
• Reach: 16.5 to 106.5mm (Centre of Base bar to rear edge of armrest - l7.5mm increments)
• Armrest Width: 210 to 360mm (Outside-to-outside - 15mm increments)
• Extension Adjustment: 245 to 385mm (Centre of base bar to tip)
• Extension Length: 412mm
• Extension Height: 60mm
• Extension Angle: 35° (12° at extension tip)
• Extension Width: 80mm
• Base Bar Width: 400mm
• Base Bar Drop: ±25mm
• Armrest Rotation: 0° to 13°
• Bracket Adjustment: 0° to 16°
