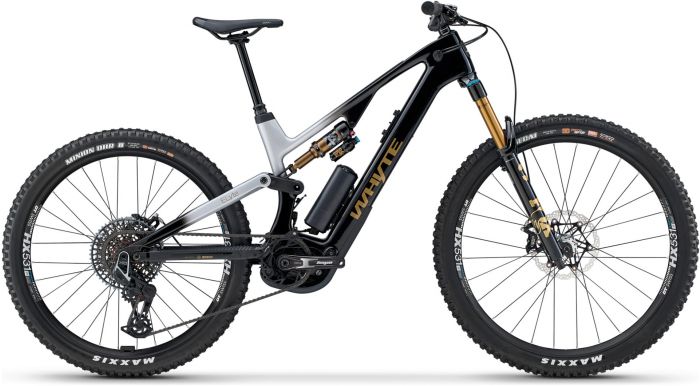

Whyte ELyte Evo Stag Works V2 Electric Bike

Our top of the range ELyte EVO Stag Works is the dream bike of our design and engineering team, made real for you. With a full carbon frame, our lowest centre of gravity ever for the finest, most capable handling, mixed (MX) wheels (29er front, 27.5in rear), the latest Bosch CX motor and integrated top-tube display, a new Fox Float 36 Factory fork and a wired-in rear mech, our latest ELyte EVO Stag Works delivers the very best mountain bike handling and ride feel with full-power capability so you can get more out of every ride: more runs, more grins, and more fun.

Features

• 150mm front + 142mm rear of custom-tuned suspension travel
• Uni-directional carbon fibre frame is light and reassuringly strong
• Bosch's fifth generation Performance Line CX full-torque full-power motor
• Ready for the latest software upgrade to unlock E-MTB+ mode (July 2025), plus 100Nm torque + 750W peak power (available October 2025)
• 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further
• MX wheels (29er front, 27.5in rear) so you can tackle the techiest terrain
• 492.28mm complete bike centre of gravity for the best handling possible
• Charge time: 50% in 1.5hrs from empty, and to 100% in 3.5hrs.

No compromises, no half measures

The ELyte EVO Stag Works is specced to perform flawlessly from the shop floor so you can focus on what really matters: getting the most from your ride. Top-shelf Fox Factory suspension front and rear tames the roughest trails with ease; SRAM's XO T-Type AXS electronic gearing gives you reliably impeccable shifting performance; Hope’s latest richly powerful EVO GR4 four-piston hydraulic disc brakes deliver the ultimate in braking control; Hope cranks and hubs; traction-rich Maxxis tyres; and more. It’s the finest trail-proven kit to serve you perfectly, wherever and however hard you ride.

ELyte EVO Stag Works: time saver, fun maker.

Our Lowest Centre of Gravity Ever

The beating heart of the ELyte EVO Stag Works is a lightweight yet strong carbon fibre chassis that carefully packages Bosch's powerful Performance Line CX full-torque, full-power motor – and the 400Wh internal battery – seamlessly together with the 250Wh PowerMore range extender. All to achieve the lowest centre of gravity of any eMTB we’ve ever made (492.28mm off the ground) and deliver the finest handling and most confidence-inspiring ride in every situation – whether you’re running the PowerMore or not.

Refined Bosch Performance and Reliability

Bosch’s all-new Performance Line CX full-torque, full-power motor is quieter, lighter, and even more refined than ever before. Delivering up to 400% support – that’s 4x you – even at low cadences, it offers the best balance of power, control and range to help get the most from your riding. Add in Bosch’s market-leading reliability, a global network of service centres, and the companion eBike Flow app which lets you get even more from your riding, and you’re all set to ride like a Bosch.

Have Your Bike, Your Way

It comes with Bosch’s 250Wh PowerMore range extender, which mounts in the lower bottle boss position, giving you the choice to run just the 400Wh internal battery for 'power-hour' rides or combine it with the PowerMore for a total capacity of 650Wh. The frame features two bottle positions – a lower mount for a full 750ml bottle (with the included bottle cage adaptor) and a higher Fidlock mount for a smaller 450ml bottle (on sizes M–XL) that remains compatible even with the PowerMore in place. For those wanting to tweak the ride, the ‘Shape.it Link’ geometry adjustment allows you to switch from the stock high setting to a lower, slacker setup for more downhill-focused fun.

Specifications

Frame and Forks

• Frame: Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2, 12mm x 148mm Boost dropouts
• Fork: 2026 Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 custom tuned damper, tapered steerer, 110mm x 15mm Kabolt axle
• Rear Shock: Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte
• Headset: FSA No. 55R, 1-1/8in upper and 1.5in lower

Drivetrain

• Rear Derailleur: SRAM XO T-Type AXS, 12 speed, powered off Bosch CX Motor
• Crankset: Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-Type
• Cassette: SRAM XS 1295, T-Type, 10-52T, 12 speed
• Bottom Bracket: N/A
• Chain: SRAM XO T-Type, 12 speed

Braking/Shifting

• Front Brake: Hope EVO GR4, four piston hydraulic, 200mm diameter floating disc rotor
• Rear Brake: Hope EVO GR4, four piston hydraulic, 200mm diameter floating disc rotor
• Brake Levers: Magura MT7
• Gear Shifters: SRAM AXS Pod, right, MMX, 12 speed

Wheels

• Front Hub: Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole
• Rear Hub: Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
• Rims: DT HX531, 30mm Internal
• Spokes: DT Swiss Elemental
• Tyres: Whyte Enduro lock-on

Finishing Kit

• Handlebar: Race Face ERA Carbon, 20mm rise, 35mm bar bore, 800mm wide
• Stem: Whyte Trail full CNC, 32mm extension, 35mm bar bore
• Grips: Whyte Enduro lock-on
• Saddle: Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
• Seat Post: Whyte drop.it II Adjust, 30.9mm (S/M 140-170mm travel; L/XL 170-200mm travel), MMX Paddle remote lever
• Pedals: Fibre reinforced composite platform
• Weight: 20.8kg (size M, with innertubes + without pedals or PowerMore)

Electric Power

• Motor: Bosch Performance Line CX (Smart System) Drive Unit, 100Nm maximum torque, 600W peak power (750W peak in October 2025 via software update), 250W nominal power, four power modes including Tour+ and eMTB+
• Battery: Bosch Compact PowerTube 400Wh, integrated in downtube + external 250Wh PowerMore range extender (total 650Wh capacity)
• Display: Bosch Kiox 400C LCD display in top tube, paired with bar-mounted Mini Remote, Bosch eBike Flow smartphone app connectivity
• Charger: 2 × 4A (230V) chargers (one for bike, one for PowerMore)
