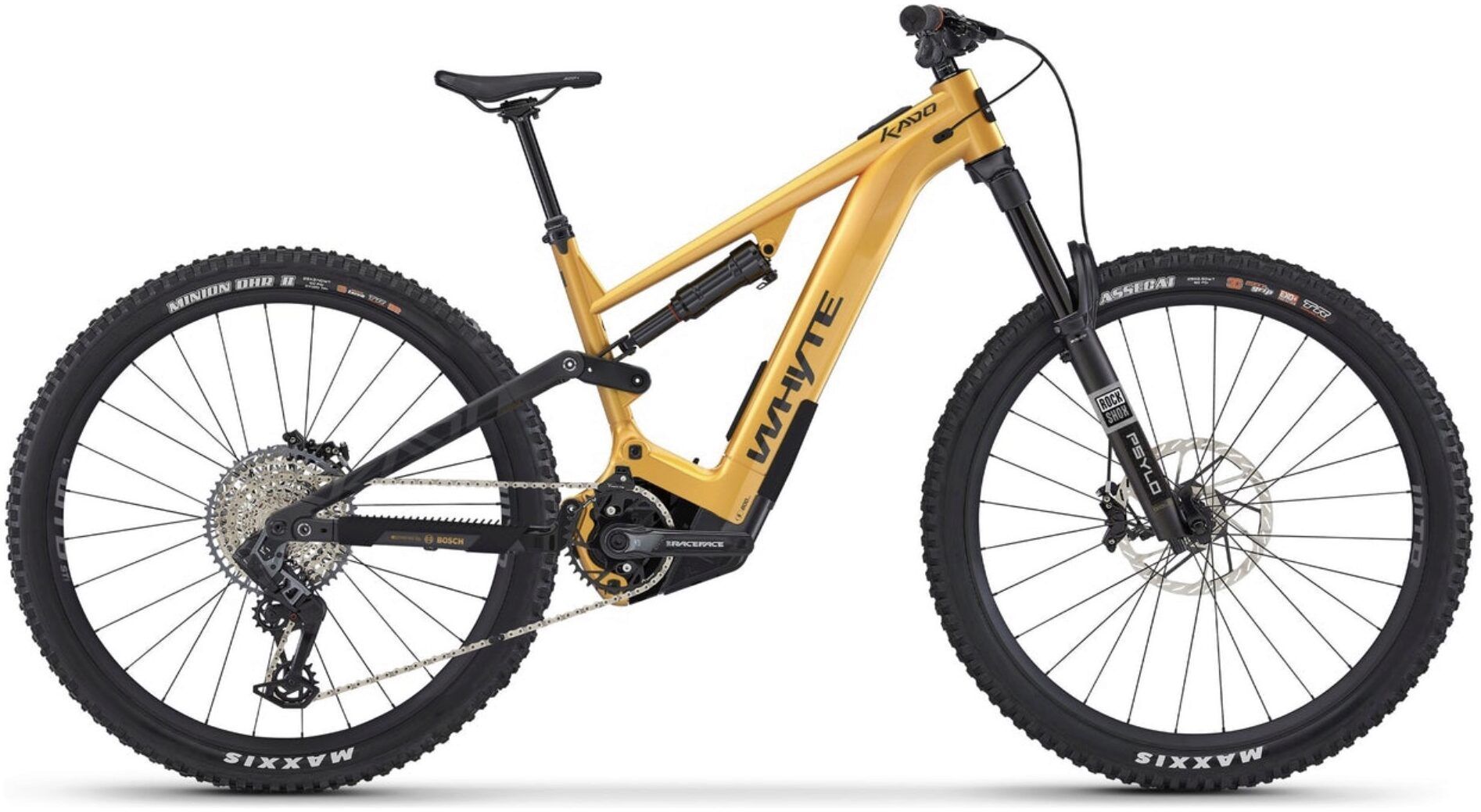

Whyte Kado S 800 V1 Electric Bike
| Brand | Whyte |
|---|---|
| Suitable for | Everyone |
| Wheel Size | 29-inch |
Low price, full-range – 800Wh battery as standard
Our confidence-inspiring full-power, full-range, mid-travel Kado S delivers high performance with a ‘high value’ price to give you the range, power and capability to realise your riding dreams – but without breaking the bank. Kado S: if you can dream it, you can do it.
Specifications
Frame and Forks
- Frame: 6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link V2, 12mm x 148mm Boost dropouts
- Fork: RockShox Psylo Gold, 160mm travel, DebonAir, Isolator RC Damper, Fast Black coating, tapered steerer, 110 x 15mm Boost
- Rear Shock: RockShox Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound, custom tuned for Whyte
- Headset: Feimin FP-H886J, 1-1/8in upper and 1.5in lower with sealed bearings
Drivetrain
- Front Derailleur: N/A
- Rear Derailleur: Shimano RD-U6000 GS, 11 speed Cues, powered off Bosch Performance Line CX motor
- Crankset: Whyte 160mm ISIS arms, Direct mount 36T chainring, T-Type
- Cassette: Shimano CS-LG400, Cues 11 speed, 11-50T
- Bottom Bracket: N/A
- Chain: KMC eGlide Sport, 11 speed Cues
- Shift Levers: Shimano SL-U6000, 11 speed Cues
Braking
- Front Brake: Shimano M4100, four piston with sintered metal pads, 220mm Centre lock rotors
- Rear Brake: Shimano M4100, four piston with sintered metal pads, 203mm Centre lock rotors
- Brake Levers: Shimano M4100
Wheels
- Front Hub: Shimano FH-TC500, Centre Lock, 15mm x 110mm Boost spacing, 32H
- Rear Hub: Shimano FH-TC600, Centre Lock, 12mm x 148mm Boost spacing, HG Freehub, 32H
- Rims: WTB ST Tough Front, HTZ Trail Rear 30mm internal
- Spokes: Xin Da 14g Stainless Black, brass nipples
- Tyres: Maxxis Minion DHF, EXO Casing, Wire bead 29 x 2.5in
Finishing Kit
- Handlebar: Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
- Stem: Whyte, 35mm Extension, 35mm Bar Bore
- Grips: Whyte Enduro lock-on
- Saddle: Whyte Custom
- Seat Post: TranzX +RAD 30.9mm, Adjustable, (150mm drop (S), 170mm drop (M&L), 200mm drop (XL))
- Pedals: Fibre reinforced composite platform
Electric Power
- Motor: Bosch Performance Line CX (Smart System) Drive Unit, 100Nm maximum torque, 750W peak power, 250W nominal power, four power modes including Tour+ and eMTB+
- Battery: Bosch PowerTube 800Wh, integrated into frame, lockable, PowerMore compatible
- Display: Bosch System controller mounted in top tube, paired with bar-mounted Mini Remote, compatible with Bosch eBike Flow smartphone app
- Charger: 2A (230V)
