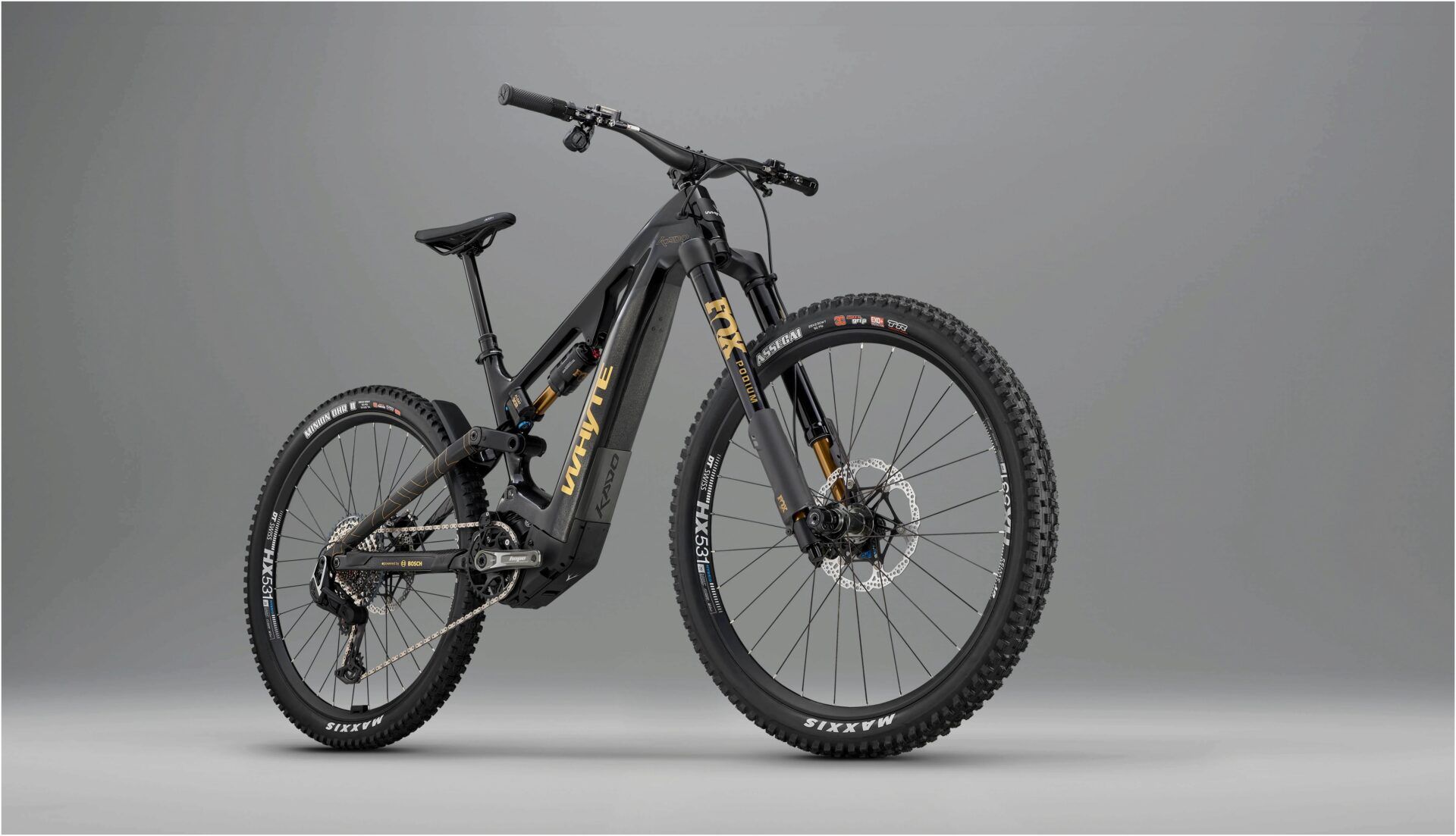

Whyte Kado Works V1 Electric Bike

Whyte's Fastest E-Enduro Race Bike Ever

Designed, developed and proven by the UK’s first ever E-Enduro National Champion and 2024 E-Enduro Series Champion, Sam Shucksmith – both titles won aboard the prototype – the championship-winning Kado Works blends a full carbon-fibre frameset with BOSCH’s latest CX motor and battery technologies. All combined with meticulously custom-tuned suspension performance and the highest performing parts list possible so you can unleash the speed – everywhere.

Features

• 170mm front + 151mm rear of suspension travel
• Fox Podium Factory 29in fork + Fox Float X2 Factory EVOL custom-tuned shock
• Uni-directional full carbon fibre frame with geometry adjustment
• BOSCH's fifth generation Performance Line CX full-torque full-power motor
• Ready for the latest software upgrade to unlock E-MTB+ mode + 100Nm torque + 750W peak power
• 800Wh removeable internal battery
• 29in wheels front and rear + MX ready

High Performance, Unleashed

Whyte have poured everything into Kado Works to give you the highest performance possible: an optimised low centre of gravity delivers exceptional cornering agility, high-speed stability, and balanced handling on any terrain – no matter how fast or rowdy things get; custom-tuned suspension for the very best grip, feedback and control; confidence-inspiring geometry, and much more. All combined so you can beat the clock – and your personal best.

Charge time: 50% in 2.3hrs from empty, and to 100% in 6.9hrs with 4A Charger.

Technology

Low, Centered, Unstoppable

As part of Whyte's Total Geometry approach, Kado Works has been designed around the lowest, most centred centre of gravity (The point at which an object’s mass is evenly distributed and balanced) to give you the finest handling possible. By positioning the major masses of an eMTB (The motor and batteries) as low and centrally between the tyre contact patches as possible, Kado Works delivers you balanced control, effortless agility, sure-footed stability and absolute confidence. All so you can ride faster and with more poise to master every track.

Switchable Batteries

With an 800Wh internal battery as standard and compatibility with BOSCH’s aftermarket 250Wh ‘PowerMore’ range extender (Available separately; fits size M–XL frames), Kado Works is ready to give you up to a 1050Wh of combined battery capacity. Kado Works is also compatible with BOSCH’s aftermarket lighter, smaller 600Wh – PT600 – internal battery (Just add Whyte's battery end caps), so you can pick and choose smaller or larger batteries for different races. And all without needing to adjust any of the battery compartment internals – just slide the old battery out, add the endcaps to the new battery, and slide it in.

Smartly Connected

With the BOSCH Smart System – which links up the Kado Works’s top-tube BOSCH Kiox 400C LCD display, battery and motor via the E-Bike Flow app – you have even more information at your fingertips to manage, tailor and personalise your bike just how you want to get even more from your riding: tune the motor support levels; upgrade to the latest motor software updates, and more. We’ve also wired-in SRAM’s AXS wireless electronic rear mech directly into the bike’s main battery, so you’ll never need to remember to charge your gears again.

Specification

Frame and Forks

• Frame: Zolder Pro carbon cyclocross disc brake flat mount, press fit 86.5x41, headset 1.5" 1 1/8", thru axle 142 x 12mm, sizes 48-50-52-54-56-58cm
• Frame: Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

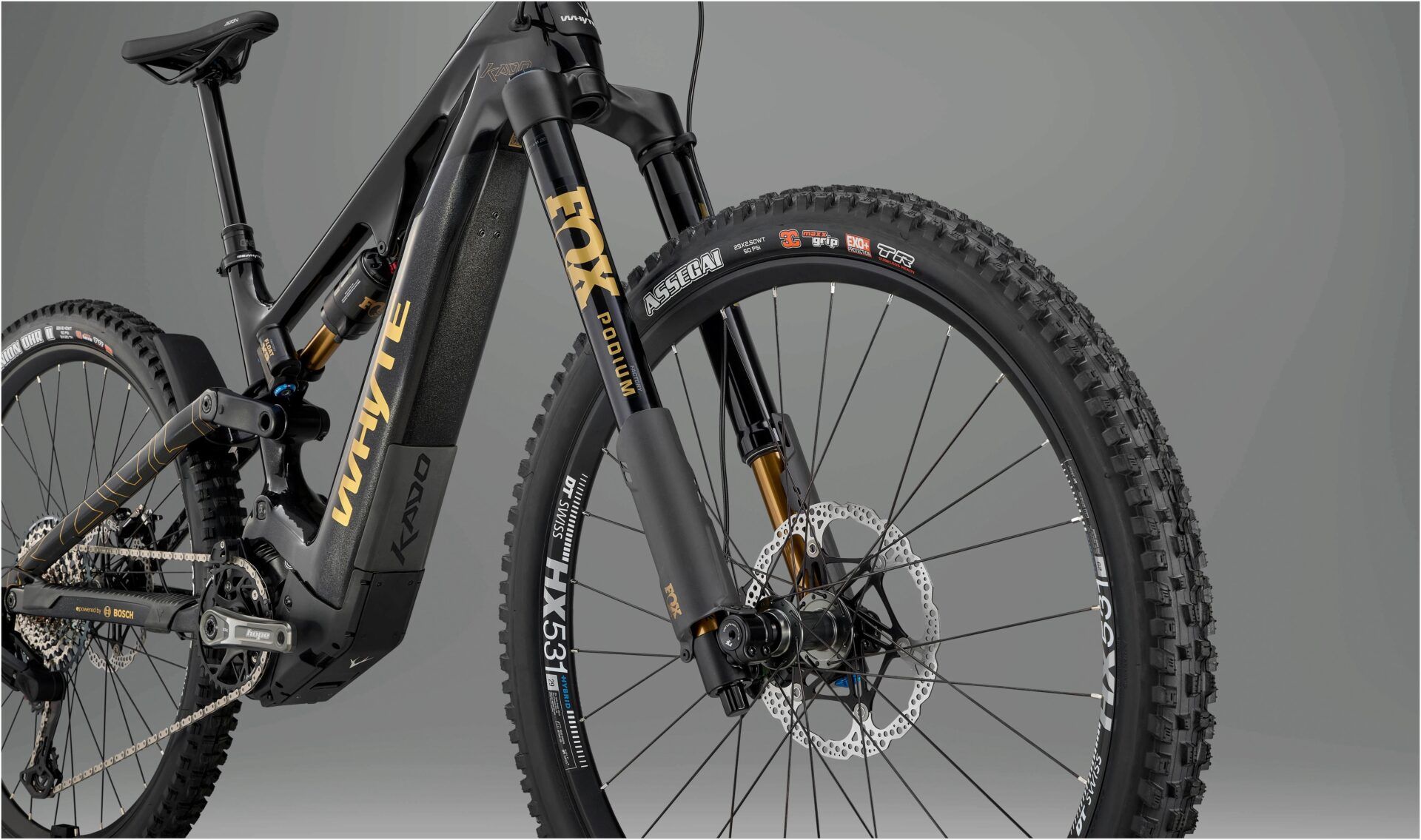

• Forks: 2026 Fox Podium Factory 29in, 170mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 20mm axle
• Headset: FSA No. 55R, 1-1/8in upper and 1.5in lower

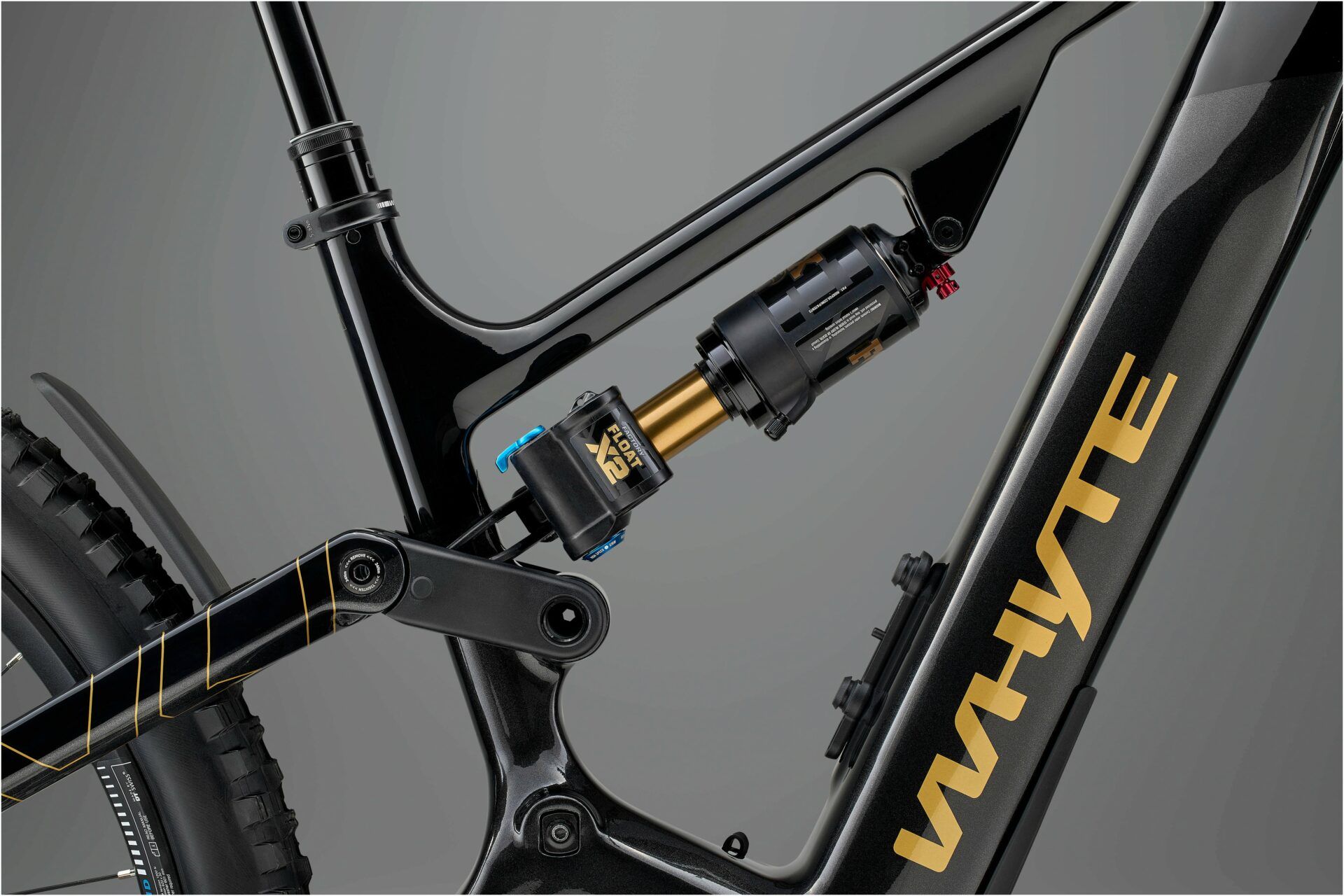

• Rear Shock: Fox Float X2 Factory Series, EVOL, lock out, 230mm x 57.5mm, custom tuned for Whyte

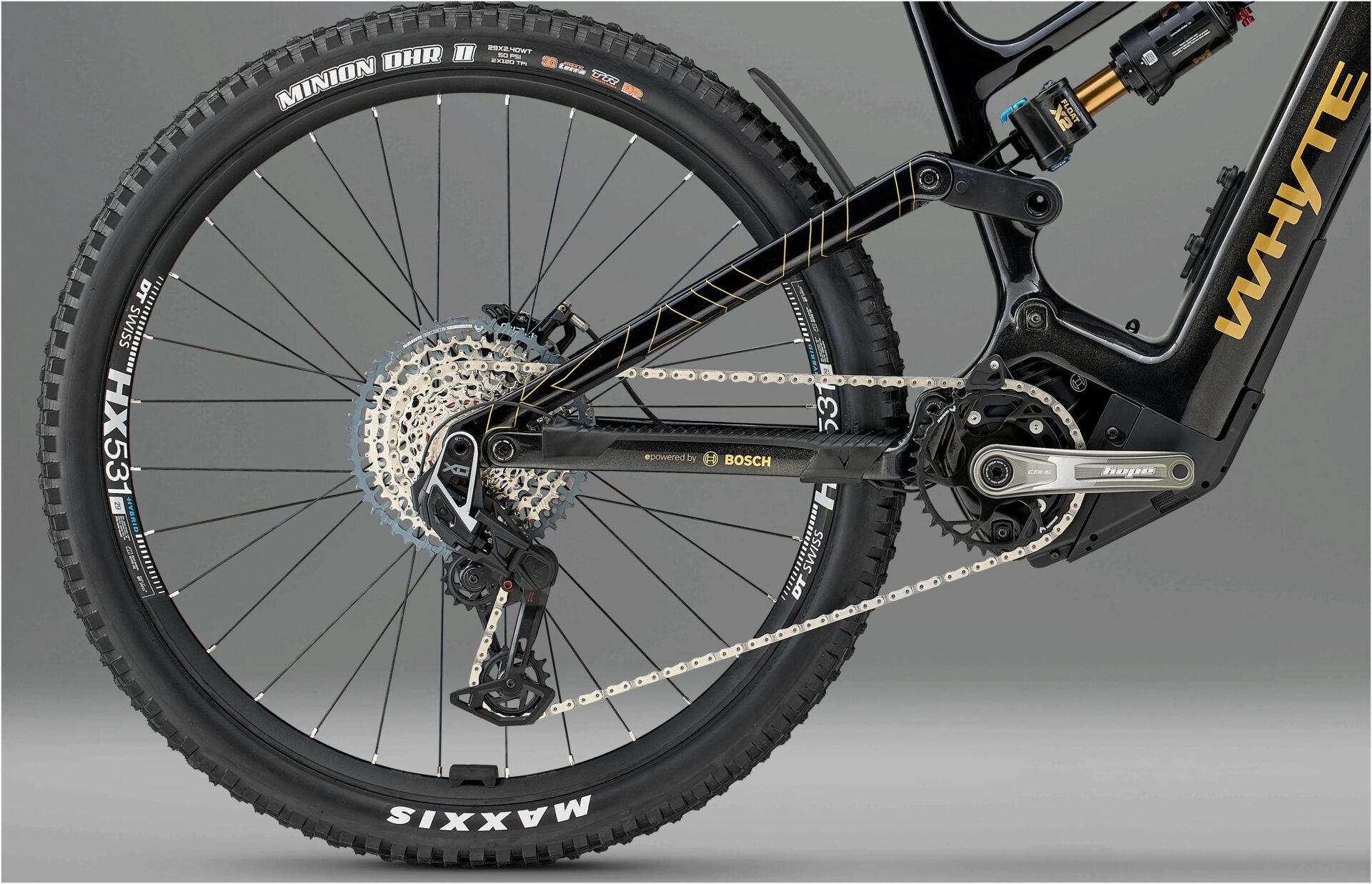

Drivetrain

• Crankset: Hope E-Bike cranks, 155mm length, BOSCH mounting, 36T chainring T-Type
• Rear Derailleur: SRAM XO T-Type AXS, 12-Speed, powered off the BOSCH CX motor system’s internal battery
• Cassette: SRAM XS 1275, T-Type, 10-52T, 12-Speed
• Chain: SRAM GX T-Type, 12-Speed

Braking / Shifting

• Shifters: SRAM AXS Pod, right, MMX, 12-Speed

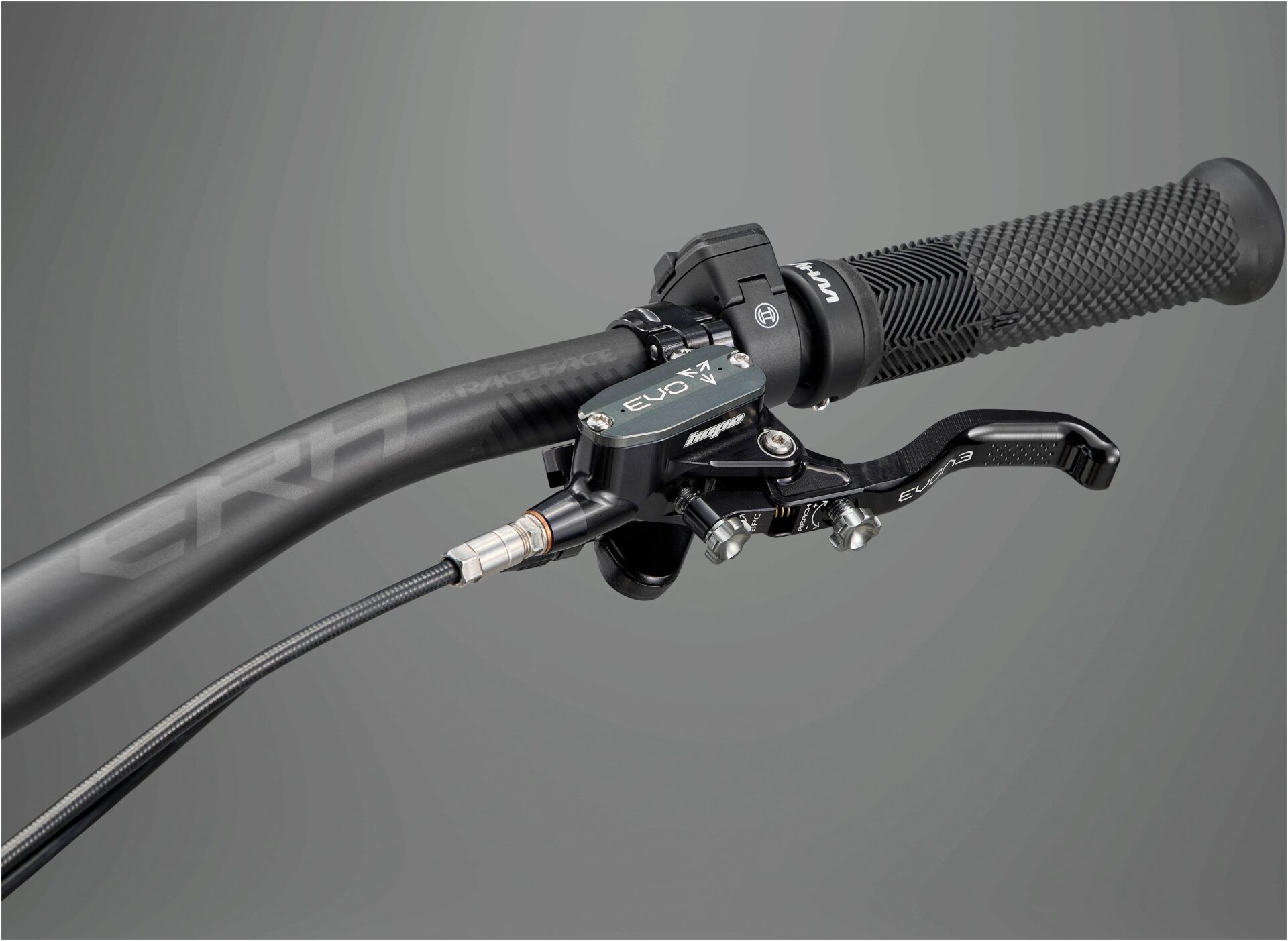

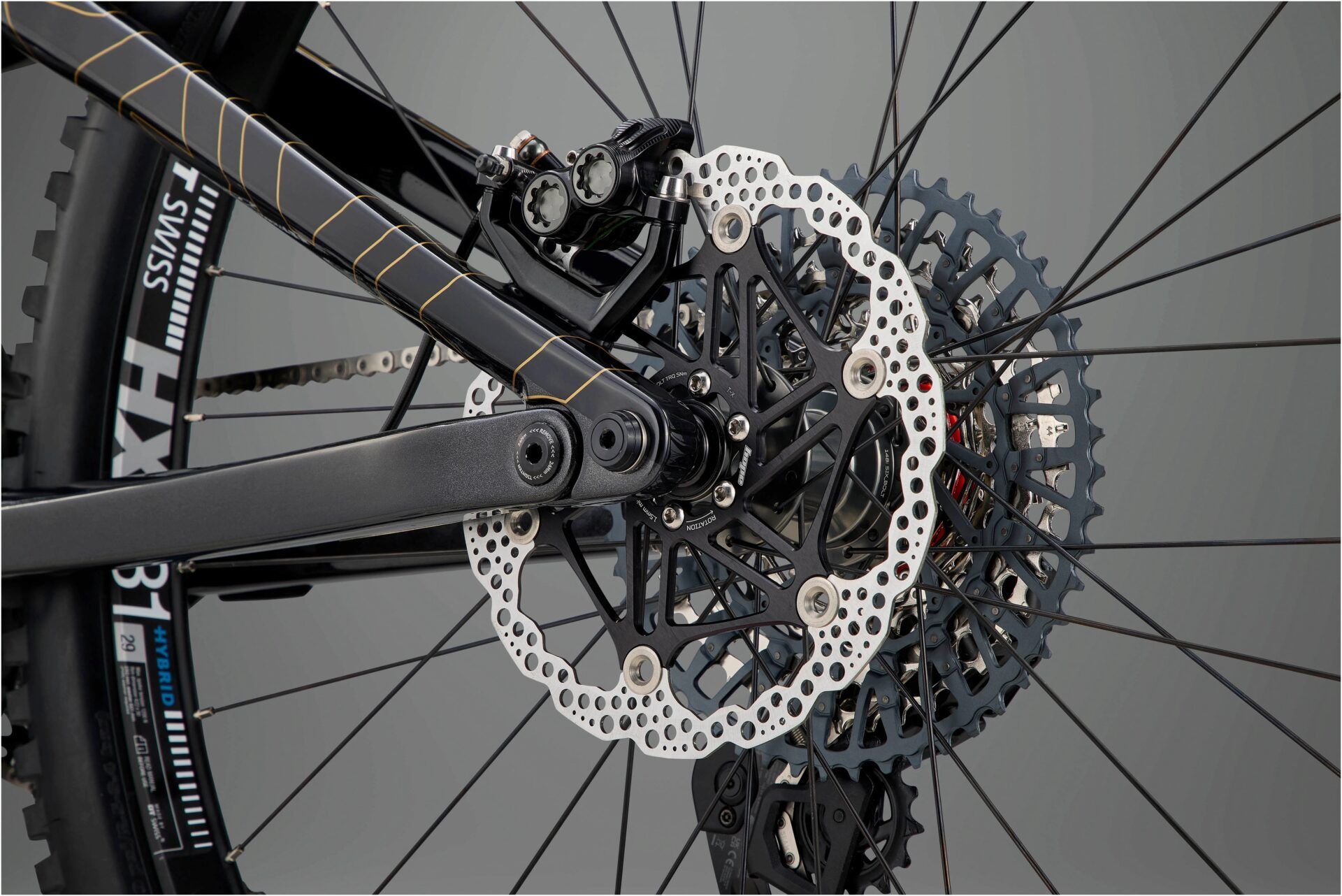

• Brake Levers: Hope EVO GR4

Wheels

• Rims: DT HX531, 30mm internal
• Front Hub: Hope Pro 5, six bolt, 20mm x 110mm Boost spacing, 28 hole
• Rear Hub: Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
• Spokes: DT Swiss Elemental
• Tyres: Maxxis Assigai WT, TR, 29 x 2.5in 120TPI, EXO+ sidewall protection, 3C MaxxGrip, dual compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29 x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound, rear

Finishing Kit

• Handlebars: Race Face ERA Carbon, 20mm rise (Sizes S/M) / 40mm rise (Sizes L/XL), 35mm bar bore, 800mm wide
• Grips: Whyte Enduro lock-on
• Stem: Whyte Trail full CNC, 32mm extension, 35mm bar bore

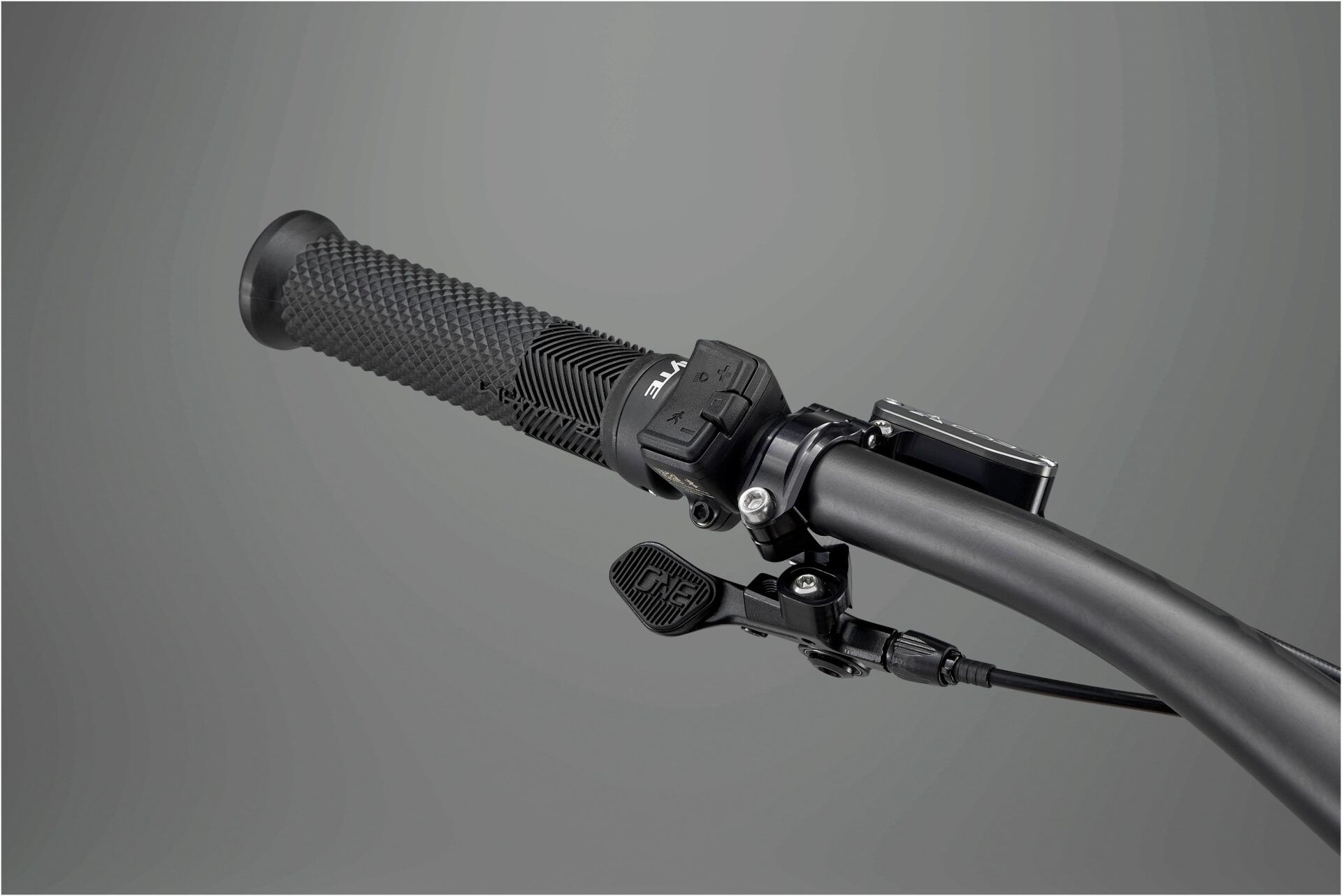

• Seatpost: One Up Components V3 Dropper Post, MMX Paddle remote lever, size-specific drop (Small: 150mm travel; Medium: 170mm travel; Large & X-Large: 210mm travel)
• Saddle: Fi’zi:k Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
• Pedals: Fibre reinforced composite platform

Electric Power

• Motor: BOSCH Performance Line CX (Smart System) Drive Unit with 100Nm maximum torque, 750W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB+. AXS derailleur powered off motor
• Battery: BOSCH PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. PowerMore compatible
• Charger: Charger 4A (230V)

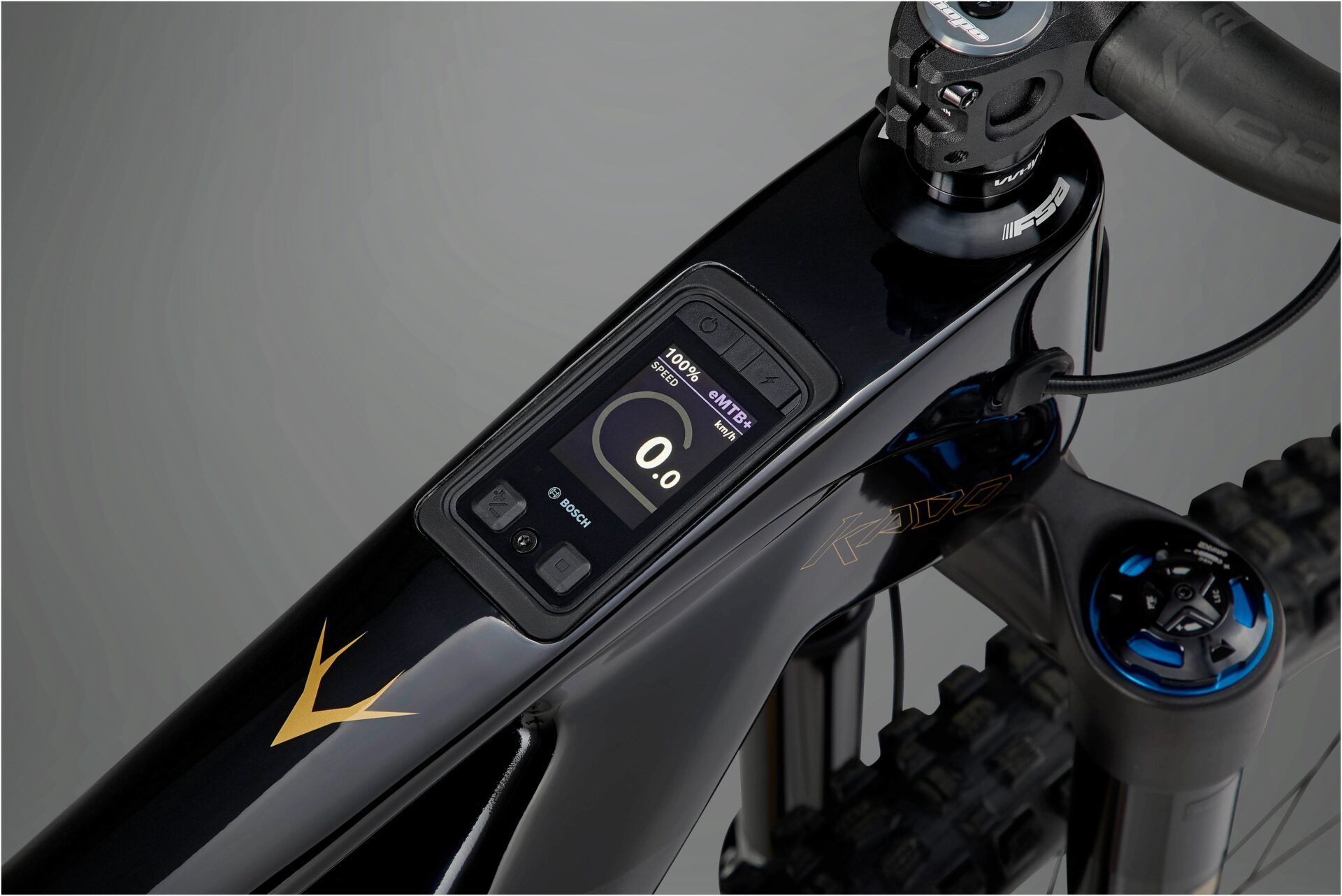

• Display: BOSCH Kiox 400C LCD display mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the BOSCH E-Bike Flow smartphone app to give you even more insight and control at your fingertips
