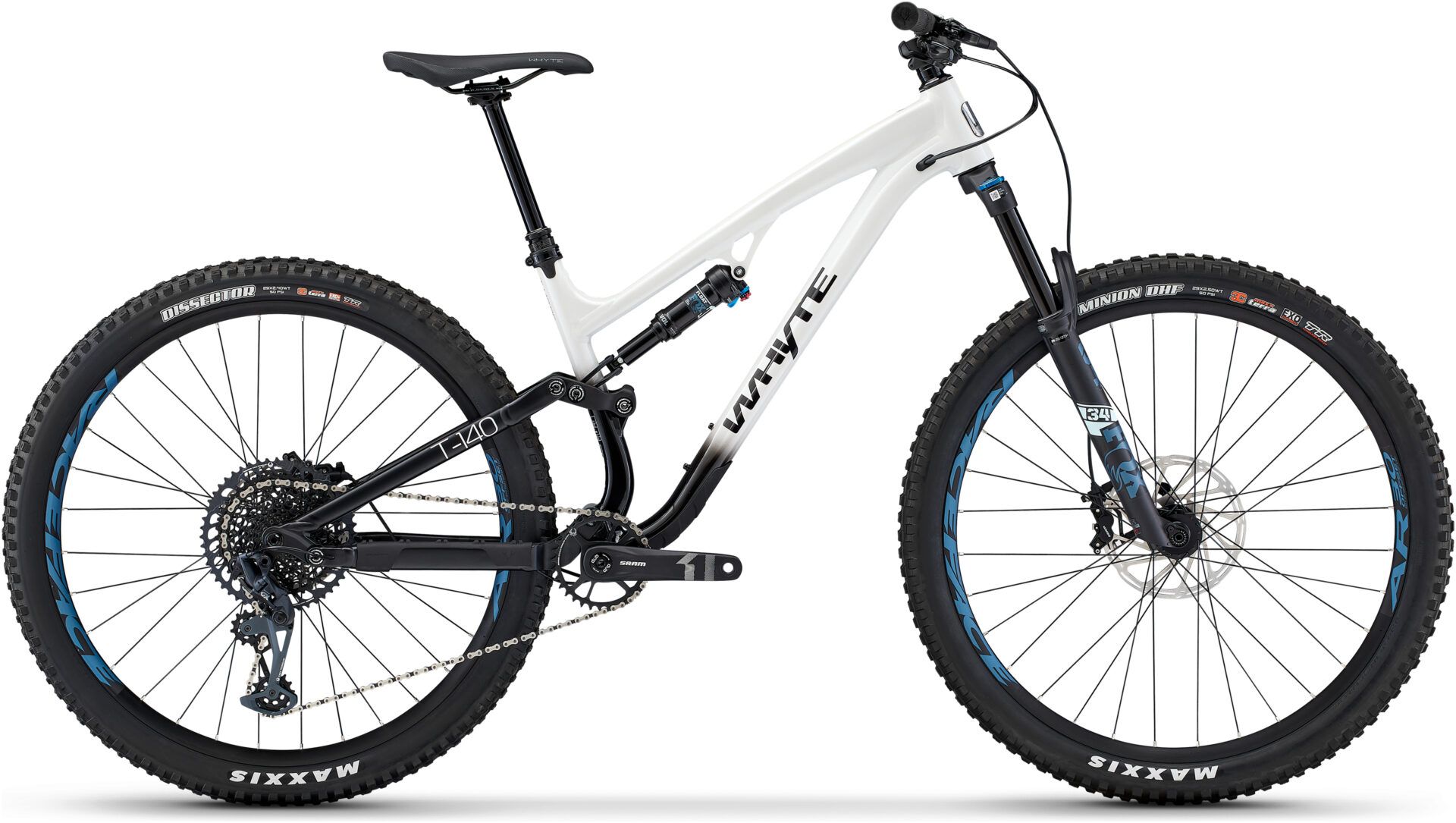

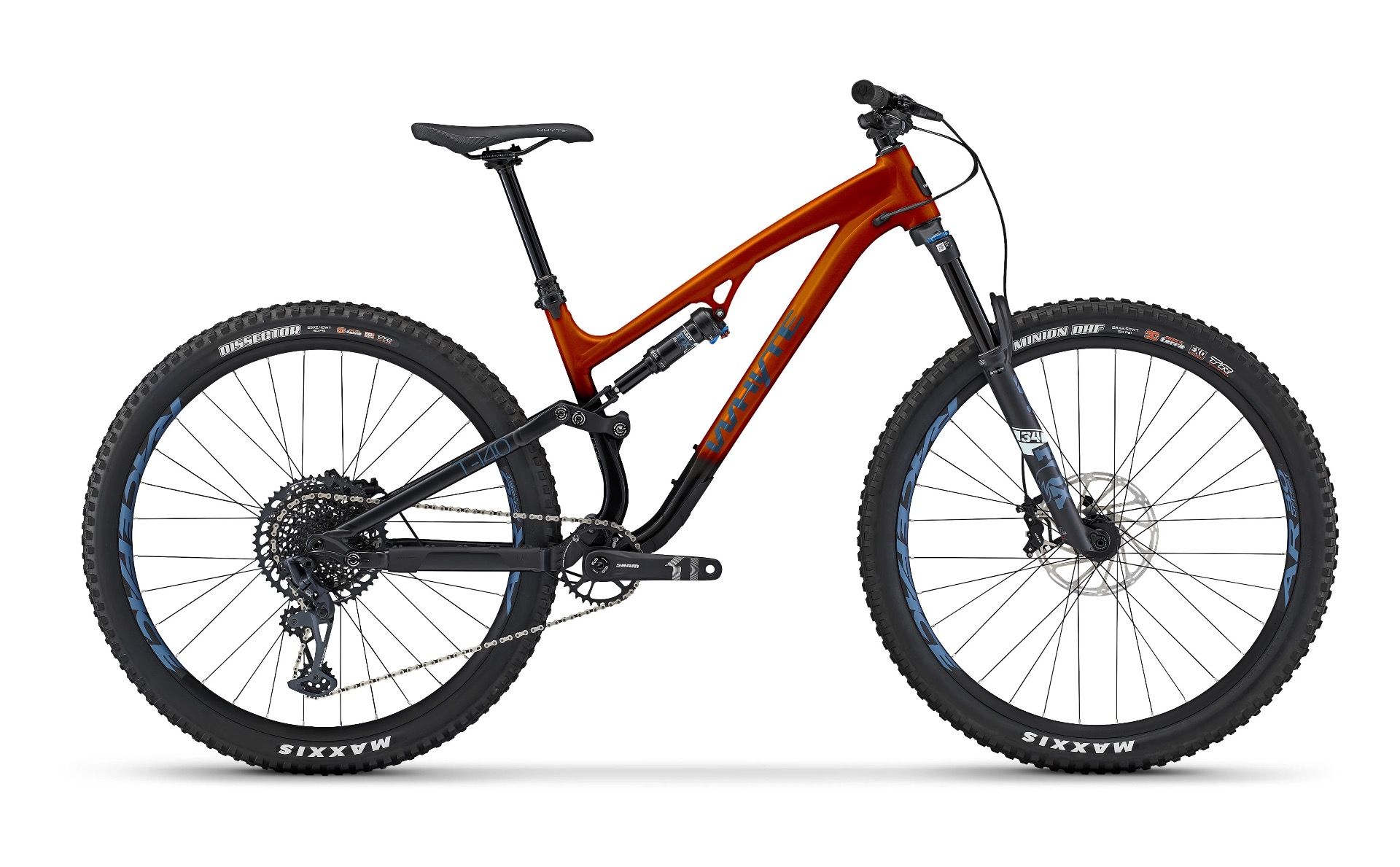

Whyte T-140 RS 29-Inch Bike

Our mid-range T-140 RS is our fastest and most versatile full-suspension trail bike that's perfect for finding every sort of fun on any terrain. Add in a specially curated parts selection for the best blend of performance and value so your money goes as far as you will, our extended lifetime frame and pivot bearing warranties, and weather-sealed features, and you've got everyday excellence, every where.

Features

• 140mm front and 135mm of rear suspension travel.
• 6061 aluminium SCR frame with ISCG 2 guide mounts, geometry adjustment, and Boost dropouts.
• Fox Float 34 Performance Elite 29in fork + custom-tuned Fox DPS – Performance Elite Evol LV shock.
• SRAM GX Eagle 12-speed mechanical transmission (32T chainring x 11-52T cassette).
• 29in trail-smoothing wheels front and rear.
• Can be converted to MX wheels (29er front, 27.5in rear) for a more gravity-focused ride.

This bike is designed with our holistic Whyte Total Geometry approach to deliver you the most extraordinary confidence-inspiring ride, every ride.

Technology

Thrilling Performance

Combining 140mm front travel with 135mm rear travel, the T-140 RS delivers the perfect blend of impeccable rough terrain control and pedalling efficiency, with a balanced ride that will have you attacking every trail with confidence and speed while still delivering that rush of involvement and reward. All combined so you can go further and faster, with the confidence to play hard, wherever the trail takes you.

Light, Tough And Versatile

The T-140 RS's alloy frame is lightweight, tough, dependable and backed with an extended lifetime frame warranty, lifetime bearing warranty (just register for free within 28 days of purchase to activate) and unique weather sealing features. Our switchable Shape.It link also means you can adjust the geometry from its stock high setting to low to slacken the head angle out by 0.7º and reduce the bottom bracket height by 8mm for a more aggressive, gravity-focused ride character.

Smoothly Fast

29in wheels (aka ‘29er’) are the fastest, smoothest-rolling size for out-and-out speed and performance – whether you're riding far or riding for fun. Rolling on this larger wheel size and dressed with broad RaceFace tubeless rims and top-spec Maxxis tyres, the T-140 RS makes light work of roots, rocks, and anything else the trail throws your way.

Specifications

Frame and Forks

• Frame: 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts
• Fork: Fox Float 34 Performance Elite 29", 140mm Travel, 44mm Offset, Grip 2 Damper, Tapered Steerer, 110mm x 15mm Boost E-Thru Axle
• Rear Shock: Fox DPS Performance Elite, Evol LV, Adjustable Rebound and 3 Position Compression, 210 x 50mm, custom tuned for Whyte
• Shock Stroke & Sag: 47.5mm / 13mm
• Reducer Bush Widths: 25mm
• Eye to Eye Length: 210mm
• Headset: FSA No. 57 Orbit ZS, ACB, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Drivetrain

• Shift Levers: SRAM GX Eagle Trigger MMX, 12 Speed
• Front Derailleur: N/A
• Rear Derailleur: SRAM GX Eagle 12 Speed
• Cassette: SRAM XG-1275 Eagle, 10-52, 12 Speed
• Chain: SRAM GX Eagle, 12 Speed
• Crankset: SRAM GX, Direct Mount 32 Tooth, DUB, 165mm
• Bottom Bracket: SRAM DUB, BSA, 73mm

Braking/Shifting

• Front Brakes: SRAM Guide G2 R, 4 Piston, 180mm Disc
• Rear Brakes: SRAM Guide G2 R, 4 Piston, 180mm Disc, Internal Routing
• Brake Levers: SRAM Guide G2 R, Matchmaker

Wheels

• Rear Hub: Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 9 Degree Micro Engagement 4 Pawl, XD Driver, 32 Hole
• Front Hub: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
• Spokes: DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
• Rims: Race Face AR-30, Offset, 30mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole
• Tyres: Maxxis Minion DHF TR 29" x 2.5" WT 60TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Dissector TR 29" x 2.4" WT 120TPI, EXO+ Sidewall Protection, 3C Maxx Terra, Rear

Finishing Kit

• Seatpost: Whyte Drop.It II, 30.9mm, Adjust, M 120-150mm, L 140-170mm, XL 170-200mm Travel, Paddle Remote Lever
• Saddle: Whyte Custom, Dual Density, Triple Panel Design
• Handlebar: Whyte 6061 Alloy, 31.8mm, 780mm Wide, M 20mm, L/XL 30mm Rise
• Stem: Whyte Gravity Stem, 35mm Extension
• Grips: Whyte Lock-on Enduro Grip
• Pedals: None
