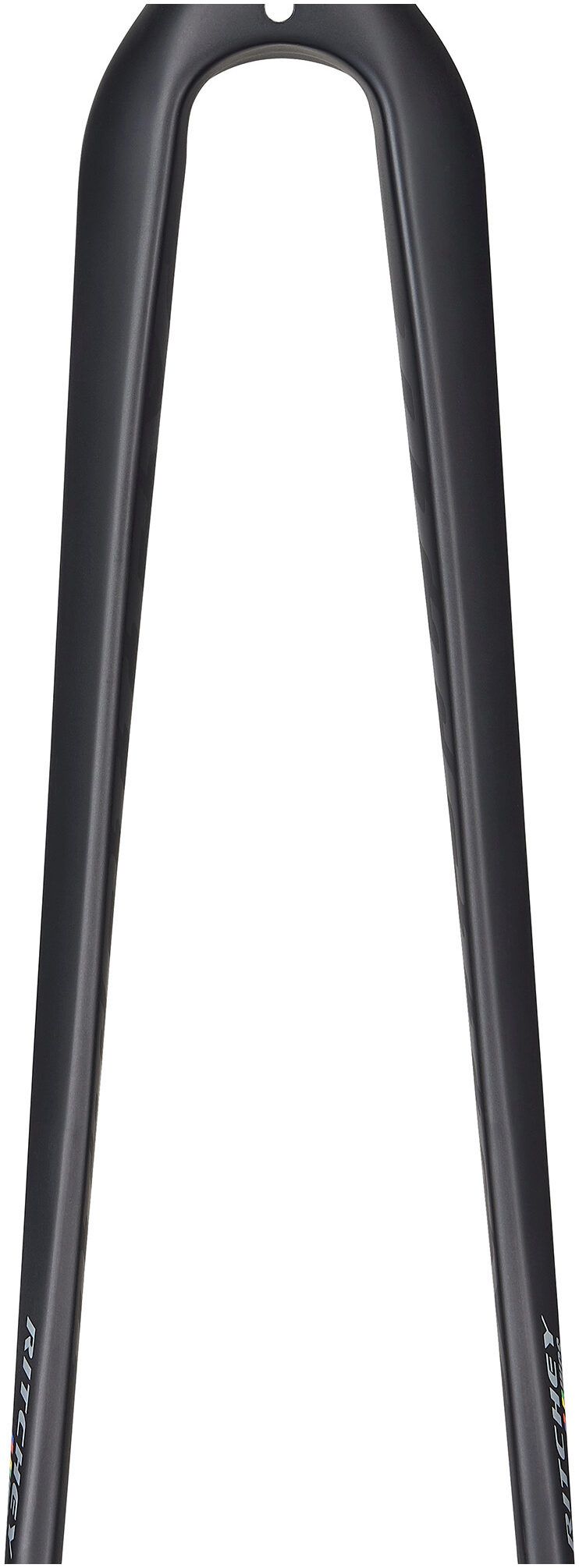

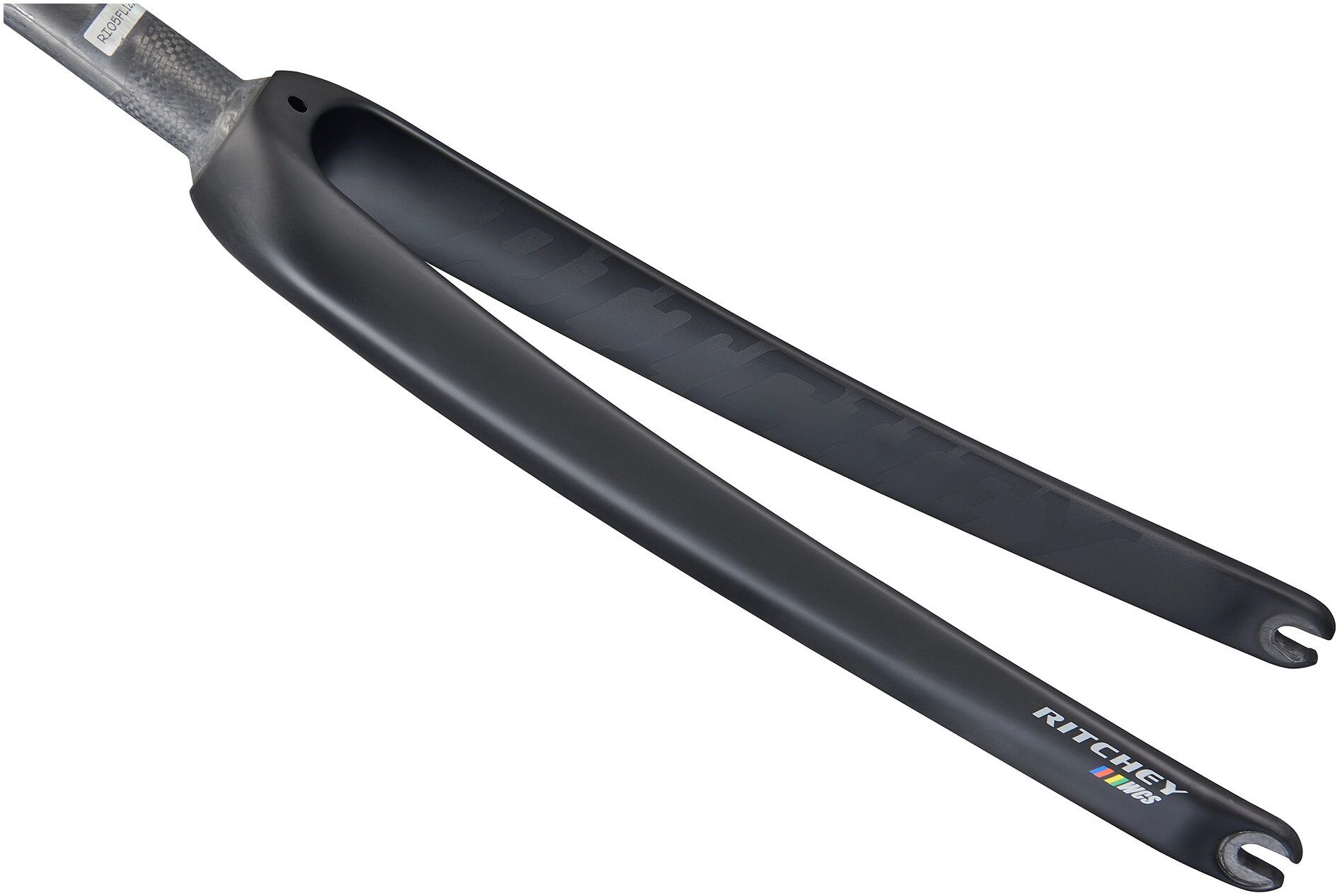

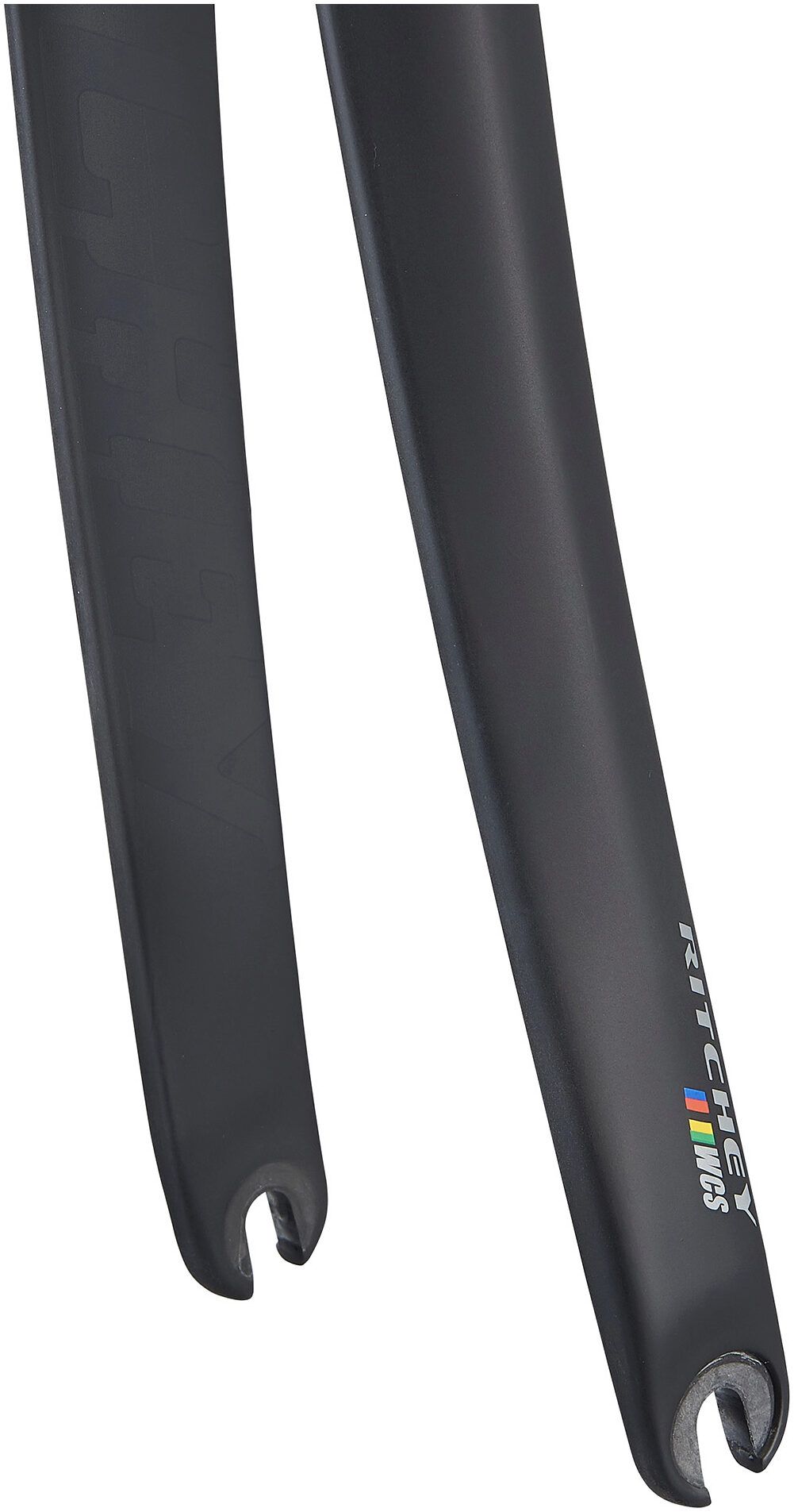

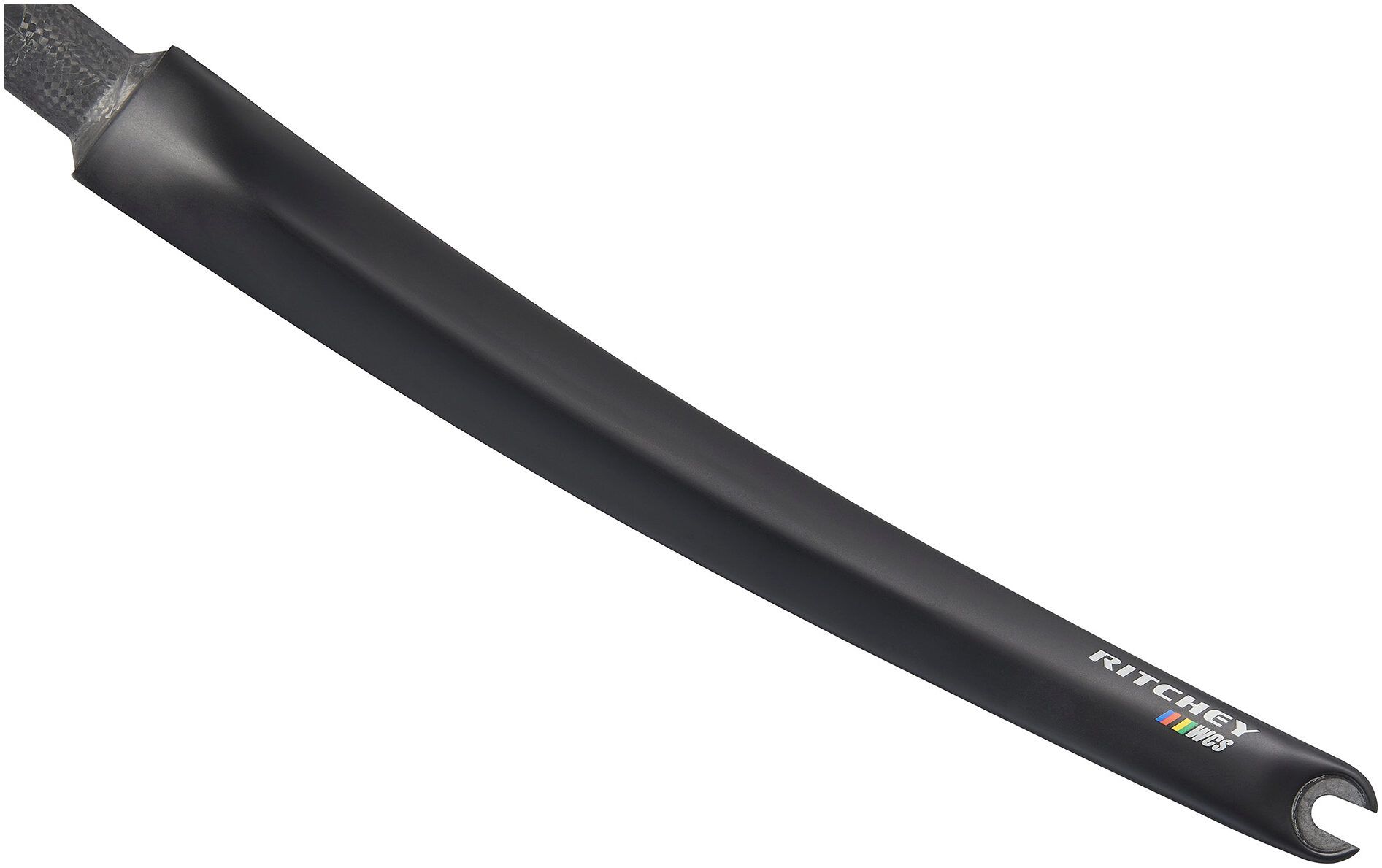

Ritchey WCS Carbon Road Fork

The one-piece carbon monocoque WCS Carbon Road Fork has been meticulously engineered and painstakingly built to perform with razor-sharp accuracy, and offer a comfortable yet lively riding experience. Built with High Modulus Fibre (HMF), this impeccable road fork offers superior strength and a superb road feel. Smooth internal Fibre flow in the crown/steerer area delivers the best force transfer from crown to shaft and increased impact strength. The orientation of the Fibres have been optimized to absorb and dissipate loads, which delivers a confident and comfortable ride. The fork also uses various Fibre types based on their specific properties to manage different load types as best as possible in the areas in which they occur - such as side load, torsion and impact. The WCS Carbon Road Fork features a 46mm rake, and includes a compression plug. It also fits up to 32c tyres, depending on tyre make and model.

Features

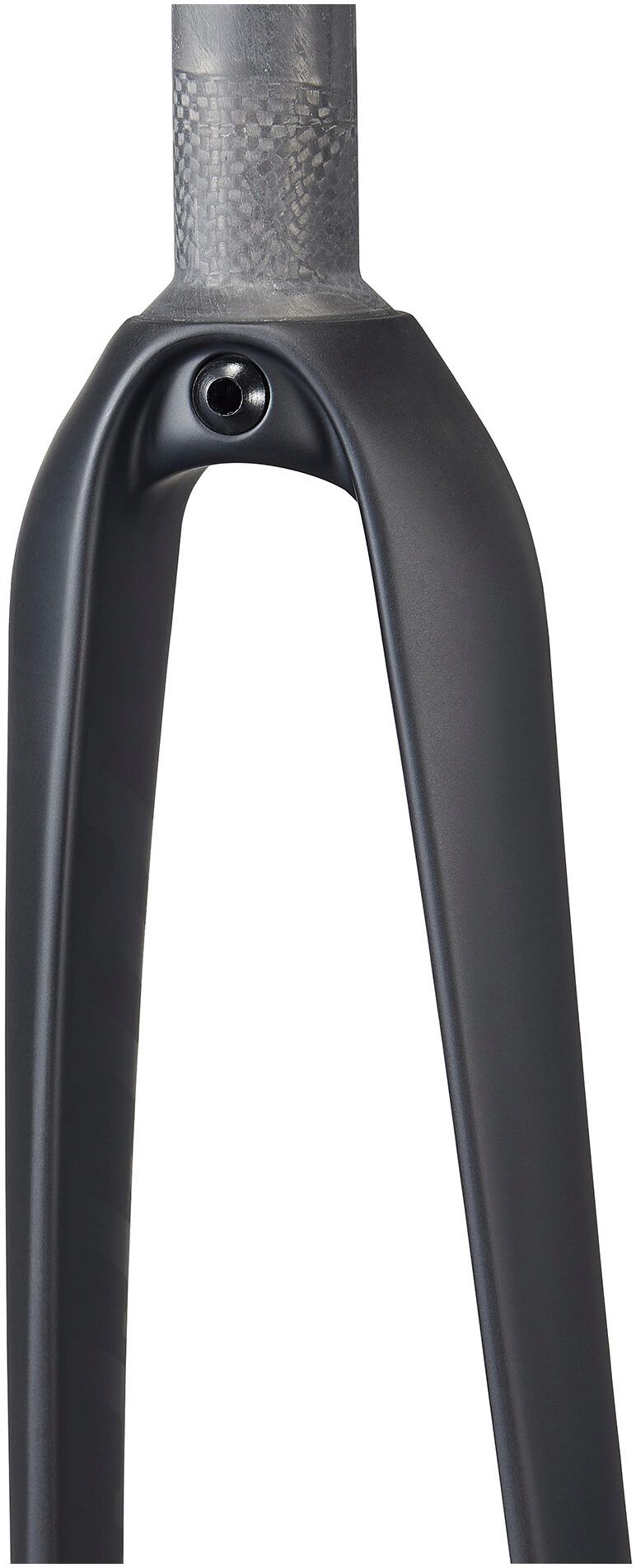

Integrated Carbon Crown

Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.

Specifications

• Material: Carbon Fibre
• Steerer: 1 1/8" Straight with Integrated 45° Crown Race
• Axle-Crown: 371mm
• Rake/Offset: 46mm
• Crown Diameter: 46mm
• Steerer Length: 300mm
• Spacing: 40mm
• Axle Compatibility: 100 x 9mm Quick Release (QR Not Included)
• Wheel and Tyre Compatibility: 700 x 32mm
• Minimum Tyre Clearance: 4mm
• Brake Compatibility: Rim Brakes
• Weight: 380g
