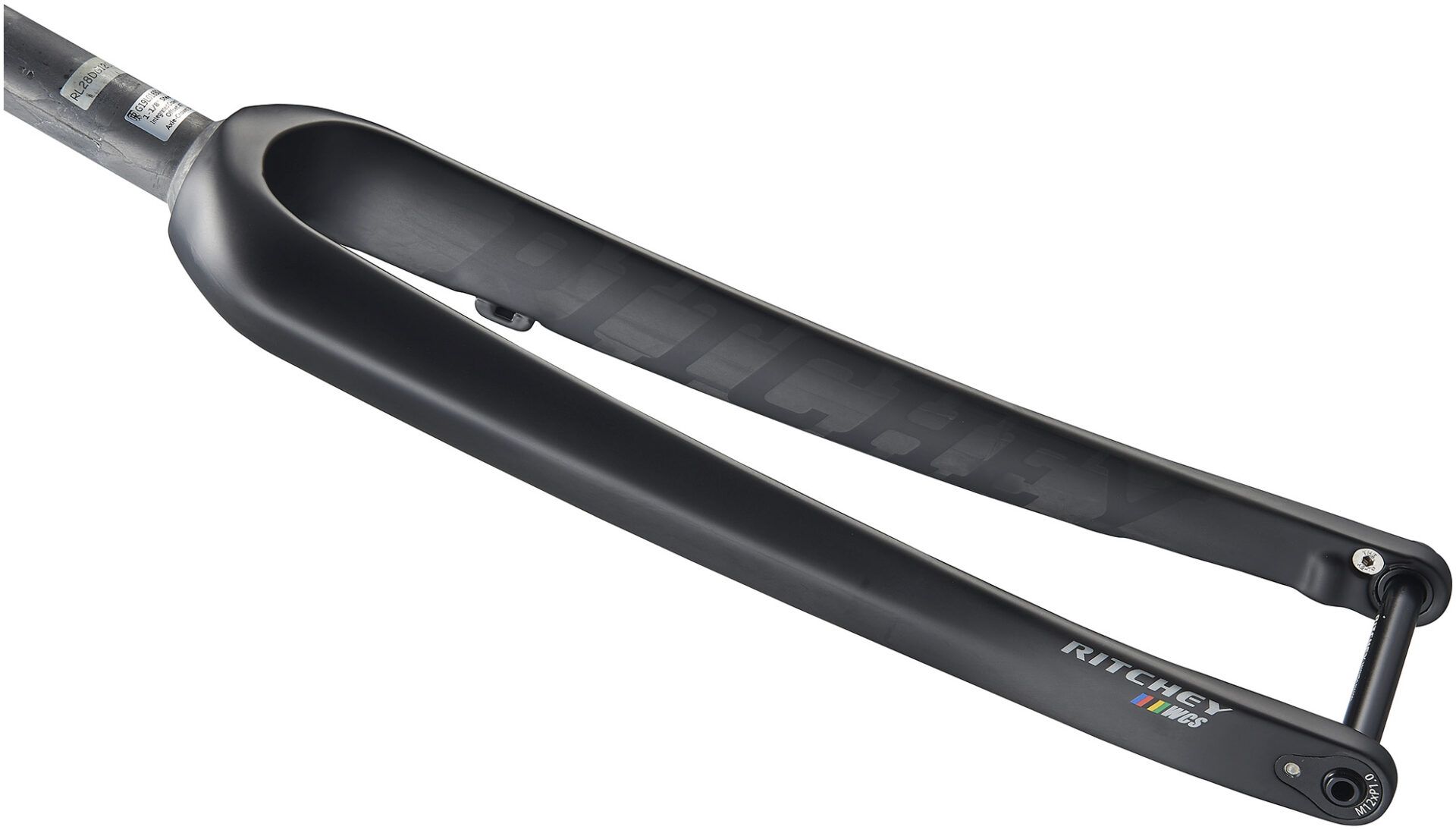

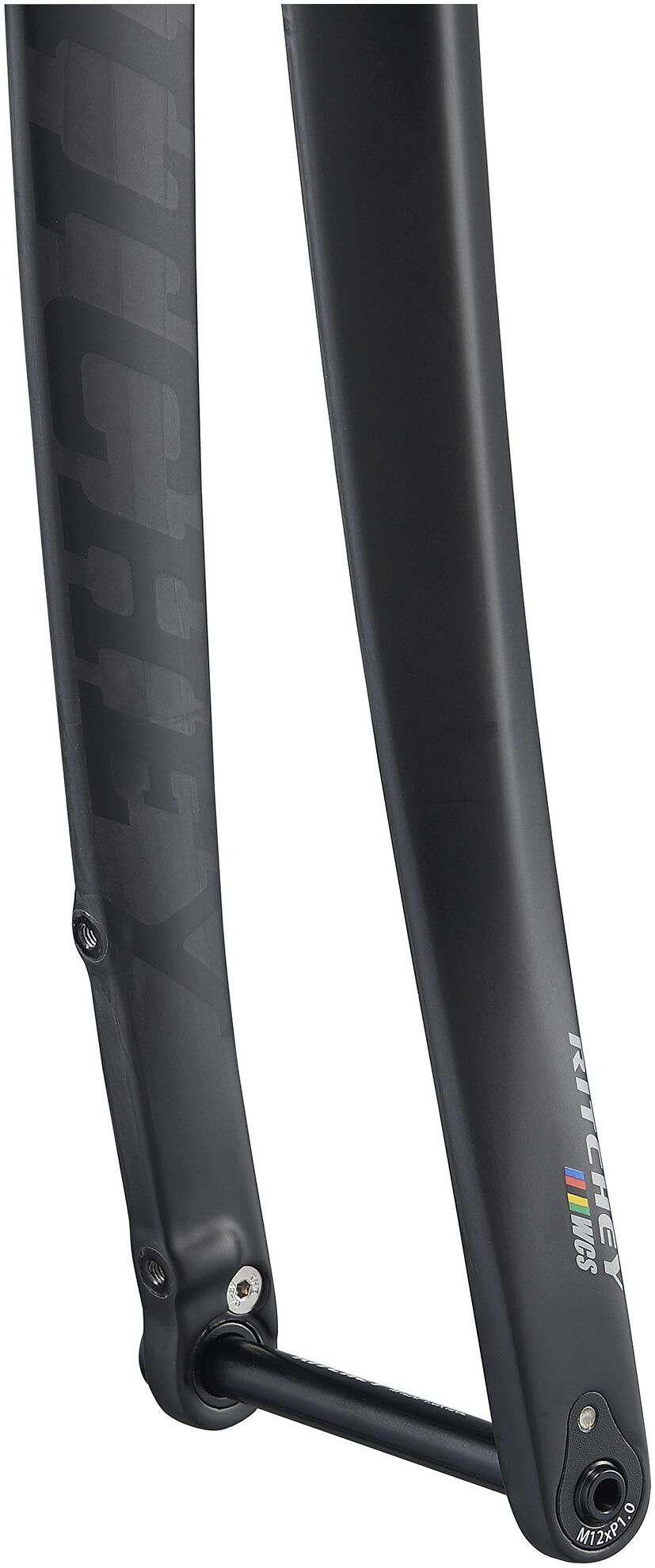

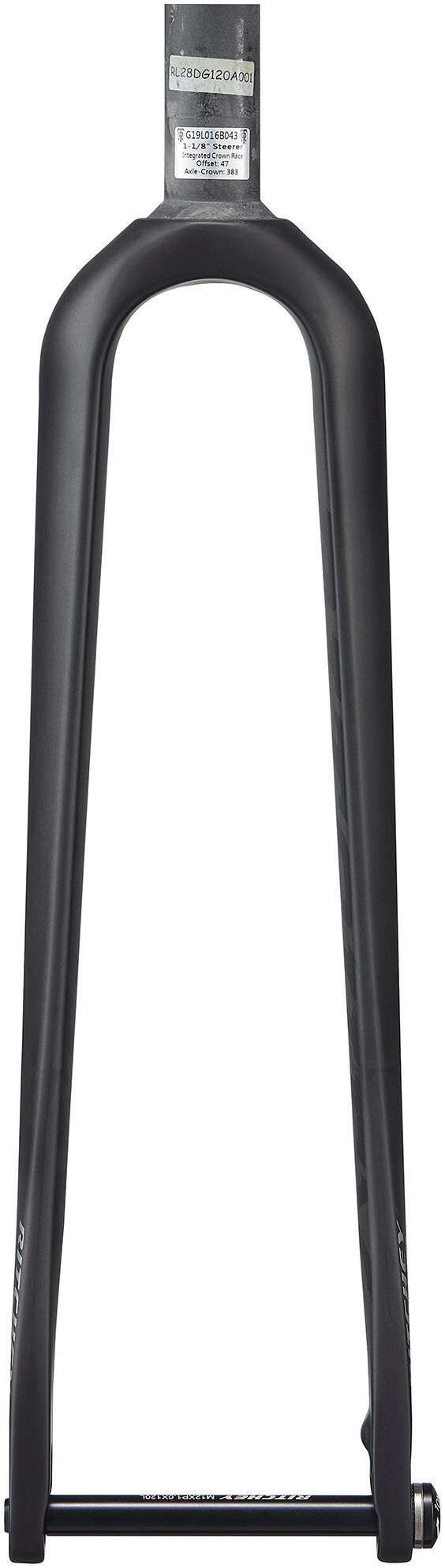

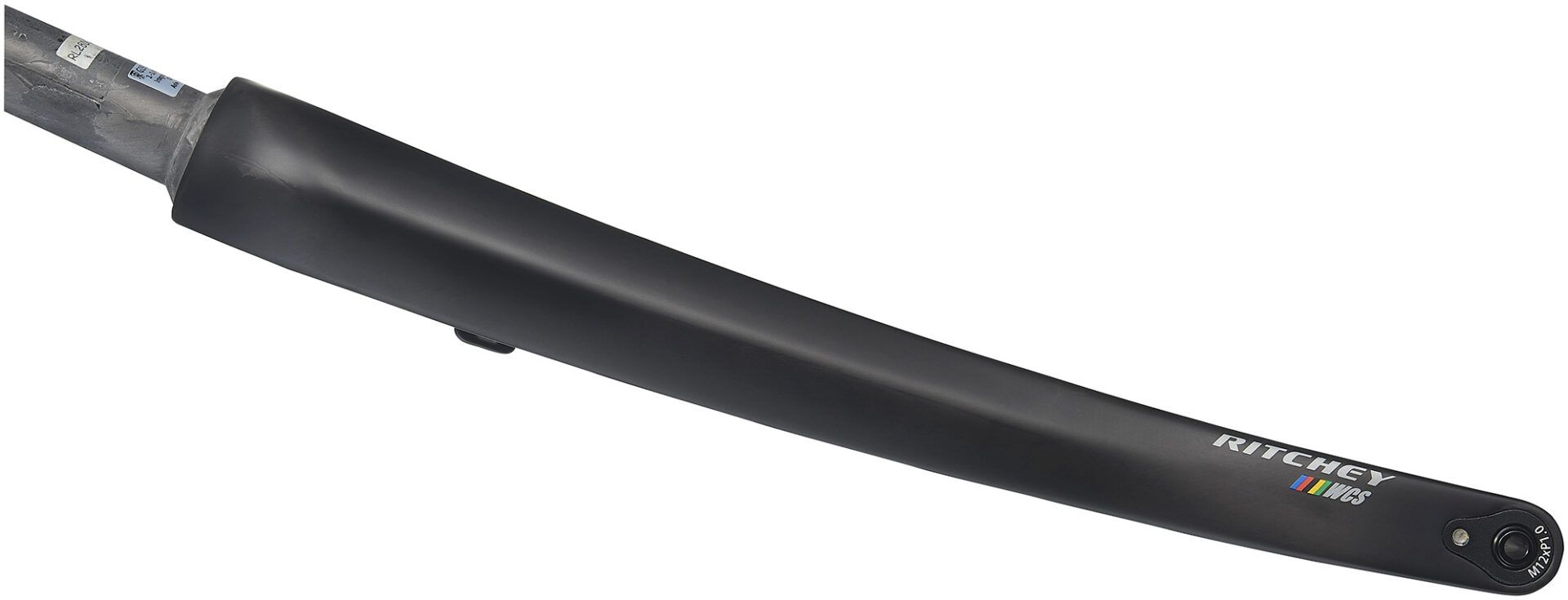

Ritchey WCS Carbon Disc Road Fork

The one-piece carbon monocoque WCS Carbon Disc Road Fork has been meticulously engineered and painstakingly built to perform with razor-sharp accuracy and offer a comfortable yet lively riding experience. Built with High Modulus Fibre (HMF), this impeccable road fork offers superior strength and a superb road feel. Smooth internal fibre flow in the crown/steerer area delivers the best force transfer from crown to shaft and increased impact strength. The orientation of the fibres has been optimised to absorb and dissipate loads, which delivers a confident and comfortable ride. The fork also uses various fibre types based on their specific properties to manage different load types as best as possible in the areas in which they occur - such as side load, torsion and impact. The WCS Carbon Disc Road Fork features a 46mm rake and includes a compression plug. Welcoming flat-mount disc calipers, this fork also fits up to 30c tyres, depending on tyre make and model.

Features

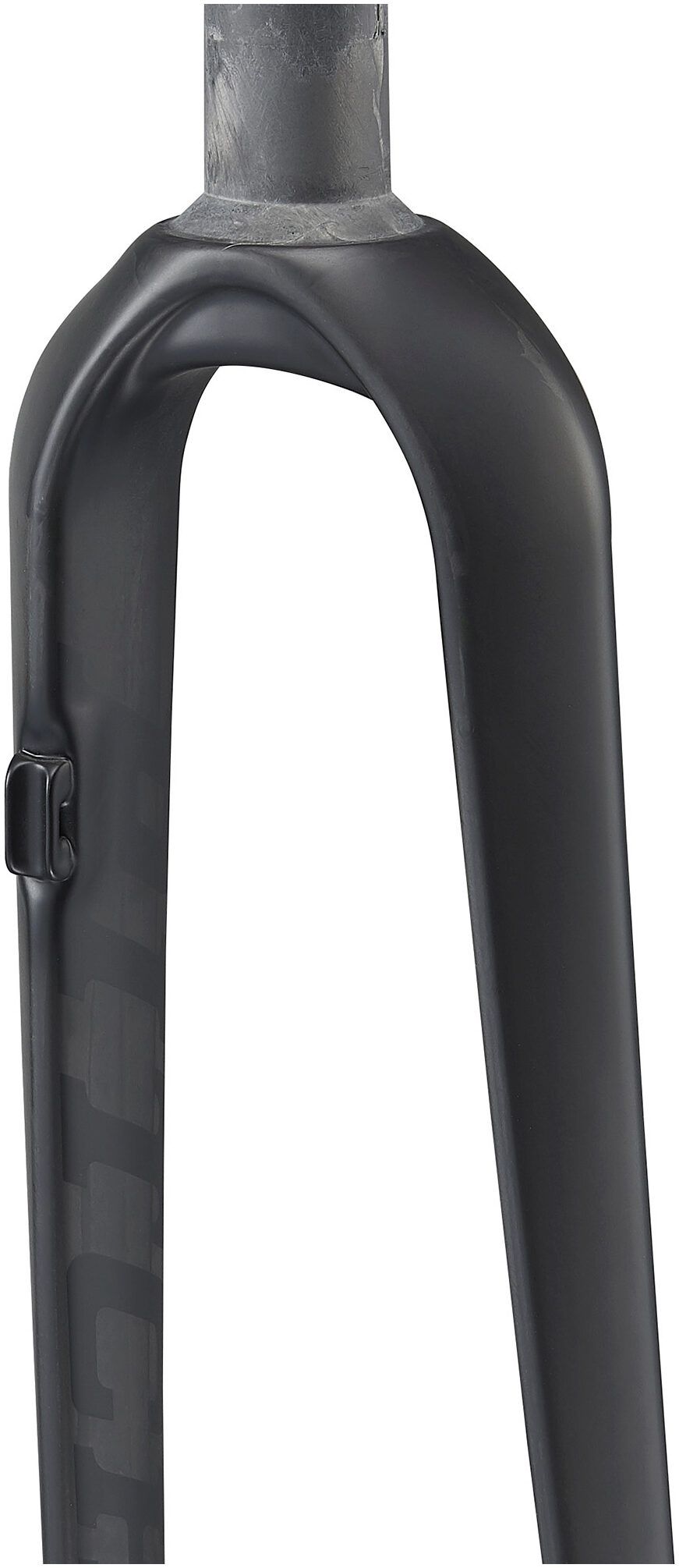

Integrated Carbon Crown

Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.

Specifications

• Material: Carbon Fibre
• Steerer: 1 1/8" Straight with Integrated 45° Crown Race
• Axle-Crown: 371mm
• Rake/Offset: 46mm
• Crown Diameter: 46mm
• Steerer Length: 300mm
• Spacing: 40mm
• Axle Compatibility: 100 x 12mm Thru-Axle (Included)
• Wheel and Tyre Compatibility: 700 x 30mm
• Minimum Tyre Clearance: 4mm
• Disc Brake Rotor Compatibility: 140 / 160mm
• Weight: 405g
